Miller Edge Black End 4-Wire Monitored 2" wide x 1-1/2" high Sold by the Foot

• Electromechanical slide in edge for sectional doors and sliding gates.
• Touch sensitive singaling allows for immediate stopping and reversing of motion
• Temperature range: -30F to 155F
• Lead wire: 22 gauge universal
• Sensitivity: nominal 6-8 PSI
• 2 wire NO configuration
• Vertical or horizontal mount
• ANSI/UL325 recognized component
• One year warranty
• Will fit in 1005-1-3/4" and 1005-2" retainer

Miller Edge Black LH 4-Wire Monitored 2" wide x 1-1/2" high Sold by the Foot

• Electromechanical slide in edge for sectional doors and sliding gates.
• Touch sensitive singaling allows for immediate stopping and reversing of motion
• Temperature range: -30F to 155F
• Lead wire: 22 gauge universal
• Sensitivity: nominal 6-8 PSI
• 2 wire NO configuration
• Vertical or horizontal mount
• ANSI/UL325 recognized component
• One year warranty
• Will fit in 1005-1-3/4" and 1005-2" retainer

Miller Edge Black RH 4-Wire Monitored 2" wide x 1-1/2" high Sold by the Foot

• Electromechanical slide in edge for sectional doors and sliding gates.
• Touch sensitive singaling allows for immediate stopping and reversing of motion
• Temperature range: -30F to 155F
• Lead wire: 22 gauge universal
• Sensitivity: nominal 6-8 PSI
• 2 wire NO configuration
• Vertical or horizontal mount
• ANSI/UL325 recognized component
• One year warranty
• Will fit in 1005-1-3/4" and 1005-2" retainer

Miller Edge Black Universal 4 -Wire Monitored 2" wide x 1-1/2" high Sold by the Foot

• Electromechanical slide in edge for sectional doors and sliding gates.
• Touch sensitive singaling allows for immediate stopping and reversing of motion
• Temperature range: -30F to 155F
• Lead wire: 22 gauge universal
• Sensitivity: nominal 6-8 PSI
• 2 wire NO configuration
• Vertical or horizontal mount
• ANSI/UL325 recognized component
• One year warranty
• Will fit in 1005-1-3/4" and 1005-2" retainer

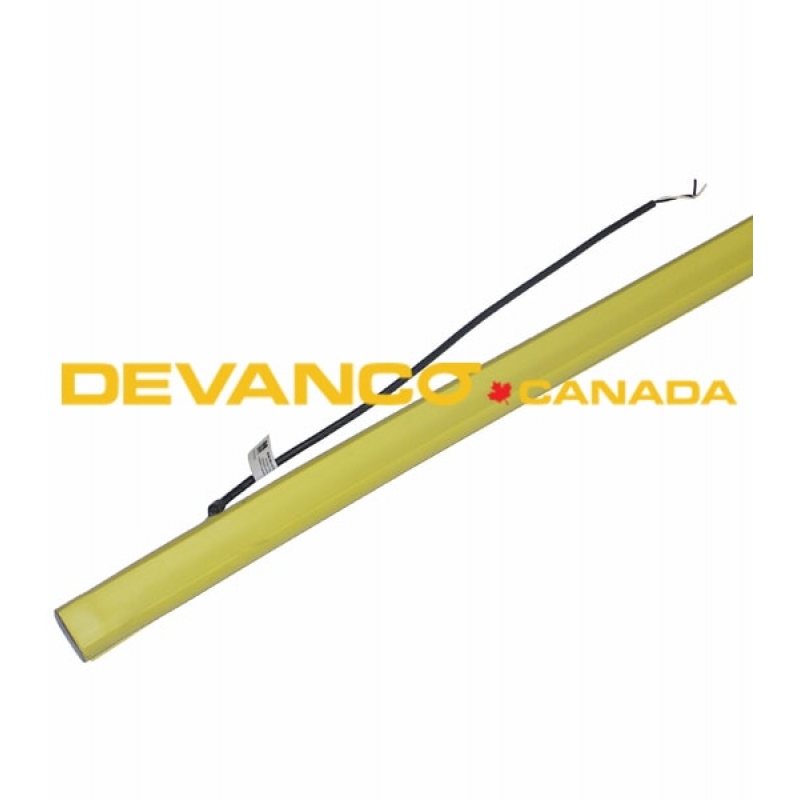

Miller Edge Yellow LH 4-Wire Monitored 2" wide x 1-1/2" high Sold by the Foot

• Electromechanical slide in edge for sectional doors and sliding gates.
• Touch sensitive singaling allows for immediate stopping and reversing of motion
• Temperature range: -30F to 155F
• Lead wire: 22 gauge universal
• Sensitivity: nominal 6-8 PSI
• 2 wire NO configuration
• Vertical or horizontal mount
• ANSI/UL325 recognized component
• One year warranty
• Will fit in 1005-1-3/4" and 1005-2" retainer

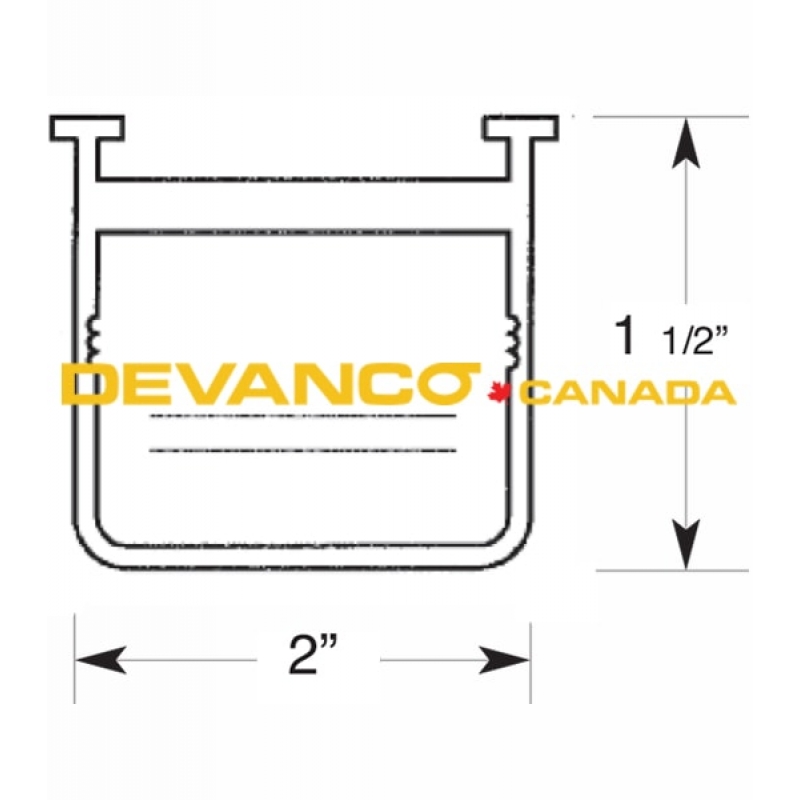

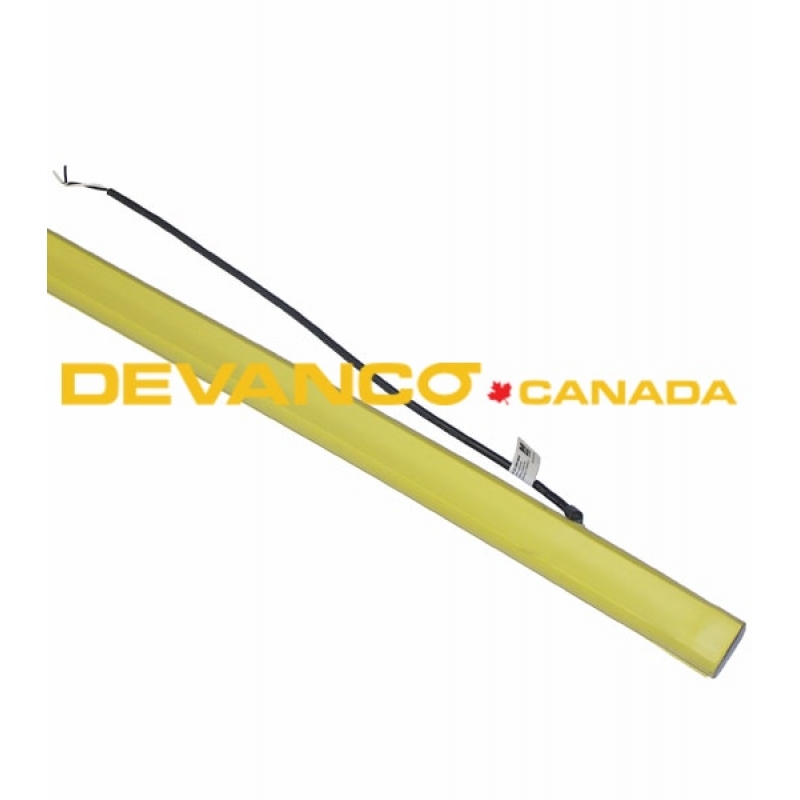

Miller Edge Yellow RH 4-Wire Monitored 2" wide x 1-1/2" high Sold by the Foot

• Electromechanical slide in edge for sectional doors and sliding gates.
• Touch sensitive singaling allows for immediate stopping and reversing of motion
• Temperature range: -30F to 155F
• Lead wire: 22 gauge universal
• Sensitivity: nominal 6-8 PSI
• 2 wire NO configuration
• Vertical or horizontal mount
• ANSI/UL325 recognized component
• One year warranty
• Will fit in 1005-1-3/4" and 1005-2" retainer

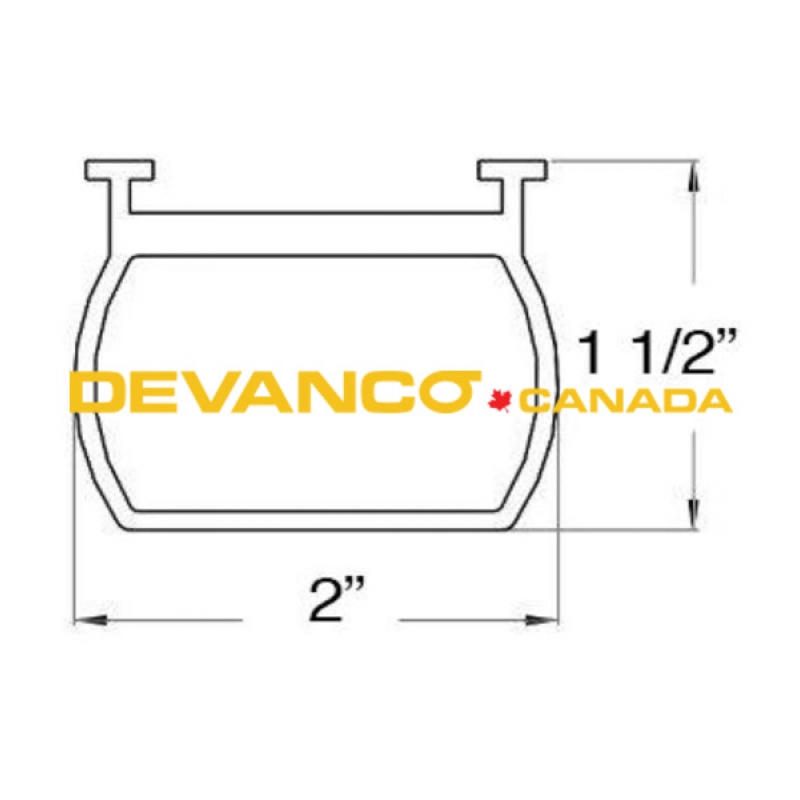

Miller Edge Yellow Universal 4-Wire Monitored 2" wide x 1-1/2" high Sold by the Foot

• Electromechanical slide in edge for sectional doors and sliding gates.
• Touch sensitive singaling allows for immediate stopping and reversing of motion
• Temperature range: -30F to 155F
• Lead wire: 22 gauge universal
• Sensitivity: nominal 6-8 PSI
• 2 wire NO configuration
• Vertical or horizontal mount
• ANSI/UL325 recognized component
• One year warranty
• Will fit in 1005-1-3/4" and 1005-2" retainer

Miller Edge Yellow Left Hand Outlet 2-Wire 2" wide x 1-1/2" high Sold by the Foot

• Electromechanical slide in edge for sectional doors and sliding gates.
• Touch sensitive singaling allows for immediate stopping and reversing of motion
• Temperature range: -30F to 155F
• Lead wire: 22 gauge universal
• Sensitivity: nominal 6-8 PSI
• 2 wire NO configuration
• Vertical or horizontal mount
• ANSI/UL325 recognized component
• One year warranty
• Will fit in 1005-1-3/4" and 1005-2" retainer

Miller Edge Yellow Right Hand Outlet 2-Wire 2" wide x 1-1/2" high Sold by the Foot

• Electromechanical slide in edge for sectional doors and sliding gates.
• Touch sensitive singaling allows for immediate stopping and reversing of motion
• Temperature range: -30F to 155F
• Lead wire: 22 gauge universal
• Sensitivity: nominal 6-8 PSI
• 2 wire NO configuration
• Vertical or horizontal mount
• ANSI/UL325 recognized component
• One year warranty
• Will fit in 1005-1-3/4" and 1005-2" retainer

Miller Edge Yellow Universal Outlet 2-Wire 2" wide x 1-1/2" high Sold by the Foot

• Electromechanical slide in edge for sectional doors and sliding gates.
• Touch sensitive singaling allows for immediate stopping and reversing of motion
• Temperature range: -30F to 155F
• Lead wire: 22 gauge universal
• Sensitivity: nominal 6-8 PSI
• 2 wire NO configuration
• Vertical or horizontal mount
• ANSI/UL325 recognized component
• One year warranty
• Will fit in 1005-1-3/4" and 1005-2" retainer

Miller Edge Black Rigid PVC Mounting Channel "L" Shape Sold by the Foot

• Used on CPT-210 extrusion

Nice Key Unlock System for Older Metro Gate Op.

• For underground gate operator
• (1) MEA2 KEY UNLOCK SYSTEM (2) KEYS- METROPLEX & BIG METRO
• Does not work on the newer systems. For newer Big Metro use BMA3 lever type release

Miller Edge Funny Flaps for MC22 Sold as a Pair

• Funny Flaps for use with the MC22 Sensing Edge and are a great fit for an application where extra sensitivity is needed
• They're necessary to fill the gap between the edge and guide within the sensing edge system and their flexible durable construction offers an alternative to more rigid standard sensing edge setups.

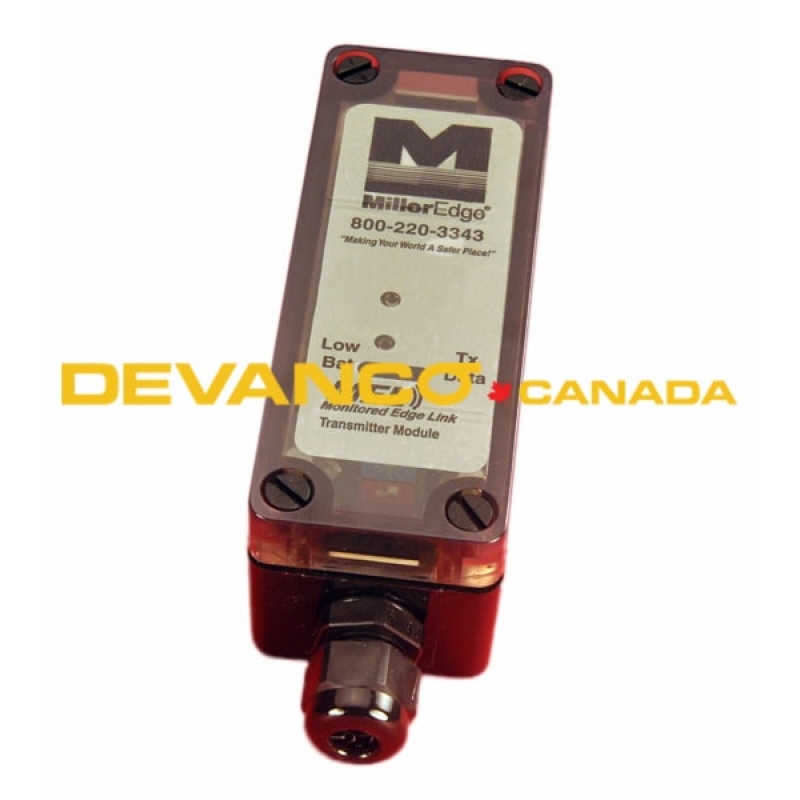

Miller Edge Monitored Edge Link-II Transmitter

• Miller Edge Monitored Edge Link II TRANSMITTER ONLY
• Monitors the presence and function of any 10K (T2) monitored sensing edge
• Provides a monitored wireless signal transmission from the sensor to the operator controls
• Improved immunity to RF interference with 916 MHz operating frequency
• Eliminates visible coil cords and retracting reels
• Saves installation time
• Aesthetically pleasing appearance free of dangling wires
• Standard AA lithium batteries simplify replacement and withstand extreme temperatures
• Dimensions (TX): 1.75"W x 4.62"H x 1.75"D

Miller Edge MEL Transmitter 315 MHz 2nd Generation

• MEL provides a wireless signal transmission from an edge sensor to operator controls eliminating the need to hard wire these devices

Cable Tie Metal Tooth 14" 50 LB Black 100/Bag

Micanan 3/8" Take-Up Bolt c/w 2 Hex Nuts & 1 Lock Washer

Serco Manual Brake Band

• For use with Serco brand dock levelers

Micanan Hex Head Bolt 1/2" - 13 UNC x 1-1/4"

• Used on PRO-GHC
• 4 required per operator

Micanan R.H. Phillips Machine Screw 4-40 UNCx1-1/2

• crew to hold double limits
