Miller Edge 2-Wire Black End Outlet 4 ft Long

• Electromechanical slide in edge with a small profile for motorized gates and doors rolling shutters and pinch point protection applications.
• Touch sensitive signaling
• Temperature range: -30F to 155F
• Lead wire: 18 gauge 2ft length
• Sensitivity: nominal 4 PSI
• 2 wire NO configuration
• Vertical or horizontal mount
• ANSI/UL325 recognized component
• Mounting channel sold separately
• One year warranty

Miller Edge 2-Wire Black End Outlet 5 ft Long

• Electromechanical slide in edge with a small profile for motorized gates and doors rolling shutters and pinch point protection applications.
• Touch sensitive signaling
• Temperature range: -30F to 155F
• Lead wire: 18 gauge 2ft length
• Sensitivity: nominal 4 PSI
• 2 wire NO configuration
• Vertical or horizontal mount
• ANSI/UL325 recognized component
• Mounting channel sold separately
• One year warranty

Miller Edge 2-Wire Black End Outlet 6 ft Long

• Electromechanical slide in edge with a small profile for motorized gates and doors rolling shutters and pinch point protection applications.
• Touch sensitive signaling
• Temperature range: -30F to 155F
• Lead wire: 18 gauge 2ft length
• Sensitivity: nominal 4 PSI
• 2 wire NO configuration
• Vertical or horizontal mount
• ANSI/UL325 recognized component
• Mounting channel sold separately
• One year warranty

Miller Edge Aluminum Mounting Channel Sold per Foot

• 1-1/16" Wide 9/16" High

Miller Edge Rigid PVC Mounting Channel Sold per Foot

Miller Edge Yellow 2-Wire NM Left Hand Outlet Sold per Foot

• Electromechanical slide in edge with a small profile for motorized gates and doors rolling shutters and pinch point protection applications.
• Touch sensitive signaling
• Temperature range: -30F to 155F
• Lead wire: 18 gauge 2ft length
• Sensitivity: nominal 4 PSI
• 2 wire NO configuration
• Vertical or horizontal mount
• ANSI/UL325 recognized component
• Mounting channel sold separately
• One year warranty

Miller Edge Yellow 2-Wire NM Right Hand Outlet Sold per Foot

• Electromechanical slide in edge with a small profile for motorized gates and doors rolling shutters and pinch point protection applications.
• Touch sensitive signaling
• Temperature range: -30F to 155F
• Lead wire: 18 gauge 2ft length
• Sensitivity: nominal 4 PSI
• 2 wire NO configuration
• Vertical or horizontal mount
• ANSI/UL325 recognized component
• Mounting channel sold separately
• One year warranty

Miller Edge Sensing Edge Yellow 4-Wire Monitored End Outlet Sold per Foot

• Electromechanical slide in edge with a small profile for motorized gates and doors rolling shutters and pinch point protection applications.
• Touch sensitive signaling
• Temperature range: -30F to 155F
• Lead wire: 18 gauge 2ft length
• Sensitivity: nominal 4 PSI
• 2 wire NO configuration
• Vertical or horizontal mount
• ANSI/UL325 recognized component
• Mounting channel sold separately
• One year warranty

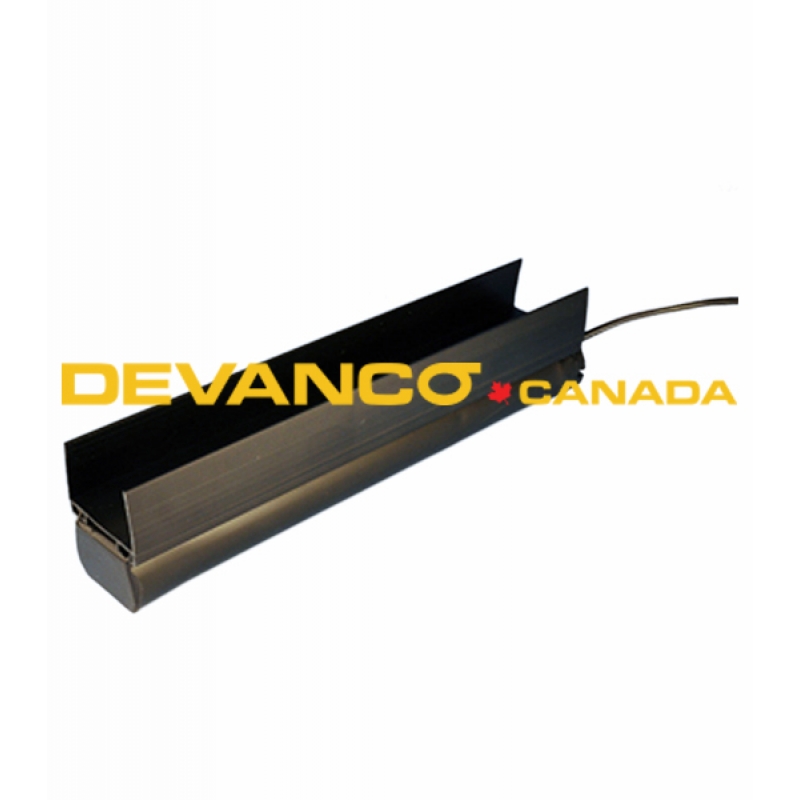

Miller Edge Black LH 2-Wire Monitored 2" wide x 1-1/2" high Sold by the Foot

• Electromechanical slide in edge for sectional doors and sliding gates.
• Touch sensitive singaling allows for immediate stopping and reversing of motion
• Temperature range: -30F to 155F
• Lead wire: 22 gauge universal
• Sensitivity: nominal 6-8 PSI
• 2 wire NO configuration
• Vertical or horizontal mount
• ANSI/UL325 recognized component
• One year warranty
• Comes standard with T2 10K resistor unless otherwise stated
• Will fit in 1005-1-3/4" and 1005-2" retainer

Miller Edge Black RH 2-Wire Monitored 2" wide x 1-1/2" high Sold by the Foot

• Electromechanical slide in edge for sectional doors and sliding gates.
• Touch sensitive singaling allows for immediate stopping and reversing of motion
• Temperature range: -30F to 155F
• Lead wire: 22 gauge universal
• Sensitivity: nominal 6-8 PSI
• 2 wire NO configuration
• Vertical or horizontal mount
• ANSI/UL325 recognized component
• One year warranty
• Comes standard with T2 10K resistor unless otherwise stated
• Will fit in 1005-1-3/4" and 1005-2" retainer

Miller Edge Black RH 2-Wire Monitored T3 2" wide x 1-1/2" high Sold by the Foot

• Electromechanical slide in edge for sectional doors and sliding gates.
• Touch sensitive singaling allows for immediate stopping and reversing of motion
• Temperature range: -30F to 155F
• Lead wire: 22 gauge universal
• Sensitivity: nominal 6-8 PSI
• 2 wire NO configuration
• Vertical or horizontal mount
• ANSI/UL325 recognized component
• One year warranty
• T3 = Diode capacitor
• Will fit in 1005-1-3/4" and 1005-2" retainer

Miller Edge Black Universal 2 -Wire Monitored 2" wide x 1-1/2" high Sold by the Foot

• Electromechanical slide in edge for sectional doors and sliding gates.
• Touch sensitive singaling allows for immediate stopping and reversing of motion
• Temperature range: -30F to 155F
• Lead wire: 22 gauge universal
• Sensitivity: nominal 6-8 PSI
• 2 wire NO configuration
• Vertical or horizontal mount
• ANSI/UL325 recognized component
• One year warranty
• Comes standard with T2 10K resistor unless otherwise stated
• Will fit in 1005-1-3/4" and 1005-2" retainer

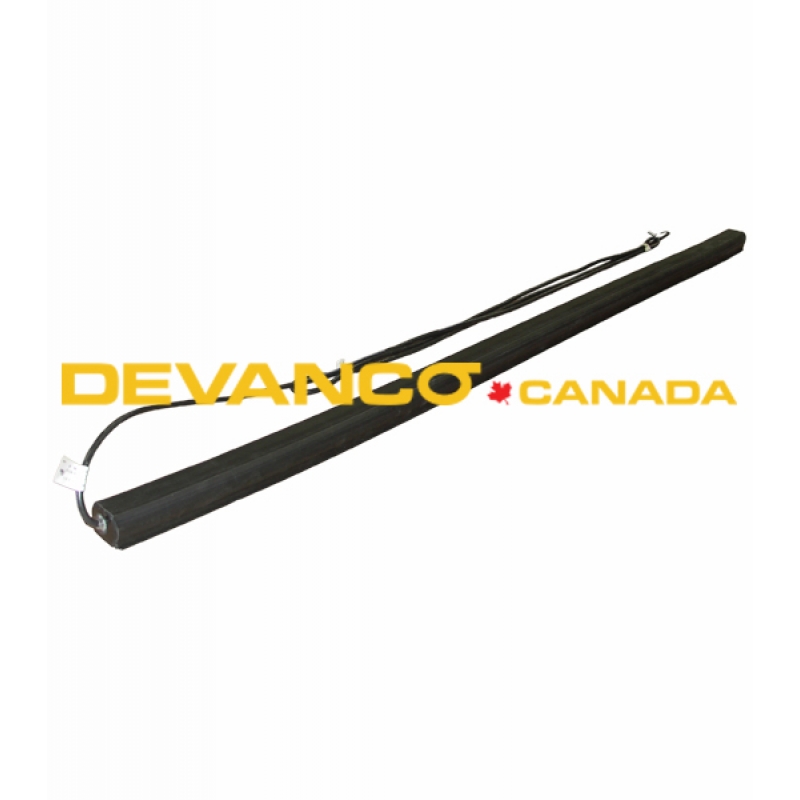

Miller Edge Black End Outlet 2 -Wire 2" wide x 1-1/2" high Sold by the Foot

• Electromechanical slide in edge for sectional doors and sliding gates.
• Touch sensitive singaling allows for immediate stopping and reversing of motion
• Temperature range: -30F to 155F
• Lead wire: 22 gauge universal
• Sensitivity: nominal 6-8 PSI
• 2 wire NO configuration
• Vertical or horizontal mount
• ANSI/UL325 recognized component
• One year warranty
• Will fit in 1005-1-3/4" and 1005-2" retainer

Miller Edge Black Left Hand Outlet 2-Wire 2" wide x 1-1/2" high Sold by the Foot

• Electromechanical slide in edge for sectional doors and sliding gates.
• Touch sensitive singaling allows for immediate stopping and reversing of motion
• Temperature range: -30F to 155F
• Lead wire: 22 gauge universal
• Sensitivity: nominal 6-8 PSI
• 2 wire NO configuration
• Vertical or horizontal mount
• ANSI/UL325 recognized component
• One year warranty
• Will fit in 1005-1-3/4" and 1005-2" retainer

Miller Edge Black Right Hand Outlet 2-Wire 2" wide x 1-1/2" high Sold by the Foot

• Electromechanical slide in edge for sectional doors and sliding gates.
• Touch sensitive singaling allows for immediate stopping and reversing of motion
• Temperature range: -30F to 155F
• Lead wire: 22 gauge universal
• Sensitivity: nominal 6-8 PSI
• 2 wire NO configuration
• Vertical or horizontal mount
• ANSI/UL325 recognized component
• One year warranty
• Will fit in 1005-1-3/4" and 1005-2" retainer

Miller Edge Black Universal Outlet 2 -Wire 2" wide x 1-1/2" high Sold by the Foot

• Electromechanical slide in edge for sectional doors and sliding gates.
• Touch sensitive singaling allows for immediate stopping and reversing of motion
• Temperature range: -30F to 155F
• Lead wire: 22 gauge universal
• Sensitivity: nominal 6-8 PSI
• 2 wire NO configuration
• Vertical or horizontal mount
• ANSI/UL325 recognized component
• One year warranty

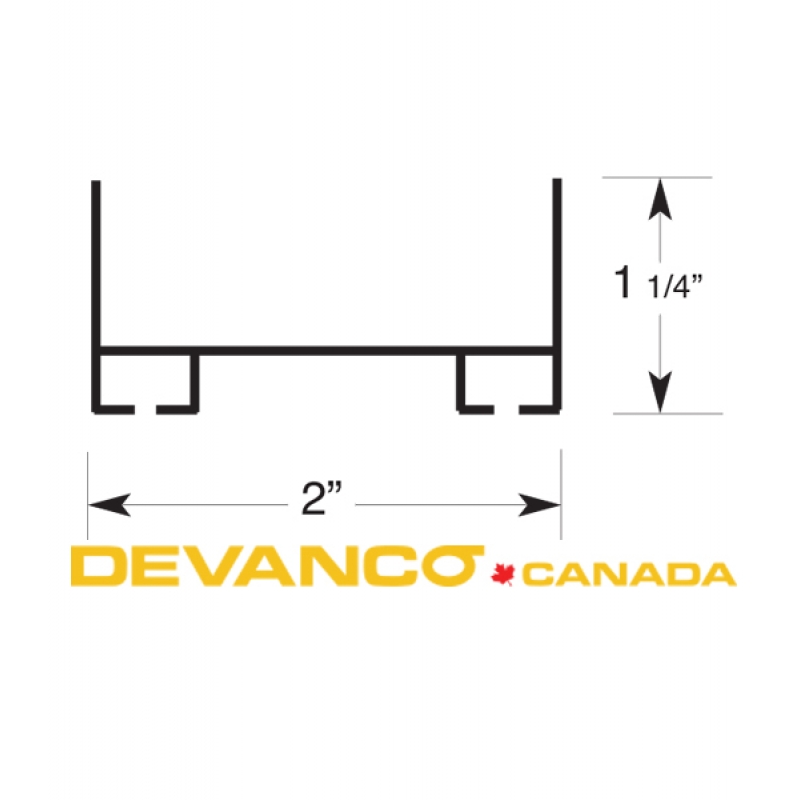

Miller Edge U-Shaped PVC Mounting Channel Sold by the Foot

• 2" Wide 1-1/4" High

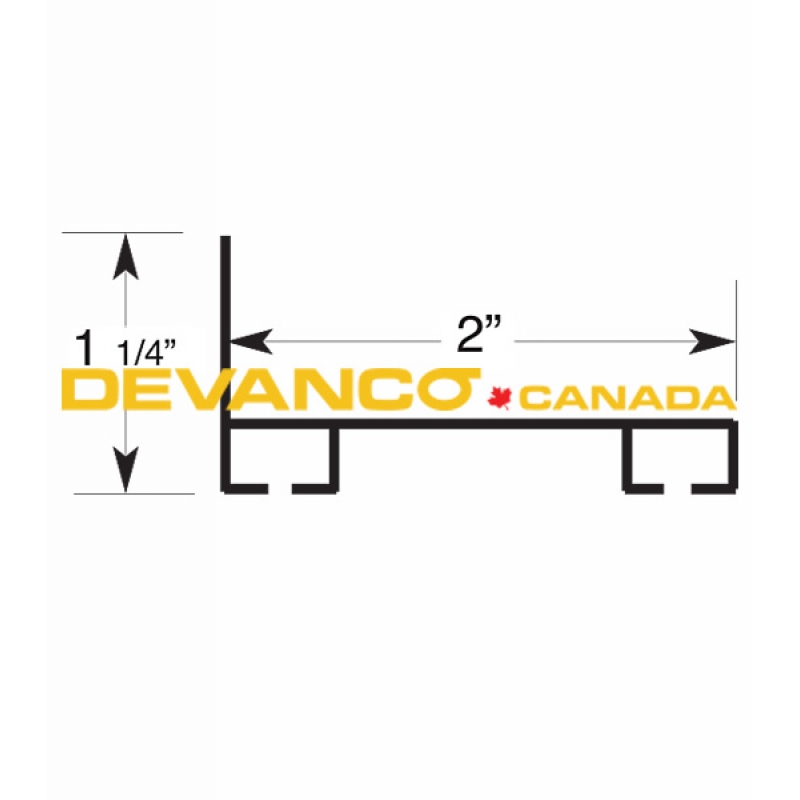

Miller Edge L-Shaped PVC Mounting Channel Sold by the Foot

• 2" Wide 1-1/4" High

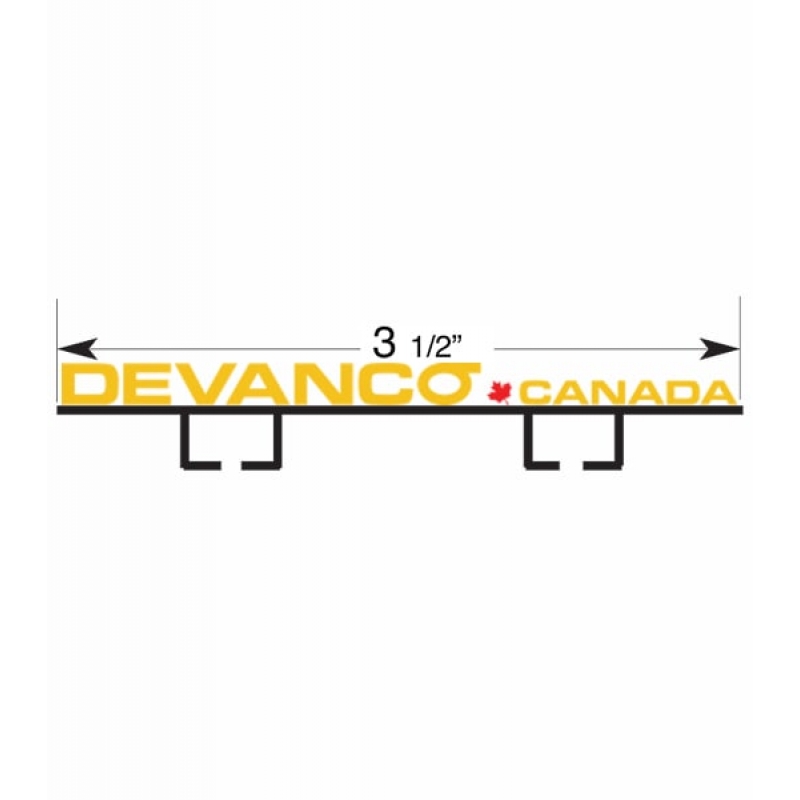

Miller Edge Flat 3-1/2" Wide PVC Mounting Channel Sold by the Foot

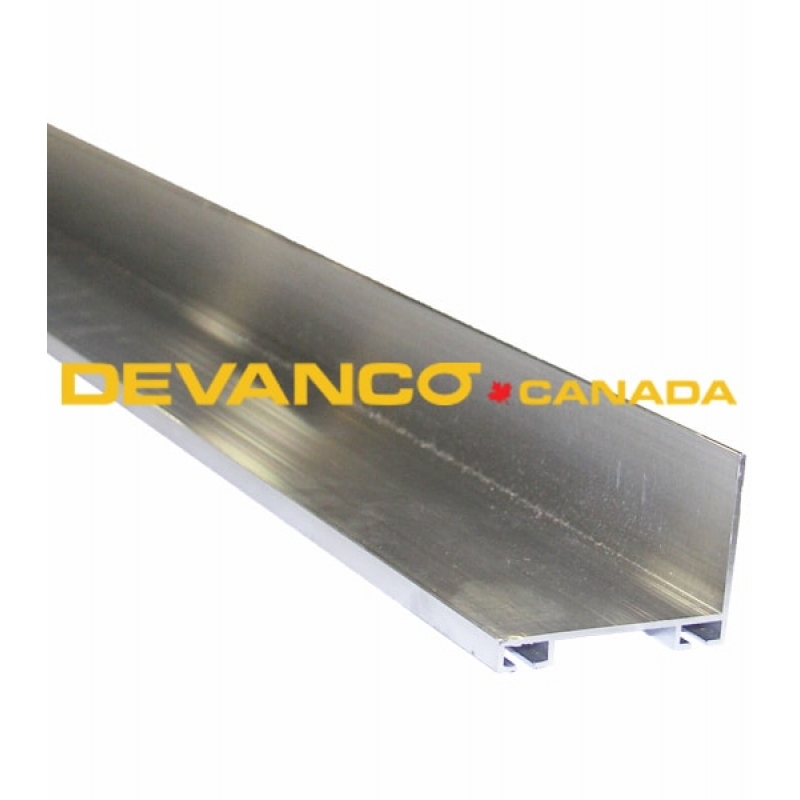

Miller Edge L-Shaped Aluminum Mounting Channel Sold by the Foot
