BEA Induction Loop Replacement for Automatic Barrier Gates

• Evoloop is the alternative to traditional in-ground induction loops used for vehicle detection in parking access and security applications
• Ideal for Automatic Barrier Gate Operators when installing a tradition in-ground loop is not practical (winter weather or the customer doesn't want to cut new ashalt etc.)
• Designed with a 140 degree field of view Evoloop allows for up to 3 virtual loops that provide precise detection for control of the barrier.
• Dimensions: 2" x 6" x 2-5/8"
• Mounting height between 12" and 27" from the road surface
• Supply voltage: 12-30VDC +-10% / 12-24V AC +-10%
• Programming via the EvoLoop App
• Detection zone: 13'x16' @16'
• Temperature range: -25 to 55 celcius
• Nema 4 and IP65

BEA Falcon Wide Explosion Proof HSG 100ft Cable

• FALCON EX combines a microwave activation sensor with an explosion-proof / flame-proof housing
• Ideal for use in unique environments such as chemical manufacturing petroleum refining and agriculture.
• FALCON EX Wide can be mounted from 11 ½ – 21’ to fit any industrial application.
• Nema4/IP66
• Detection Zone: Falcon EX W: 30’ × 11’ @ 21’
• Operating termperature: -22-140F

BEA Falcon Motion Detector w/Exp Proof Housing 100ft Cable Mount 6.5' to 11.5'

• FALCON EX combines a microwave activation sensor with an explosion-proof / flame-proof housing
• Ideal for use in unique environments such as chemical manufacturing petroleum refining and agriculture.
• FALCON EX can be mounted from 6.5' to 11.5' to fit any industrial application.
• Nema4/IP66
• Detection Zone: Falcon EX XL: 13’ × 6 ½’ @ 8 1⁄5’
• Oerating termperature: -22-140F

BEA LZRFLATSCAN Kit Black 2 Sensors + Cables & Accessories

• Time-of-flight presence sensor for use as a stand alone safety sensor on automatic pedestrian swing doors.
• Can be used as a reactivation sensor on the approach side of low energy doors.
• Generates 170 detection points across a single curtain allowing for coverage over the entire face of a single door leaf including the hinge area.
• Finger Detection Technologyâ„¢ utilizes 100 detection points within the hinge area of the door protecting hands and fingers while the door is in motion.
• Max. detection range: 13' with a reflectivity of 2%
• IP54
• Operating temperature: -22 to 140F (powered)

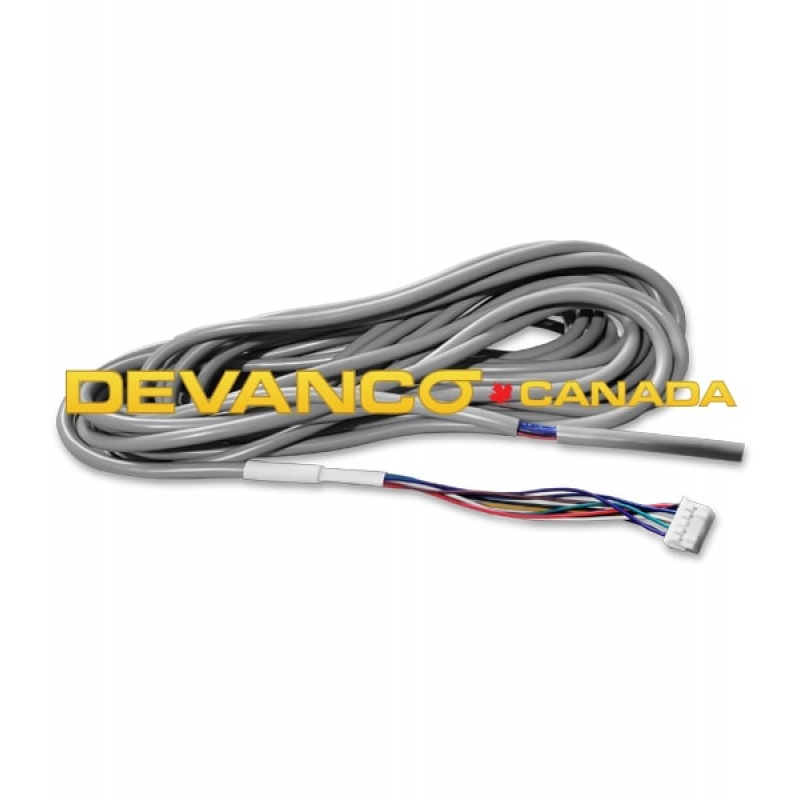

BEA Harness IXIO with Relay 30ft

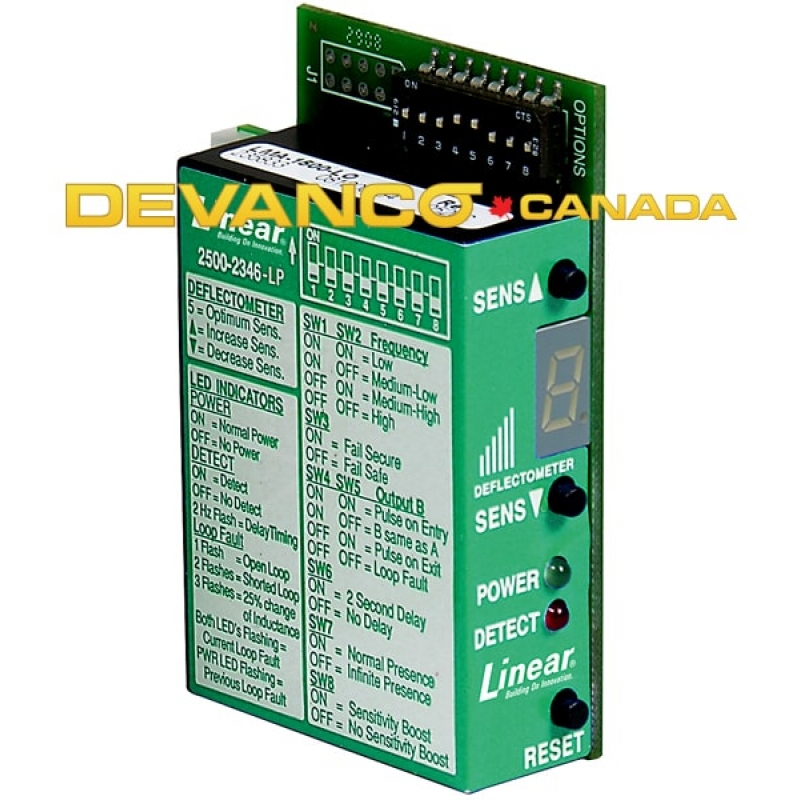

Linear Plug-In Loop Detector LP PVT LBL

Bircher ProLoop 2 Dual channel loop detector 24 AC/DC Din-Rail

• 2 Independent Loop Inputs for dual-lane detection or differentiated entry/exit monitoring
• Two Configurable Relay Outputs: Allows integration with control systems for gate/door activation alarms or signal switching
• Alarm Output: Enhances safety by dedicating fault outputs or loop error detection
• Intuitive interface allows for a simple and fast setup Ideal for vehicle access control for gates barriers and parking systems
• 24V AC/DC input voltage
• Din-Rail mount

Devanco Loop 2'6 x 6' pave-over 50' lead-in

• Ideal for use on with gravel driveways or sufaces that are to be asphalted
• Features a twisted lead-in to reduce the chances of interference and false detections.
• Direct burial loops should be buried approximately 6" deep

Devanco Loop 2'6" x 6' saw-cut 50' lead-in

• Manufactured to the highest quality standards to ensure accurate detection our Pre-formed loops come with a 50 foot twisted lead-in ware and available lead-in lengths up to 500 feet.
• Ideal for use on existing asphalt or concrete surfaces
• Features a non spliced continuous wire throughout loop turns and lead-in.
• requires the use of loop sealer when being installed to ensure long lasting trouble-free detection

Devanco Loop 2' x 4' pave-over 50' lead-in

• Ideal for use on with gravel driveways or surfaces that are to be asphalted
• Features a twisted lead-in to reduce the chances of interference and false detections.
• Direct burial loops should be buried approximately 6" deep

Devanco Loop 2 x 6' pave-over 50' lead-in

• Ideal for use on with gravel driveways or sufaces that are to be asphalted
• Features a twisted lead-in to reduce the chances of interference and false detections.
• Direct burial loops should be buried approximately 6" deep

Devanco Loop 2' x 6' saw-cut 50' lead-in

• Manufactured to the highest quality standards to ensure accurate detection our Pre-formed loops come with a 50 foot twisted lead-in ware and available lead-in lengths up to 500 feet.
• Ideal for use on existing asphalt or concrete surfaces
• Features a non spliced continuous wire throughout loop turns and lead-in.
• requires the use of loop sealer when being installed to ensure long lasting trouble-free detection

Signal Tube Treadle Hose Black Sold per foot

• Applications: for gas stations and apartments
• I.D. : 3/8"
• Also known as Drive Over Hose.

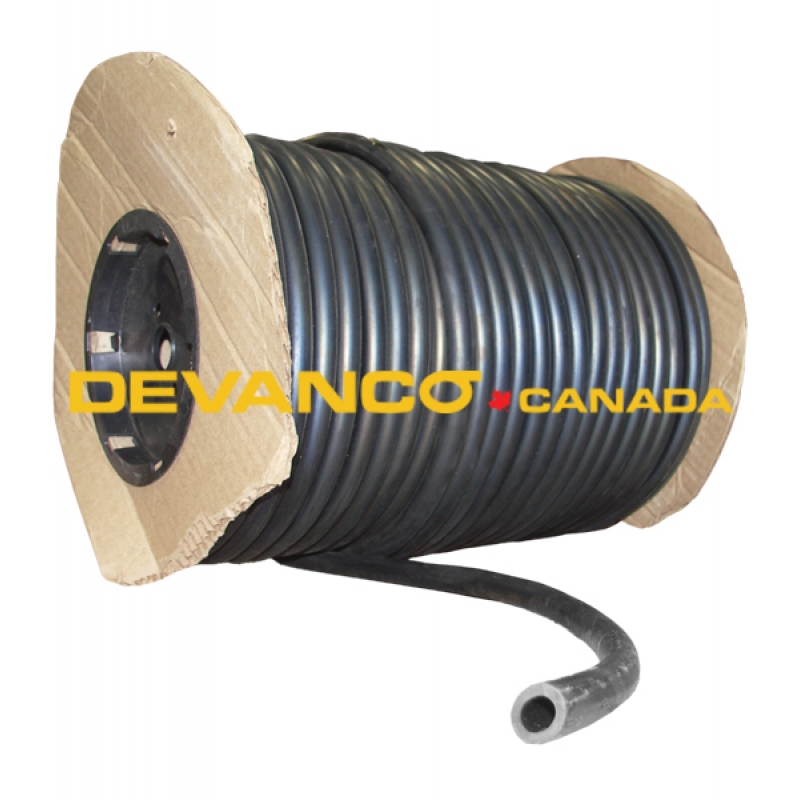

Gum Hose 1/2" ID 200' Spool

• 1/2" inside diameter
• Installed in bottom "U" rubber for use as a safety edge

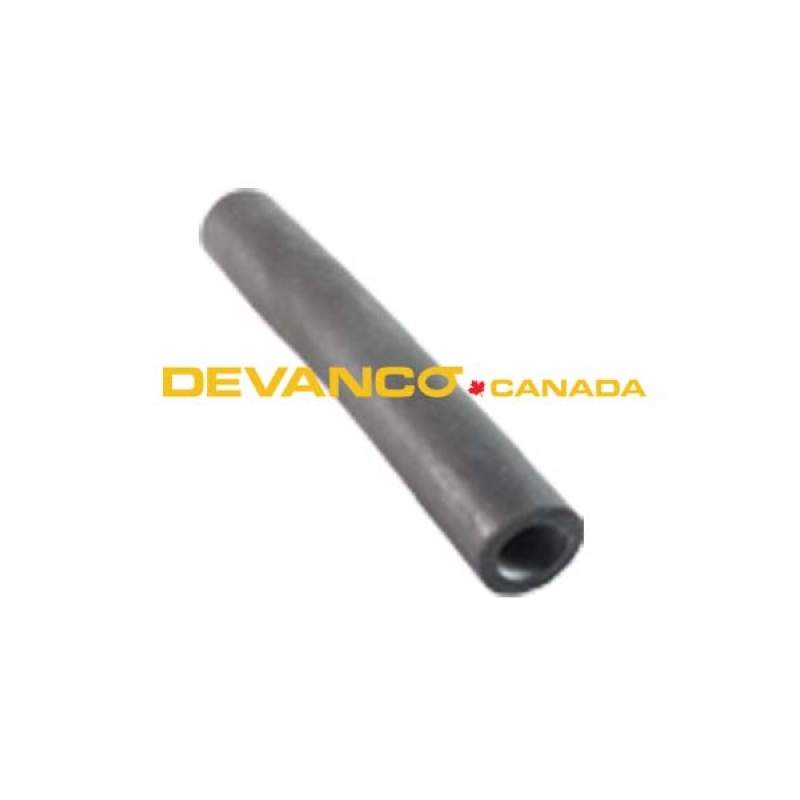

Gum Hose 1/2" ID Sold per Foot

• 1/2" inside diameter
• Installed in bottom "U" rubber for use as a safety edge

Bircher Hercules 2s Microwave Motion Sensor for Industrial Doors

• Two completely independent programmable outputs for endless application scenarios
• Highly flexible program settings utilizing both outputs are now easier to program
• 23' (7 m) long cable for maximum installation flexibility
• 6-wire cable using traditional wire colors & thicker wire gauge for easier installation
• Pulse on exit feature
• Differentiation between pedestrian and vehicle traffic
• Cross-traffic optimization prevents unwanted opening
• Mounting height range of 6'6" to 23' (2 to 7 m) Max range of 82ft
• Replaces older version model number: F531.132100

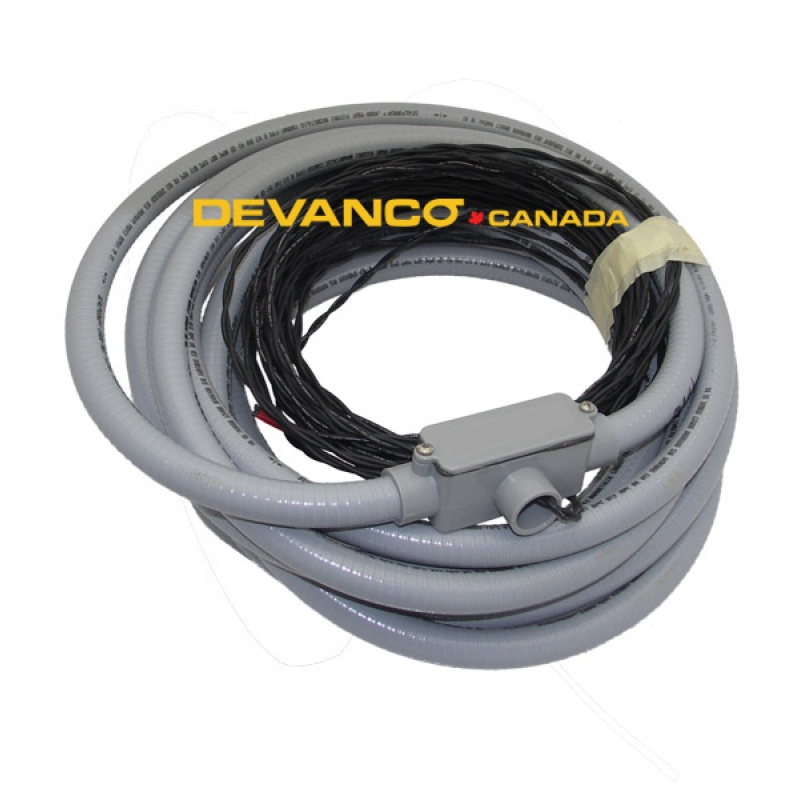

Devanco Loop 3' x 6' pave-over 50' lead-in

• Ideal for use on with gravel driveways or surfaces that are to be asphalted
• Features a twisted lead-in to reduce the chances of interference and false detections.
• Direct burial loops should be buried approximately 6" deep

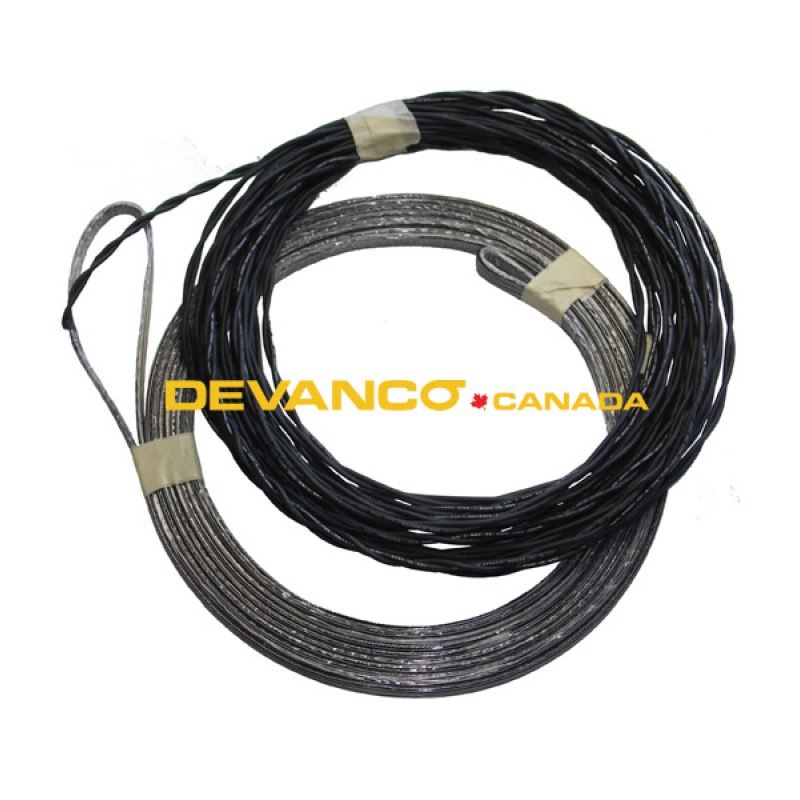

Devanco Loop 3' x 6' saw-cut 50' lead-in

• Manufactured to the highest quality standards to ensure accurate detection our Pre-formed loops come with a 50 foot twisted lead-in ware and available lead-in lengths up to 500 feet.
• Ideal for use on existing asphalt or concrete surfaces
• Features a non spliced continuous wire throughout loop turns and lead-in.
• requires the use of loop sealer when being installed to ensure long lasting trouble-free detection

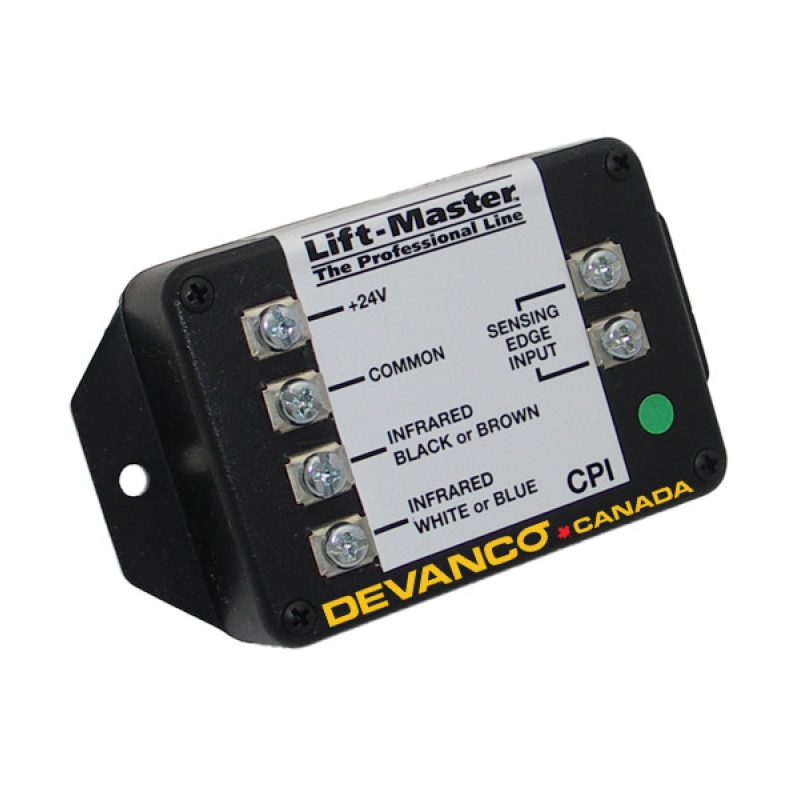

LiftMaster CPS Interface Black Box (CPICARD)

• Allows CPS-U photoeyes to provide a 'NO' contact
• Interface is included with CPS & CPS-N4
• Also known as 041K4629 1C4489 41K4629 41C4489 CPI

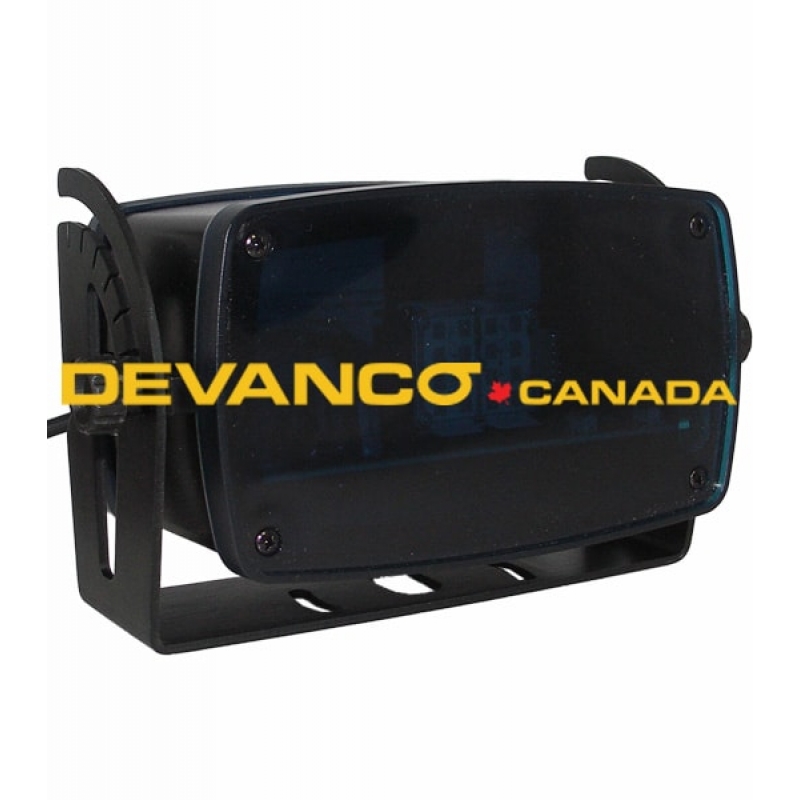

Allen Bradley Thru-Beam Photocell RX/TX Long Range 42GRR9001+GRL9040
