Take-Up Reel 2-Wire Metal 18-ga 20ft

• 18-gauge
• 20 ft extended
• Take up reels are NOT recommended for use with any failsafe type edge. Use coil cord only.
• Also called Reel cord

Take-Up Reel 3-Wire Metal 30ft Extended

• 3- wire 18-gauge
• Also called Reel Cord

LiftMaster Sensing Probe Free Exit 100ft Lead

• Self-contained free exit system designed to detect moving vehicle and open your automatic gate.
• Can be installed above or below ground
• Connects directly to any gate operator without an external output board.
• Works with powered or solar gates.
• SPECIFICATIONS: Cable Lead Length: 100 ft.
• Power Requirements: 8-24 VAC oe 8-30 CSX
• Standby Current: 30-70uA
• Alarm Current: 30 to 40mA
• Enclosure Rating: IP67

Hercules Infrared Programming Remote Red (50-HERK-RC2)

• Conveniently choose from 8 different preset comfort functions to adjust detection fields mounting heights relay hold interval cross traffic optimization direction recognition people/vehicle separation slow motion detection turn on/off filter functions open the door manually and much more
• Bidirectional
• Fine-tune the motion detector from the ground without guessing if all the settings have been received by the sensor

Hercules Microwave Motion Detector for Industrial Doors

• Opens after sensing an object.
• Can be set up to detect vehicles separately from people and bring the two signals to two different outputs
• Or use the two outputs to differentiate between forward and backward movements
• Detection fields are adjustable - manually or with a remote control (sold separately)
• Can be mounted between 8.2' up to 23' with max range of 80'
• Reference height of 23' and angle of 45 degrees
• Detection field is 20' x 16'
• Requires 24-volt power supply separate from operator.

Doorlec Explosion-Proof Pneumatic Edge Kit 12ft Standard. ** ADD ON for Larger Doors

• Kit includes explosion-proof air switch air hose plugs coil cord & fittings
• Door size needs to be specified when ordering

Doorlec Electro-Mechanical Safety Edge Sold per Foot *** Quote Required

• For the protection of vehicles doors and safety of people.
• Any upward-acting door may be fitted at the leading edge with an electro-mechanical safety weatherstrip.
• This mechanism consists of a formed galvanized steel section covered with vinyl impregnated rubber hinged along the full width of the leading door edge.
• Can be adjusted to approximately 2½" (63.5mm) to form a tight weather seal.
• The hinge linkage is arranged that minimum pressure is required to activate the electrical control switch causing door to reverse direction of travel to the fully open position.
• Reverse switch is enclosed in a galvanized housing with a sliding plunger to assure positive actuation every time.
• For doors up to 14 ft. wide one switch is required. Over 14 ft. two switches are required.
• Switch sold separately part # 50346
• Operating voltage: 24V or 120V A.C.

Reversing Edge BEP 100C Air Tube 4" from End Edge Length 93.5"

PEEK Vehicle Loop Detector 24V with Harness Nema 1 ** Discontinued

• Enclosed requires separate 24VAC power.
• Wiring harness with plug for detector included.
• OPEN only (all LiftMaster operators) or SAFETY/HOLD OPEN only (operators with type B2 T TS or T1 control wiring) when vehicle passes over loop wire
• Requires a loop of wire embedded in the ground to connect to the detector.
• Requires 2-wire output connection to door operator and 24VAC power
• Also known as: G50625S24

Doorlec Electric Switch and housing for Mechanical Edge

LiftMaster RBMA Electric Treadle Nema 4/12 5ft long

• Five feet long.
• OPEN only (all LiftMaster operators) or SAFETY only (LiftMaster operators with type B2 C2 L2 T T1 or TS control wiring) after vehicle passes over treadle.
• The weight of the vehicle compresses an electric switch which sends an open signal to the door.
• Requires a 2-wire connection to the operator but does not require power to function

LiftMaster Treadle Protection Plate **discontinued

EMX RAVEN Dual Relay Microwave Motion Sensor

• Distinguish between vehicles and pedestrians
• Two configurable relay outputs
• Adjustable sensitivity and cross traffic suppression
• 8-23 ft (2.5-7 m) mounting height
• Optional remote control for easy programming

EMX RAVEN Programming Remote

• Makes it easy to set up and make adjustments to all key parameters of the RAVEN motion detector while at ground level
• Remote sold separately

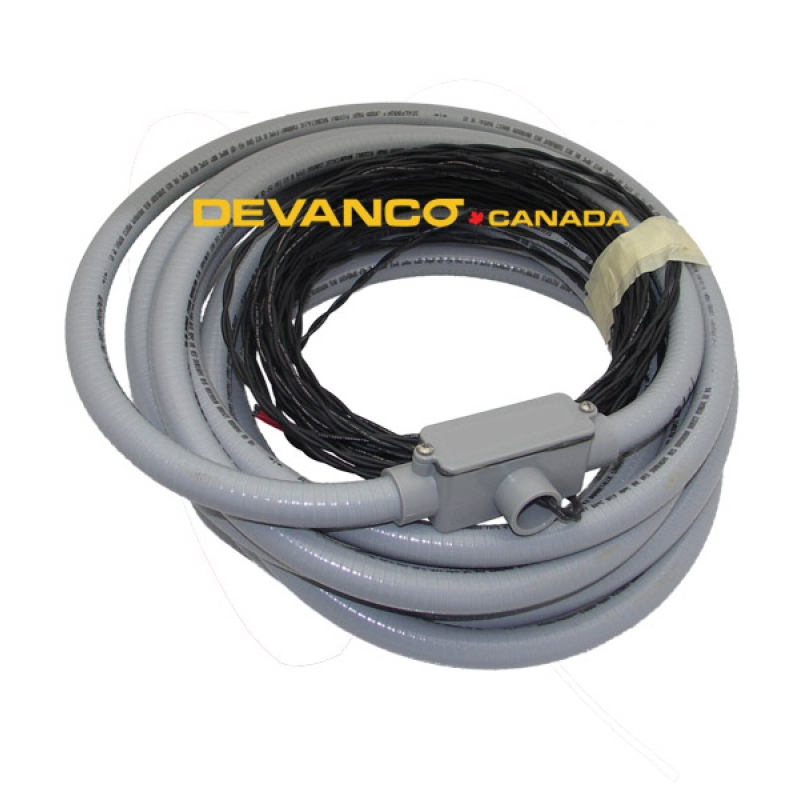

Devanco Loop 5' x 10' pave-over 50' lead-in

• Ideal for use on with gravel driveways or sufaces that are to be asphalted
• Features a twisted lead-in to reduce the chances of interference and false detections.
• Direct burial loops should be buried approximately 6" deep

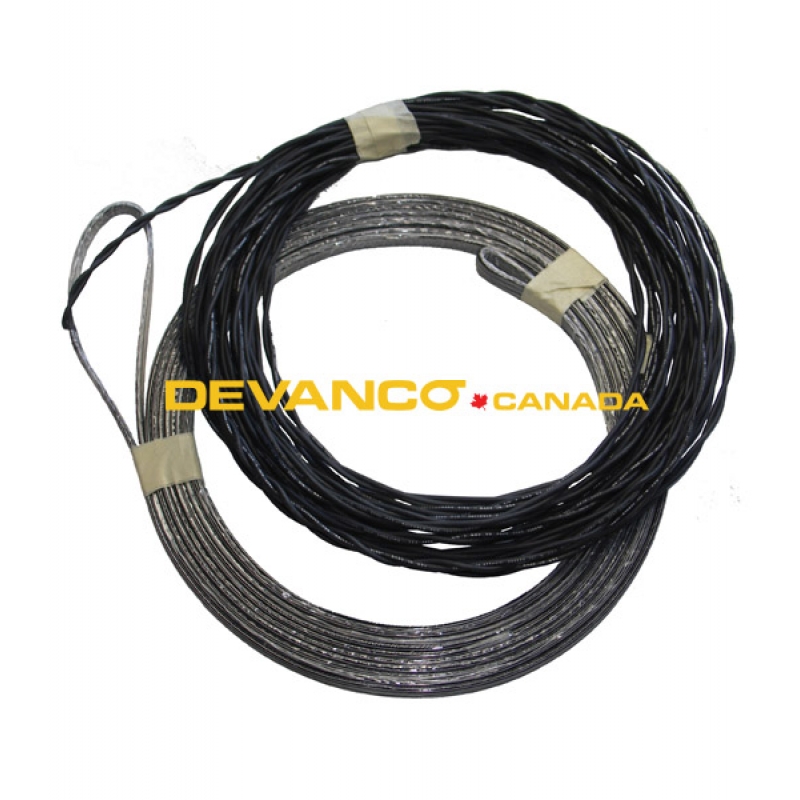

Devanco Loop 5' x 10' saw-cut 50' lead-in

• Manufactured to the highest quality standards to ensure accurate detection our Pre-formed loops come with a 50 foot twisted lead-in ware and available lead-in lengths up to 500 feet.
• Ideal for use on existing asphalt or concrete surfaces
• Features a non spliced continuous wire throughout loop turns and lead-in.
• requires the use of loop sealer when being installed to ensure long lasting trouble-free detection

Devanco Loop 5' x 15' saw-cut 50' lead-in

• Manufactured to the highest quality standards to ensure accurate detection our Pre-formed loops come with a 50 foot twisted lead-in ware and available lead-in lengths up to 500 feet.
• Ideal for use on existing asphalt or concrete surfaces
• Features a non spliced continuous wire throughout loop turns and lead-in.
• requires the use of loop sealer when being installed to ensure long lasting trouble-free detection

Devanco Loop 5' x 20' saw-cut 50' lead-in

• Manufactured to the highest quality standards to ensure accurate detection our Pre-formed loops come with a 50 foot twisted lead-in ware and available lead-in lengths up to 500 feet.
• Ideal for use on existing asphalt or concrete surfaces
• Features a non spliced continuous wire throughout loop turns and lead-in.
• requires the use of loop sealer when being installed to ensure long lasting trouble-free detection

AB 42GRU-9001 Retro-Reflective Photocell Exterior

• Voltage: 12VDC/24VAC/DC
• Sensing Distance: 30 Feet
• Comes with Bracket and Reflector
• NEMA 3 4 4X 6P 12 & 13
• Allen Bradley

AB 42GRU-9002 Nema 4 Retro-Reflective Photocell Exterior *** Obsolete

• Voltage: 110VAC
• Sensing Distance: 30 Feet
• Comes with Bracket and Reflector
• NEMA 3 4 4X 6P 12 & 13
• Allen Bradley
