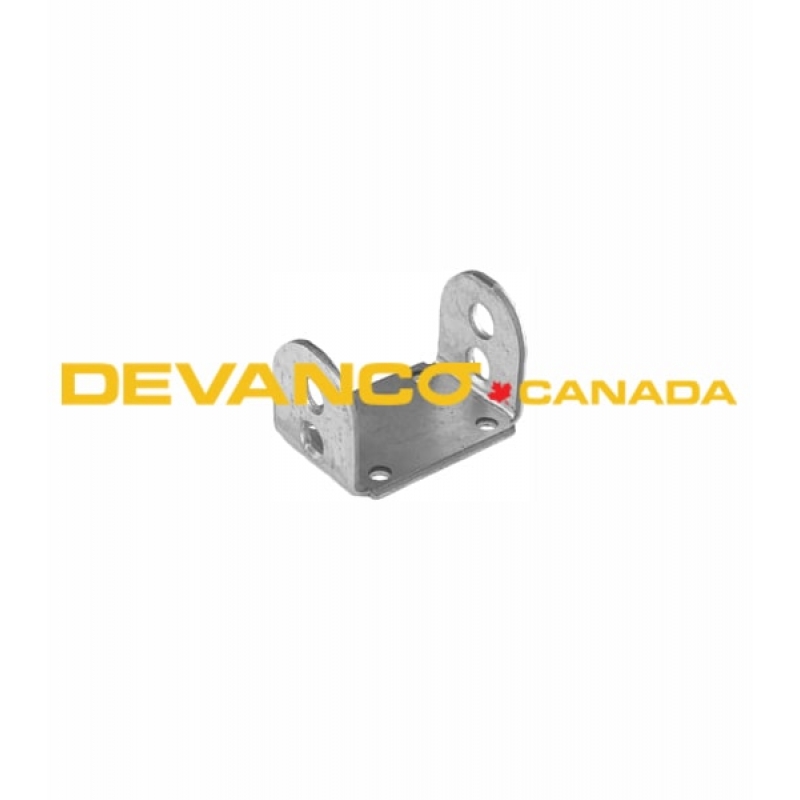

Roller Carrier Only 2-Hole Sold per Piece

• Sold per piece no box quantity

Tapered Angle Continuous 2" Heel x 129" L Sold in PAIRS

• For 2" track up to 2" thick

2" Horizontal Track Set 8'6" (7ft Door) 10" Radius 16ga 2-pcs

• Left/Right hand horizontal track set 10" radius
• Garage Door Residential usage

2" Horizontal Track Set 9'6" (8ft Door) 10" Radius 16ga 2-pcs

• Left/Right hand horizontal track set 10" radius
• Garage Door Residential usage

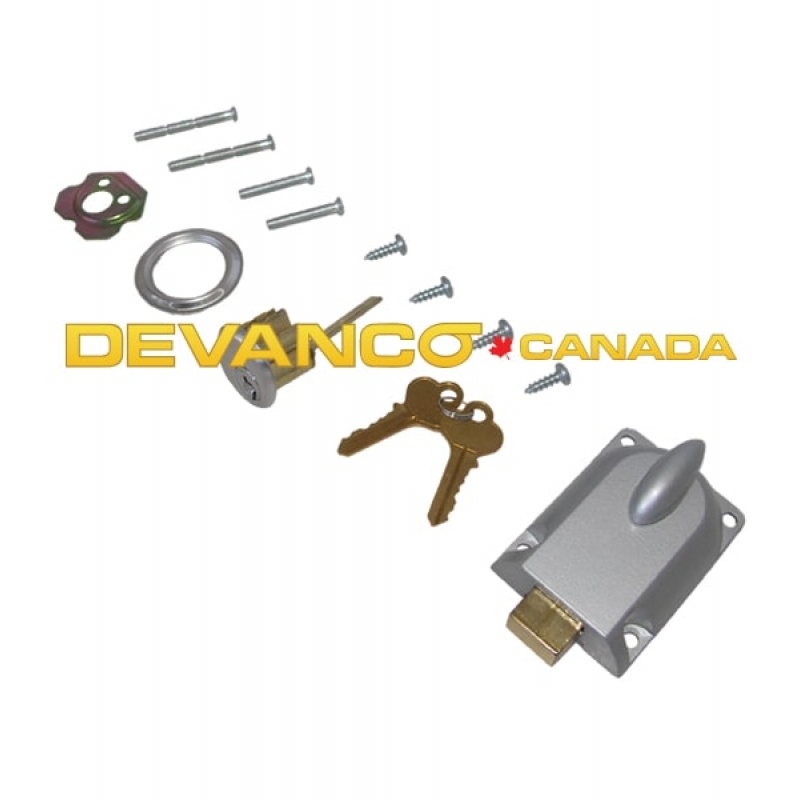

Lynx Barlock Latch

• Comes with screws

Lynx Standard Barlock Kit Bars sold Separately

• Bars are sold separately.
• Hardware bag for doors 12' and under

Lynx Hand Hoist Chain Zinc Plated 26ft / Bag

• Zinc plated silver chain

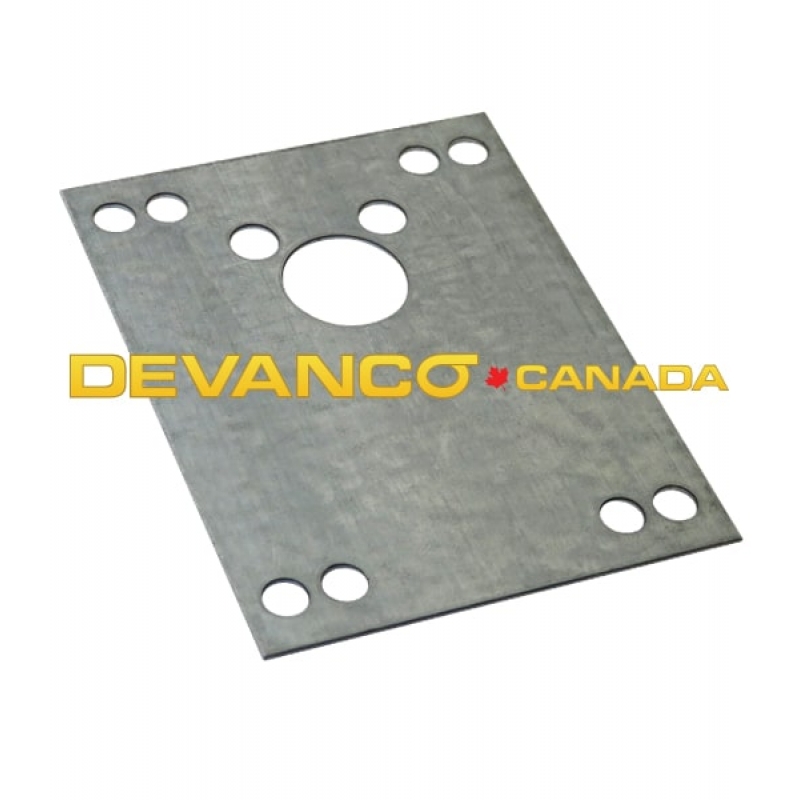

Lynx BarLock Mounting Plate

Lynx Chain Hoist 1:1 Ratio DNS 9" Pocket Wheel 1" Shaft CH-11-DNS

Lynx Proline Drive Shaft Assembly with Helical Gear

• Assembly includes the output shaft and nylon gear

Lynx CDJH HD Jackshaft with Solenoid Brake 1/2 HP 115V with ECB UL325

• New LX100 circuit board.
• Built-in 3-channel 372 Mhz radio receiver accepts up to 20 remotes
• 4L V-belt primary reduction #41 drive chain and sprockets.
• Adjustable friction clutch Inherent Mechanical Brake included
• Solenoid brake optional **
• Fully driven adjustable limit switches.
• Heavy duty 3 button wall station (Open Close Stop).
• Adjustable spreader bar assembly included.
• External 3 pole terminal strip for radio control.
• Internal 9 pole terminal strip for all auxiliary devices.
• Quick release chain hoist device for emergency manual operation.

Lynx CDJH Heavy-Duty Jackshaft 3/4 HP 115V w/ ECB and Solenoid Brake Right Hand UL325

• 3 Button station (NEMA 1) Photoeyes 1-Btn Transmitter
• 1650 RPM high starting torque motor with overload protection
• Inherent Mechanical Brake (I.M.B)
• B2 Mode C2 Mode D1 Mode E2 Mode T Mode TS Mode
• On board Open Close & Stop for ease of setting limits
• Pre-wired to accept sensing devices
• 24 Volt accessory power
• On board (372 MHz) receiver capable of programming up to 20 transmitters
• External receiver connection
• NEMA 1 Electrical enclosure
• Adjustable friction clutch
• Maximum Output Revolutions - 45
• Primary Drive: Heavy Duty 4L V-Belt
• Secondary: #41 CHAIN / SPROCKETS
• Output: #50 CHAIN / SPROCKETS
• 32 RPM output shaft speed
• Door speed determined by the door system installed
• Standard sprockets: Sectional: 50B12 x 1” bore to 50B18 x 1” bore OR 50B18 x 1 1/4” bore Steel Rolling: 50B12 x 1” bore to 50B24 x 1 1/4” bore

Lynx CDJH Heavy-Duty Jackshaft 3/4 HP 575V w/ ECB and Solenoid Brake Right Hand UL325

• 3 Button station (NEMA 1) Photoeyes 1-Btn Transmitter
• 1650 RPM high starting torque motor with overload protection
• Inherent Mechanical Brake (I.M.B)
• B2 Mode C2 Mode D1 Mode E2 Mode T Mode TS Mode
• On board Open Close & Stop for ease of setting limits
• Pre-wired to accept sensing devices
• 24 Volt accessory power
• On board (372 MHz) receiver capable of programming up to 20 transmitters
• External receiver connection
• NEMA 1 Electrical enclosure
• Adjustable friction clutch
• Maximum Output Revolutions - 45
• Primary Drive: Heavy Duty 4L V-Belt
• Secondary: #41 CHAIN / SPROCKETS
• Output: #50 CHAIN / SPROCKETS
• 32 RPM output shaft speed
• Door speed determined by the door system installed
• Standard sprockets: Sectional: 50B12 x 1” bore to 50B18 x 1” bore OR 50B18 x 1 1/4” bore Steel Rolling: 50B12 x 1” bore to 50B24 x 1 1/4” bore

Capacitor 390-468 MFD 3/4HP *** To Extent of Inventory

• Same as CP-CAP-COM-450-540
• Motor start capacitor

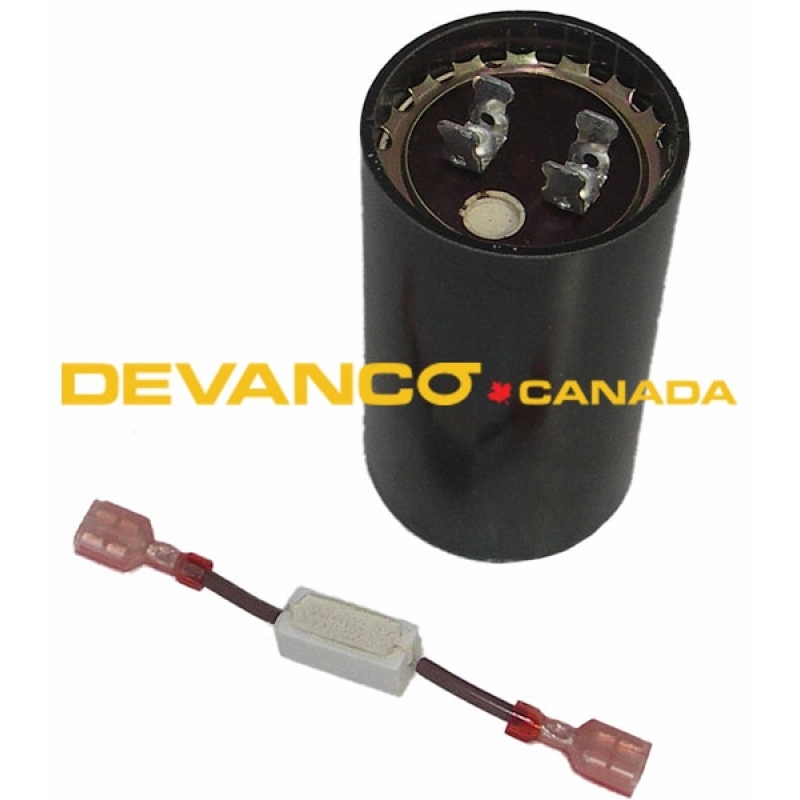

Capacitor 450-540 MFD 110/125V with Resistor *** To Extent of Inventory

• Same as CP-CAP-COM-450-540
• Motor start capacitor

Lynx CDJH Heavy-Duty Jackshaft 1/2 HP 115V Contactor Model

• Built-in 3-channel 372 Mhz radio receiver accepts up to 20 remotes
• 4L V-belt primary reduction #41 drive chain and sprockets.
• Adjustable friction clutch Inherent Mechanical Brake included
• Solenoid brake optional **
• Fully driven adjustable limit switches.
• Heavy duty 3 button wall station (Open Close Stop).
• Adjustable spreader bar assembly included.
• External 3 pole terminal strip for radio control.
• Internal 9 pole terminal strip for all auxiliary devices.
• Quick release chain hoist device for emergency manual operation.

Lynx CDJH Heavy-Duty Jackshaft 1/2 HP 115V with ECB UL325

• New LX100 circuit board.
• Built-in 3-channel 372 Mhz radio receiver accepts up to 20 remotes
• 4L V-belt primary reduction #41 drive chain and sprockets.
• Adjustable friction clutch Inherent Mechanical Brake included
• Solenoid brake optional **
• Fully driven adjustable limit switches.
• Heavy duty 3 button wall station (Open Close Stop).
• Adjustable spreader bar assembly included.
• External 3 pole terminal strip for radio control.
• Internal 9 pole terminal strip for all auxiliary devices.
• Quick release chain hoist device for emergency manual operation.

Lynx CDJH HD Jackshaft hoist commercial operator 1/2 HP 115V with ECB UL325

• New LX100 circuit board.
• Built-in 3-channel 372 Mhz radio receiver accepts up to 20 remotes
• 4L V-belt primary reduction #41 drive chain and sprockets.
• Adjustable friction clutch Inherent Mechanical Brake included
• Fully driven adjustable limit switches.
• Heavy duty 3 button wall station (Open Close Stop).
• Adjustable spreader bar assembly included.
• External 3 pole terminal strip for radio control.
• Internal 9 pole terminal strip for all auxiliary devices.
• Quick release chain hoist device for emergency manual operation.

Lynx CDJH Heavy-Duty Jackshaft 3/4 HP 115V Contactor Right Hand

• 3 Button station (NEMA 1)
• 1650 RPM high starting torque motor with overload protection
• Inherent Mechanical Brake (I.M.B)
• B2 Mode C2 Mode D1 Mode E2 Mode T Mode TS Mode
• On board Open Close & Stop for ease of setting limits
• Pre-wired to accept sensing devices
• 24 Volt accessory power
• On board (372 MHz) receiver capable of programming up to 20 transmitters
• External receiver connection
• NEMA 1 Electrical enclosure
• Adjustable friction clutch
• Maximum Output Revolutions - 45
• Primary Drive: Heavy Duty 4L V-Belt
• Secondary: #41 CHAIN / SPROCKETS
• Output: #50 CHAIN / SPROCKETS
• 32 RPM output shaft speed
• Door speed determined by the door system installed
• Standard sprockets: Sectional: 50B12 x 1” bore to 50B18 x 1” bore OR 50B18 x 1 1/4” bore Steel Rolling: 50B12 x 1” bore to 50B24 x 1 1/4” bore

Lynx CDJH Heavy-Duty Jackshaft 3/4 HP 115V with ECB Right Hand UL325

• 3 Button station (NEMA 1)
• 1650 RPM high starting torque motor with overload protection
• Inherent Mechanical Brake (I.M.B)
• B2 Mode C2 Mode D1 Mode E2 Mode T Mode TS Mode
• On board Open Close & Stop for ease of setting limits
• Pre-wired to accept sensing devices
• 24 Volt accessory power
• On board (372 MHz) receiver capable of programming up to 20 transmitters
• External receiver connection
• NEMA 1 Electrical enclosure
• Adjustable friction clutch
• Maximum Output Revolutions - 45
• Primary Drive: Heavy Duty 4L V-Belt
• Secondary: #41 CHAIN / SPROCKETS
• Output: #50 CHAIN / SPROCKETS
• 32 RPM output shaft speed
• Door speed determined by the door system installed
• Standard sprockets: Sectional: 50B12 x 1” bore to 50B18 x 1” bore OR 50B18 x 1 1/4” bore Steel Rolling: 50B12 x 1” bore to 50B24 x 1 1/4” bore
