Linear Cold Weather Package 230V SLC gate Op. Only

• Cold weather package includes: Arctic oil Heater Cogged V-belt

Linear Cold Weather Package 230V SLR gate Op. Only

• Cold weather package includes: Arctic oil Heater Cogged V-belt

Disconnect Lever Industrial Slide Gate Operator ** Please use BCSI-PM31

Industrial Slide Gate Operator Variable Speed 1 HP 240V 1 Ph with Heater ** Price by Quote Only

• Heavy-duty alminum cabinet Nema 3R
• Programmable logic controller
• Adjustable friction clutch
• Thermostat controlled heater
• Opening / Closing speed of 24" / sec
• Nema 4 control panel

Industrial Slide Gate Operator Variable Speed 1 HP 208V 3 Ph with Heater ** Price by Quote Only

• Heavy-duty alminum cabinet Nema 3R
• Programmable logic controller
• Adjustable friction clutch
• Thermostat controlled heater
• Opening / Closing speed of 24" / sec
• Nema 4 control panel

Industrial Slide Gate Operator Variable Speed 1 HP 600V 3 Ph with Heater ** Price by Quote Only

• Heavy-duty alminum cabinet Nema 3R
• Programmable logic controller
• Adjustable friction clutch
• Thermostat controlled heater
• Opening / Closing speed of 24" / sec
• Nema 4 control panel

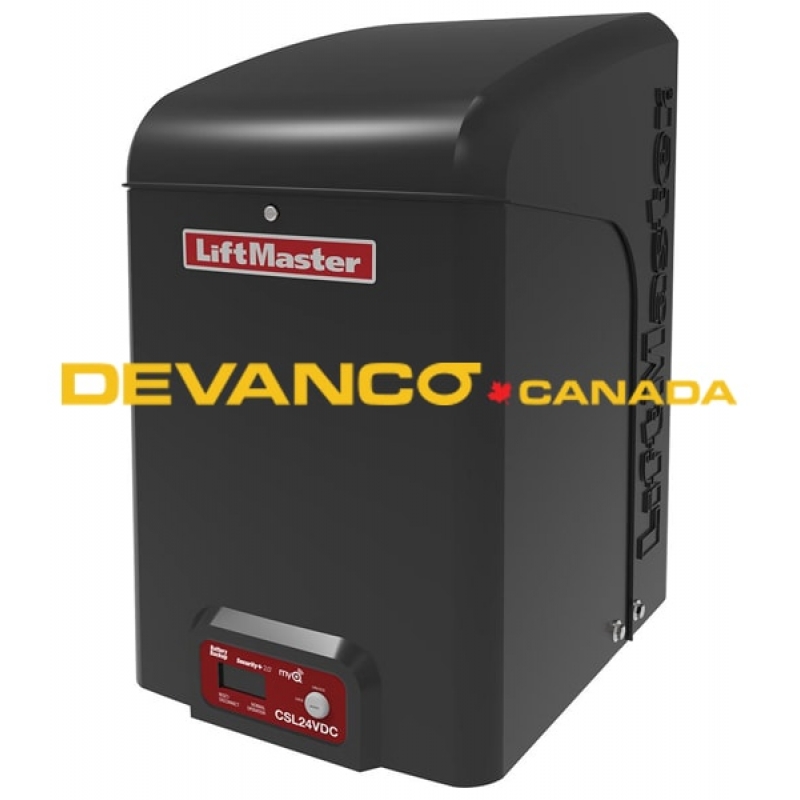

LiftMaster New 24VDC Commercial High Traffic DC Slide Gate Operator

• Battery Backup: 208 cycles or up to 24 days of standby power when the power is down
• Security+2.0®: Access your property quickly with Security+2.0® Technology that utilizes a tri-band signal that virtually eliminates interference and offers extended range each time the remote control is used
• MyQ®: Securely control and monitor your Gate Operator from anywhere and get activity notifications through the MyQ® app
• Soft start / stop extends operator and hardware life in high-cycle and heavy-gate applications
• Wireless dual-gate communication eliminates expensive conduit costs and unsightly driveway scars
• Keyed manual disconnect when unlocked allows gate to be operated manually.
• Gate travel speed 12 in. per second.
• Temperature specs: Without Heater: -4°F (-20°C) to 140°F (60°C). With Optional Heater (HTR): -40°F (-40°C) to 140°F (60°C).
• Heater sold separately
• Includes 30' of #41 chain
• Includes Monitored Retro-Reflective Photo Eye LMRRU

Liftmaster Heavy-Duty Variable Speed Slide Gate Op. 24VDC for Heavy Gates.

• 1.5 HP Variable Speed Slide Gate operator for gates up to 75' and 3000lbs
• Battery backup provides up to 45 cycles or 120 days of standby power
• Smooth Start/Stop with variable travel speed of .5ft/sec to 1ft/ second.
• 120/240 input voltage optional 3 phase converter for 208/240/460/575
• On-Board Secutiry+ 2.0® Receiver accepts (50x) 8 series remotes or unlimited 811 remotes.
• Includes LMRRUL Monitored Retroreflective Photo Eye with intergral heater
• Brushless DC motor Heavy-Duty Gear box #40 drive chain for continuous operation
• myQ® Technology to securely control and monitor the gate operator from anywhere (828LM required sold separately)
• 7 year residential 5 year commercial warranty
• Shipping weight 172lbs
• Heater not included HTR

Linear Commercial Slide Gate Operator 1 HP 115V 1 Ph - Heater not Included

• Integral entrapment sensing system with dual multi-turn precision potentiometers for accurate adjustment and enhanced safety
• Continuous-tone entrapment alarm with reset button
• Integrated warning beeper during gate movement
• 15 diagnostic LEDs on board for ease of setup and troubleshooting
• Selectable pre-start alarm with provision for ADA compliant visual pre-start and run alarm
• On-board APeX Controller three-button control station
• AC and DC power available for access control accessories
• All accessory connections 24 VDC
• Solenoid disc brake
• Duplex receptacle
• Built-in master/slave capability using 3-wire shielded cable
• Heavy-duty steel chassis
• Adjustable torque limiter
• #40 roller chain and sprockets
• Efficient double V-belt drive
• Max gate size: 55 ft 1700 lbs
• Max duty cycle: Continuous
• Opening Speed: 10" per second
• Optional thermostatically-controlled strip heater Sold separately

Linear Commercial Slide Gate Operator 1 HP 230V 1 Ph - Heater not Included

• Max duty cycle: Continuous
• Integral APeX Controller
• Double V-belt to chain reduction
• #40 roller chain
• Emergency manual disconnect handle
• Powder coat finish
• Post mount standard; pad mount optional
• Integral entrapment sensing system with dual multi-turn precision potentiometers for accurate adjustment and enhanced safety
• Continuous-tone entrapment alarm with reset button
• Integrated warning beeper during gate movement
• 15 diagnostic LEDs on board for ease of setup and troubleshooting
• Selectable pre-start alarm with provision for ADA compliant visual pre-start and run alarm
• On-board APeX Controller three-button control station
• AC and DC power available for access control accessories
• All accessory connections 24 VDC
• Solenoid disc brake
• Built-in master/slave capability using 3-wire shielded cable
• Heavy-duty steel chassis
• Adjustable torque limiter

Linear Commercial Slide Gate Operator 1 HP 230V 3 Ph - Heater not Included

• Max duty cycle: Continuous
• Integral APeX Controller
• Double V-belt to chain reduction
• #40 roller chain
• Emergency manual disconnect handle
• Powder coat finish
• Post mount standard; pad mount optional
• Integral entrapment sensing system with dual multi-turn precision potentiometers for accurate adjustment and enhanced safety
• Continuous-tone entrapment alarm with reset button
• Integrated warning beeper during gate movement
• 15 diagnostic LEDs on board for ease of setup and troubleshooting
• Selectable pre-start alarm with provision for ADA compliant visual pre-start and run alarm
• On-board APeX Controller three-button control station
• AC and DC power available for access control accessories
• All accessory connections 24 VDC
• Solenoid disc brake
• Built-in master/slave capability using 3-wire shielded cable
• Heavy-duty steel chassis
• Adjustable torque limiter
• Max gate weight: 1700 lbs Max gate length: 55ft

Linear Commercial Slide Gate Operator 1/2 HP 230V 1 Ph - Heater not Included

• Max gate size: 35 ft 1000 lbs
• Max duty cycle: Continuous
• Integral APeX Controller
• Double V-belt to chain reduction
• #40 roller chain
• Emergency manual disconnect handle
• Powder coat finish
• Post mount standard; pad mount optional
• Integral entrapment sensing system with dual multi-turn precision potentiometers for accurate adjustment and enhanced safety
• Continuous-tone entrapment alarm with reset button
• Integrated warning beeper during gate movement
• 15 diagnostic LEDs on board for ease of setup and troubleshooting
• Selectable pre-start alarm with provision for ADA compliant visual pre-start and run alarm
• On-board APeX Controller three-button control station
• AC and DC power available for access control accessories
• All accessory connections 24 VDC
• Solenoid disc brake
• Built-in master/slave capability using 3-wire shielded cable
• Heavy-duty steel chassis
• Adjustable torque limiter
• Cold weather package sold separately #2650-112-11

Linear Commercial Slide Gate Operator 3/4 HP 115V 1 Ph - Heater not Included

• Great for industrial and commercial applications
• Features the APeX control board
• Emergency manual disconnect handle
• Powder coat finish
• Post mount standard; pad mount optional
• Integral entrapment sensing system with dual multi-turn precision potentiometers for accurate adjustment and enhanced safety
• Continuous-tone entrapment alarm with reset button
• Integrated warning beeper during gate movement
• Selectable pre-start alarm with provision for ADA compliant visual pre-start and run alarm
• On-board APeX Controller three-button control station
• AC and DC power available for access control accessories
• All accessory connections 24 VDC
• Solenoid disc brake
• Duplex receptacle
• Built-in master/slave capability using 3-wire shielded cable
• Heavy-duty steel chassis
• Adjustable torque limiter
• #40 roller chain and sprockets
• Efficient double V-belt drive
• Max gate size: 45 ft 1200 lbs
• Max duty cycle: Continuous
• Opening Speed: 10"/sec

LiftMaster Heavy-Duty Industrial Variable Speed Slide Gate Operator with battery back-up

• For Industrial Slide Gates up to 2200 lbs.
• Variable cycle speed is adjustable from .5 ft./sec. to 1 ft./sec.
• Industrial brushless DC motor with battery back-up
• Continuous-duty gate operation built with industrial oil-bath gear box
• Enclosure Lockable Weatherproof 14g NEMA 3R Steel Cabinet
• Smooth start/stop operation and mid-travel reversal extend operator hardware life.
• Post-Mount standard or Base-Mount with optional part # MRIN
• #50 industrial chain provides a pull strength of 2x the gate weight.
• Manual Disconnect with direct mechanical linkage
• Includes: LMRRUL Monitored Reflective Photo Eye with heater and wide beam engineered to stay aligned; max. Range: 50 ft.
• Includes S505AL Monitored Small Profile resistive edge pressure-sensitive edge senses obstructions (LMWEKITU required).
• Security+ 2.0® on-board radio receiver: Up to 50 remote controls (unlimited with 811LMX/813LMX)
• Includes 25' of #50 chain (19-3025)

LiftMaster Industrial Variable Speed Slide Gate Operator with battery back-up

• For Industrial Slide Gates up to 2200 lbs.
• Variable cycle speed is adjustable from .5 ft./sec. to 1 ft./sec.
• Industrial brushless DC motor with battery back-up
• Continuous-duty gate operation built with industrial oil-bath gear box
• Enclosure Lockable Weatherproof 14g NEMA 3R Steel Cabinet
• Smooth start/stop operation and mid-travel reversal extend operator hardware life.
• Post-Mount standard or Base-Mount with optional part # MRIN
• #40 industrial chain provides a pull strength of 2x the gate weight.
• Manual Disconnect with direct mechanical linkage
• Includes: LMRRUL Monitored Reflective Photo Eye with heater and wide beam engineered to stay aligned; max. Range: 50 ft.
• Includes S505AL Monitored Small Profile resistive edge pressure-sensitive edge senses obstructions (LMWEKITU required).
• Security+ 2.0® on-board radio receiver: Up to 50 remote controls (unlimited with 811LMX/813LMX)
• Includes 30' of #40 chain (19-40240D)

LiftMaster Res. / Light Com. DC Slide Gate Op. MyQ Tech. Heater Sold Separately UL Listed

• RSL12UL features battery backup that provides up to 114 cycles or 63 days of standby power.
• myQ® Technology enables you to securely control and monitor your gate operator from anywhere.
• Wireless Dual-Gate Communication synchronizes gate opening/ closing and eliminates expensive driveway trenching costs.
• Security+ 2.0® safeguards access with an encrypted tri-band signal to virtually eliminate interference and offer extended range.
• Includes: LMRRUL Monitored Retroreflective Photo Eye and S505AL Monitored Small Profile Resistive Edge
• Gate Travel Speed: 10” per second

Doorlec Slide Gate Op. 1/2HP 120V w/500w Heater

• Engineered to accommodate heavy duty hight frequency commercial and industrial sliding gates with cantilever overhead or roller V track application
• It is enclosed in a heavy steel base with 500 Watt thermostatically controlled heater and lockable cover
• Three button control O/C/S
• Adjustable clutch
• Solenoid brake
• Universal mount. Left or Right side
• 1/2HP = Max gate weight: 900 lbs Gate travelling speed: 60ft/Min

Doorlec Gate Master 1 HP 115V 1 Phase with Heater

• Post mount heavy-duty industrial slide gate operator
• Max. gate weight: 2500 lbs
• Gate travelling speed: 45 ft / minute
• 175 watt heater with thermostat included
• Includes Omron reflective photocell

Doorlec Gate Master 1 HP 230V 1 Phase with Heater and Lights in Cabinet

• Post mount heavy-duty industrial slide gate operator
• Max. gate weight: 2500 lbs
• Gate travelling speed: 45 ft / minute
• 175 watt heater included

Doorlec Gate Master 1 HP 575V/3P with Heater

• Post mount heavy-duty industrial slide gate operator
• Max. gate weight: 2500 lbs
• Gate travelling speed: 45 ft / minute
• 175 watt heater included
