Overhead Receiver 390 Mhz
109007.3901.S
Overhead Receiver 390 Mhz
  • 9 switch trinary fixed code 3-wire gate and garage door receiver

Login to view pricing

Login
Linear 1-Channel Multi-Code Receiver 300 MHz
109020
Linear 1-Channel Multi-Code Receiver 300 MHz
  • Three tabs for universal mounting
  • One "NO" relay
  • Compatible with 10 dip- swith 300 MHz Multi-code transmitters
  • Operates on 24 VAC power
  • One channel
  • Codes: 1024 (set by dip switches)
  • RF frequency: 300 MHz
Programming Instructions

Login to view pricing

Login
Linear 1-Channel Multi-Code Gate Receiver 12-24V
109950
Linear 1-Channel Multi-Code Gate Receiver 12-24V
  • Operates on 12-24 volts AC or DC power
  • One channel
  • Whip antenna
  • 3-foot antenna coax and bulkhead connector
  • Codes: 1024 (set by dip switches)
  • RF frequency: 300 MHz or 310 MHz (jumper selectable)
  • Dimensions: 3.625" W x 5.25" H x 1.5" D
  • Same as: MCS109950
Programming Instructions

Login to view pricing

Login
BEA Digital Receiver 433 MHz
10RD433
BEA Digital Receiver 433 MHz
  • Receiver with integral sequencing "learn" buttons (for vestibule sequencing) pulse/toggle functionality and additional hold time.
  • Operating temperature: -10 to 55C
  • 12-24V AC/DC
  • Max No. of Programmed Units Per Receiver: 100 Transmitters

Login to view pricing

Login
BEA Receiver Module 900 MHz
10RD900
BEA Receiver Module 900 MHz
  • Long range receiver to allow for wireless activation of any door control.
  • Provides greater line of sight transmission distance than legacy wireless frequencies along with providing better penetration of obstacles.
  • Voltage: 12 – 24 VAC / VDC
  • Operating temperature: -10 to 55C
Product guide

Login to view pricing

Login
Transmitter 900mhz Touchless Wireless Converter
10TD900TR
Transmitter 900mhz Touchless Wireless Converter
  • Allows wireless door activation without the need to run additional wires to easily change existing door configurations from hardwired push plates to touchless door actuators.
  • Microwave doppler technology allows for consistent and reliable detection.
  • For automatic door apllications.
  • Compatible with 10RD900 and 10BR2900 receivers.
  • IP65
  • Nema 4

Login to view pricing

Login

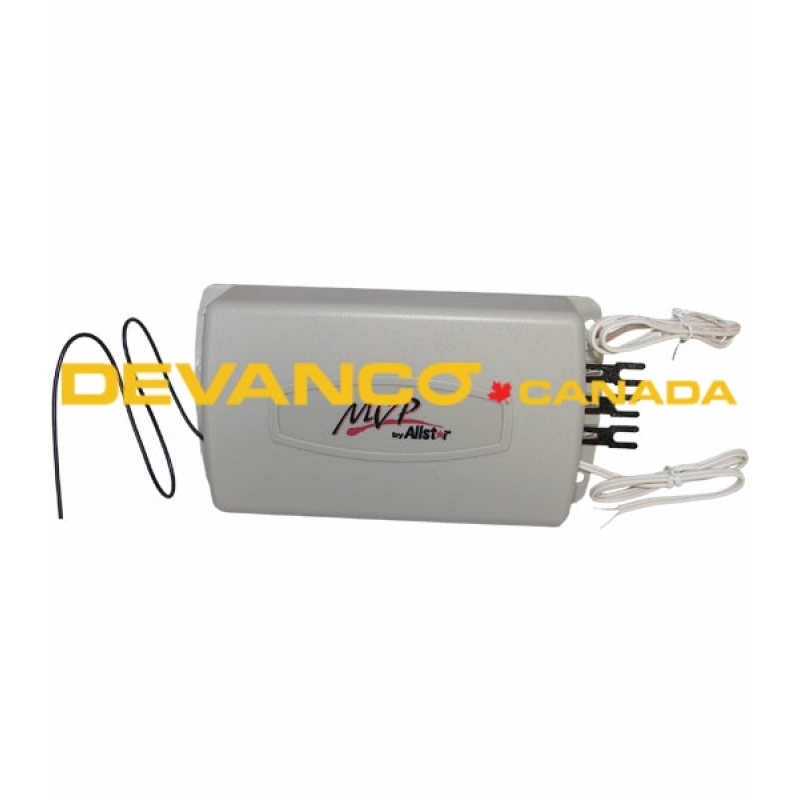

Allstar MVP 3 Channel 24V 3 Terminal 4 Wire Receiver 318 MHz *** NLA
110550
Allstar MVP 3 Channel 24V 3 Terminal 4 Wire Receiver 318 MHz *** NLA
  • 3 channels 4-wire 3-terminal operator connection
  • Wire antenna included
  • Compatible with Allstar Classic Allistar and Pulsar dipswitch transmitters and MVP quik-code transmitters
  • Power: 24 VAC/VDC
  • Codes: 19683
  • RF frequency: 318 MHz
  • Same as MVP-3CH-24V-3T-4W
  • Dimensions: 7.125" W x 3.625" H x 1.375" D
Programming instructions

Login to view pricing

Login

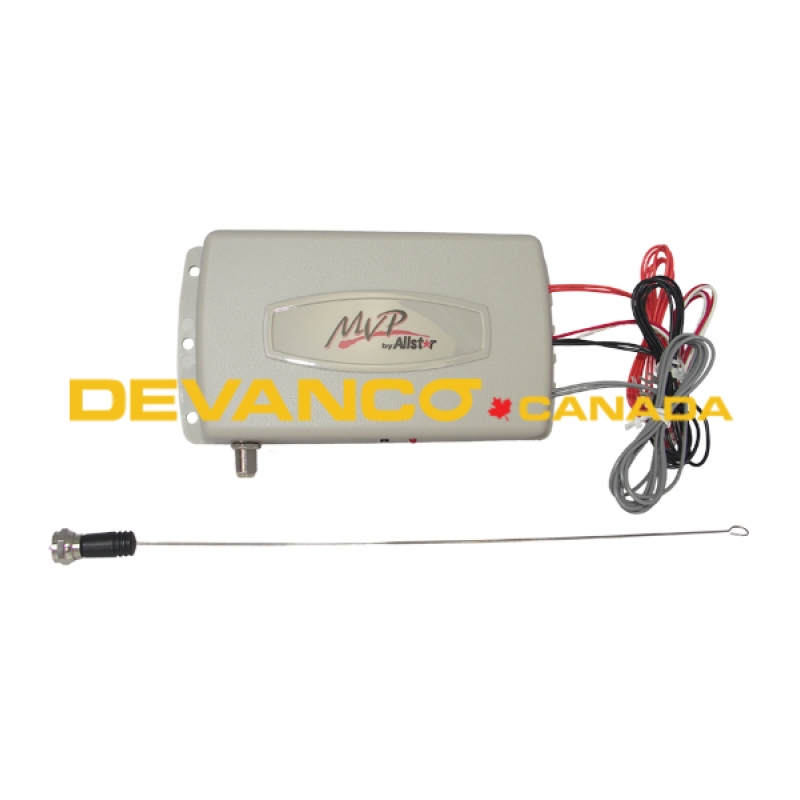

Allstar MVP 1-Door O/C/S Receiver 318 MHz ***Replaced by P-831RE
110554
Allstar MVP 1-Door O/C/S Receiver 318 MHz ***Replaced by P-831RE
  • Three channels - three relay outputs
  • 8-wire operator connection
  • Wire whip antenna with "F" connector
  • Compatible with Allstar Classic Allister and Pulsar dipswitch transmitters and MVP quik-code transmitters
  • Power: 24 VAC/VDC
  • Codes: 19683
  • RF frequency: 318 MHz
  • Dimensions: 6.625" W x 3.625" H x 1.375" D
  • Same as MVP-RE-24V-8W-FC
  • Comes with antenna Order number: 190-110554
Programming Instructions

Login to view pricing

Login

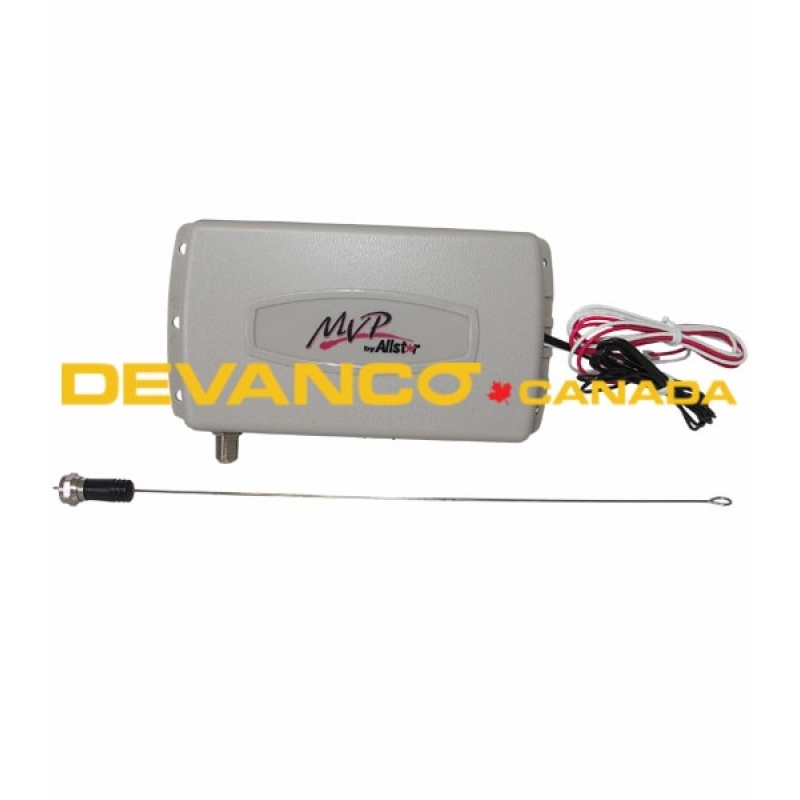

Allstar MVP 1-Channel 4-Wire Gate Receiver 318 MHz ***Replaced by P-9931R-4F
111645
Allstar MVP 1-Channel 4-Wire Gate Receiver 318 MHz ***Replaced by P-9931R-4F
  • One channel
  • 4-wire operator connection
  • Wire whip antenna with "F" connector
  • Compatible with Allstar Classic Allister and Pulsar dipswitch transmitters and MVP quik-code transmitters
  • Power: 24 VAC/VDC
  • Codes: 19683
  • RF frequency: 318 MHz
  • Dimensions: 6.625" W x 3.625" H x 1.375" D
  • Same as: MVP-1CH-24V-4W-FC Order number: 190-111645
Programming Instructions

Login to view pricing

Login
Allstar MVP-RE 24V 8 Wire Receiver 288 MHz *** NLA
112561
Allstar MVP-RE 24V 8 Wire Receiver 288 MHz *** NLA
  • Three channels – three relay outputs
  • 8-wire operator connection
  • Wire whip antenna with “F” connector
  • Compatible with Allstar Classic Allister and Pulsar dipswitch transmitters and MVP quik-code transmitters
  • Power: 24 VAC/VDC
  • Codes: 19683
  • RF frequency: 288 MHz
  • Dimensions: 6.625" W x 3.625" H x 1.375" D
  • Same as: 190-112561

Login to view pricing

Login

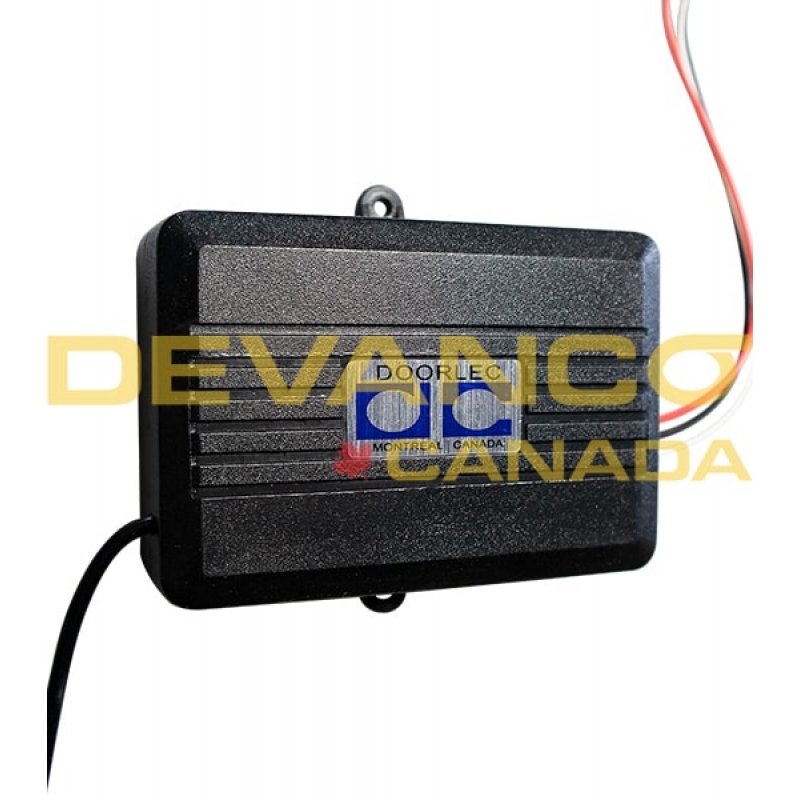

Doorlec DC-3000R 1-Channel Receiver 313 MHz
17307
Doorlec DC-3000R 1-Channel Receiver 313 MHz
  • 10 dip-switches for programming
  • 24VAC power input
  • 1 N/O relay
Mounting Instructions

Login to view pricing

Login

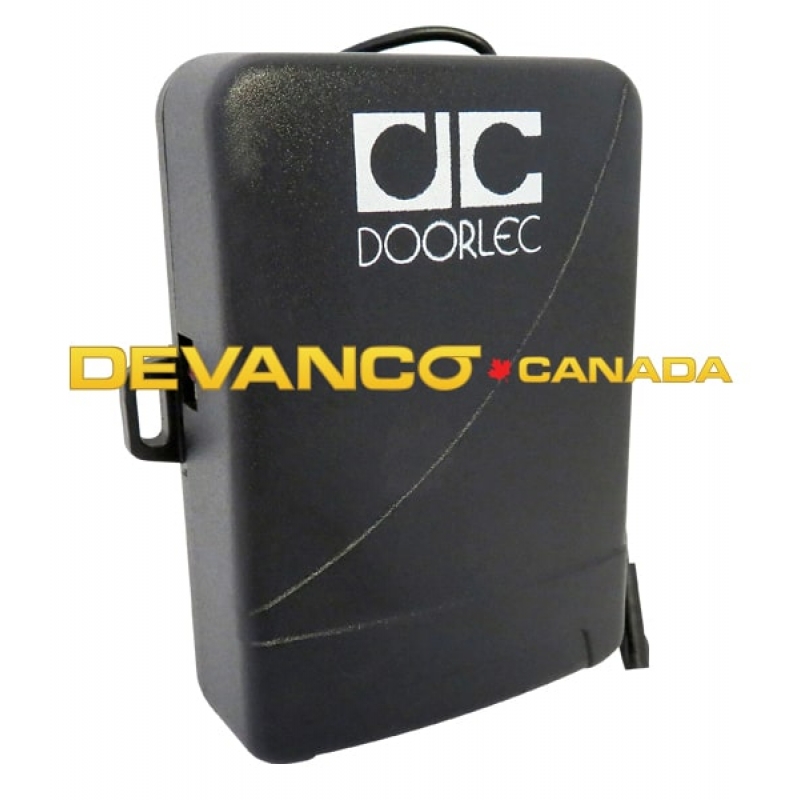

Doorlec DC-3200R Industrial Receiver EEMAC 1 up to 32 Doors or Gates (Includes Extra Long Antenna PN# 17355)
17314
Doorlec DC-3200R Industrial Receiver EEMAC 1 up to 32 Doors or Gates (Includes Extra Long Antenna PN# 17355)
  • Works with Doorlec 17315 remote control to 32 doors
Wiring instructions

Login to view pricing

Login

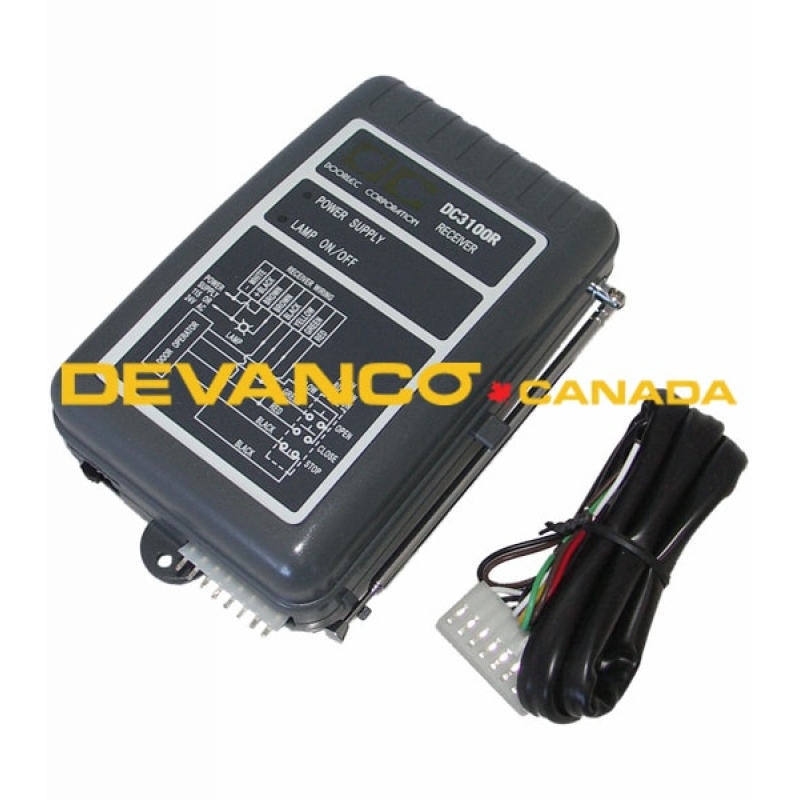

Doorlec DC-3100R 3-Channel O/C/S Receiver 301 MHz
17330
Doorlec DC-3100R 3-Channel O/C/S Receiver 301 MHz
  • Range of approx. 175ft (53.34m)
  • 8 dip-switches for programming
  • 24/120V selectable
  • Made from polycarbonate plastic for rugged and weatherproof use
  • Includes a built-in antenna to eliminate interference and provide continuous reception
  • A plug-in wiring harness is provided to facilitate interconnection between power supply of operator and receiver
  • Dimensions: 6-1/4" l x 3-3/4" w x 2" thick

Login to view pricing

Login

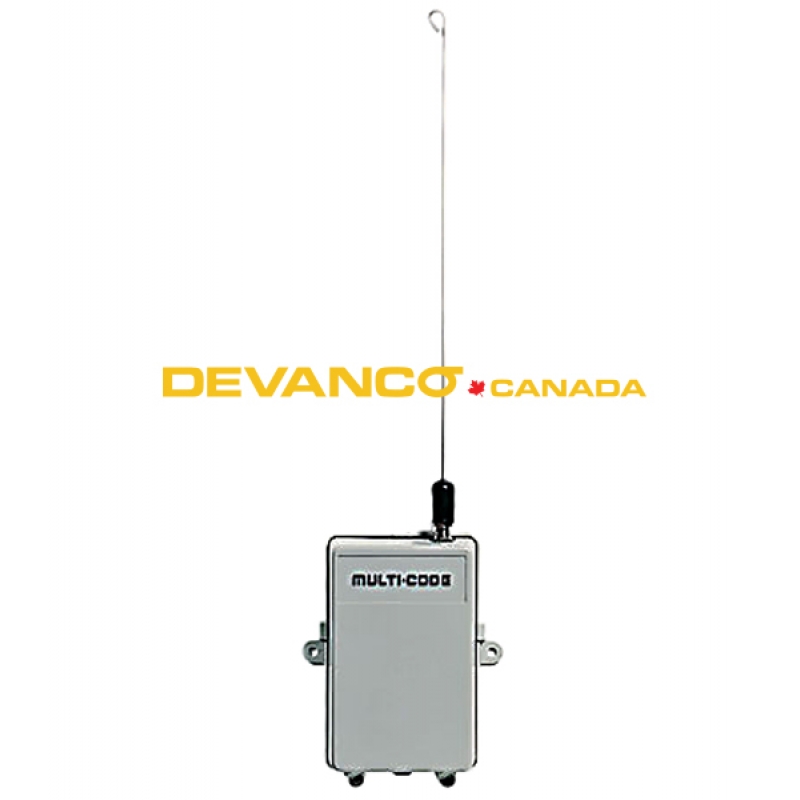

Linear 2-Channel Multi-Code 12-24V Gate Receiver 300 MHz / 310 MHz
302850
Linear 2-Channel Multi-Code 12-24V Gate Receiver 300 MHz / 310 MHz
  • The Model 302850 is a dual frequency receiver. An internal jumper selects either 300 MHz or 310 MHz operating frequency.
  • The 300 MHz frequency is compatible with standard Multi-Code transmitters
  • The 310 MHz frequency is compatible with the Stanley version Multi-Code transmitters.
  • Operates on 12-24 volts AC or DC power
  • Two channels
  • Whip antenna
  • 3-foot antenna coax and bulkhead connector
  • Codes: 512 (set by dip switches)
  • RF frequency: 300 MHz or 310 MHz (jumper selectable)
  • Dimensions: 3.625" W x 5.25" H x 1.5"
  • Same as: MCS302850
Programming Instructions

Login to view pricing

Login

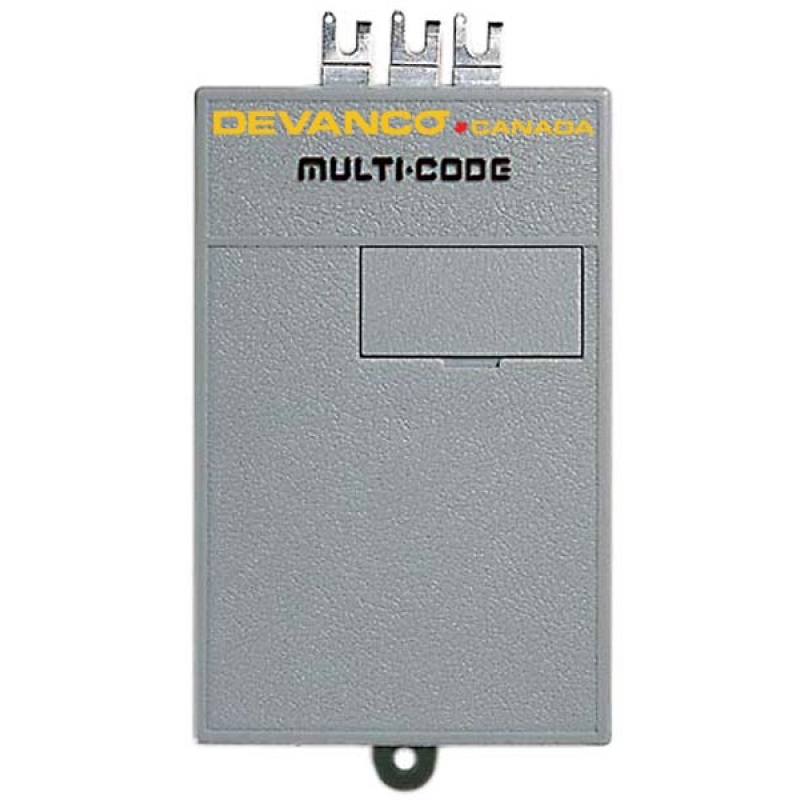

Linear 1-Channel Multi-Code Receiver 310 MHz
309013
Linear 1-Channel Multi-Code Receiver 310 MHz
  • Three tabs for universal mounting
  • One N/O relay
  • Compatible with 310 MHz Stanley and Multi-Code transmitters only.
  • Operates on 24 VAC power
  • One channel
  • Codes: 1024 (set by dip switches)
  • RF frequency: 310 MHz
  • Dimensions: 3" W x 5.5" H x 1.5" D
  • Same as: MCS309013
Programming Instructions

Login to view pricing

Login

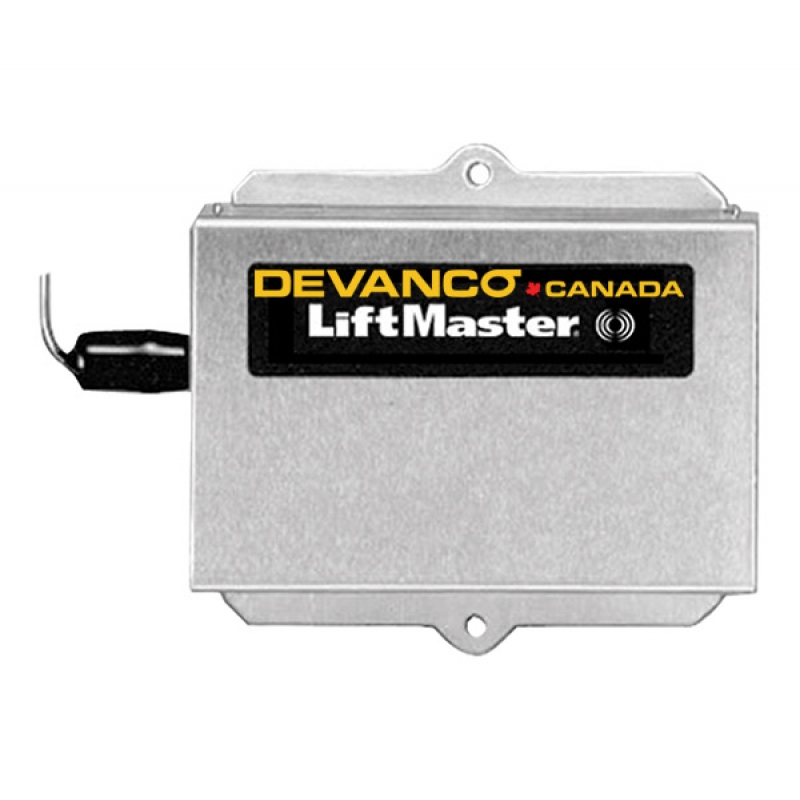

LiftMaster Universal Coaxial Receiver Sec+ 315 MHz
312HMC
LiftMaster Universal Coaxial Receiver Sec+ 315 MHz
  • External 8" coaxial antenna included
  • Security+ rolling code technology and/or Dip switch compatibility
  • 12 VDC or 18-35 VAC/DC jumper selectable
  • Momentary or constant contact selectable
  • For replacement antenna use 41C3196
  • Accepts up to 31 remote control codes on Normal Security setting
  • Accepts up to15 Security+ remote control or keyless entry codes on High Security
  • 312HMC has a blue circuit board the 412HMC has a green circuit board
Programming InstructionsInstructions de programmation

Login to view pricing

Login

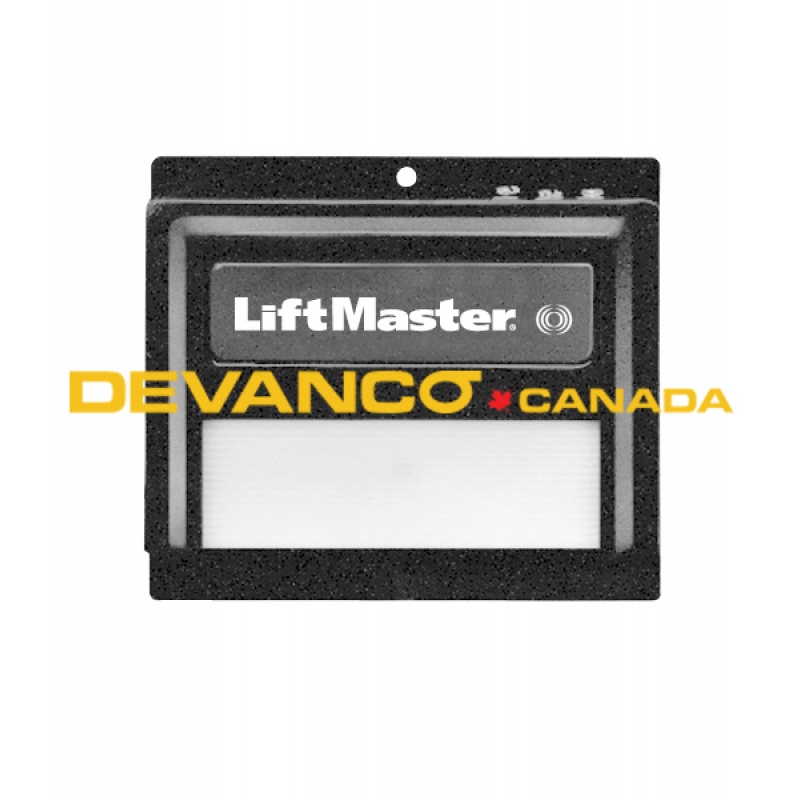

LiftMaster Universal Radio Control Receiver 315 MHz **NLA
355LMC
LiftMaster Universal Radio Control Receiver 315 MHz **NLA
  • Over 100 billion possible codes makes it impossible to duplicate the frequency
  • Jumper option for momentary or constant relay contact
  • Specifically for use with most 3-wire systems without a transformer
  • Accepts up to 8 Security+ remote control codes and one keyless entry
  • Will work with LiftMaster Sears Craftsman or Chamberlain remotes with the purple learn button (ERT format)
  • Will work on 2 or 3 wire systems. If your system is 2-wire a 24-volt 85LM transformer is required
  • Works with 315 MHz ERT Security+ remotes only
  • 312HMC is the replacement
Programming InstructionsInstructions de programmation

Login to view pricing

Login

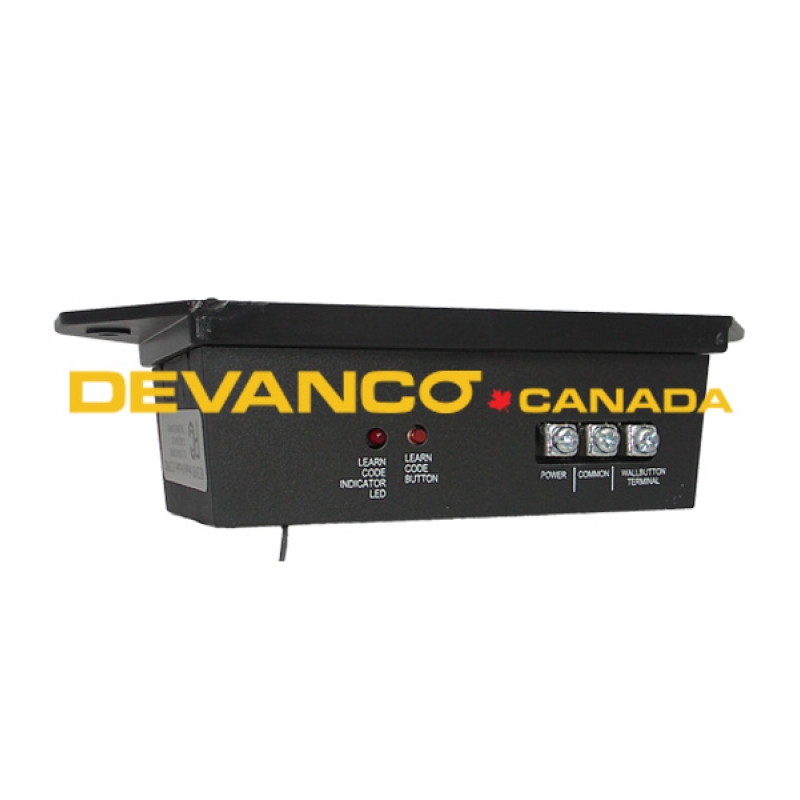

Genie Dual Frequency Intellicode Receiver 315 MHz & 390 MHz
36163R
Genie Dual Frequency Intellicode Receiver 315 MHz & 390 MHz
  • For Genie Intellicode Rolling Code remotes Or Overhead Door Code Dodger remotes using the 315 or 390MHz frequency.
  • 24-Volt 3-Wire Connection For Garage Door Opener And Gate Openers.
  • Accepts Up To 8 Genie Intellicode Or Overhead Door Code Dodger remotes on 315 or 390MHz Frequency. Note: Will not work with the older code switch type of remotes.

Login to view pricing

Login

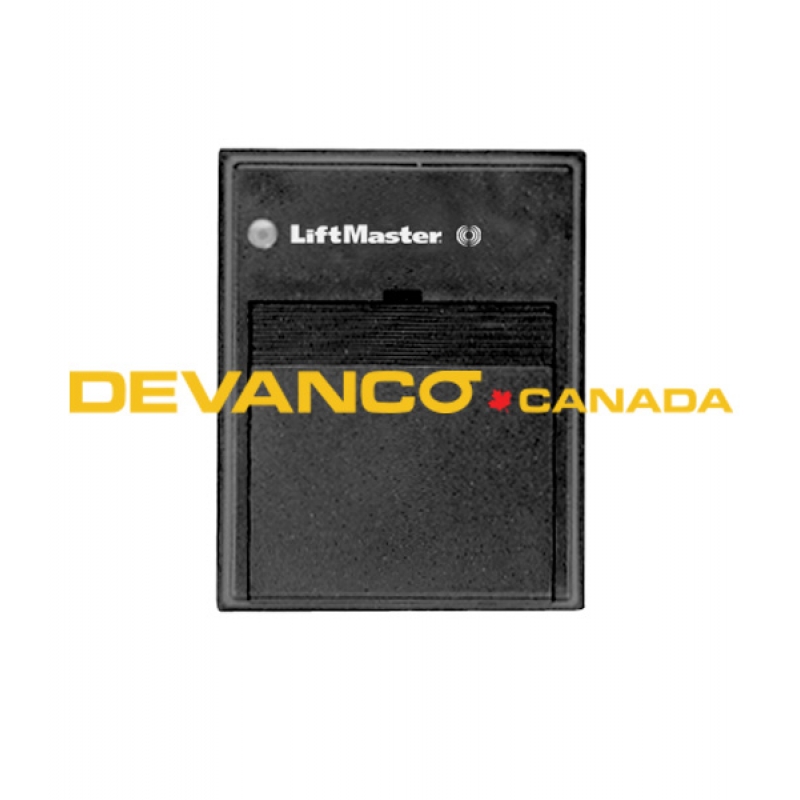

LiftMaster Universal Plug-in Receiver 315 MHz
365LMC
LiftMaster Universal Plug-in Receiver 315 MHz
  • Compatible with any garage door opener with a simple 2-wire dry contact
  • Includes 2-conductor bell wire
  • Able to accept 8 Security+ transmitters & 1 digital keypad
  • Compatible remotes; 893MAX 890MAX 892LT 373LM 371LM 374UT 375UT
Programming InstructionsInstructions de programmation

Login to view pricing

Login

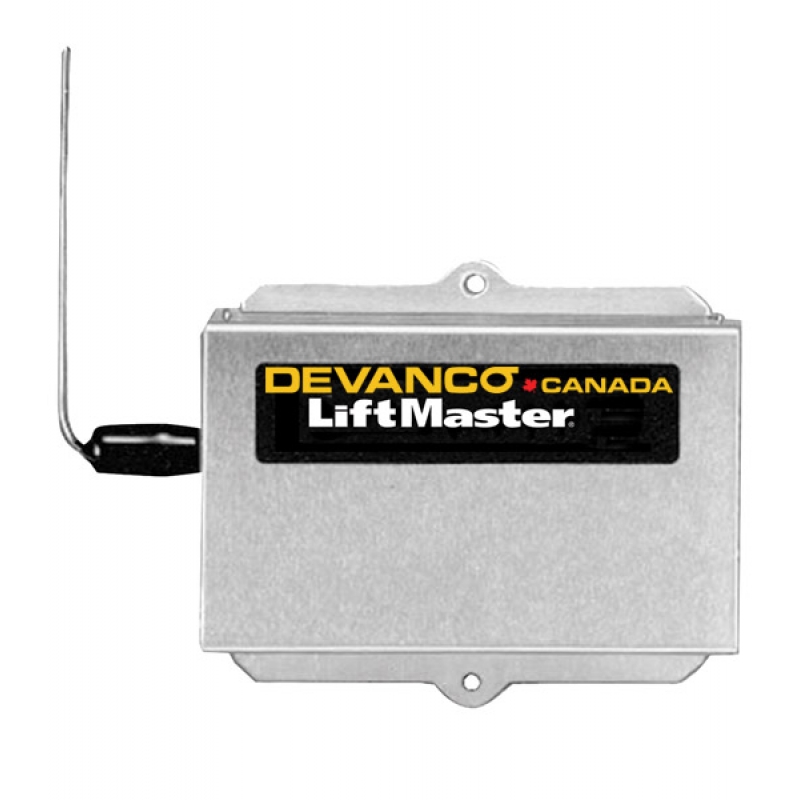

LiftMaster Single Channel Co-axial Radio Receiver 4 Wire 390MHz
412HMC
LiftMaster Single Channel Co-axial Radio Receiver 4 Wire 390MHz
  • 390MHz universal coaxial receiver for Open/Close
  • Will accept 15 remotes on "High Security" or 31 remotes on "Normal security"
  • 8" wire antenna included (part #41C3196)
  • Input voltage 12-24V AC/DC
Programming InstructionsInstructions de programmation

Login to view pricing

Login
