Linear 1-Ch DR3A Delta3 Receiver 310 MHz
DR
Linear 1-Ch DR3A Delta3 Receiver 310 MHz
  • 310 MHz frequency 8 dip switches for coding 256 possible codes
  • 24V AC/DC input power 3 terminal connection
  • Activates one device
  • Dimensions: 5.5" W x 4" H x 1.25" D
  • Same as: DNR00001
Installation Manual

Login to view pricing

Login

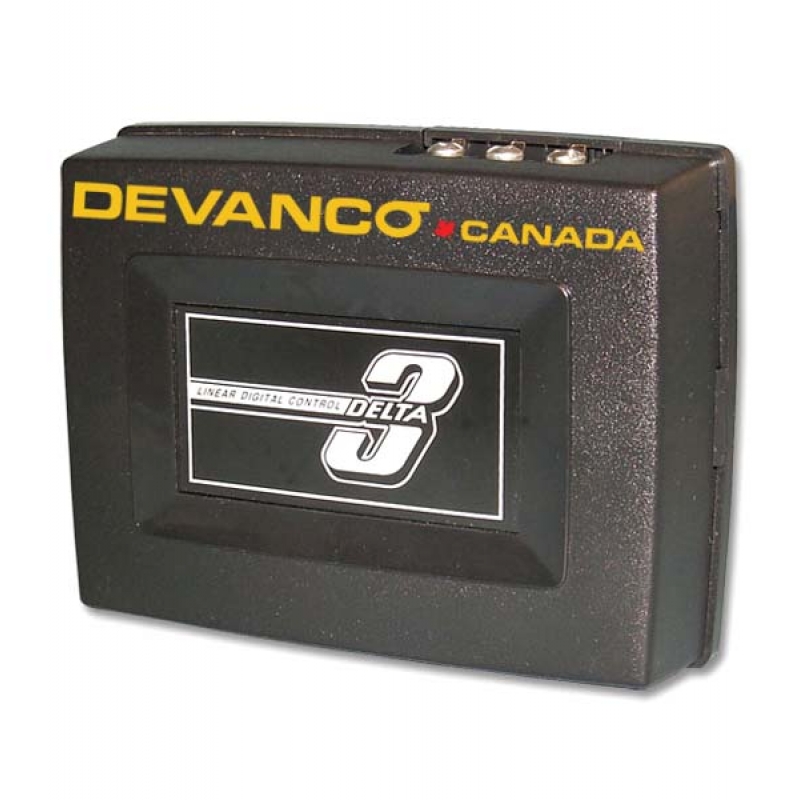

Linear 1-Channel Delta3 Receiver 312 MHz - DISCONTINUED
DR-312
Linear 1-Channel Delta3 Receiver 312 MHz - DISCONTINUED
  • 312 MHz frequency 8 dip switches for coding 256 possible codes
  • 24V AC/DC input power 3 terminal connection
  • Activates one device
  • Dimensions: 5.5" W x 4" H x 1.25" D
  • Same as: DNR00001
Programming Instructions

Login to view pricing

Login

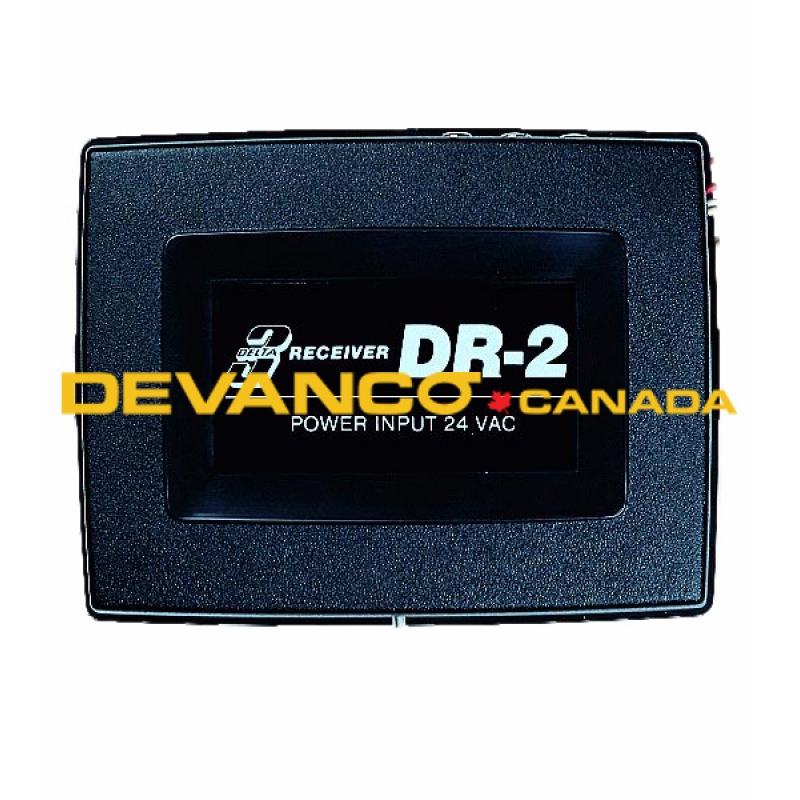

Linear 2-Channel Delta3 Receiver 310 MHz *** NLA
DR2
Linear 2-Channel Delta3 Receiver 310 MHz *** NLA
  • Activates two devices
  • Wire lead antenna
  • 12 and 24 Volt models
  • Two-channel wireless radio control designed for use with automatic garage/gate operators and access control systems.
  • The receiver can be activated by any of the Delta-3 format transmitters
  • Mounting bracket supplied
  • Power: 24 VAC/VDC
  • Codes: 128 (set by dip switches)
  • RF frequency: 310 MHz
  • Dimensions: 5.5" W x 4" H x 1.25" D
  • Same as: DNR00018
Installation Manual

Login to view pricing

Login

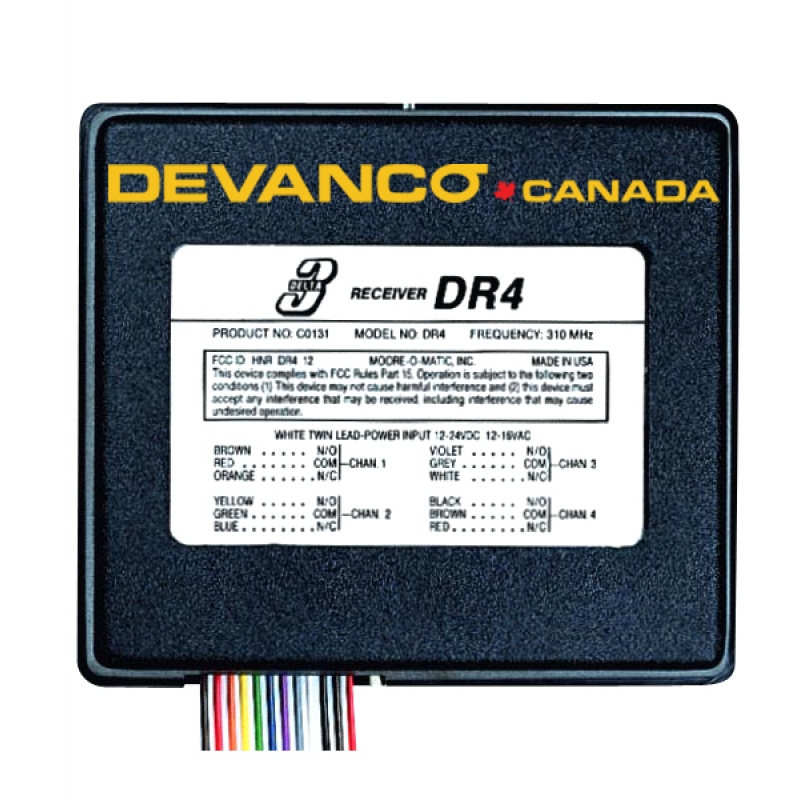

Linear 4-Channel Delta3 Receiver 310 MHz *** To Extent of Inventory
DR4
Linear 4-Channel Delta3 Receiver 310 MHz *** To Extent of Inventory
  • Activates four devices or UP DOWN STOP for one commercial device
  • 310 MHz 8 dip switch
  • Power: 24 VAC/VDC
  • Dimensions: 4.9" W x 4.2" H x 1.3" D
  • Same as DNR00023A or DR4V
Programming Instructions

Login to view pricing

Login

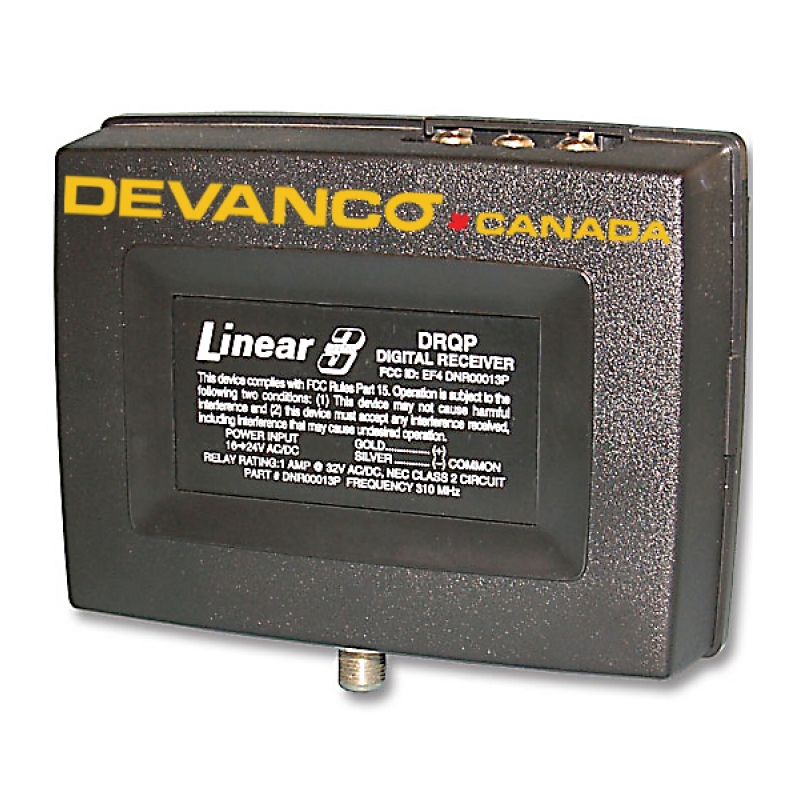

Linear 1-Channel Delta3 Gate Receiver 310 MHz ** Available to extent of inventory
DRQP
Linear 1-Channel Delta3 Gate Receiver 310 MHz ** Available to extent of inventory
  • 1-Channel Gate Receiver
  • High-sensitivity short-range radio receiver
  • Operates in conjunction with the 9-inch local antenna (supplied).
  • Designed for use with automatic gate operators or systems where a remote antenna is needed.
  • Same as: DNR00013P
Installation Manual

Login to view pricing

Login

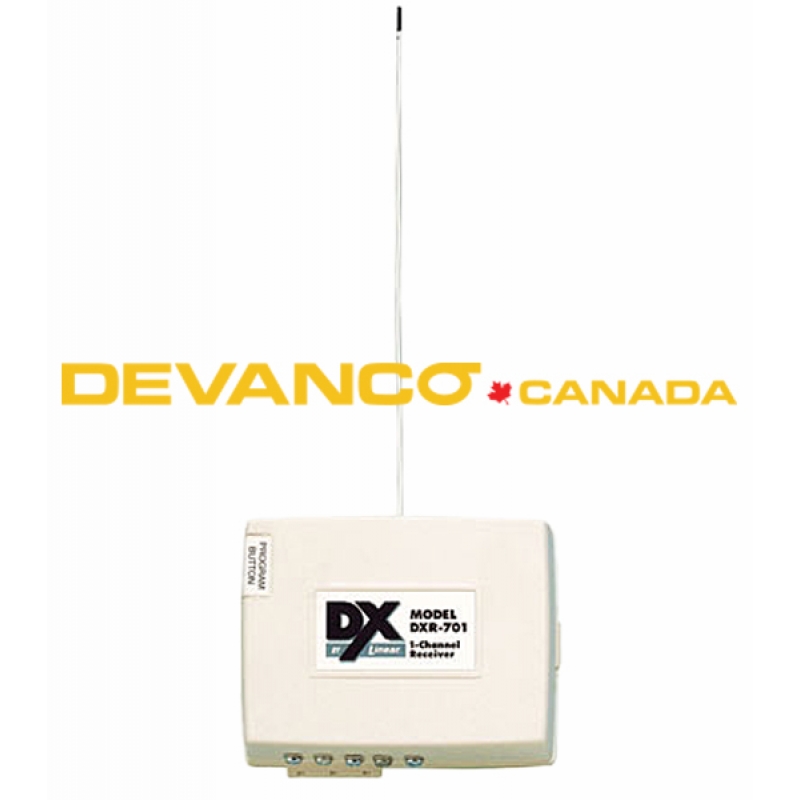

Linear 1-Channel Digital Receiver 315 MHz
DXR-701
Linear 1-Channel Digital Receiver 315 MHz
  • A digital receiver with an isolated relay output designed for use with Linear's DX Format transmitters.
  • When the receiver detects a signal from a transmitter programmed into its memory the relay output activates.
  • The relay has four optional output configurations.
  • 32 transmitter capacity
  • RF activity indicator
  • Quick-learn programming
  • Operates on 11-17 VDC or 12-16 VAC power
  • One channel
  • DX format
  • One form "C" relay output
  • One Amp contact rating @ 24 Volts AC/DC
  • Selectable relay activation time
  • Current consumption: 25 mA standby 60 mA operating @ 12 VDC
  • RF frequency: 315 MHz
  • 5.5" W x 4.0" H x 1.25" D
  • Same as: SNR00148
Installation Manual

Login to view pricing

Login

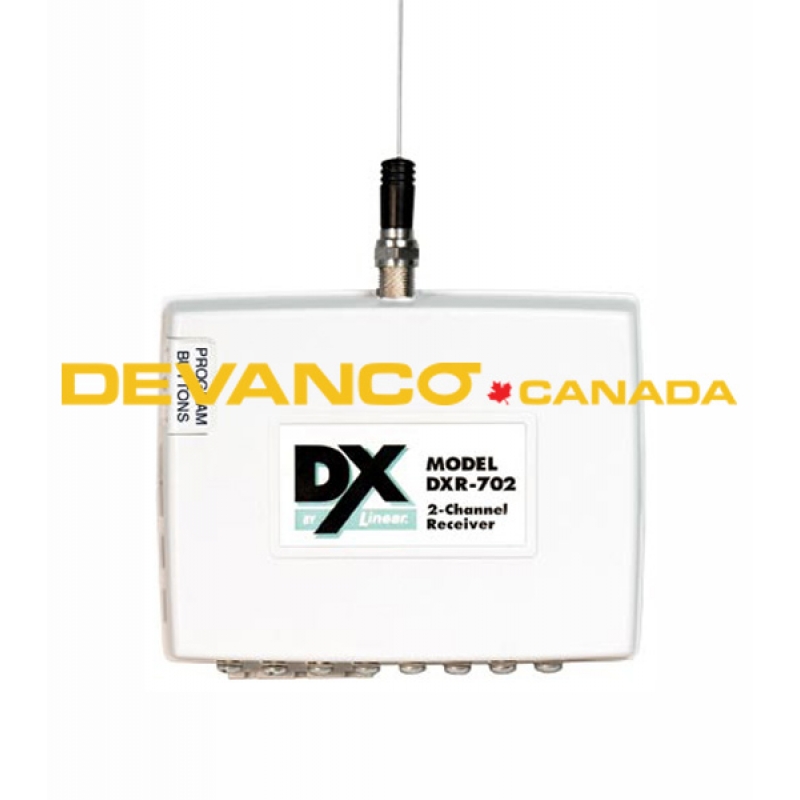

Linear 2-Channel Digital Receiver 315 MHz *** Discontinued
DXR-702
Linear 2-Channel Digital Receiver 315 MHz *** Discontinued
  • A digital receiver with an isolated relay output designed for use with Linear's DX Format transmitters.
  • When the receiver detects a signal from a transmitter programmed into its memory the relay output activates.
  • The relay has four optional output configurations.
  • 32 transmitter capacity
  • RF activity indicator
  • Quick-learn programming
  • Operates on 11-17 VDC or 12-16 VAC power
  • 2 channel
  • Two form "C" relay outputs
  • Selectable relay activation time
  • Current consumption: 25 mA standby 90 mA operating @ 12 VDC
  • RF frequency: 315 MHz
  • 5.5" W x 4.0" H x 1.25" D
  • Same as: SNR00149
Installation Manual

Login to view pricing

Login

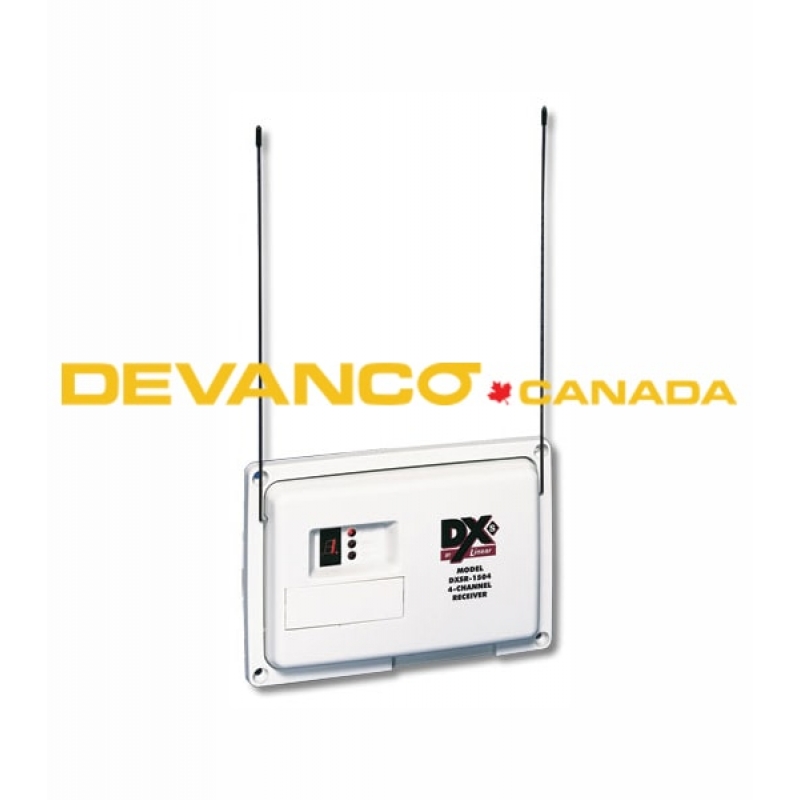

Linear Supervised 4-Channel Reciever ***No Longer Available
DXSR-1504
Linear Supervised 4-Channel Reciever ***No Longer Available
  • Dual diversity superheterodyne receivers
  • Compatible with DX and DXS transmitters
  • Measured line-of-sight range of 1500 Feet
  • Quick-learn programming
  • Selectable supervision
  • Individual outputs per RF channel for alarm low battery and status trouble reports
  • 7-segment channel display (decimal point indicates RF activity)
  • LED Indication for alarm low battery and status
  • Solid state outputs
  • 100 mA maximum output rating
  • Selectable outputs per channel: momentary latch toggle
  • Operating voltage: 10.2 to 14.4 VDC or 12 to 16 VAC
  • Current consumption: 30 mA standby 120 mA operating @ 12 VDC
  • Dimenssion: 7.25" W x 5.0" H x 1.0" D (without antennas)
  • Same as: SSR00070

Login to view pricing

Login
Heddolf Long Range Receiver 433 MHz
ER294-K
Heddolf Long Range Receiver 433 MHz
  • Up to 1500ft range
  • Compatible with EX220-1K

Login to view pricing

Login
NICE Wireless Universal Digital Receiver 2-Channel 433 Mhz
FLOX2R/A
NICE Wireless Universal Digital Receiver 2-Channel 433 Mhz
  • Features step-by-step timer and anti-burglar functions.
  • Works with all standard gate operators.
  • Management of multi-user system through the unique personal code.
  • Uses BM250 memory which holds 255 codes.
  • Reception frequency : 433.92 MHz
  • Power input : 24V or 12V ac/dc ± 10%
  • Sensitivity : < 0.5μV (range 100-150m with ABF- ABFKIT aerial)
  • Stand-by/active channel consumption : 15 mA / 35 mA
  • Decoding : digital
  • Operating temperature : -10°C +55°C

Login to view pricing

Login

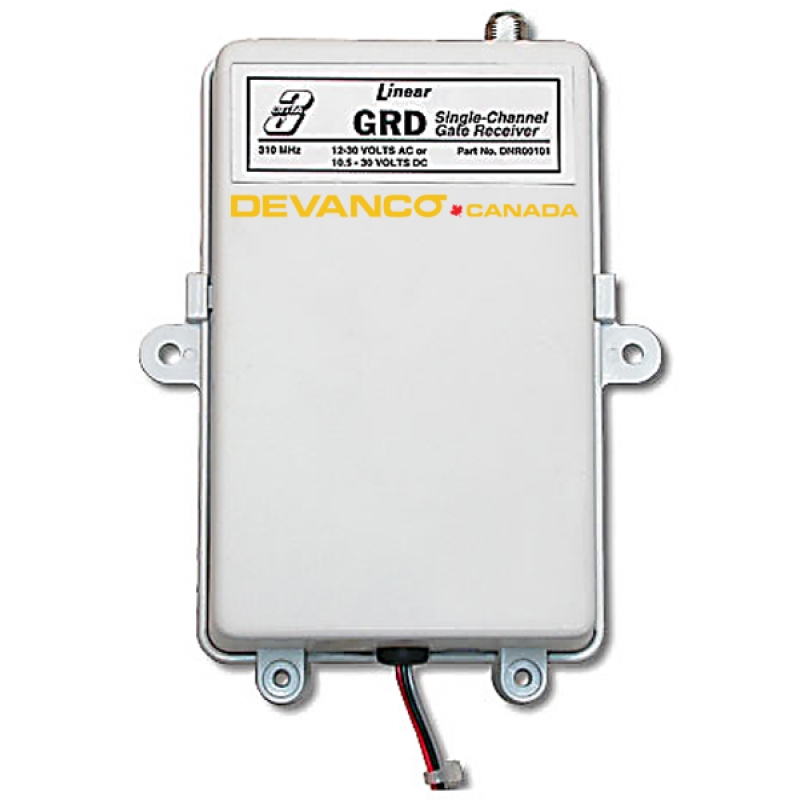

Linear 1-Channel Delta3 Gate Receiver 310 MHz (DNR00101) ***Discontinued
GRD
Linear 1-Channel Delta3 Gate Receiver 310 MHz (DNR00101) ***Discontinued
  • Auto voltage sensing - no jumpers to set
  • Single Form ”A” (normally open) relay rated at 30 Volts AC/DC up to 5 Amps
  • Supplied with whip antenna three feet of coaxial cable and bulkhead connector
  • Power: 12 - 30 VAC or 10.5 - 30 VDC
  • Codes: 256 (set by dip switches)
  • RF frequency: 310 MHz
  • Dimensions: 3.625" W x 5.25" H x 1.5" D
  • Same as: DNR00101
Programming Instructions

Login to view pricing

Login

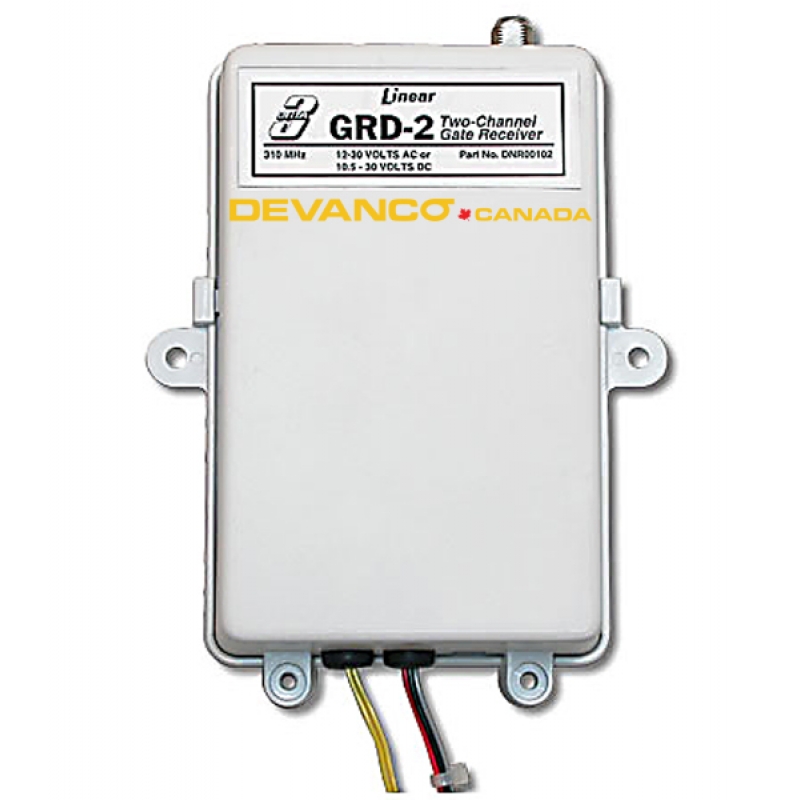

Linear 2-Channel Delta3 Gate Receiver 310 MHz (DNR00102)
GRD-2
Linear 2-Channel Delta3 Gate Receiver 310 MHz (DNR00102)
  • Auto voltage sensing - no jumpers to set
  • Two Form ”A” (normally open) relays rated at 30 Volts AC/DC up to 5 Amps
  • Supplied with whip antenna three feet of coaxial cable and bulkhead connector
  • Power: 12 - 30 VAC or 10.5 - 30 VDC
  • Codes: 128 (set by dip switches)
  • RF frequency: 310 MHz
  • Dimensions: 3.625" W x 5.25" H x 1.5" D
  • Same as: DNR00102
Programming Instructions

Login to view pricing

Login
Lynx O/C/S Receiver
LYNX-RCVR-OCS
Lynx O/C/S Receiver
  • For use with Lynx o/c/s transmitter # T3B-OCS
Compatibility chart

Login to view pricing

Login

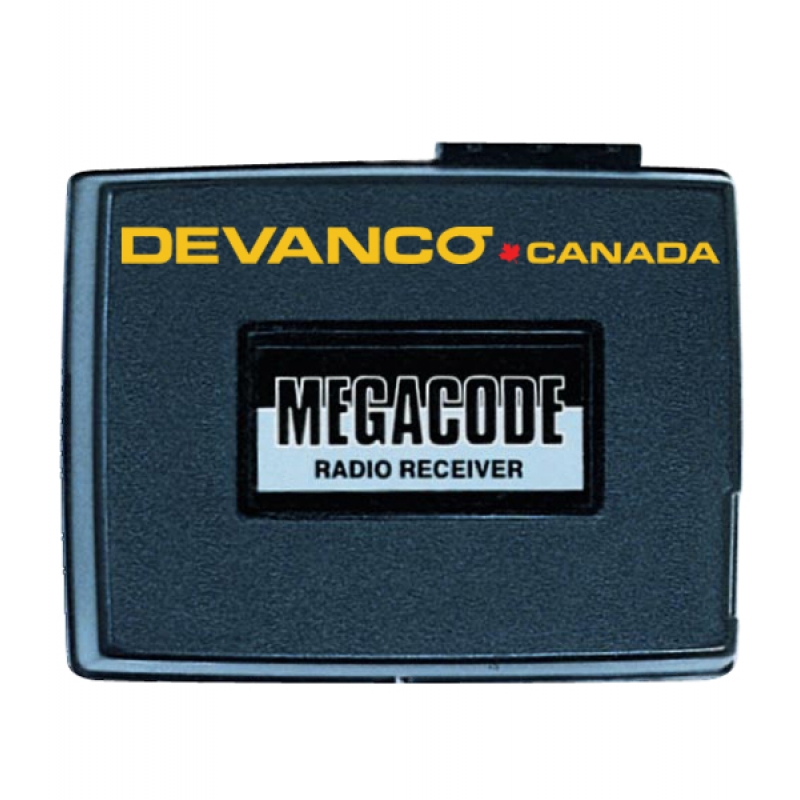

Linear 1-Channel MegaCode Receiver 318 MHz *** Discontinued
MDR
Linear 1-Channel MegaCode Receiver 318 MHz *** Discontinued
  • Activates one device
  • Wire lead antenna
  • Mounting bracket supplied
  • Memory: storage for up to 10 MegaCode transmitters
  • Power: 24 VAC/VDC
  • Codes: 1000000+ (MegaCode format)
  • RF frequency: 318 MHz
  • Dimensions: 5.5" W x 4" H x 1.25" D
  • Same asr: DNR00071
Programming Instructions

Login to view pricing

Login

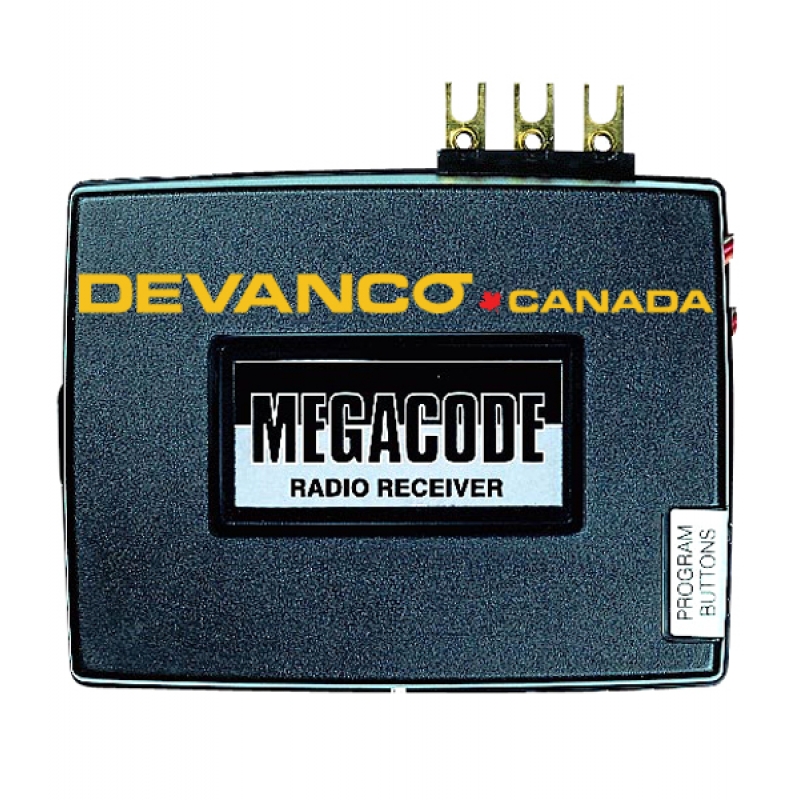

Linear 2-Channel MegaCode Receiver 318 MHz *** Discontinued
MDR-2
Linear 2-Channel MegaCode Receiver 318 MHz *** Discontinued
  • Activates two devices
  • Wire lead antenna
  • Mounting bracket supplied
  • Memory: storage for up to 10 MegaCode transmitters
  • Power: 24 VAC/VDC
  • Codes: 1000000+ (MegaCode format)
  • RF frequency: 318 MHz
  • Dimensions: 5.5" W x 4" H x 1.25" D
  • Same as: DNR00072
Programming Instructions

Login to view pricing

Login

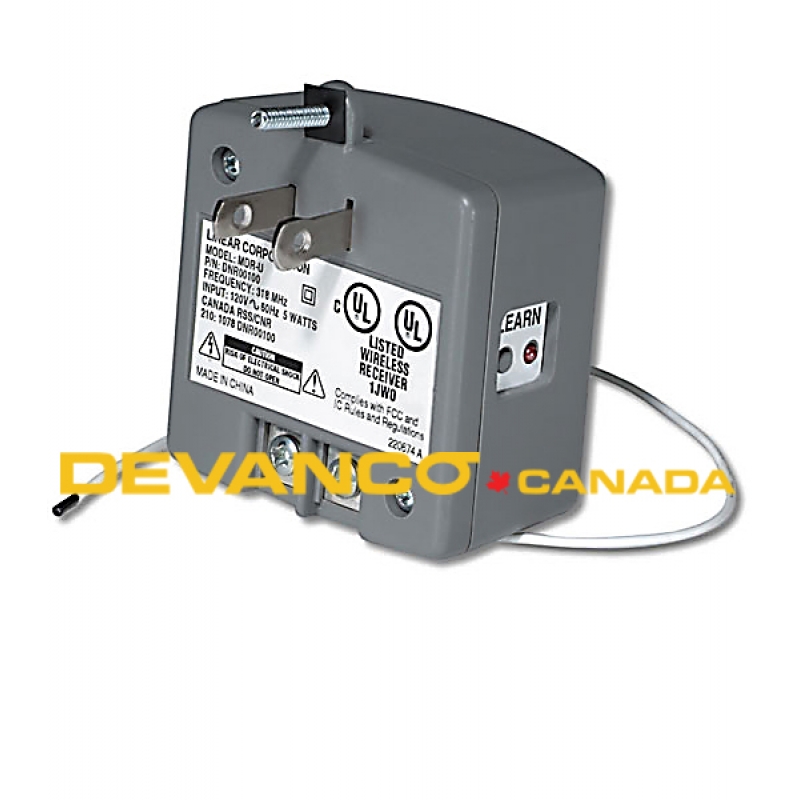

Linear 1-Channel MegaCode Universal Plug-In Receiver 318 MHz
MDR/U
Linear 1-Channel MegaCode Universal Plug-In Receiver 318 MHz
  • Makes any garage door operator compatible with MegaCode transmitters
  • Simple plug-in design
  • Easy to install - one connection using two-conductor wire
  • Memory: storage for up to 10 MegaCode transmitters
  • Normally open contact activates for 0.5 seconds
  • Power: 110 VAC +/- 10% 60 Hz
  • Codes: 1000000+ (MegaCode format)
  • RF frequency: 318 MHz
  • Dimensions: 2.52" W x 2.5" H x 1.61" D
  • Same as: DNR00100

Login to view pricing

Login

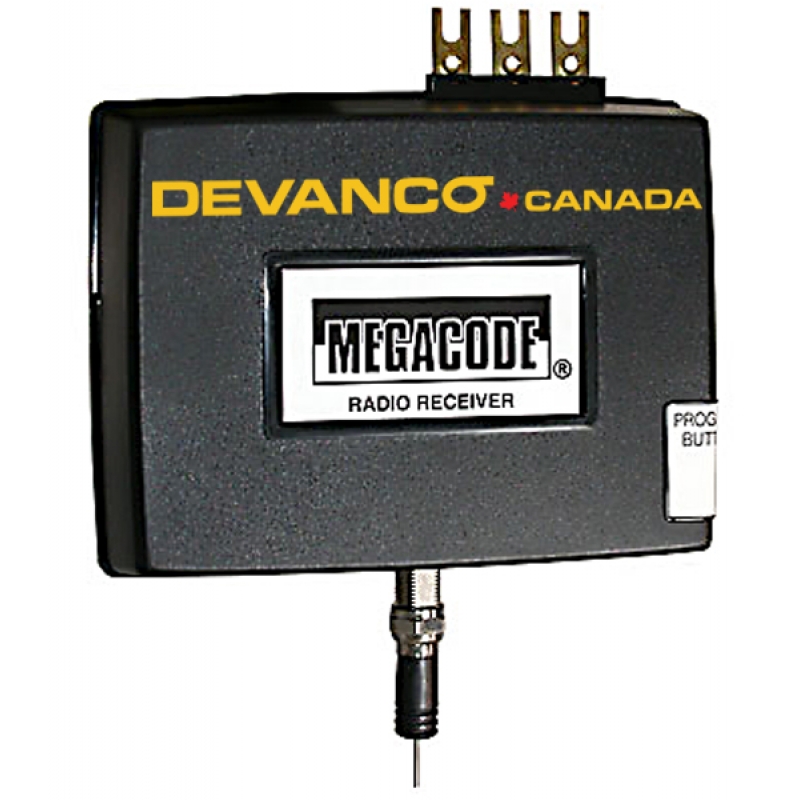

Linear 1-Channel MegaCode Gate Receiver 318 MHz *** Discontinued
MDRG
Linear 1-Channel MegaCode Gate Receiver 318 MHz *** Discontinued
  • Activates one gate or device
  • Supplied with F-connector and whip antenna
  • Mounting bracket supplied
  • Memory: storage for up to 40 MegaCode transmitters
  • Power: 24 VAC/VDC
  • Codes: 1000000+ (MegaCode format)
  • RF frequency: 318 MHz
  • Dimensions: 5.5" W x 4" H x 1.25" D
  • Same as: DNR00073
Programming Instructions

Login to view pricing

Login

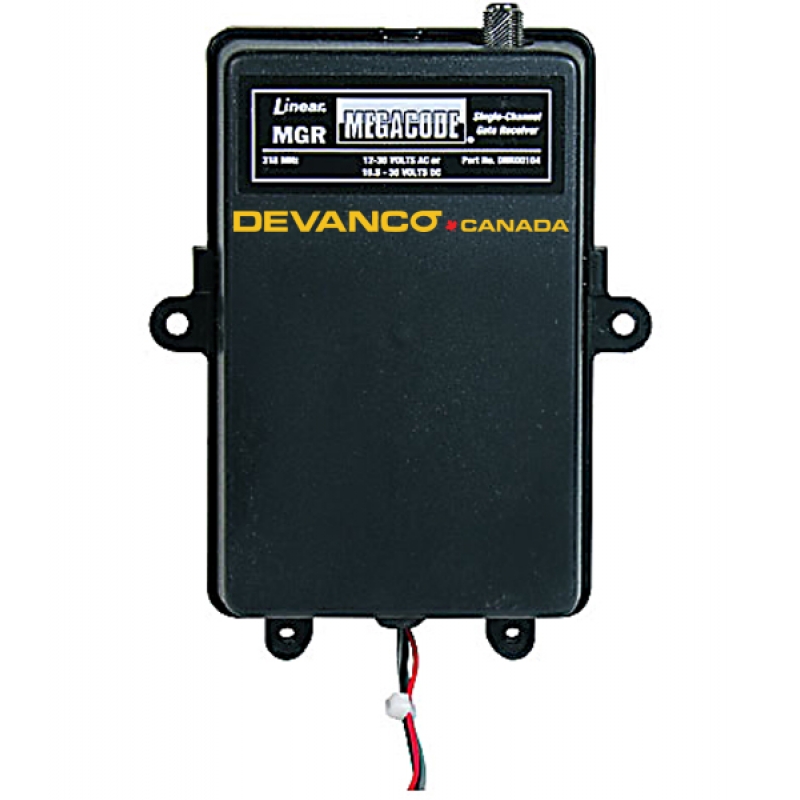

Linear 1-Channel MegaCode Gate Receiver 318 MHz
MGR
Linear 1-Channel MegaCode Gate Receiver 318 MHz
  • €¢Single Form ”A” (normally open) relay rated at 30 Volts AC/DC up to 5 Amps
  • Supplied with whip antenna three feet of coaxial cable and bulkhead connector
  • Memory: storage for up to 40 MegaCode transmitters
  • Power: 12 - 30 VAC or 10.5 - 30 VDC
  • Codes: 1000000+ (MegaCode format)
  • RF frequency: 318 MHz
  • Dimensions: 3.625" W x 5.25" H x 1.5" D
  • Same as: DNR00104
Installation Manual

Login to view pricing

Login

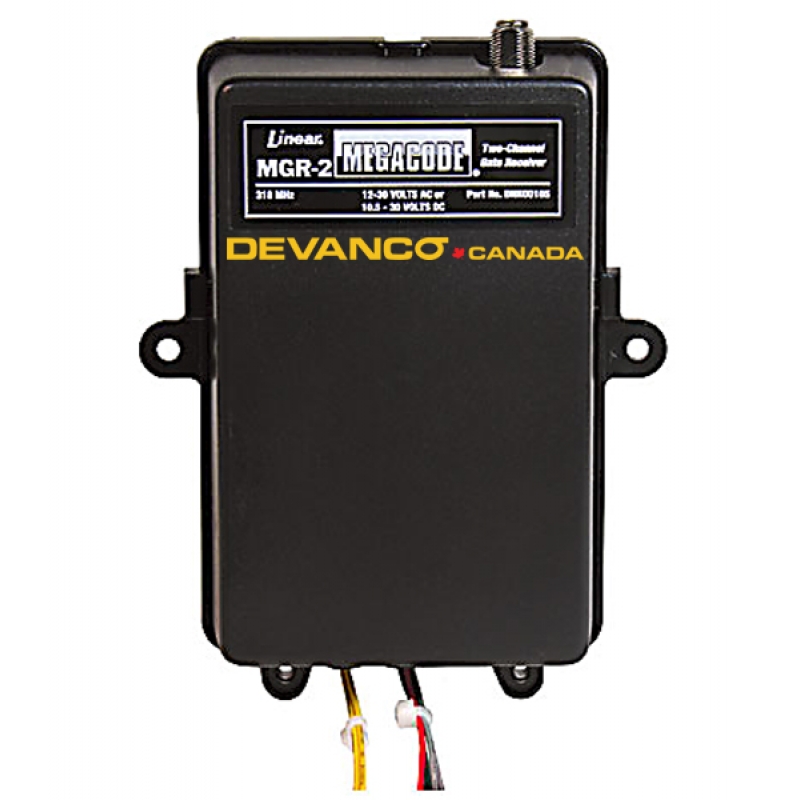

Linear 2-Channel MegaCode Gate Receiver 318 MHz *** To Extent of Inventory
MGR-2
Linear 2-Channel MegaCode Gate Receiver 318 MHz *** To Extent of Inventory
  • Two Form ”A” (normally open) relays rated at 30 Volts AC/DC up to 5 Amps
  • Supplied with whip antenna three feet of coaxial cable and bulkhead connector
  • Memory: storage for up to 40 MegaCode transmitters
  • Power: 12 - 30 VAC or 10.5 - 30 VDC
  • Codes: 1000000+ (MegaCode format)
  • RF frequency: 318 MHz
  • Dimensions: 3.625" W x 5.25" H x 1.5" D
  • Same as: DNR00105
Installation Manual

Login to view pricing

Login
Micanan 1-Channel 24V Receiver with Antenna
MK-00648
Micanan 1-Channel 24V Receiver with Antenna
  • Comes with antenna MK00719
  • Total of 20 regular remotes can be programmed or 200 of the block coded remotes MK-00660
Programming Instructions

Login to view pricing

Login
