LiftMaster 2-Channel Co-Axial Receiver 390 MHz ***DISCONTINUED

• Smart Garage Door Opener® electronics on each channel for fast programming
• Bell wire attached for easy second channel hook-up
• 18 - 35VAC/DC
• FCC certified 390MHz

LiftMaster 3-Channel Co-Axial Receiver 390 MHz

• 8" coaxial antenna included
• Used for open/stop/close on commercial motors
• N/O and N/C selectable
• Compatible remote: 33LM

LiftMaster Universal Radio Control Receiver 390 MHz **Replaced by 412HMC

• Over 100 billion possible codes makes it impossible to duplicate the frequency
• Jumper option for momentary or constant relay contact
• Specifically for use with most 3-wire systems without a transformer
• Accepts up tp 8 Security+ remote control codes and one keyless entry
• Will work with LiftMaster Sears Craftsman or Chamberlain remotes with the yellow LED light - Sec+ format
• Will work on 2 or 3 wire systems. If your system is 2-wire a 24-volt 85LM transformer is required
• Discontinued on 9/1/13

LiftMaster Universal Plug-in Receiver 390 MHz ** To Extent of Inventory

• Compatible with any garage door opener with a simple 2-wire dry contact
• Includes 2-conductor bell wire
• Able to accept 8 Security+ transmitters & 1 digital keypad or 1 dip-switch transmitter and 12 billion code transmitters

Marantec External Gate Receiver 315 MHz

• Upgrade your existing gate operator to be compatible with Marantec controls such as transmitters and keyless entry systems.
• 315 MHz operating frequency
• HomeLink compatible
• Very easy installation (follow wiring diagram of gate operator)
• Compatible with other operator brands
• Made in Germany

Marantec Modular Receiver 315 MHz ***available to extent of inventory see details***

• Only available in 315 MHz. Be sure to check which frequency is required
• Works with Marantec residential opener models 4500e 4700e 4900e
• Replaced by 75424 plug-in receiver

Equinoxe Long Range Receiver 1-Door 433 MHz Pre-2016 *** To Extent of Inventory

• 1000 ft range
• Old generation - prior to 2016

Equinoxe Long Range Receiver 1-Door 433 MHz New Generation

• 1000 ft range
• 2016 +
• This receiver will accept 8 equinoxe O/C/S remotes

Equinoxe Long Range Receiver 1-Door Industrial Enclosure 433 MHz Pre-2016

• 1000 ft range
• Old generation - prior to 2016

Equinoxe Long Range Receiver 1-Door Industrial Enclosure 433 MHz New Generation

• 1000 ft range
• 2016+
• This receiver will accept 8 Equinoxe O/C/S remotes
• Nema 4

Refurbished 801-300-002-01 Unit

Allstar 1-Door O/C/S Receiver 107480 318 MHz ** To Extent of Inventory

• Three channels - three relay outputs
• Textured aluminum case
• Terminal strip for wiring
• Wire whip antenna with "F" connector
• Compatible with Allstar Classic Allister and Pulsar dipswitch transmitters and MVP quik-code transmitters
• Power: 24 VAC
• Codes: 19683
• Learning technology
• RF frequency: 318 MHz
• Dimensions: 8.75" W x 5.375" H x 1.75" D Order number: 190-107480

Allstar 1-Door O/C/S Receiver in Oil Tight Case (JIC) 107478 318 MHz *** To extent of inventory

• Three channels - three relay outputs
• Oil-tight JIC ABS case
• Terminal strip for wiring
• Wire whip antenna with "F" connector
• Compatible with Allstar Classic Allister and Pulsar dipswitch transmitters and MVP quik-code transmitters
• Power: 24 VAC/VDC
• Codes: 19683
• Learning technology
• RF frequency: 318 MHz
• Dimensions: 7.125" W x 8.625" H x 4.625" D Order number: 190-107478

LiftMaster Universal Receiver Sec+ 2.0

• Designed for both gated communities and commercial buildings.
• Innovative and exclusive narrow band multi-frequency radio which virtually eliminates radio interference and eliminates customer call backs due to poor range performance.
• Three channels provide expanded remote control capacity: Channel 1 - 50 remotes and 2 keypads Channel 2 - 20 remotes and 2 keypads Channel 3 - 20 remotes and 2 keypads
• Multiple remote control options available to provide secure access from the safety and convenience of a vehicle
• Power: 12-24VDC or 12-24VAC
• Compatible remotes; 811LM 813LM 891LM 893LM 890MAX 893MAX 892LT 894LT
• Compatible keypads; 877LM 877MAX

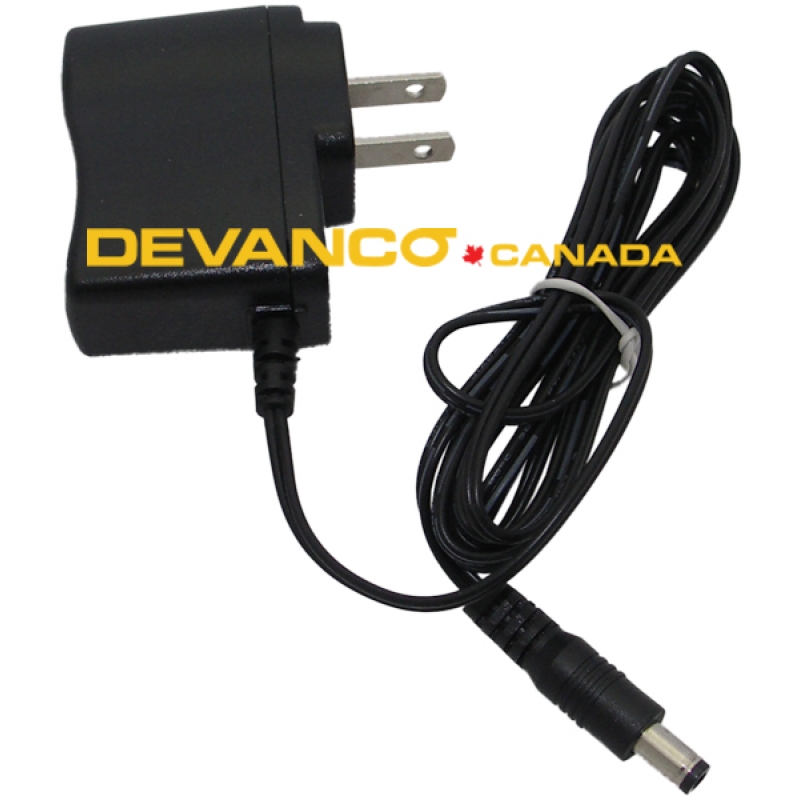

LiftMaster Plug-In Power Supply

• Plug-in jack for easy installation on Liftmaster receivers
• Power input level: 105-135AC 24AC output

LiftMaster Universal Weather Resistant Receiver

• Weather-resistant for outdoor mounting requirements
• Provides convenient access to gated communities industrial facilities and commercial sites all with a single transmitter solution
• Three channels provide expanded remote control capacity: Channel 1 - 50 remotes Channel 2 - 20 remotes Channel 3 - 20 remotes
• Multiple remote control options available to provide secure access from the safety and convenience of a vehicle
• Compact design fits most gate and commercial door operators
• Compatible with 811LM 813LM and all MAX remote controls
• Power: 12-24VDC or 12-24VAC
• Relay Outputs: Output channels - 1 FORM C and 2 FORM A relays
• Narrow-band on 310 MHz 315 MHz and 390 MHz Security+ 2.0â„¢
• Rolling Code and Encrypted DIP
• Operational temperature from -35 to 65 degrees C; Storage temperature from -40 to 85 decrees C
• Comes with antenna

Ambassador 3002 1-Channel Receiver ***Replaced by DR & DT

• Works with Ambassador remotes
• Can use Allstar 313 MHz R-MVP3W or R-MVPC

Linear MegaCode Wireless Access Controller 318 MHz

• Ideal for gated communities parking facilities and industrial sites
• Easy to set-up and use up to 480 remotes can be programmed with a few keystrokes
• Easy to add suspend and delete transmitters through programming mode no transmitter dipswitches to set
• Supports 480 block coded transmitters or 238 individual transmitters/wireless keypad entry codes
• Supports up to six fully supervised safety edge transmitters
• AP-5 replaces Linear's AP-4; AP-5 available for replacement of existing AP-4 units only
• RF frequency: 318 MHz
• 4.45" W x 5.75" H x 1.5" D (without antenna)
• Same asr: ACP00953

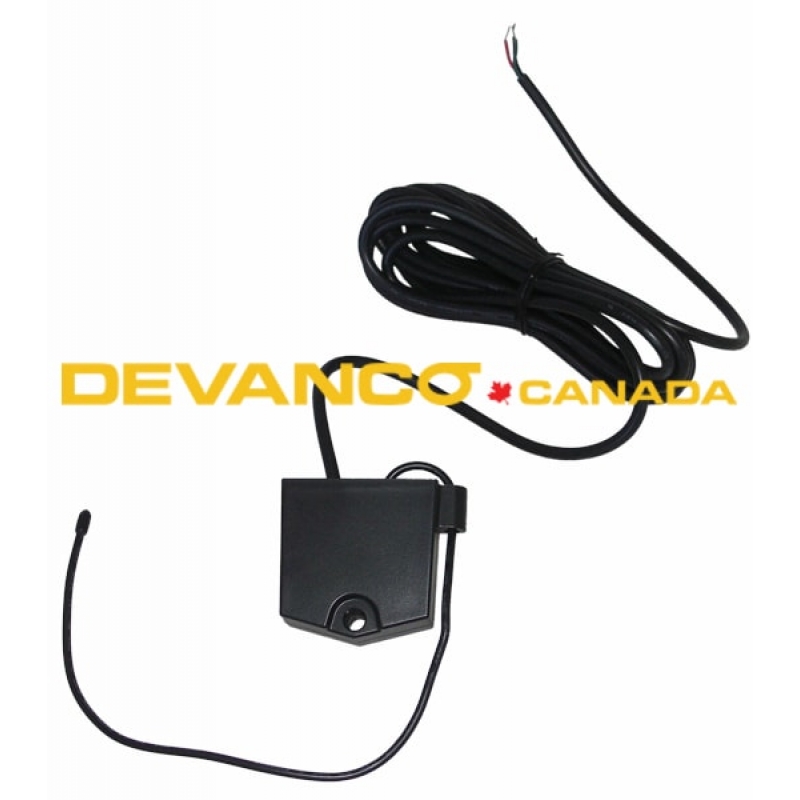

Linear GTO Narrow Band Receiver w/Antenna and 10ft Cable

• Works with all GTO DC gate operators and narrow band transmitters (gray style).
• The AQ201-NB comes standard with all DC slide gate operators.
• Measures: 2"H x 2-3/8"W x 15/16"D

Linear 1-Channel Digital Receiver 303 MHz

• Designed for use in security systems and remote switching functions.
• Typical applications for the receiver include adding a wireless zone a panic button or creating a remote arm/disarm feature for a hardwired alarm panel
• Operates on 11-24 VDC or 12-16 VAC power
• One channel
• Standard digital format: 256 discrete codes
• One form “C” relay output
• One Amp contact rating @ 32 Volts AC/DC
• Four second relay activation time
• RF frequency: 303.875 MHz
• Dimensions: 4.9" W x 3.8" H x 1.3" D
• Same as: SNR00032
