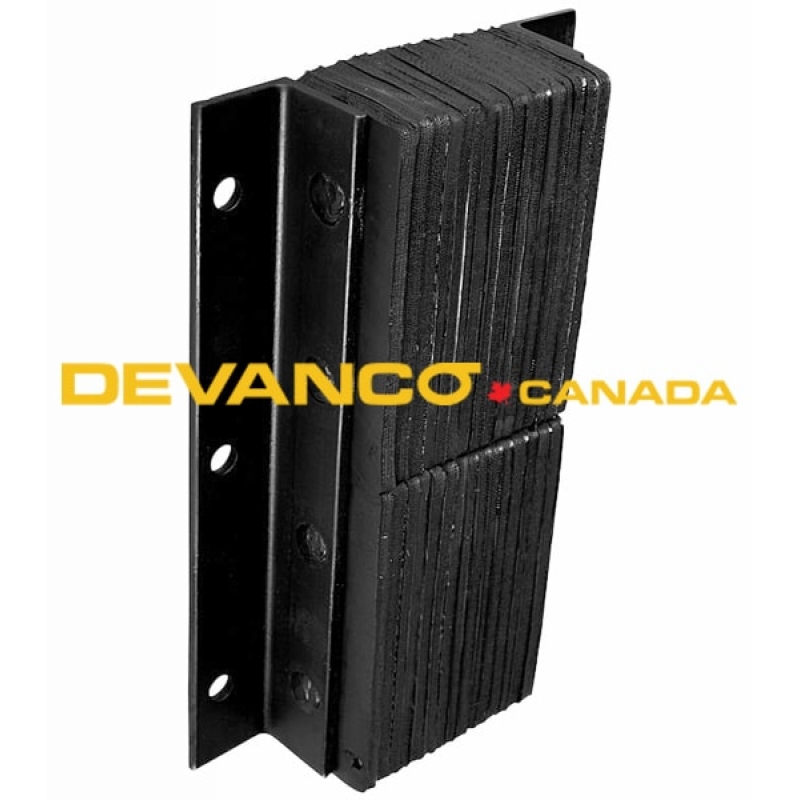

Laminated Bumper Black 6" Projection Vertical Installation 20" x 11" Sold Individually Style P1

• For use in low to medium traffic loading docks in factories and warehouses.
• Can be used as rub rails at the sides of truck wells
• Fabric reinforced rubber pads cut from recycled truck tires.
• Rubber pads laminated between steel angles and secured with 3/4” rods
• Bumper is fastened to dock surface with 3/8” steel angles and/or flat plates depending on the model chosen.
• Wall mounting hole size is 7/8” diameter.
• This model has angles on both sides
• Width: 11" bumper 13" incl. angles
• Length: 20" long

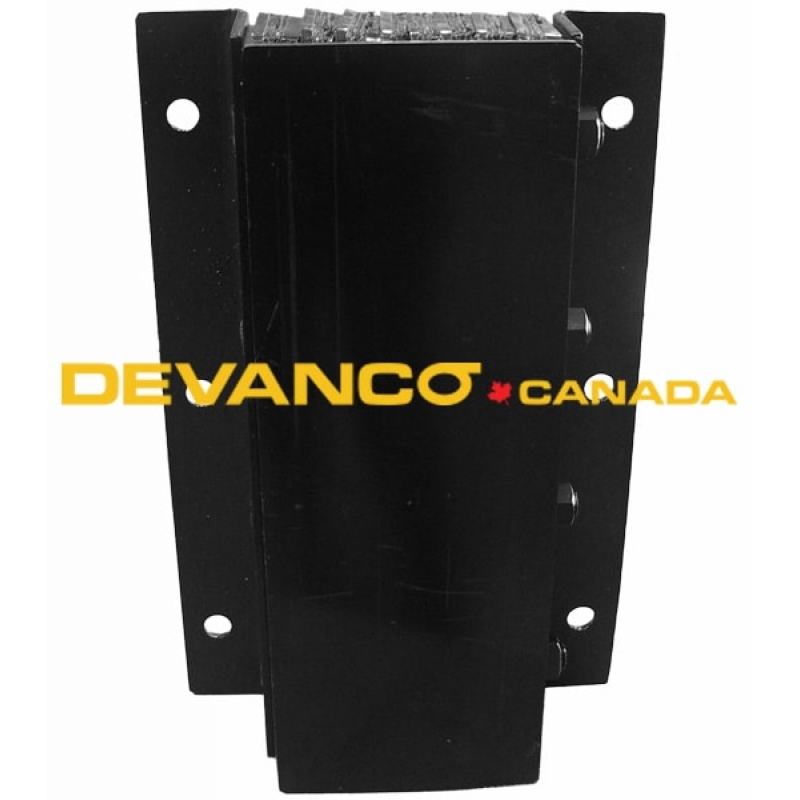

Steel-Faced Laminated Bumper Black 6" Projection Vertical Installation 20" x 11" Sold Individually

• Used on docks where excessive friction from up and down trailer movement occurs (yard jockeys air ride trailers etc.).
• Can be used in material handling application where medium to heavy dock protection is required.
• 5/8" anchor bolts mounted through pre-drilled holes into dock or can be welded to curb angle.
• Steel face is 3/8" thick heavy duty high carbon steel that is mounted over a laminated dock bumper.
• Plate to be welded to 2 or 3 steel support brackets which are to extend back to the 3/4" supporting rods.
• Brackets to be punched with elongated holes to allow steel face to "float" upon impact.
• Size: 11" w x 20" h

Laminated Bumper Black 6" Projection Vertical Installation 24" x 11" Sold Individually

• For use in low to medium traffic loading docks in factories and warehouses.
• Can be used as rub rails at the sides of truck wells
• Fabric reinforced rubber pads cut from recycled truck tires.
• Rubber pads laminated between steel angles and secured with 3/4” rods
• Bumper is fastened to dock surface with 3/8” steel angles and/or flat plates depending on the model chosen.
• Wall mounting hole size is 7/8” diameter.
• This model has angles on both sides
• Width: 11" bumper 13" incl. angles
• Length: 24" long

Steel-Faced Laminated Bumper Black 6" Projection Vertical Installation 24" x 11" Sold Individually

• Used on docks where excessive friction from up and down trailer movement occurs (yard jockeys air ride trailers etc.).
• Can be used in material handling application where medium to heavy dock protection is required.
• 5/8" anchor bolts mounted through pre-drilled holes into dock or can be welded to curb angle.
• Steel face is 3/8" thick heavy duty high carbon steel that is mounted over a laminated dock bumper.
• Plate to be welded to 2 or 3 steel support brackets which are to extend back to the 3/4" supporting rods.
• Brackets to be punched with elongated holes to allow steel face to "float" upon impact.
• Size: 11" w x 24" h

Laminated Bumper Black 6" Projection Vertical Installation 30" x 11" Sold Individually

• For use in low to medium traffic loading docks in factories and warehouses.
• Can be used as rub rails at the sides of truck wells
• Fabric reinforced rubber pads cut from recycled truck tires.
• Rubber pads laminated between steel angles and secured with 3/4” rods
• Bumper is fastened to dock surface with 3/8” steel angles and/or flat plates depending on the model chosen.
• Wall mounting hole size is 7/8” diameter.
• This model has angles on both sides
• Width: 11" bumper 13" incl. angles
• Length: 30" long

Laminated Bumper Black 6" Projection Vertical Installation 36" x 11" Sold Individually

• For use in low to medium traffic loading docks in factories and warehouses.
• Can be used as rub rails at the sides of truck wells
• Fabric reinforced rubber pads cut from recycled truck tires.
• Rubber pads laminated between steel angles and secured with 3/4” rods
• Bumper is fastened to dock surface with 3/8” steel angles and/or flat plates depending on the model chosen.
• Wall mounting hole size is 7/8” diameter.
• This model has angles on both sides
• Width: 11" bumper 13" incl. angles
• Length: 36" long

Steel-Faced Laminated Bumper Black 6" Projection Vertical Installation 36" x 11" Sold Individually

• Used on docks where excessive friction from up and down trailer movement occurs (yard jockeys air ride trailers etc.).
• Can be used in material handling application where medium to heavy dock protection is required.
• 5/8" anchor bolts mounted through pre-drilled holes into dock or can be welded to curb angle.
• Steel face is 3/8" thick heavy duty high carbon steel that is mounted over a laminated dock bumper.
• Plate to be welded to 2 or 3 steel support brackets which are to extend back to the 3/4" supporting rods.
• Brackets to be punched with elongated holes to allow steel face to "float" upon impact.
• Size: 11" w x 36" h

Laminated Bumper Black 8" Projection Vertical Installation 20" x 11" Sold Individually

• For use in low to medium traffic loading docks in factories and warehouses.
• Can be used as rub rails at the sides of truck wells
• Fabric reinforced rubber pads cut from recycled truck tires.
• Rubber pads laminated between steel angles and secured with 3/4” rods
• Bumper is fastened to dock surface with 3/8” steel angles and/or flat plates depending on the model chosen.
• Wall mounting hole size is 7/8” diameter.
• This model has angles on both sides
• Width: 11" bumper 13" incl. angles
• Length: 20" long

Laminated Bumper Black 8" Projection Vertical Installation 20" x 11" Sold Individually Style P1

• For use in low to medium traffic loading docks in factories and warehouses.
• Can be used as rub rails at the sides of truck wells
• Fabric reinforced rubber pads cut from recycled truck tires.
• Rubber pads laminated between steel angles and secured with 3/4” rods
• Bumper is fastened to dock surface with 3/8” steel angles and/or flat plates depending on the model chosen.
• Wall mounting hole size is 7/8” diameter.
• This model has angles on both sides
• Width: 11" bumper 13" incl. angles
• Length: 20" long

Laminated Bumper Black 8" Projection Vertical Installation 24" x 11" Sold Individually

• For use in low to medium traffic loading docks in factories and warehouses.
• Can be used as rub rails at the sides of truck wells
• Fabric reinforced rubber pads cut from recycled truck tires.
• Rubber pads laminated between steel angles and secured with 3/4” rods
• Bumper is fastened to dock surface with 3/8” steel angles and/or flat plates depending on the model chosen.
• Wall mounting hole size is 7/8” diameter.
• This model has angles on both sides
• Width: 11" bumper 13" incl. angles
• Length: 24" long

Laminated Bumper Black 9" Projection Vertical Installation 20" x 11" Sold Individually

• For use in low to medium traffic loading docks in factories and warehouses.
• Can be used as rub rails at the sides of truck wells
• Fabric reinforced rubber pads cut from recycled truck tires.
• Rubber pads laminated between steel angles and secured with 3/4” rods
• Bumper is fastened to dock surface with 3/8” steel angles and/or flat plates depending on the model chosen.
• Wall mounting hole size is 7/8” diameter.
• This model has angles on both sides
• Width: 11" bumper 13" incl. angles
• Length: 20" long

Laminated Bumper Black 9" Projection Vertical Installation 24" x 11" Sold Individually

• For use in low to medium traffic loading docks in factories and warehouses.
• Can be used as rub rails at the sides of truck wells
• Fabric reinforced rubber pads cut from recycled truck tires.
• Rubber pads laminated between steel angles and secured with 3/4” rods
• Bumper is fastened to dock surface with 3/8” steel angles and/or flat plates depending on the model chosen.
• Wall mounting hole size is 7/8” diameter.
• This model has angles on both sides
• Width: 11" bumper 13" incl. angles
• Length: 24" long

Lynx 6000 Commercial Logic Board

• Replacement logic board for Lynx commercial operators built from 2002 through 2005
• Will not work for the ALDJ Model (Light Duty)

Lynx O/C/S Receiver

• For use with Lynx o/c/s transmitter # T3B-OCS

Lynx Deluxe 3 function Wall Station

• Features light and lock function
• Vacation switch de-activates remote controls & keyless entry
• Works with Lynx residential openers built from 2000 +
• Comes with wire and mounting hardware

Erone L & Z-Bracket for Maglock ESM500

BEA LZR Gold-Black BLK-02 H100

• Laser scanner for gate and barrier applications.
• Provides four laser-based curtains offering a three dimensional detection zone.
• Detection curtains are highly configurable and can be set up for activation and presence detection in vehicle sensing applications.
• Effective alternative to induction loops.
• Max detection range: 32'x32'
• Cable length: 33'
• Nema 4/IP65
• -22-140F powered/14-140F unpowered

BEA LZR Microscan Kit 1 Door with 2 Microscans Hub & Cables

• Laser-based sensor system for automatic swing doors.
• Time-of-flight technology used to eliminate the limitations of infrared-based devices.
• Background independence eliminates nuisance detections caused by changing conditions while gyroscopes sense the movement of the door for accurate positioning.
• Provides asjustable pattern depth.
• Min/max door width: 20"-48" from leading edge of sensor LED
• Mounting height: 75"-98" from finished floor to sensor LED
• Operating temperature: -13 to 121F
• Hub: IP20/Nema 1
• Snsor: IP53/Nema3

Autogate Proximity (Limit) Switch

Autogate Proximity Magnets
