Miller Edge Air Wave Switch Only No Enclosure

• Air pressure is lead via a hose or pipe to a diaphragm contact. This contact converts the positive or negative pressure into an electrical contact and pulse.
• Applications: commercial sectional doors rolling doors and mass transit
• Works on doors up to 60ft
• Can be used with standard pneumatic hose and Miller Edge extrusion
• Sensitivity: 2mm to 500mm
• Ambient temperature range: -49F to 180F
• Electrical configuration: 2 wire NO
• Adjustable sensitivity
• Mechanical life: minimum 2 million operations
• Electrical life: 1 million operations depending on contact load

Miller Edge Air Wave Switch in NEMA 4 Enclosure

• Air pressure is lead via a hose or pipe to a diaphragm contact. This contact converts the positive or negative pressure into an electrical contact and pulse.
• Applications: commercial sectional doors rolling doors and mass transit
• Works on doors up to 60ft
• Can be used with standard pneumatic hose and Miller Edge extrusion
• Sensitivity: 2mm to 500mm
• Ambient temperature range: -49F to 180F
• Electrical configuration: 2 wire NO
• Adjustable sensitivity
• Mechanical life: minimum 2 million operations
• Electrical life: 1 million operations depending on contact load
• Durable and water tight

Miller Edge Air Wave Switch in ABS Box

• Air pressure is lead via a hose or pipe to a diaphragm contact. This contact converts the positive or negative pressure into an electrical contact and pulse.
• Molded enclosure
• Applications: commercial sectional doors rolling doors and mass transit
• Works on doors up to 60ft
• Can be used with standard pneumatic hose and Miller Edge extrusion
• Sensitivity: 2mm to 500mm
• Ambient temperature range: -49F to 180F
• Electrical configuration: 2 wire NO
• Adjustable sensitivity
• Mechanical life: minimum 2 million operations
• Electrical life: 1 million operations depending on contact load

Miller Edge Air Wave Kit 12ft No Coil Cord**Discontinued

• Kit Includes: AW12 Air Wave Switch Barbed Coupler (12') RAH-500 1/2" dia. Rubber Hose Wire Nuts End Plugs

Miller Edge Air Wave Kit 18ft No Coil Cord

• Kit Includes: AW12 Air Wave Switch Barbed Coupler (18') RAH-500 1/2" dia. Rubber Hose Wire Nuts End Plugs

Miller Edge Wireless Air Wave Switch Transmitter/Receiver Kit

• AW14-RF is the AW14 air wave switch with a transmitter embedded within the switch enclosure and the receiver wires into the operator.
• There is no need to hardwire coil cords or retracting reels which saves installation time and improves visual aesthetics.
• The AW-14-RF-K10 switch kit includes a MRF-01 receiver which is wired to the motor controls.
• Battery is included # CR2032

Miller Edge Air Wave Kit 12ft No Coil Cord

• AW14 12ft. of RAH-500 P-50H 218-27-18 P50
• Kit Includes: AW14 Air Wave Switch Barbed Coupler (12') RAH-500 1/2" dia. Rubber Hose Wire Nuts End Plugs

Miller Edge Air Wave Kit 18ft No Coil Cord

• AW14 18ft. of RAH-500 P-50H 218-27-18 P50
• Kit Includes: AW14 Air Wave Switch Barbed Coupler (18') RAH-500 1/2" dia. Rubber Hose Wire Nuts End Plugs

Miller Edge Air Wave Edge System Trans/Recvr 18ft Non-Monitored

• AW14-RF MRF-01 RAH-500 (18') P50 P-50H 218-27-18
• AW14-RF-K10 end plug connector plug 1/2”-18 ft. hose

Miller Edge Clima-Guard 4-Wire Monitored Black Right Hand Outlet Sold by the Foot

• Clima-Guard functions exactly like a pressure sensitive electric edge but with an added layer of protection.
• The protective loop seal conforms to irregularities in the floor and helps prevent air infiltration and serves as a weather barrier.
• ClimaGuard is made up of an ME112 sensing edge paired with a PVC loop seal that comes with a double slot mounting channel.
• Electrical Configuration: Normally open
• this edge comes with the channel

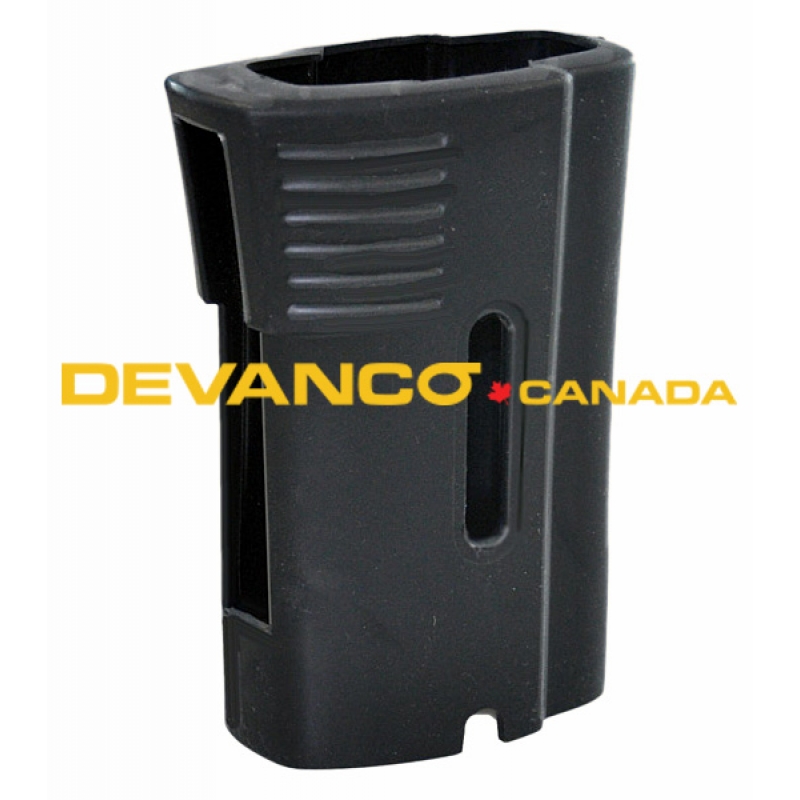

Miller Edge Protective Boot Covering for IG2 Eyes Sold as a Pair

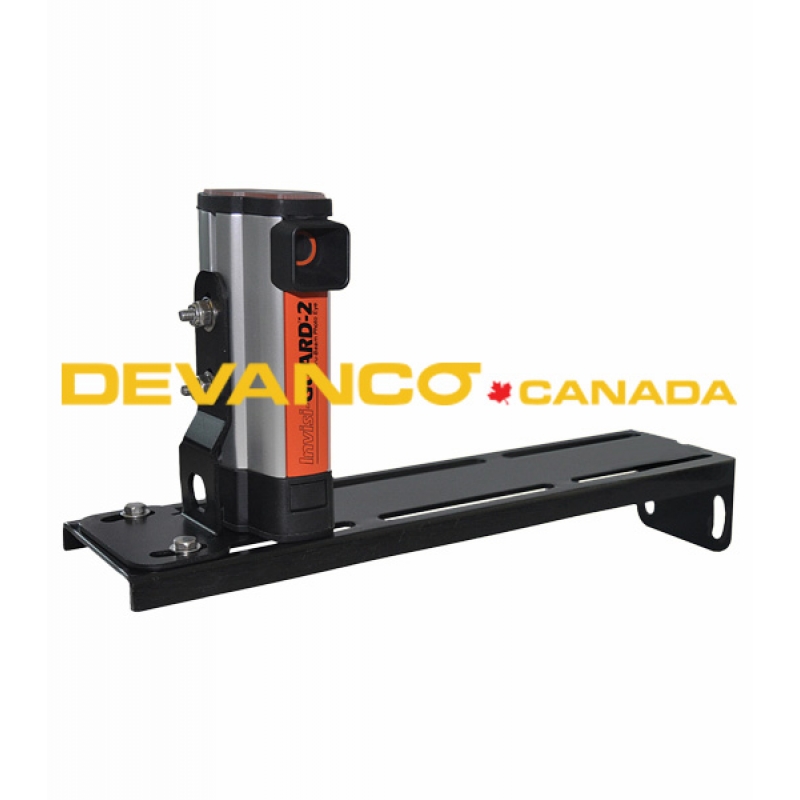

Miller Edge Wall Mount Extension Bracket

• 1 ft L x 2" H x 3" W

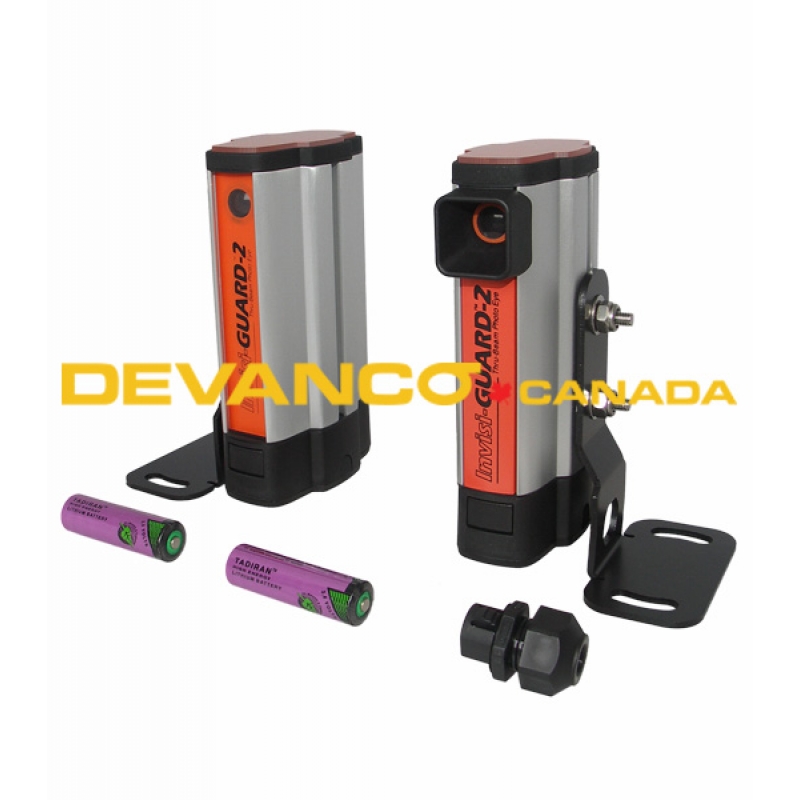

Invisi-Guard-2 Photo Eye Kit 30ft Battery Powered *** Discontinued

• The Invisi-Guard-2 thru beam photo optic system sends an invisible beam of light from a transmitting unit to a receiving unit.
• The light beam is intended to function as a protective line guarding a potentially hazardous zone.
• When the light beam is interrupted by an obstruction a signal is sent to the motor controls to stop or reverse motion
• Universal Design Works with Pre and Post 2010 Operators
• Spans Distances up to 30 feet (model dependent)
• Time Saving Installation
• Vertical or Horizontal Mounting
• Easy Alignment with Positioning Indicators
• UL325 Compliant for Doors and Gates
• NEMA 4 enclosure
• Impact Resistant for rugged environments
• Easily Replaceable Batteries (no special order)
• Enhanced Sun Guard Protection
• Built in Strain Relie

Invisi-Guard-2 Photo Eye Kit 50ft Battery Powered *** Discontinued

• The Invisi-Guard-2 thru beam photo optic system sends an invisible beam of light from a transmitting unit to a receiving unit.
• The light beam is intended to function as a protective line guarding a potentially hazardous zone.
• When the light beam is interrupted by an obstruction a signal is sent to the motor controls to stop or reverse motion
• Universal Design Works with Pre and Post 2010 Operators
• Spans Distances up to 50 feet (model dependent)
• Time Saving Installation
• Vertical or Horizontal Mounting
• Easy Alignment with Positioning Indicators
• UL325 Compliant for Doors and Gates
• NEMA 4 enclosure
• Impact Resistant for rugged environments
• Easily Replaceable Batteries (no special order)
• Enhanced Sun Guard Protection
• Built in Strain Relief

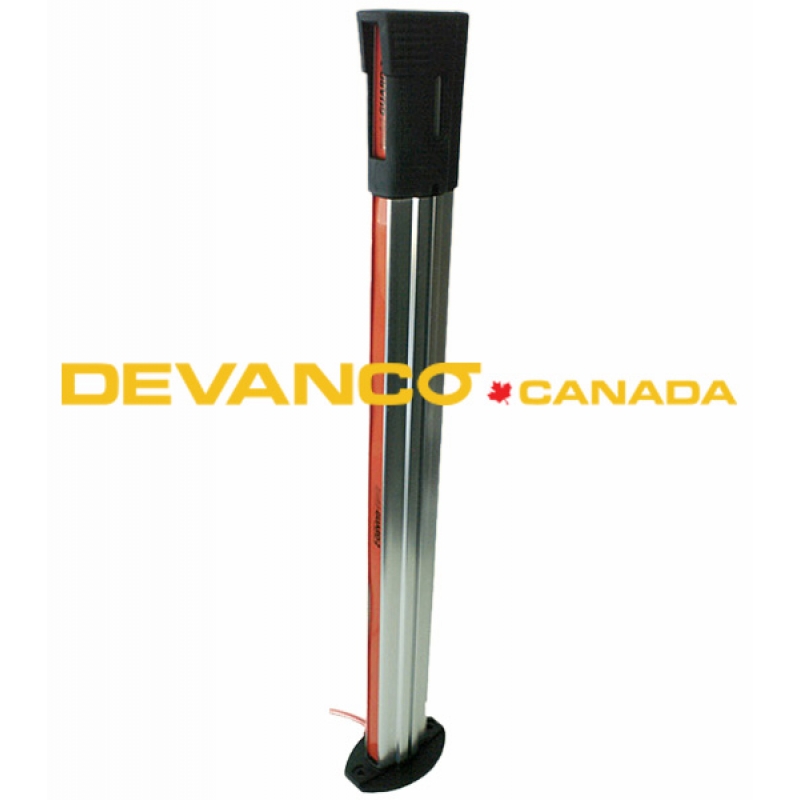

Miller Edge Pair of Pedestal Mounts for IG2 Eyes

• Flexible spring loaded pedestal stand
• 30 degree of flex
• 27" high from bottom base to photoeye

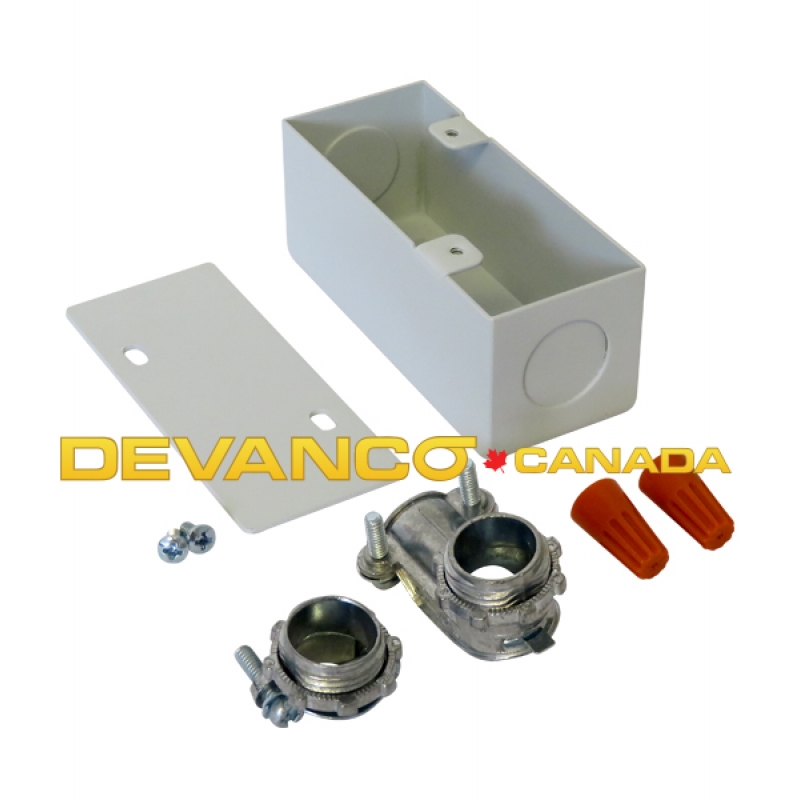

Miller Edge Junction Box Metal

• For commercial overhead doors that use coil cords or retracting reels
• Standard metal junction box with cover
• Includes 1 x 90-degree connector 1 straight connector
• Includes strain relief + 2 wire nuts + pop-out holes
• For single-angle bottom bar of rolling steel door
• Also compatible with sectional door

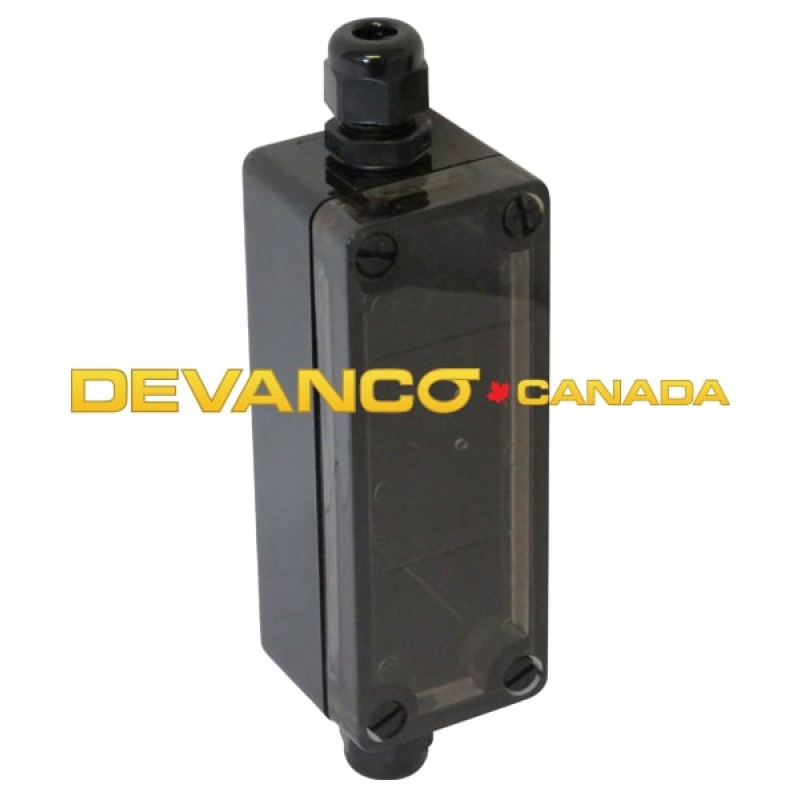

Miller Edge Junction Box Nema 4

• For use with commercial door operators and CPT sensing edges from Miller Edge
• Waterproof
• Accommodates wire .181 to .312

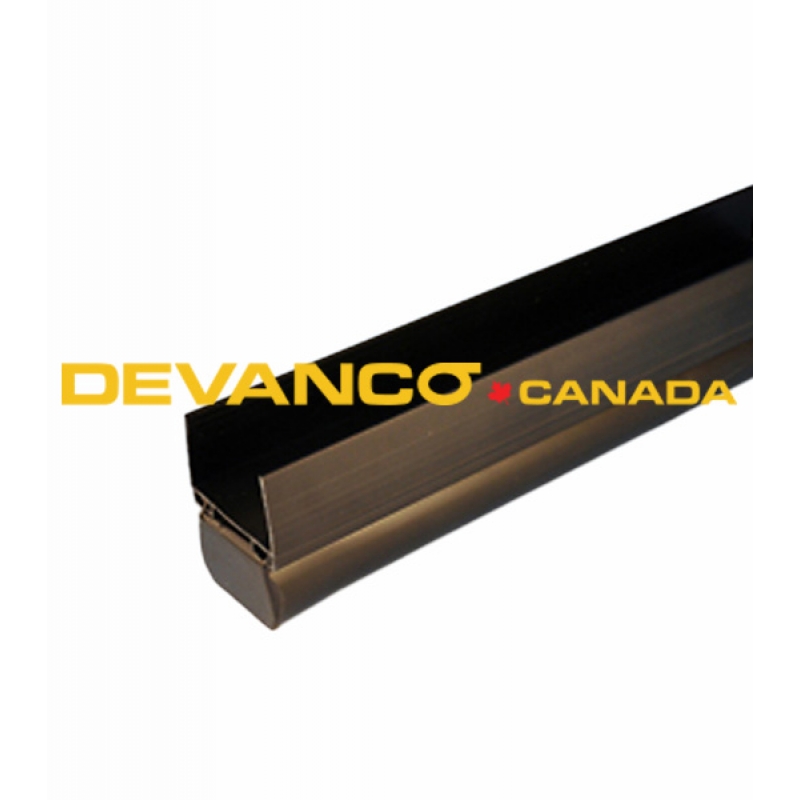

Miller Edge Air-Wave Edge Black Sold per Foot

• This pressure sensitive air-wave edge can be adapted to suit a wide variety of applications.
• When touch activated the MAW123 sends an immediate pulse of air through the extrusion to an air-wave switch which sends a signal to controls to stop and/or reverse operations.
• It has been designed to fit most doors with double track bottom retainers.
• With appropriate mounting channel this edge will fit nearly all doors from 11/2" to 2" thick.
• The MAW123 is resistant to flame water and most common greases and oils.

Miller Edge Air-Wave Edge Black Sold per Foot

• This pressure sensitive air-wave edge can be adapted to suit a wide variety of applications.
• When touch activated the MAW123 sends an immediate pulse of air through the extrusion to an air-wave switch which sends a signal to controls to stop and/or reverse operations.
• It has been designed to fit most doors with double track bottom retainers.
• With appropriate mounting channel this edge will fit nearly all doors from 11/2" to 2" thick.
• The MAW123 is resistant to flame water and most common greases and oils.

Miller Edge Air-Wave Edge Black Sold per Foot

• This pressure sensitive air-wave edge can be adapted to suit a wide variety of applications.
• When touch activated the MAW123 sends an immediate pulse of air through the extrusion to an air-wave switch which sends a signal to controls to stop and/or reverse operations.
• It has been designed to fit most doors with double track bottom retainers.
• With appropriate mounting channel this edge will fit nearly all doors from 11/2" to 2" thick.
• The MAW123 is resistant to flame water and most common greases and oils.
