Search Results

20 Products Found
Page 1 of 10 (20 total items)

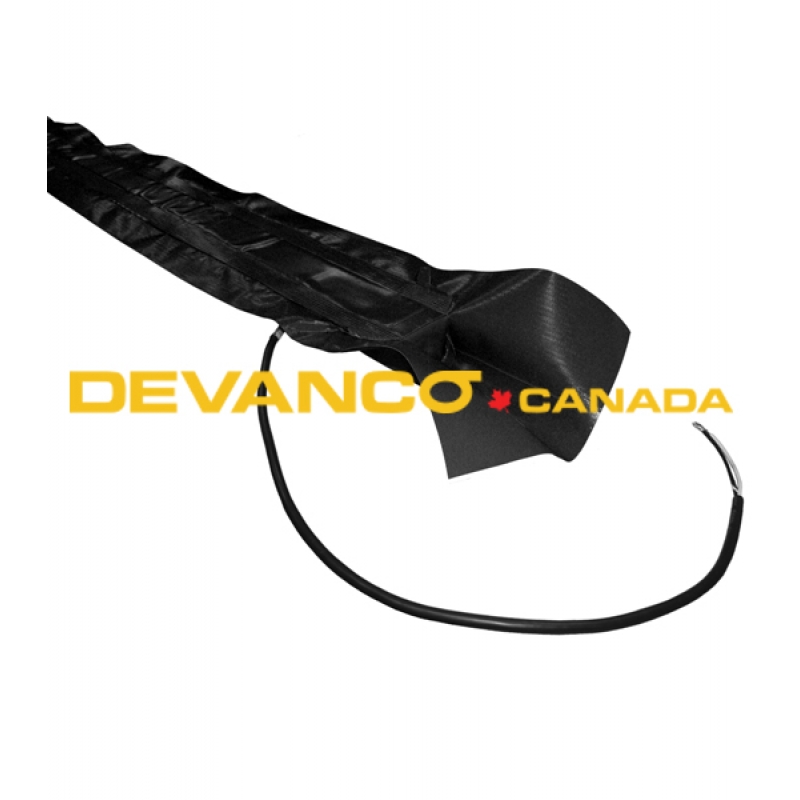

Miller Edge MU22 2-Wire Left Hand Black - Sold per Foot
MU22-2WIRE-LH-B
Miller Edge MU22 2-Wire Left Hand Black - Sold per Foot
  • €¢Electromechanical edge for sectional doors and aircraft hangars. •The MU22 is a custom edge manufactured to exact specifications. •The MU22 is completely flexible and will contour to curved surfaces. It's profile can also be square rectangular or angled. •Touch sensitive signaling allows immediate reversal or stopping of motion. •Temperature range: -30F to 155F •Lead wire: 22 gauge universal •Sensitivity: nominal 6-8 PSI •Vertical or horizontal mount •ANSI/UL325 recognized component •One year warranty
Installation ManualWorksheetSell Sheet

Login to view pricing

Login
Miller Edge MU22 2-Wire Left Hand Gray - Sold per Foot
MU22-2WIRE-LH-G
Miller Edge MU22 2-Wire Left Hand Gray - Sold per Foot
  • €¢Electromechanical edge for sectional doors and aircraft hangars. •The MU22 is a custom edge manufactured to exact specifications. •The MU22 is completely flexible and will contour to curved surfaces. It's profile can also be square rectangular or angled. •Touch sensitive signaling allows immediate reversal or stopping of motion. •Temperature range: -30F to 155F •Lead wire: 22 gauge universal •Sensitivity: nominal 6-8 PSI •Vertical or horizontal mount •ANSI/UL325 recognized component •One year warranty
WorksheetInstallation manualSell sheet

Login to view pricing

Login
Miller Edge MU22 2-Wire Left Hand Yellow - Sold per Foot
MU22-2WIRE-LH-Y
Miller Edge MU22 2-Wire Left Hand Yellow - Sold per Foot
  • €¢Electromechanical edge for sectional doors and aircraft hangars. •The MU22 is a custom edge manufactured to exact specifications. •The MU22 is completely flexible and will contour to curved surfaces. It's profile can also be square rectangular or angled. •Touch sensitive signaling allows immediate reversal or stopping of motion. •Temperature range: -30F to 155F •Lead wire: 22 gauge universal •Sensitivity: nominal 6-8 PSI •Vertical or horizontal mount •ANSI/UL325 recognized component •One year warranty
Installation ManualWorksheetSell Sheet

Login to view pricing

Login
Miller Edge MU22 2-Wire Right Hand Black - Sold per Foot
MU22-2WIRE-RH-B
Miller Edge MU22 2-Wire Right Hand Black - Sold per Foot
  • €¢Electromechanical edge for sectional doors and aircraft hangars. •The MU22 is a custom edge manufactured to exact specifications. •The MU22 is completely flexible and will contour to curved surfaces. It's profile can also be square rectangular or angled. •Touch sensitive signaling allows immediate reversal or stopping of motion. •Temperature range: -30F to 155F •Lead wire: 22 gauge universal •Sensitivity: nominal 6-8 PSI •Vertical or horizontal mount •ANSI/UL325 recognized component •One year warranty
Installation ManualWorksheetSell Sheet

Login to view pricing

Login
Miller Edge MU22 2-Wire Right Hand Gray - Sold per Foot
MU22-2WIRE-RH-G
Miller Edge MU22 2-Wire Right Hand Gray - Sold per Foot
  • €¢Electromechanical edge for sectional doors and aircraft hangars. •The MU22 is a custom edge manufactured to exact specifications. •The MU22 is completely flexible and will contour to curved surfaces. It's profile can also be square rectangular or angled. •Touch sensitive signaling allows immediate reversal or stopping of motion. •Temperature range: -30F to 155F •Lead wire: 22 gauge universal •Sensitivity: nominal 6-8 PSI •Vertical or horizontal mount •ANSI/UL325 recognized component •One year warranty
WorksheetInstallation manualSell sheet

Login to view pricing

Login

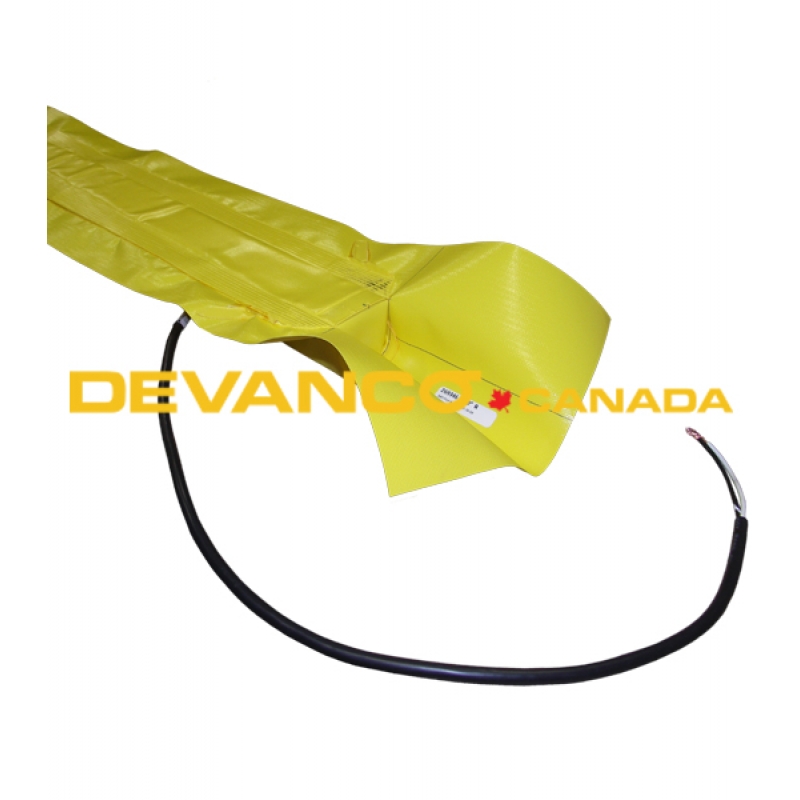

Miller Edge MU22 2-Wire Right Hand Yellow - Sold per Foot
MU22-2WIRE-RH-Y
Miller Edge MU22 2-Wire Right Hand Yellow - Sold per Foot
  • €¢Electromechanical edge for sectional doors and aircraft hangars. •The MU22 is a custom edge manufactured to exact specifications. •The MU22 is completely flexible and will contour to curved surfaces. It's profile can also be square rectangular or angled. •Touch sensitive signaling allows immediate reversal or stopping of motion. •Temperature range: -30F to 155F •Lead wire: 22 gauge universal •Sensitivity: nominal 6-8 PSI •Vertical or horizontal mount •ANSI/UL325 recognized component •One year warranty
Installation ManualWorksheetSell Sheet

Login to view pricing

Login
Miller Edge MU22 2-Wire Universal Black - Sold per Foot
MU22-2WIRE-U-BLK
Miller Edge MU22 2-Wire Universal Black - Sold per Foot
  • €¢Electromechanical edge for sectional doors and aircraft hangars. •The MU22 is a custom edge manufactured to exact specifications. •The MU22 is completely flexible and will contour to curved surfaces. It's profile can also be square rectangular or angled. •Touch sensitive signaling allows immediate reversal or stopping of motion. •Temperature range: -30F to 155F •Lead wire: 22 gauge universal •Sensitivity: nominal 6-8 PSI •Vertical or horizontal mount •ANSI/UL325 recognized component •One year warranty
WorksheetInstallation manualSell sheet

Login to view pricing

Login
Miller Edge MU22 2-Wire Universal Gray - Sold per Foot
MU22-2WIRE-U-GRY
Miller Edge MU22 2-Wire Universal Gray - Sold per Foot
  • €¢Electromechanical edge for sectional doors and aircraft hangars. •The MU22 is a custom edge manufactured to exact specifications. •The MU22 is completely flexible and will contour to curved surfaces. It's profile can also be square rectangular or angled. •Touch sensitive signaling allows immediate reversal or stopping of motion. •Temperature range: -30F to 155F •Lead wire: 22 gauge universal •Sensitivity: nominal 6-8 PSI •Vertical or horizontal mount •ANSI/UL325 recognized component •One year warranty
WorksheetInstallation manualSell sheet

Login to view pricing

Login
Miller Edge MU22 2-Wire Universal Yellow - Sold per Foot
MU22-2WIRE-U-Y
Miller Edge MU22 2-Wire Universal Yellow - Sold per Foot
  • €¢Electromechanical edge for sectional doors and aircraft hangars. •The MU22 is a custom edge manufactured to exact specifications. •The MU22 is completely flexible and will contour to curved surfaces. It's profile can also be square rectangular or angled. •Touch sensitive signaling allows immediate reversal or stopping of motion. •Temperature range: -30F to 155F •Lead wire: 22 gauge universal •Sensitivity: nominal 6-8 PSI •Vertical or horizontal mount •ANSI/UL325 recognized component •One year warranty
WorksheetInstallation manualSell sheet

Login to view pricing

Login
Miller Edge MU22 4-Wire End Yellow - Sold per Foot
MU22-4WIRE-E-Y
Miller Edge MU22 4-Wire End Yellow - Sold per Foot
  • €¢Electromechanical edge for sectional doors and aircraft hangars. •The MU22 is a custom edge manufactured to exact specifications. •The MU22 is completely flexible and will contour to curved surfaces. It's profile can also be square rectangular or angled. •Touch sensitive signaling allows immediate reversal or stopping of motion. •Temperature range: -30F to 155F •Lead wire: 22 gauge universal •Sensitivity: nominal 6-8 PSI •Vertical or horizontal mount •ANSI/UL325 recognized component •One year warranty
WorksheetInstallation manualSell sheet

Login to view pricing

Login

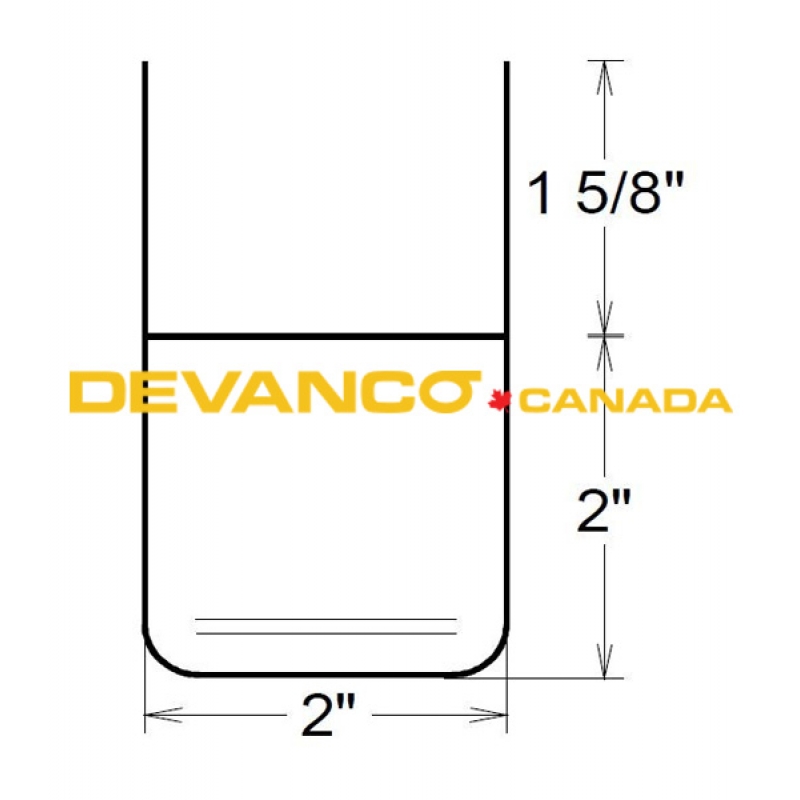

Miller Edge MU22 4-Wire Universal Yellow - Sold per Foot
MU22-4WIRE-U-Y
Miller Edge MU22 4-Wire Universal Yellow - Sold per Foot
  • €¢Electromechanical edge for sectional doors and aircraft hangars. •The MU22 is a custom edge manufactured to exact specifications. •The MU22 is completely flexible and will contour to curved surfaces. It's profile can also be square rectangular or angled. •Touch sensitive signaling allows immediate reversal or stopping of motion. •Temperature range: -30F to 155F •Lead wire: 22 gauge universal •Sensitivity: nominal 6-8 PSI •Vertical or horizontal mount •ANSI/UL325 recognized component •One year warranty
WorksheetInstallation manualSell sheet

Login to view pricing

Login
Miller Edge MU22 Custom Made Edge
MU22-CUSTOM
Miller Edge MU22 Custom Made Edge
  • Edge made to customer's exact specifications
WorksheetInstallation manualSell sheet

Login to view pricing

Login

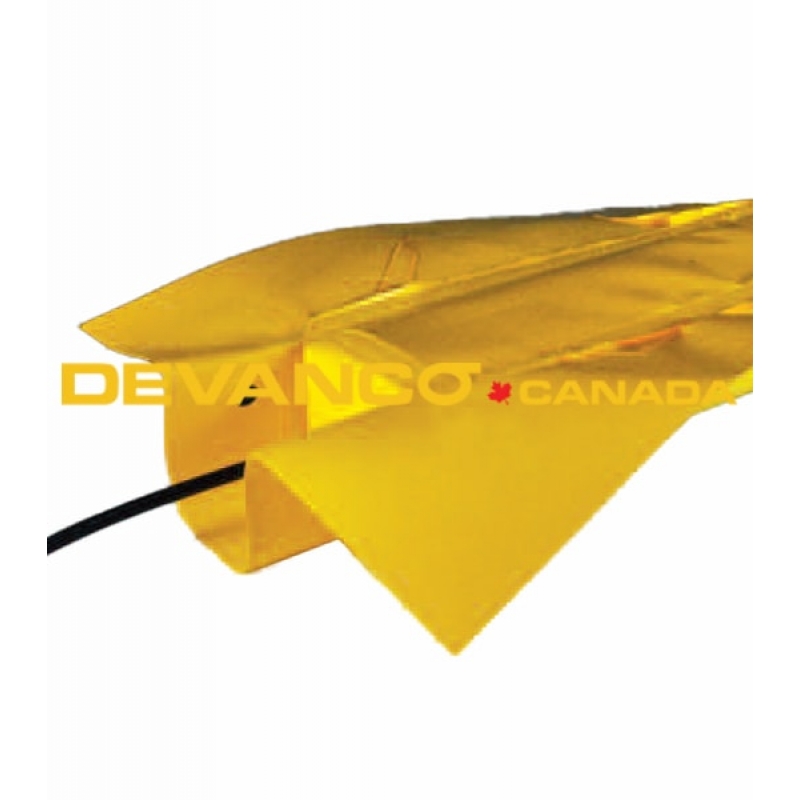

Miller Edge MU33 2-Wire NM Left Hand Yellow - Sold per Foot
MU33-2WIRE-LH-Y
Miller Edge MU33 2-Wire NM Left Hand Yellow - Sold per Foot
  • MU style bumpers are designed for use with aircraft hanger doors and large specialty doors.
  • Must specify the exact length in feet and inches when ordering.
  • Mounts vertically or horizontally
  • Sensitivity: nominal 8-13 ibf
Worksheet

Login to view pricing

Login
Miller Edge MU33 2-Wire NM Right Hand Yellow - Sold per Foot
MU33-2WIRE-RH-Y
Miller Edge MU33 2-Wire NM Right Hand Yellow - Sold per Foot
  • MU style bumpers are designed for use with aircraft hanger doors and large specialty doors.
  • Must specify the exact length in feet and inches when ordering.
  • Mounts vertically or horizontally
  • Sensitivity: nominal 8-13 ibf
Worksheet

Login to view pricing

Login

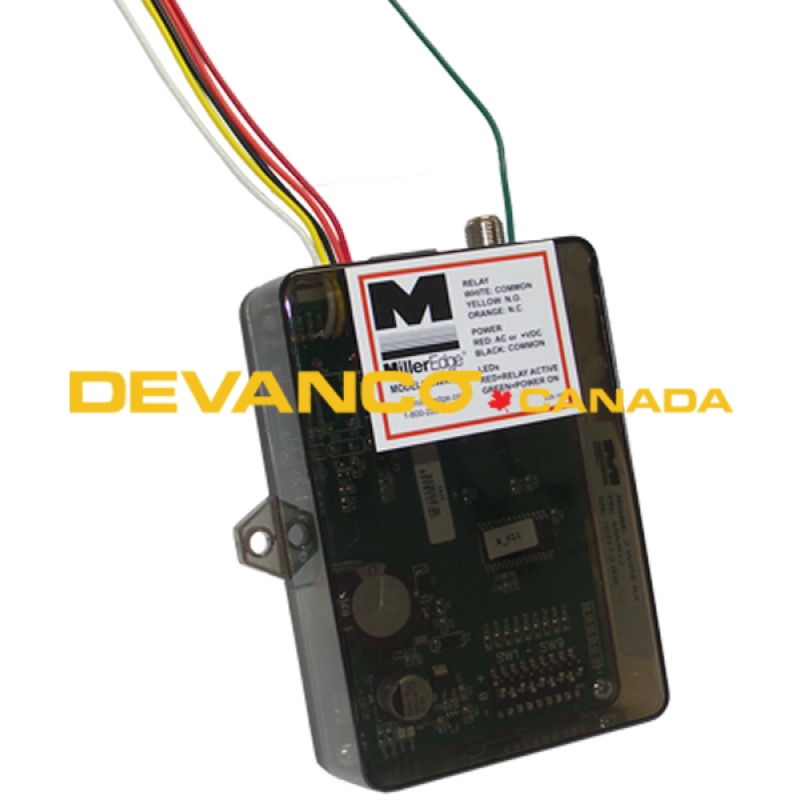

Miller Edge 1-Channel Receiver RF 318 MHz *** To Extent of Inventory
MWR12
Miller Edge 1-Channel Receiver RF 318 MHz *** To Extent of Inventory
  • €¢The MWR12 receiver is designed to receive information from the transmitter and relay it to the motor to stop or reverse motion if the edge comes into contact with an obstruction.
  • Power requirements: 10 to 40 VDC 10-30 VAC
  • Output: dry relay contact N/O and N/C 1A @60VAC
  • Operating temperature: -40C to 60C
  • Maximum operating distance: 100ft
  • Electrical configuration: optional N/O or N/C
  • System response time: transmitter input to receiver
  • Two year warranty
  • For 2 wire edges
  • Replaces the MWR02A
Installation ManualSell Sheet

Login to view pricing

Login
Miller Edge 2-Channel Wireless Edge Receiver RF 318 MHz
MWR22B
Miller Edge 2-Channel Wireless Edge Receiver RF 318 MHz
  • Power source: 12-24 volts AC/DC nominal Nominal 60 mA 140 mA activated
  • Output: N.O. N.C
  • Wire connections: Integral 18” wiring with #6 spade lugs
  • Antenna: Attached wire or F connector
  • LED Indicators: Power channel 1
  • Polycarbonate enclosure
  • Dimensions: 3-3/4”W x 4-13/16”H x 1-1/4”D (95 x 122 x 32 mm

Login to view pricing

Login
Miller Edge Wireless Transmitter with Audible Alarm and 1 Channel Receiver
MWRTA12B
Miller Edge Wireless Transmitter with Audible Alarm and 1 Channel Receiver
  • For 2-wire edges
  • Was previously MWRTA02A now has a new board making installation easier
  • Includes single channel receiver (MWR12A) and transmitter (MWTA12) with audible low battery alarm.
  • This feature that activates when the battery has only 25% of its life remaining indicating the battery should be replaced. The alarm sounds for 5 to 10 seconds at 1 to 2 minute intervals.
  • The receiver operates on either 12 or 24 volt AC/DC and provides N.O. or N.C. output.

Login to view pricing

Login

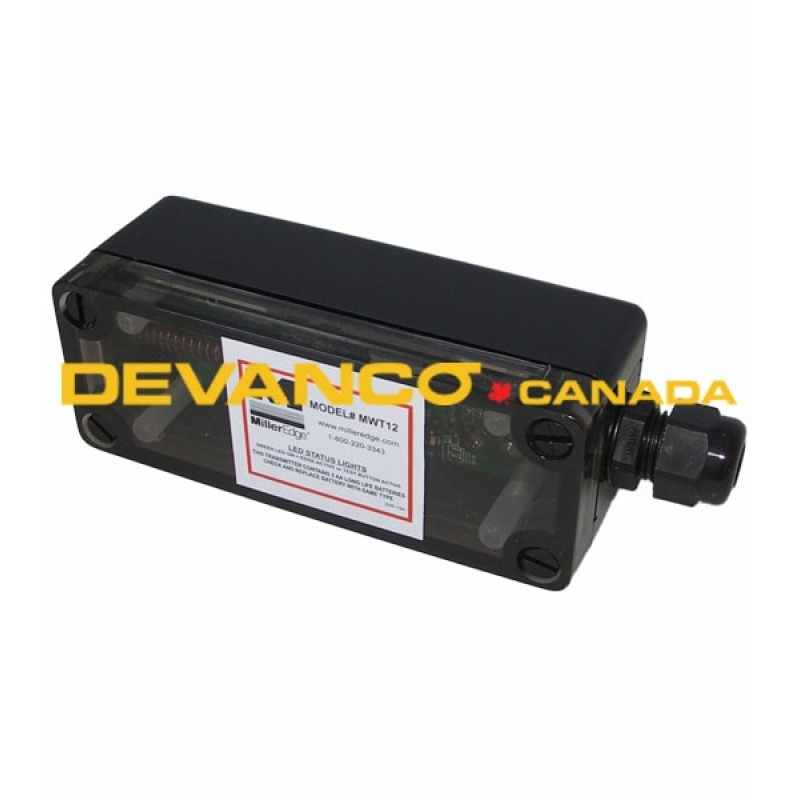

Miller Edge Transmitter RF in Nema 4 Enclosure *** To Extent of Inventory
MWT12
Miller Edge Transmitter RF in Nema 4 Enclosure *** To Extent of Inventory
  • The MWT12 safety edge transmitter is designed to provide wireless signal transmission form the safety edge to the motor controls.
  • It is easily mounted and wired to the gate or door edge sensor. When the sensing edge comes into contact with an obstruction a closed circuit signal is created and is sent to the transmitter.
  • The transmitter relays the information to the receiver and the receiver passes the signal along to the operator motor.
  • The gate or door stops movement and will then reverse the direction of travel.
  • Comes standard with a NEMA 4 weather-proof enclosure. The enclosure can be easily mounted with the four mounting holes and screws provided
  • Response time: nominal 30msec.
  • Opertating temperature: 0 to 130F
  • Operating frequency: 318Mhz
  • Maximum operating distance: 100ft
  • Replaces MWT02

Login to view pricing

Login
Miller Edge Transmitter Binary Nema 4 Enclosure
MWT12B
Miller Edge Transmitter Binary Nema 4 Enclosure
  • The MWT12 safety edge transmitter is designed to provide wireless signal transmission form the safety edge to the motor controls.
  • It is easily mounted and wired to the gate or door edge sensor. When the sensing edge comes into contact with an obstruction a closed circuit signal is created and is sent to the transmitter.
  • The transmitter relays the information to the receiver and the receiver passes the signal along to the operator motor.
  • The gate or door stops movement and will then reverse the direction of travel.
  • Comes standard with a NEMA 4 weather-proof enclosure. The enclosure can be easily mounted with the four mounting holes and screws provided
  • Response time: 70 milliseconds
  • Opertating temperature: 0°F to 130°F (-18°C to 55°C)
  • Operating frequency: 318Mhz
  • Maximum operating distance: 100ft
  • Coding: Selectable 9 pole 2 position DIP switch
  • Power Source: (2) 1.5 volts AA alkaline batteries
  • Input/Output: Input: 2-wire N.O. sensing edge
  • Repl.: MWT12
Installation Instructions MWT12BSpec Sheet MWT12BFAQ MWT12B

Login to view pricing

Login
Miller Edge Transmitter with Audible Alarm Small *** No Longer Available
MWTA12
Miller Edge Transmitter with Audible Alarm Small *** No Longer Available
  • The MWTA12 safety edge transmitter is designed to provide wireless signal transmission form the safety edge to the motor controls.
  • It is easily mounted and wired to the gate or door edge sensor. When the sensing edge comes into contact with an obstruction a closed circuit signal is created and is sent to the transmitter.
  • The transmitter relays the information to the receiver and the receiver passes the signal along to the operator motor.
  • The gate or door stops movement and will then reverse the direction of travel.
  • Comes with an Audible Alarm feature that activates when the battery is running low and needs to be replaced.
  • Comes standard with a NEMA 4 weather-proof enclosure. The enclosure can be easily mounted with the four mounting holes and screws provided.
  • Response time: 30 msec.
  • Operating temperature: -4 to 140F
  • Operating frequency: 318Mhz
  • Maximum operating distance: 100ft in optimal conditions
  • Two year warranty
Installation ManualSell Sheet

Login to view pricing

Login
Page 1 of 10 (20 total items)
