Exterior 3-Btn O/C/S Control Station Nema 4 Metal Enclosure

• Surface mount
• Metal enclosure
• Not CSA approved
• Dimensions: 6" H x 2-3/4" W x 3-1/2" D

Exterior 3-Btn O/C/S Control Station with Key Lockout Nema 4

• Surface mount
• Metal enclosure
• Dimensions: 7" H x 2-3/4" W x 3-1/2" D

Key ONLY for PBTL-3 Z100 Sold per Key

• Cut Key # Z100
• Price for 1 key

Key ONLY for PBTL-3 Z102 Sold per Key

• Cut Key # Z102
• Price for 1 key

Replacement Button Only - N/O Open / Close Black

• N/O switch and rubber cover for PBTL-3

Replacement Button Only - N/C Stop Red

• Stop switch and rubber cover for PBTL-3

EMX Infrared Modulated Photoeye Thru Beam

• Thru beam configuration
• LED alignment indicator simplifies installation
• No calibration or sensitivity adjustments needed
• Wide sensing angle for increased reliability
• 30 ft. operating range
• Housing: Black PVC * Not water tight
• Dimensions: 4 in. x 2 in. x 1.5 in. 18” lead wire
• Power: 12V – 24V AC or DC

Carlo Gavazzi Transmitter and Receiver Thru Beam Kit 20m Range (PC50CNT20R and PC50CNT20RP)

• Kit includes PC50CNT20R (emitter) and PC50CNT20RP (reciever)
• Operates on 12-240 VDC and 24-240 VAC supply voltage.
• The PC50CNT20R has a 3 amp relay output
• Adjustable sensitivity modulated infrared light make and break (light/dark) switching function LED indications for output ON signal stability and supply ON
• Same as Albany 4904R0007 / PC50CNT20RP8M1370

Dyna Hoist/Pulse Replacement Drive Board for DC500-100

NICE Aluminum Flange Bar 300MM Insert For MBAR up to 7M

Carlo Gavazzi Photoelectric Through-Beam Emitter 30M

• Emitter only. If receiver is required order PD180CBT30Q
• For Industrial doors and Gates
• Range: 30M
• Relay output
• Supply voltage emitter: 2 x 3.6VDC lithium batteries
• Dimensions: 180m x 51 x 49m

Carlo Gavazzi Photoelectric Through-Beam Receiver 30M

• Receiver only. If emitter is required order PD180CBT30MU
• For Industrial doors and Gates
• Range: 30M
• Relay output
• Supply voltage receiver: 12-24VAC/DC
• Dimensions: 180m x 51 x 49m

Carlo Gavazzi Photoelectric Switch Retro Reflective 12-24V AC/DC

• Reflector (ER4) not included

Pulse300 Direct Drive Opener 3/4 HP 1.25" shaft 110/240V 1ph 40:1 20' Cable ** Price by Quote Only

• the PULSE 300 Series is recommended for large high-cycle sectional doors rolling steel doors and light springless applications.
• It’s an ideal solution for balanced doors up to 1580 lb./500 ft²
• The 40:1 ratio is recommended for most balanced commercial applications.
• 90V horsepower rated DC motor
• If power fails the included 9Ah batteries takeover for continued door function
• The built-in battery backup system eliminates the need for a chain-hoist but one can still be ordered as an option if desired.
• The PULSE 300 door operators are built to achieve opening speeds as high as 24” per second and closing speeds of up to 16” per second adjustable.
• Programmable Timer to Close
• Standard PULSE operator motors are rated IP44 and could be vulnerable to water ingress. Nema4 option is available
• For 600V applications a step-down transformer is required

Pulse300 Direct Drive Opener 1 HP 110/240V 1ph 1.25" Shaft 40:1 20' Cable ** Price by Quote Only

• the PULSE 300 Series is recommended for large high-cycle sectional doors rolling steel doors and light springless applications.
• It’s an ideal solution for balanced doors up to 1580 lb./500 ft²
• The 40:1 ratio is recommended for most balanced commercial applications.
• 90V horsepower rated DC motor
• If power fails the included 9Ah batteries takeover for continued door function
• The built-in battery backup system eliminates the need for a chain-hoist but one can still be ordered as an option if desired.
• The PULSE 300 door operators are built to achieve opening speeds as high as 24” per second and closing speeds of up to 16” per second adjustable.
• Programmable Timer to Close
• Standard PULSE operator motors are rated IP44 and could be vulnerable to water ingress. Nema4 option is available
• For 600V applications a step-down transformer is required

Pulse300 Direct Drive Opener 1/2 HP 110/240V 1ph 1" Shaft 40:1 20' Cable ** Price by Quote Only

• the PULSE 300 Series is recommended for large high-cycle sectional doors rolling steel doors and light springless applications.
• It’s an ideal solution for balanced doors up to 1580 lb./500 ft²
• The 40:1 ratio is recommended for most balanced commercial applications.
• 90V horsepower rated DC motor
• If power fails the included 9Ah batteries takeover for continued door function
• The built-in battery backup system eliminates the need for a chain-hoist but one can still be ordered as an option if desired.
• The PULSE 300 door operators are built to achieve opening speeds as high as 24” per second and closing speeds of up to 16” per second adjustable.
• Programmable Timer to Close
• Standard PULSE operator motors are rated IP44 and could be vulnerable to water ingress. Nema4 option is available
• For 600V applications a step-down transformer is required

Pulse300 Direct Drive Opener 3/4 HP 110/240V 1ph 1" Shaft 40:1 20' Cable ** Price by Quote Only

• the PULSE 300 Series is recommended for large high-cycle sectional doors rolling steel doors and light springless applications.
• It’s an ideal solution for balanced doors up to 1580 lb./500 ft²
• The 40:1 ratio is recommended for most balanced commercial applications.
• 90V horsepower rated DC motor
• If power fails the included 9Ah batteries takeover for continued door function
• The built-in battery backup system eliminates the need for a chain-hoist but one can still be ordered as an option if desired.
• The PULSE 300 door operators are built to achieve opening speeds as high as 24” per second and closing speeds of up to 16” per second adjustable.
• Programmable Timer to Close
• Standard PULSE operator motors are rated IP44 and could be vulnerable to water ingress. Nema4 option is available
• For 600V applications a step-down transformer is required

Pedestal Post 42" Gooseneck Pad Mount

• Black powder coat finish
• Faceplate with universal hole pattern to fit almost any access device
• 2" x 2" square post
• Neck is bent with 6 in. center radius giving a tight professional look
• Same as G559

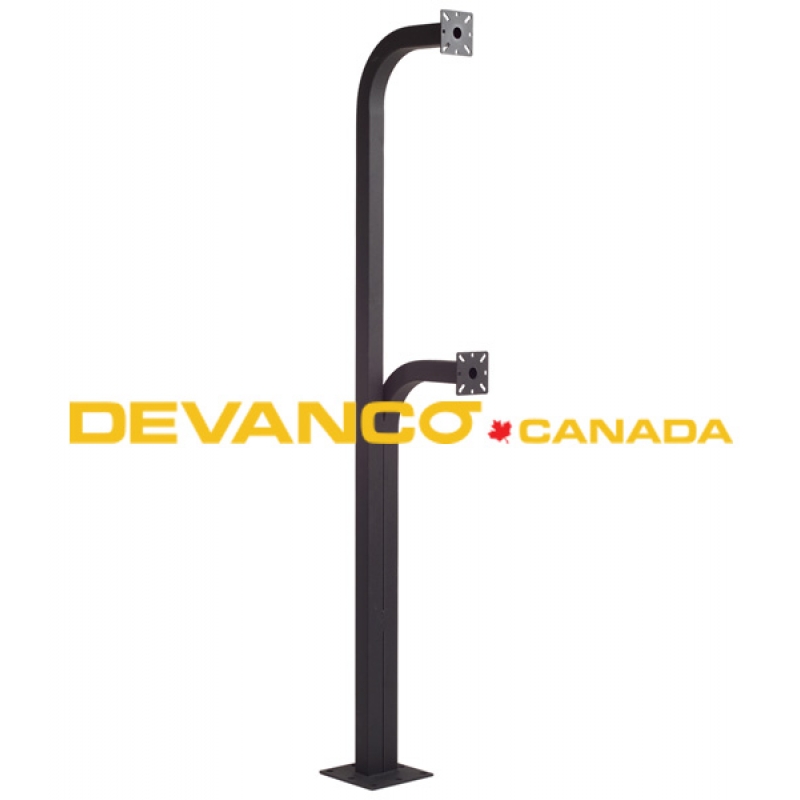

Pedestal Post 42" & 72" Dual Gooseneck Pad Mount

• Black powder coat finish
• Faceplate with universal hole pattern to fit almost any access device
• 2" x 2" square post
• Neck is bent with 6 in. center radius giving a tight professional look

Pedestal Post 72" Gooseneck Pad Mount

• Black powder coat finish
• Faceplate with universal hole pattern to fit almost any access device
• 2" x 2" square post
• Neck is bent with a 6 in. center radius giving a tight professional look
