LiftMaster Extended Performance Fire Door Release Device

• UL864 Revision 9 compliant
• Programmable DIP switch delay setting - either 10 20 30 or 60 seconds delay of door release to permit passage clearance
• Inputs for normally open 2- or 4-wire detectors and 4-wire normally closed detectors
• Trouble and alarm relays for communication with the fire alarm control panel if required
• Audible trouble sounder to indicate when the release device is not operational
• On board diagnostic LEDs for easy troubleshooting
• Testing function allows routine fire door testing without requiring activation of the smoke detector

LiftMaster Extended Performance Fire Door Release Device with Battery Backup

• UL864 Revision 9 compliant
• Programmable DIP switch delay setting - either 10 20 30 or 60 seconds delay of door release to permit passage clearance
• Inputs for normally open 2- or 4-wire detectors and 4-wire normally closed detectors
• Trouble and alarm relays for communication with the fire alarm control panel if required
• Audible trouble sounder to indicate when the release device is not operational
• On board diagnostic LEDs for easy troubleshooting
• Testing function allows routine fire door testing without requiring activation of the smoke detector
• Includes an integrated Battery Backup Module that allows this fire door release device to stand alone from the fire alarm system and act independently in the event of a power outage

LiftMaster Extended Performance Fire Door Release Device with Battery Backup and Voice Board ** No Longer Available

• UL864 Revision 9 compliant
• Programmable DIP switch delay setting - either 10 20 30 or 60 seconds delay of door release to permit passage clearance
• Inputs for normally open 2- or 4-wire detectors and 4-wire normally closed detectors
• Trouble and alarm relays for communication with the fire alarm control panel if required
• Audible trouble sounder to indicate when the release device is not operational
• On board diagnostic LEDs for easy troubleshooting
• Testing function allows routine fire door testing without requiring activation of the smoke detector
• Includes an integrated Battery Backup Module that allows this fire door release device to stand alone from the fire alarm system and act independently in the event of a power outage
• Equipped with a voice board to broadcast a pre-recorded voice evacuation message

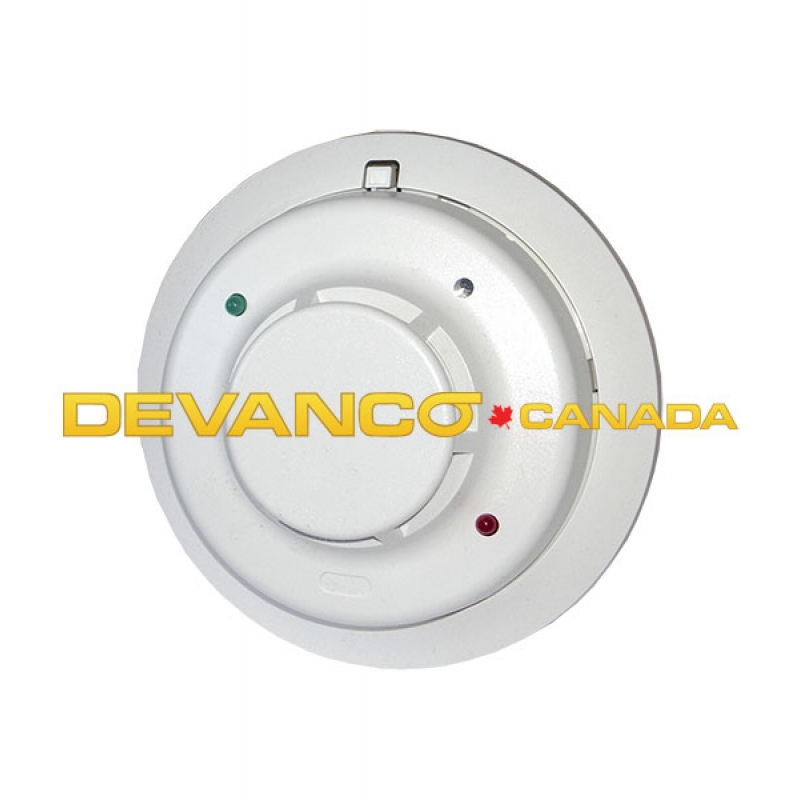

LiftMaster Photoelectric Smoke Detector 12/24VDC Standard 2-Wire (LMPD24-2W)

• Plug-in detector line mounting base included
• Large wire entry port
• In-line terminals with SEMS screws
• Mounts to octagonal and single-gang back boxes 4-square back boxes or direct to wall or ceiling
• Stop-Drop N Lock attachment to base
• Removable detector cover and chamber
• Built-in remote maintenance signaling
• Drift compensation and smoothing algorithms
• Simplified sensitivity measurement
• Wide-angle dual-color LED indication
• Loop testing via EZ Walk feature
• Built-in test switch

LiftMaster Battery 4.5AH 12VDC

• Designed to fit Fire Fly III Plus Model of Release Device
• 12 Volts 4.5 AHR (amp hour rating)
• Dimensions: 4" Depth 2-3/4" Length 3-1/2" Wide

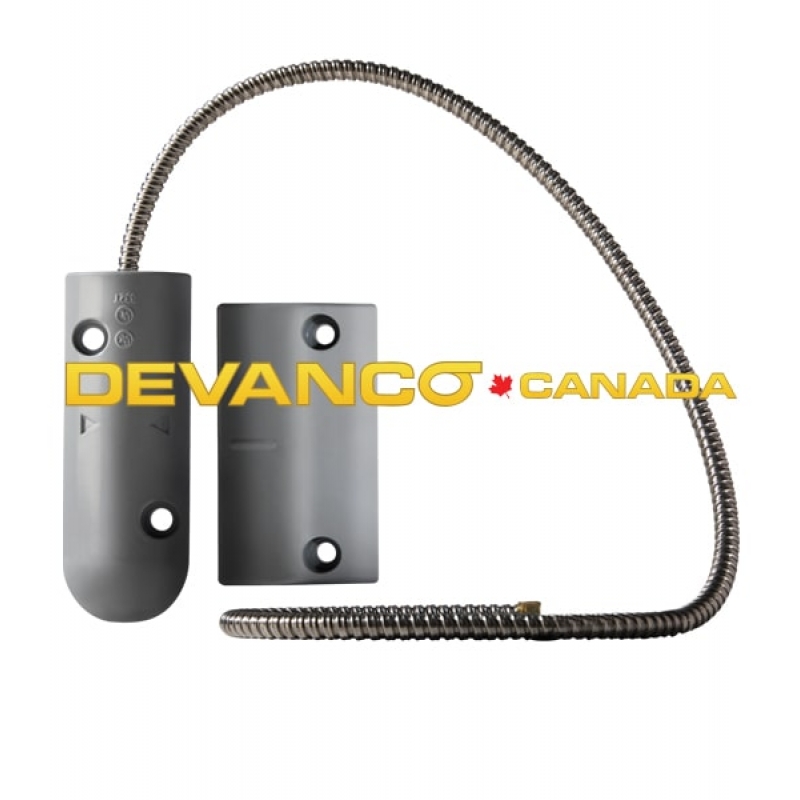

LiftMaster Magnetic Proximity Reed Switch

• Normally Open magnetic sealed reed switch; proximity switch
• Used for overhead door contacts.

Loop Detector with Deflectometer 1 channel 2 output 11 pin 12 - 24 VDC or 24 VAC *** SPECIAL ORDER subject to min dollar amount

• The LMA-1250-LP operates with extremely low power requirements making it suitable for solar and battery powered applications
• LMA-1250-LP operates on 12VDC or 24VDC nominal. Power consumption in the No Detect state is less than 4 milliamps at 12 VDC and less than 3 milliamps at 24 VDC
• With a typical size vehicle over the roadway loop the DEFLECTOMETER® functions as a Sensitivity Meter.
• The optimum sensitivity setting should provide a reading of “5”. You can adjust the DEFLECTOMETER® reading by using the front panel UP or DOWN sensitivity buttons.
• Automatic quantitative feedback of the loop system operation ensures that the detector is set to the most optimum sensitivity level to detect ALL vehicles including motorcycles and high-bed vehicles

LiftMaster Yale Smart Touchscreen Deadbolt Oil Rubbed Bronze Finish Includes 821LMC ** NLA

• Smartphone Control – Pair with included Lock Wi-Fi® Bridge to securely lock unlock and view door activity in the myQ® App.
• Touchscreen Keypad – Wakes with a touch and has backlit numbers that won’t wear off.
• Key Free – No key hole means no lock picking or keys to lose.
• 9V Battery Back-Up – Never worry about getting locked out due to dead batteries.
• Works with Key by Amazon to provide a seamless delivery experience.
• Eligible Prime Members simply download the Key by Amazon App and link it to your myQ account.
• Ensure garage entry door is locked when delivery is taking place for added security
• Pair with included 821LMC for remote control of lock.

LiftMaster Yale Smart Touchscreen Deadbolt Satin Nickel Finish Includes 821LMC

• Smartphone Control – Pair with included Lock Wi-Fi® Bridge to securely lock unlock and view door activity in the myQ® App.
• Touchscreen Keypad – Wakes with a touch and has backlit numbers that won’t wear off.
• Key Free – No key hole means no lock picking or keys to lose.
• 9V Battery Back-Up – Never worry about getting locked out due to dead batteries.
• Works with Key by Amazon to provide a seamless delivery experience.
• Eligible Prime Members simply download the Key by Amazon App and link it to your myQ account.
• Ensure garage entry door is locked when delivery is taking place for added security
• Pair with included 821LMC for remote control of lock.

LiftMaster End Link Disconnect Latch

• Commonly paired with LiftMaster® Commercial Fire Door Operators and extended performance release devices.
• This product is compatible with the following models: LM21XPBB LM21XPBBVB LM21AFCB LM21AFCBVB LM21XP

LiftMaster End of Line Resistor 10K

• For use with various LiftMaster® Commercial Fire Door Operators Gate Operators and Extended High Performance Release Devices

LiftMaster Rearview Parking Access Hang Tag 25/pkg Random Coded

• Rearview mirror hanger gives access to gated facilities complexes for cars trucks and other vehicles
• Can be used for larger vehicles with higher cabs as vans various trucks
• 20-25 foot detection zone
• Device is engineered for use with the LIftMaster LMSC1000 Long Range Vehicle Access-Card Reader
• Simple transferrable item can be swapped out for rental cars different vans/trucks in a fleet dealer/loaner repair cars and more
• Tags are sold in batches of 25. Your location may have a facility code. Check with your maintenance department or administrator if needed

LiftMaster Horn / Strobe 12/24VDC White W/NO

LiftMaster LED Bulb 60W Equivalent 1/pkg

• Designed to minimize radio frequency interference
• Daylight white light output (5000K) ideal for garage use
• 800 lumen / 60w equivalent
• 22-year life
• Durable: shatter-resistant and cold weather tested to -30° F /-34° C

LiftMaster Yale Smart Keypad Lever Oil Rubber Bronze Finish Incudes 821LMC *** No Longer Available

• Smartphone Control – Pair with included Lock Wi-Fi® Bridge to securely lock unlock and view door activity in the myQ® App.
• Illuminated Keypad: Easily enter your code using the backlit keypad.
• Brings Keyless entry to doors with no deadbolt
• Key Free – No key hole means no lock picking or keys to lose.
• 9V Battery Back-Up – Never worry about getting locked out due to dead batteries.
• Works with Key by Amazon to provide a seamless delivery experience.
• Eligible Prime Members simply download the Key by Amazon App and link it to your myQ account.
• Ensure garage entry door is locked when delivery is taking place for added security
• Pair with included 821LMC for remote control of lock.

LiftMaster Yale Smart Keypad Lever Satin Nickel Finish Includes 821LMC ***No Longer Available

• Smartphone Control – Pair with included Lock Wi-Fi® Bridge to securely lock unlock and view door activity in the myQ® App.
• Illuminated Keypad: Easily enter your code using the backlit keypad.
• Brings Keyless entry to doors with no deadbolt
• Key Free – No key hole means no lock picking or keys to lose.
• 9V Battery Back-Up – Never worry about getting locked out due to dead batteries.
• Works with Key by Amazon to provide a seamless delivery experience.
• Eligible Prime Members simply download the Key by Amazon App and link it to your myQ account.
• Ensure garage entry door is locked when delivery is taking place for added security

LiftMaster HID ProxCard II 1326 26 Bit Clamshell Card Price Per Card

• HID 26 Bit Format
• 125 kHz
• Sold in Lots of 100 - Price Shown is Price per Card
• Only compatible with PPLX in stand-alone mode
• Please supply Start # and Facility Code # when ordering
• Dimensions: 2.135" x 3.385" x 0.075" MAX. (5.4 x 8.6 x 0.19 cm)

LiftMaster HID ProxKey III 1346 - Sentex Price Per Card ***NLA

• Universal compatibility with HID proximity card readers
• Provides an external number for easy identification and control
• Pocket size key fob
• HID Sentex 30 Bit Format
• 125 kHz
• Sold in Lots of 100
• Format: S10301

LiftMaster HID ProxKey III 1346 Key Fob Price Per Fob

• HID 26 Bit Format
• 125 kHz
• Sold in Lots of 100 - Price Shown is Price per Card
• Small enough to fit on a key ring
• Universal compatibility with HID proximity card readers
• Provides an external number for easy identification and control

LiftMaster Monitored Retro Reflective Photo Eye w/Heater 2018 UL325

• Features integrated diagnostics with our 2018 UL® 325 Gate Operators.
• Versatile Solution for entrapment protection.
• Long-Range Sensing Distance of up to 50 ft. (LMRRUL)
• Built-In Heater for dependable performance in most environments.
• Increased Beam Angle for simple reliable alignment.
• Versatile Gimble Bracket for fine alignment and adjustability.
• Alignment Strength Indicator signals optimal beam alignment.
• Multi-View Led Lights indicate sensor status simplifying installation.
• Secure Mounting Hardware for versatile performance in harsh applications.
• Hoods Included for durability and shield from elements.
• NEMA 4X Rated for superior weather resistance.
• Tested and evaluated by UL and meet UL 325 requirements
• Temperature Specifications: -40°F (-40°C) to 149°F (65°C)
• Heater: Green/White Wires: 10–40V DC or 8–28V AC 2 Watts Max. 170mA at 120V DC/AC 85mA at 24V DC/AC
• Interface: 4-Wire connection (2 for Eye; 2 for heater)
