Whiting Dry Freight Door 3/4" with Track Balancer and Standard Hardware

• Standard features include: 2-cable balancer with independent springs
• Balancer springs treated with rust preventative
• All door hardware is E-coated
• Spring loaded lock catch
• Heavy-duty 2" 13-gauge track
• Stainless steel aircraft cables
• Top and bottom seals - side seals are extra.
• Approx. opening size 83" H x 85" W
• PRICE varies by size

Erone 1-Door Stand Alone Card Reader / Keypad

• 500 users (proximity badges and/or codes)
• 3 operating modes: - Mode 0: badge and code - Mode 1: badge only - Mode 2: badge or code
• Audible & Visual feedback
• 1 request-to-exit input
• Tamper switch
• 1 form C door relay output (3A/125V)
• 1 form C alarm relay output (3A/125V)
• Power requirements: 12VAC/DC
• Read range: 2-4 inches
• Current consumption: 250mA

LiftMaster Ind. Duty Hoist/Jackshaft Op. 1/2 HP 115/230 VAC Logic 5 Left Hand***Discontinued

• Industrial-Duty Hoist/Jackshaft Operator with Internal Door Lock Sensor
• Optimal for shopping mall applications with heavier rolling doors and grilles.
• Provides a floor level chain hoist to ease manual operation in an emergency or power outage.
• Includes a door lock sensor to prevent damage to the door and operator caused by attempts to automatically open a locked door.
• Industrial Ball Bearings on 1" Output Shaft
• Second Floor-Level Disconnect for Manual Lifting in an Emergency
• Solenoid Brake Optional on 1/2 HP
• Drive Reduction: Heavy-Duty 5L V-Belt (First Stage); #48 Chain (Additional Reductions); #50 Output Sprocket Chain
• SECURITY+ 2.0 ® RADIO RECEIVER ACCEPTS:
• (30) 3-Button Remote Controls or (90) 1-Button Remote Controls
• Additional 30 Wireless Keypads
• Unlimited DIP Switch Remotes

LiftMaster Ind. Duty Hoist/Jackshaft Op. 1/2 HP 115/230 VAC Logic 5 Right Hand***Discontinued

• Industrial-Duty Hoist/Jackshaft Operator with Internal Door Lock Sensor
• Optimal for shopping mall applications with heavier rolling doors and grilles.
• Provides a floor level chain hoist to ease manual operation in an emergency or power outage.
• Includes a door lock sensor to prevent damage to the door and operator caused by attempts to automatically open a locked door.
• Industrial Ball Bearings on 1" Output Shaft
• Second Floor-Level Disconnect for Manual Lifting in an Emergency
• Solenoid Brake Optional on 1/2 HP
• Drive Reduction: Heavy-Duty 5L V-Belt (First Stage); #48 Chain (Additional Reductions); #50 Output Sprocket Chain
• SECURITY+ 2.0 ® RADIO RECEIVER ACCEPTS:
• (30) 3-Button Remote Controls or (90) 1-Button Remote Controls
• Additional 30 Wireless Keypads
• Unlimited DIP Switch Remotes

LiftMaster Ind. Duty Hoist/Jackshaft Op. 3/4 HP 115/230 VAC Logic 5 Left Hand***Discontinued

• Industrial-Duty Hoist/Jackshaft Operator with Internal Door Lock Sensor
• Optimal for shopping mall applications with heavier rolling doors and grilles.
• Provides a floor level chain hoist to ease manual operation in an emergency or power outage.
• Includes a door lock sensor to prevent damage to the door and operator caused by attempts to automatically open a locked door.
• Industrial Ball Bearings on 1" Output Shaft
• Second Floor-Level Disconnect for Manual Lifting in an Emergency
• Solenoid Brake Optional on 1/2 HP
• Drive Reduction: Heavy-Duty 5L V-Belt (First Stage); #48 Chain (Additional Reductions); #50 Output Sprocket Chain
• SECURITY+ 2.0 ® RADIO RECEIVER ACCEPTS:
• (30) 3-Button Remote Controls or (90) 1-Button Remote Controls
• Additional 30 Wireless Keypads
• Unlimited DIP Switch Remotes

LiftMaster Ind. Duty Hoist/Jackshaft Op. 3/4 HP 115/230 VAC Logic 5 Right Hand***Discontinued

• Industrial-Duty Hoist/Jackshaft Operator with Internal Door Lock Sensor
• Optimal for shopping mall applications with heavier rolling doors and grilles.
• Provides a floor level chain hoist to ease manual operation in an emergency or power outage.
• Includes a door lock sensor to prevent damage to the door and operator caused by attempts to automatically open a locked door.
• Industrial Ball Bearings on 1" Output Shaft
• Second Floor-Level Disconnect for Manual Lifting in an Emergency
• Solenoid Brake Optional on 1/2 HP
• Drive Reduction: Heavy-Duty 5L V-Belt (First Stage); #48 Chain (Additional Reductions); #50 Output Sprocket Chain
• SECURITY+ 2.0 ® RADIO RECEIVER ACCEPTS:
• (30) 3-Button Remote Controls or (90) 1-Button Remote Controls
• Additional 30 Wireless Keypads
• Unlimited DIP Switch Remotes

Manaras Floor Level Disconnect Lever

Manaras HDW Brake Release MTBH

LiftMaster Industrial- Duty Jackshaft Doorlock 1/2HP 115/230V 1Ph ***No Longer Available

• Doors used with this operator should be balanced with the ability to be manually lifted by hand in an emergency or power outage.
• These operators include a door lock sensor to prevent damage to the door and operator caused by attempts to automatically open a locked door.
• The operators are typically mounted to the wall when used with smaller sectional overhead doors with vertical or high lift and mounted to the side or the front of the hood when used with rolling doors and grilles.
• DJ operators are attached to the door jackshaft to indirectly drive the door.
• MyQ® Technology
• Security+ 2.0®

Dock Leveler Retainer Galv. Steel Weldable 6' Long *** To Extent of Inventory

• Weldable to sides of dock leveler
• Use with 4007 aluminum retainer & light brush (not included).
• Vinyl insert slides into this outer retainer.

Dock Leveler Retainer Galv. Steel Weldable 8' Long *** To Extent of Inventory

• Weldable to sides of dock leveler
• Use with 4007 aluminum retainer & light brush (not included).
• Vinyl insert slides into this outer retainer.

LiftMaster HID PROX 1346 ProxKey III *Discontinued Replaced by LMPK3-ST*

• Pocket size key fob
• Low cost entry level compatible with HID Prox Readers.

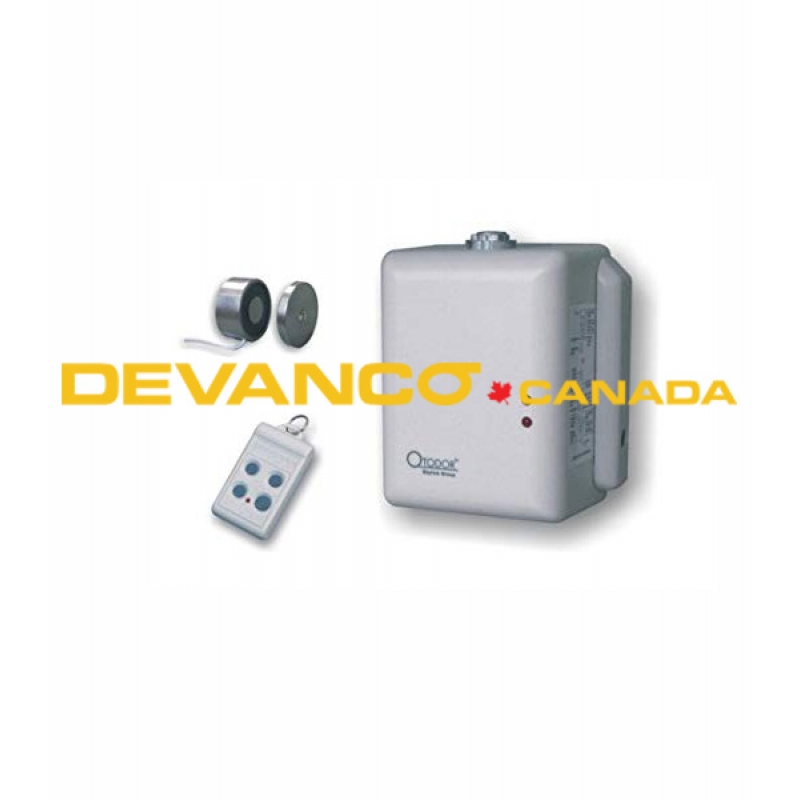

Skylink Swing Door Opener with Electro-Magnetic Lock ***NLA

• Can be installed on most doors including wood and metal doors.
• Hit and Stop feature ensures safety operation.
• Fail safe operation - Door can be open/close freely during power outage
• Optional audio warning as an indication when the swing door opener is operating
• Can learn up to 16 remote controls

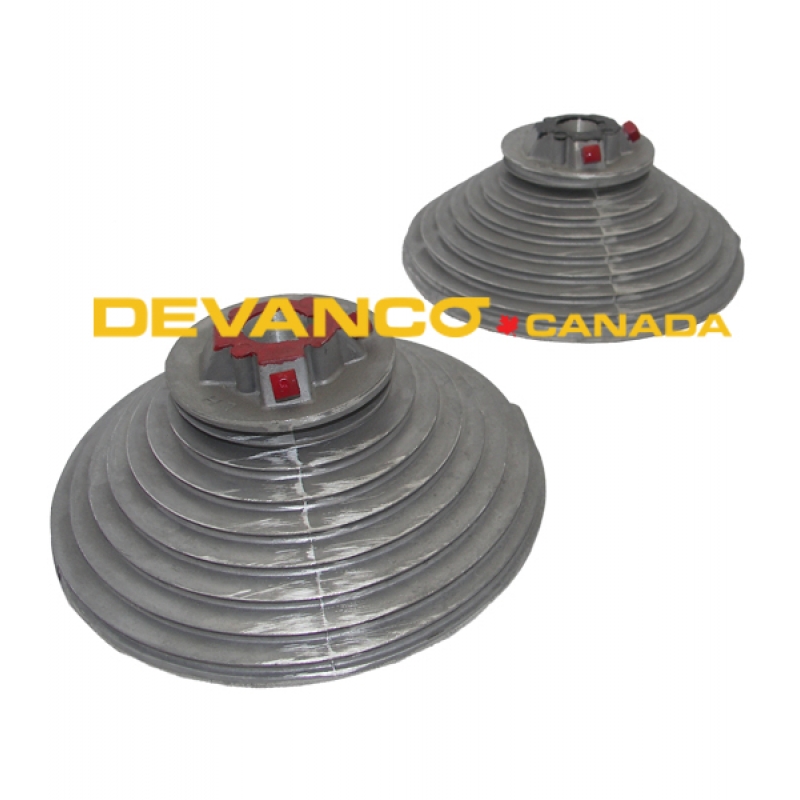

Cable Drum Vertical Lift 11' 850-11 Pair

• 11' Vertical Lift aluminum die cast alloy.
• 3/8"-16 x2" hardened cup point set screws installed with red heads.
• Color coded: Red=LH and Black=RH. Pair includes (1) LH and (1) RH. Max. Door Height: 11'-1".
• Rated Lift per Drum: 425 lbs.
• Max. Cable Diameter: 3/16".
• Mounting: 1" solid shaft with 1/4" keyway.
• Cross Reference: D850-132VL D143-11VL OMI 2900

Cable Drum Vertical Lift 11' D850-132 Pair Torque Force

• 11' Vertical Lift aluminum die cast alloy.
• 3/8"-16 x2" hardened cup point set screws installed with red heads.
• Color coded: Red=LH and Black=RH. Pair includes (1) LH and (1) RH. Max. Door Height: 11'-1".
• Rated Lift per Drum: 425 lbs.
• Max. Cable Diameter: 3/16".
• Mounting: 1" solid shaft with 1/4" keyway.
• Cross Reference: D850-11VL D143-11VL OMI 2900

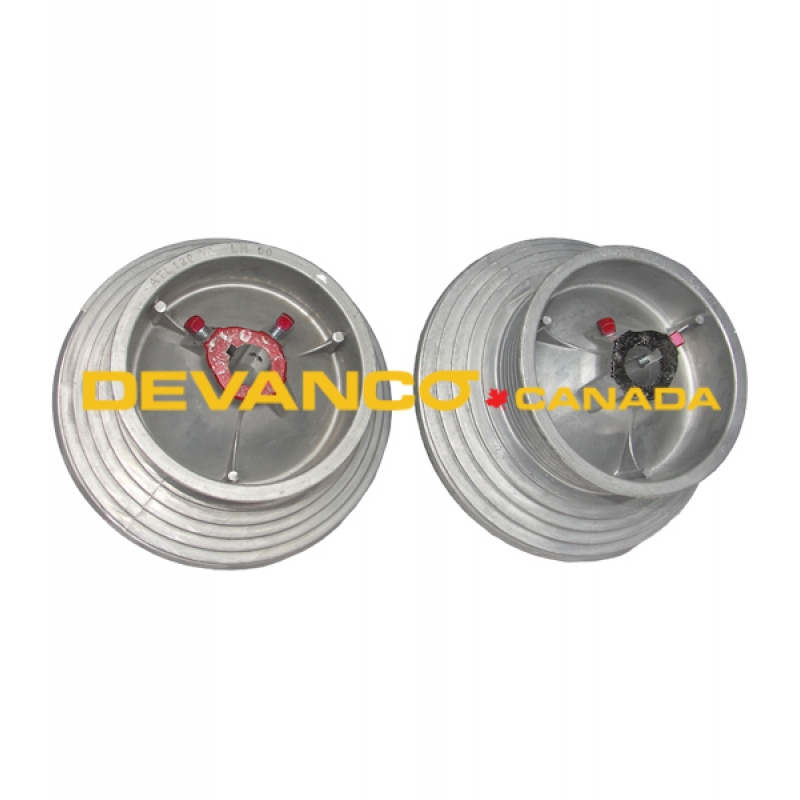

Cable Drum High Lift 120" 5750-120 Pair

• 120" High Lift aluminum die cast alloy cable drums.
• 3/8"-16 x 2" hardened cup point set screws installed with red heads.
• Pair includes: (1) LH and (1) RH. Color coded: Red=LH and Black=RH.
• Maximum high lift: 120".
• Maximum door height: 144" + High Lift.
• Rated lift per drum: 500 lbs.
• Maximum cable diameter: 3/16".
• Mounting: 1" solid shaft with 1/4" keyway.
• Cross Reference: D575-120HL DNS 120 OMI 2700

Cable Drum High Lift 120" D575-120-1-1/4" Pair Torque Force

• 120" High Lift aluminum die cast alloy cable drums.
• 3/8"-16 x 2" hardened cup point set screws installed with red heads.
• Pair includes: (1) LH and (1) RH. Color coded: Red=LH and Black=RH.
• Maximum high lift: 120".
• Maximum door height: 144" + High Lift.
• Rated lift per drum: 500 lbs.
• Maximum cable diameter: 3/16".
• Mounting: 1-1/4" solid shaft with 1/4" keyway.
• Cross Reference: D575-120HL-125 DNS 120-125 OMI 2700-125 5750-120-125

Cable Drum High Lift 120" D575-120-1 Pair Torque Force

• 120" High Lift aluminum die cast alloy cable drums.
• 3/8"-16 x 2" hardened cup point set screws installed with red heads.
• Pair includes: (1) LH and (1) RH. Color coded: Red=LH and Black=RH.
• Maximum high lift: 120".
• Maximum door height: 144" + High Lift.
• Rated lift per drum: 500 lbs.
• Maximum cable diameter: 3/16".
• Mounting: 1" solid shaft with 1/4" keyway.
• Cross Reference: D575-120HL DNS 120 OMI 2700 5750-120

Cable Drum Vertical Lift 18' 1100-18 (1-1/4") Pair

• 18' Vertical Lift aluminum die cast alloy cable drums for 1-1/4" shaft.
• 3/8"-16 x2" hardened cup point set screws installed with red heads.
• Color coded: Red=LH and Black=RH. Pair includes (1) LH and (1) RH.
• Max. Door Height: 18'-1".
• Rated Lift per Drum: 660 lbs.
• Max. Cable Diameter: 3/16".
• Mounting: 1-1/4" solid shaft with 1/4" keyway.
• Cross Reference: D1100-216VL-125 DNS 236-18-125 OMI 2902-125

Cable Drum Vertical Lift 18' D1100-216-1 Pair Torque Force

• 18' Vertical Lift aluminum die cast alloy cable drums.
• 3/8"-16 x2" hardened cup point set screws installed with red heads.
• Color coded: Red=LH and Black=RH. Pair includes (1) LH and (1) RH.
• Max. Door Height: 18'-1".
• Rated Lift per Drum: 660 lbs.
• Max. Cable Diameter: 3/16".
• Mounting: 1" solid shaft with 1/4" keyway.
• Cross Reference: D1100-216VL DNS 236-18 OMI 2902 1100-18
