Extruded Bumper Black 18" L x 4 1/2" W x 3 3/4" H w/Metal Insert

• Reinforced prime rubber of Durometer 75 (±5) (ASTM D2240)
• 8.3 N/mm2 (±0.5) Tensile Strength (ASTM D792)
• 98% (±2) impact recovery
• All extruded fenders are supplied with a metal washer insert

Extruded Bumper Black 36" L x 4 1/2" W x 3 3/4" H w/Metal Insert

• Reinforced prime rubber of Durometer 75 (±5) (ASTM D2240)
• 8.3 N/mm2 (±0.5) Tensile Strength (ASTM D792)
• 98% (±2) impact recovery
• All extruded fenders are supplied with a metal washer insert
• 3 holes

Cable Drum Standard Lift 12' Torque Force Pair

• 12 ft Standard lift cable drum. Aluminum die cast alloy.
• Max. door height: 12'-1".
• Rated lift per drum: 375 lbs.
• Max. cable diameter: 5/32".
• Mounting: 1" tube or solid shaft with 1/4" keyway.
• Cross references: DM413 DNS 4-13 OMI 2100.
• 3/8"-16 x 2" hardened cup point set screws installed with red heads.
• Color coded (red=LH black=RH)

Cable Drum Standard Lift 18' 3-SS Torque Force Pair

• 18' standard Lift aluminum die cast alloy with 3 set screws.
• Pair includes: (1) LH and (1) RH.
• Color coded: Red=LH and Black=RH
• Max. Door Height: 18'-1" Rated Lift per Drum: 750 lbs.
• Max. Cable Diameter: 3/16". Mounting: 1" solid shaft with 1/4" keyway
• Cross Reference: DM518 DNS 5-18 OMI 2200

Cable Drum High Lift 54" D525-54HL Torque Force Pair

• Maximum hi-lift: 54"
• Capacity: 500 lbs per drum
• Max. cable size: 3/16"
• Cable length: Floor to shaft center 66" minus amount of Hi-Lift
• Cross reference: DNS 54 OMI 54HL M134-1375

Cable Drum High Lift 54" 1-1/4" Bore Torque Force Pair

• Maximum hi-lift: 54"
• Capacity: 500 lbs per drum
• Max. cable size: 3/16"
• Cable length: Floor to shaft center 66" minus amount of Hi-Lift
• Cross reference: DNS 54-125 OMI 54HL-125 M134-1375-125

Cable Drum High Lift 164" 1" Bore Torque Force Pair

• Maximum hi-lift: 164"
• Capacity: 800 lbs per drum
• Cable length: Floor to shaft center 181" minus amount of Hi-Lift
• Cross reference: DNS 410-164 OMI 164HL M162-4165

Cable Drum High Lift 164" 1-1/4" Bore Torque Force Pair

• Maximum hi-lift: 164"
• Capacity: 800 lbs per drum
• Cable length: Floor to shaft center 181" minus amount of Hi-Lift
• Cross reference: DNS 410-164 OMI 164HL M162-4165

Cable Drum High Lift 800-120 1" HL Pair

• Adjustable cable attachment with screw
• Made of aluminum
• High Lift capacity: 120" max
• Flat capacity: 266" max
• Rating: 2200 lb per door max
• Keyway: 1 KW of 1/4" width
• Cable diameter: 1/4" max

Cable Drum High Lift 800-120 1-1/4" HL Pair

• Adjustable cable attachment with screw
• Made of aluminum
• High Lift capacity: 120" max
• Flat capacity: 266" max
• Rating: 2200 lb per door max
• Keyway: 1 KW of 1/4" width
• Cable diameter: 1/4" max

EMX Drive Thru Alert Kit Chime/Strobe Pre-Wired Enclosure *** Price by Quote Only

• Kit includes: 2x EMX ULT-MVP Vehicle Detectors with LD-11 Connectors
• 2x EMX PR-46-100 Induction Loops
• 1x SLM500B LED Beacon and Sounder with SLMBW-012-024GY Wall Mount Bracke
• 1x 120VAC to 24 VDC Power Supply
• 1x NEMA 1 Junction Box (wall mounting hardware not provided)

Molded Rubber Bumper Black 13" L x 10" W 4" Projection 2-Hole Sold Individually

• Manufactured from reinforced prime rubber
• Rectangular horizontal mount
• Ideal for light traffic loading docks.
• Perfect protection for in-plant wall protection from forklifts and other material handling vehicles molded bumpers will not warp rust rot or harden.
• Bumper comes with 2 pre-drilled countersunk mounting holes drilled to accept 3/4" anchor bolts

Molded Rubber Bumper Black 13" L x 10" W 4" Projection 2-Hole Tapered Sides Sold Individually

• Manufactured from reinforced prime rubber
• Rectangular horizontal mount
• 4-1/2" depth
• Ideal for light traffic loading docks.
• Molded bumpers are molded in one piece and will not warp rust rot or harden.
• Perfect protection for in-plant wall protection from forklifts and other material handling vehicles. and will not warp rust rot or harden.
• Bumper comes with 2 pre-drilled countersunk mounting holes drilled to accept 3/4" anchor bolts
• 13" L x 10" W 4" Projection
• Tapered sides 22 degee taper

Molded Rubber Bumper Black 10" L x 4 1/2" W 3" Projection 2-Hole Sold Individually

• Manufactured from reinforced prime rubber
• Rectangular horizontal mount
• Ideal for light traffic loading docks.
• Perfect protection for in-plant wall protection from forklifts and other material handling vehicles molded bumpers will not warp rust rot or harden.
• Bumper comes with 2 pre-drilled countersunk mounting holes drilled to accept 3/4" anchor bolts
• 10" L x 4 1/2" W 3" Projection

Molded Rubber Bumper Black 20" L x 4 1/2" W 3" Projection 4-Hole Sold Individually

• Manufactured from reinforced prime rubber
• Rectangular horizontal mount
• Ideal for light traffic loading docks.
• Molded bumpers are molded in one piece and will not warp rust rot or harden.
• Perfect protection for in-plant wall protection from forklifts and other material handling vehicles.
• Bumper comes with 4 pre-drilled countersunk mounting holes drilled to accept 3/4" anchor bolts
• 20" L x 4 1/2" W 3" Projection

Molded Rubber Bumper Black 30" L x 4 1/2" W 3" Projection 6-Hole Sold Individually

• Manufactured from reinforced prime rubber
• Rectangular horizontal mount
• Ideal for light traffic loading docks.
• Molded bumpers are molded in one piece and will not warp rust rot or harden.
• Perfect protection for in-plant wall protection from forklifts and other material handling vehicles.
• Bumper comes with 6 pre-drilled countersunk mounting holes drilled to accept 3/4" anchor bolts
• 30" L x 4 1/2" W 3" Projection

Dyna-Hoist DC Series Adaptor 1-1/4" to 1"

Dyna-Hoist DC Series Direct Drive Opener 1 HP 110/240V 1ph ** Price by Quote Only

• The direct drive operator consists of a DC electric motor directly coupled to a hollow shaft (30:1 reduction) worm gear reducer designed to install over keyed door shaft.
• Continuous duty 1 HP 90 V DC 1750 rpm motor suitable for 110 to 240 V 1 PH and 60 Hz power supply.
• Comes with integral absolute encoder to control the door travel
• 24 V 5 amps back-up battery pack and 3/8” ratchet socket to accept and crank for manually operating the door in case of power failure
• Programmable wall mountable UL325 compliant NEMA 4X control panel with LCD display and OPEN-CLOSE-STOP buttons on cover
• Nema 4 photocell
• Maximum Recommended Counter balance Sectional Door size: 500 square feet w/1.25" shaft

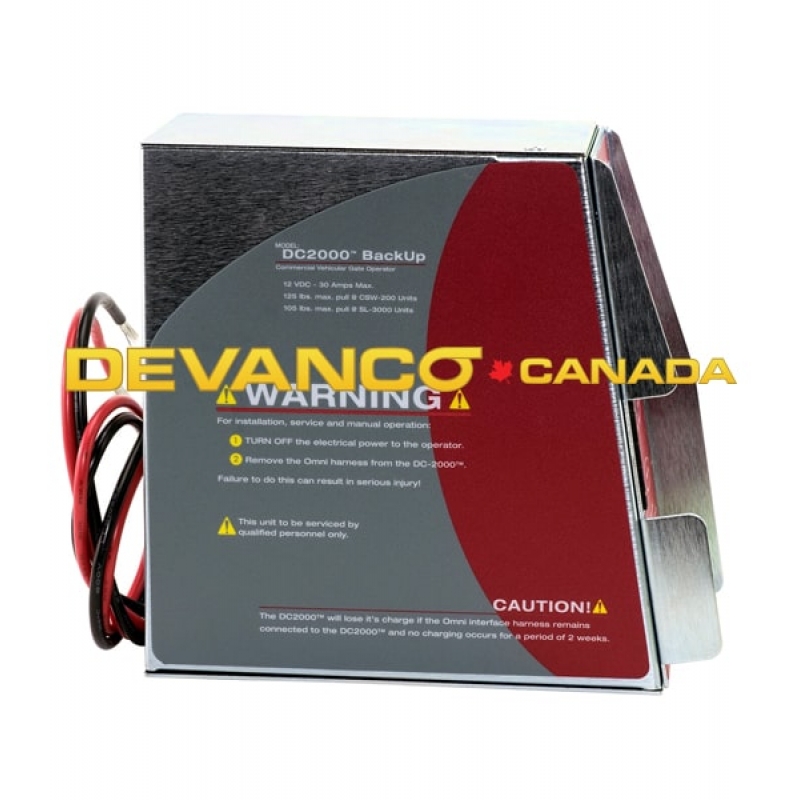

LiftMaster Controller DC2000****Discontinued

• DC2000 Controller with battery backup
• BackUp Commercial Vehicular Gate Operator
• 12VDC - 30 Amps Max.
• 125 lbs. Max. pull @ CSW-200 Units
• 105 lbs. Max. pull @ SL-3000 Units

LiftMaster Power Backup *** Discontinued

• Keeps traffic moving during a power outage
• Opens the gate when power goes out to allow vehicles to enter or exit
• When power is restored the gate will return to normal operation
• Compatible with operators: SL3000UL
