BEA Sliding Door Sensor

• Dual technology motion and presence sensor combining microwave activation and infrared presence detection for the automatic sliding door industry.
• This solution is highly flexible and user-friendly for sliding doors industrial doors vehicle gate detection and off-door automation.
• Precise Presence Detection: Two 24-spot high-density infrared safety curtains providing precise presence detection
• Easily Adjustable: Four visible red alignment spots are projected on the ground to assist in precise IR curtain adjustment
• Standards Compliant: Fully monitored internally capable of external monitoring
• Operating temperature: -13 to 131F
• Cable Length: 10’
• Mounting Height 6 1/2 – 11 1/2’
• Supply Voltage 12 – 24 VAC ±10%; 12 – 30 VDC ±10%
• (to be operated from SELV compatible power supplies only)
• IP65

BEA Presence Sensor for Automatic Sliding Doors

• IXIO-ST is an effective versatile and easy-to-use presence sensor for automatic sliding doors.
• It can be used for both clear door openings and side-lite protection
• Precise infrared curtains coupled with visible alignment beams make the IXIO-ST extremely safe and easy to adjust.
• This state-of-the-art sensor features an on-board LCD screen that streamlines the installation and setup processes.
• Intelligent Solution :On board microprocessor optimizes data analysis monitors sensor performance and enables system integration
• Mounting height: 6’6” – 11’6”
• Sensor temperature range: -13 – 131 °F * 0 – 95% relative humidity non-condensing LCD screen is operational from 14 – 131 °F.
• The sensor may still be programmed in colder temperatures but with the remote control.

BEA LZR Metal Bracket Accessory

• Mounting bracket only for the LZR industrial sensors including: LZR-I30 LZR-S600 LZR-H100 LZR-U920/U921

BEA Mini Industrial Bracket Adjustable 6-12 "

• Adjustable from 6 - 12 inches (up to 4" maybe cut off for shorter applications)
• 12" x 2.5" Mounting Face
• Fasteners NOT Included
• Carbon Steel Black Powder Coated

BEA Power Supply 100 - 240 VAC 24 VDC Output

BEA Universal Mounting Bracket Arm and Plate

• Extendable from 15.35" - 23.62"
• -90 to 90 degree tilt range
• Self Drilling screws provided
• Carbon Steel Black Powder Coated
• Mostly used for WIDESCAN and 10FALCON models

BEA Automatic Overhead Pedestrian Swing Door Sensor

• Designed to provide threshold protection during the open state
• Prevents a closed door from opening and an open door from closing when a person is in the detection zone.
• Adjustments can be made with the BEA remote.
• Installation height: 9' max (6'6" to 8' recommended)
• Operating temperature: -22 F to 140F
• Immune to electrical and radio frequency interference
• Cable length: 4'

BEA Bracket Accessory for Eagle Artek

BEA Eagle Motion Sensor 6'-13' Mounting Height *** Replaced by BEA-10EAGLE-ARTEK

• Designed for the activation of automatic pedestrian doors
• Universally compatible with all makes and models of swinging sliding and revolving automatic doors
• Eliminates False Detections: Immunity settings can be adjusted to reduce unwanted detections caused by rain snow and header vibrations
• Versatile: Motion detection feature capable of detecting traffic moving as slow as two inches per second
• Cable length: 8ft
• Temperature Range -4 – 131 °F
• Tilt Angles 0 – 90° vertical; -30 – 30° lateral
• Dimensions 4.7" (L) × 3.1" (H) × 2.0" (W)

BEA Eagle Compact Motion Sensor 6'-13' Mounting Height

• EAGLE ARTEK is a motion sensor for all types of automatic doors. Its slim and compact design ensures discreet integration for your application making it ideal for pedestrian doors.
• Superior field performance with improved filters that help to reduce false detections.
• Easy to install and set up with flexible parameters and simple push-button settings. •The detection field can be adjusted without manually adjusting the antenna.
• Max. detection range: wide: 13’ × 6.5’ narrow : 6.5’ × 7’ (@ 7’ high)
• Temperature range: -4 – 131 °F (-20 – 55 °C)
• Cable length: 8’
• Microwave technology
• Min. detection speed 2 in/s
• IP54

BEA Rain Hood for Eagle Artek Black

• €¢Rain hood only

BEA Induction Loop EVOLOOP

• EVOLOOP is the alternative to traditional in-ground induction loops used for vehicle detection in parking access and security applications.
• Designed with a 140° field of view EVOLOOP allows for up to 3 virtual loops that provide precise detection for control of the barrier.
• Capable of triggering both the opening and closing of the barrier this solution is suitable for parking systems ticketing biometric recognition and license plate recognition cameras for access control systems.
• EVOLOOP is proven to reduce the risk of vehicle and pedestrian collisions with the barrier arm in all types of environments and weather conditions.
• Installation is quick and easy with simple mounting and wiring options along with an intuitive mobile app for programming.

BEA Falcon Motion Detector w/Exp Proof Housing 100ft Cable

• FALCON EX combines a microwave activation sensor with an explosion-proof / flame-proof housing
• Ideal for use in unique environments such as chemical manufacturing petroleum refining and agriculture.
• FALCON EX can be mounted from 11.5' to 23' to fit any industrial application.
• Nema4/IP66
• Detection Zone: Falcon EX: 13’×16’ at 16’
• Oerating termperature: -22-140F

BEA Falcon Motion Detector w/Exp Proof Housing 30ft Cable

• FALCON EX combines a microwave activation sensor with an explosion-proof/flame-proof housing
• Ideal for use in unique environments such as chemical manufacturing petroleum refining and agriculture.
• FALCON EX can be mounted from 11.5' to 23' to fit any industrial application.
• Nema4/IP66
• Detection Zone: Falcon EX: 13’×16’ at 16’
• Operating temperature: -22 to 140F

BEA Modular LED Signal Light Audible Segment

• Audible Alarm 2.6 KHz ±250 Hz oscillation frequency; maximum intensity 92 dB @ 39.6 in

BEA Modular LED Signal Base

• To be used with the BEA-10LIGHT modules.

BEA Modular LED Signal Light Segment Green

• Signal lights for industrial and vehicle flow management applications.
• LED signal modular lights offer customizable configurations with “build-your-own” lighting elements that share a common base and bracket.
• These LED signal units are available in red green yellow and an audible alarm cap and can be stacked in a tower configuration with up to six modules.
• Operating temperature: -40 to 122F
• Nema 4/IP65
• Base sold separately

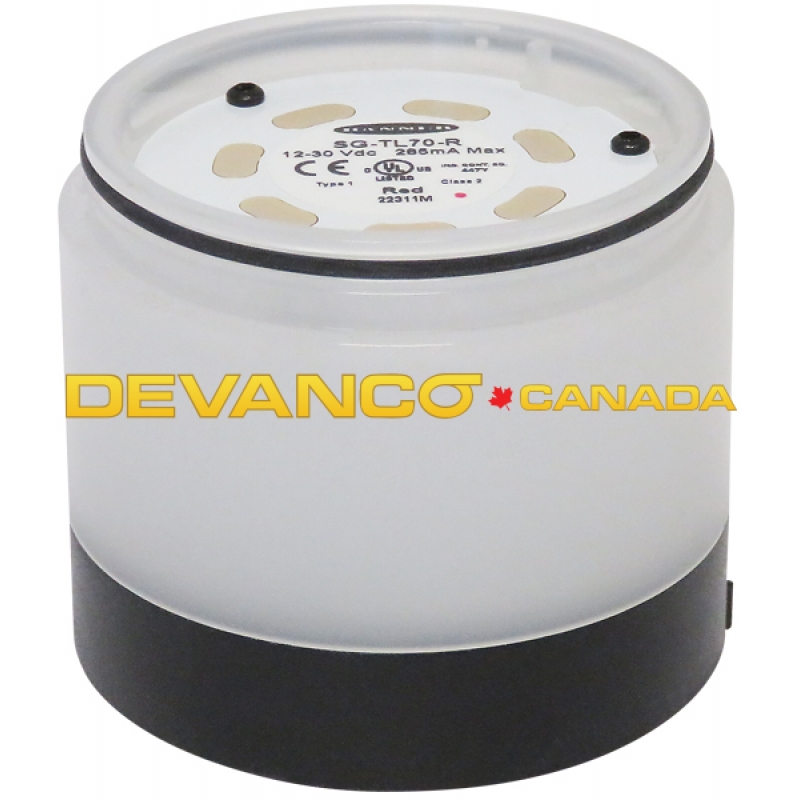

BEA Modular LED Signal Light Segment Red

• Signal lights for industrial and vehicle flow management applications.
• LED signal modular lights offer customizable configurations with “build-your-own” lighting elements that share a common base and bracket.
• These LED signal units are available in red green yellow and an audible alarm cap and can be stacked in a tower configuration with up to six modules.
• Operating temperature: -40 to 122F
• Nema 4/IP65
• Base sold separately

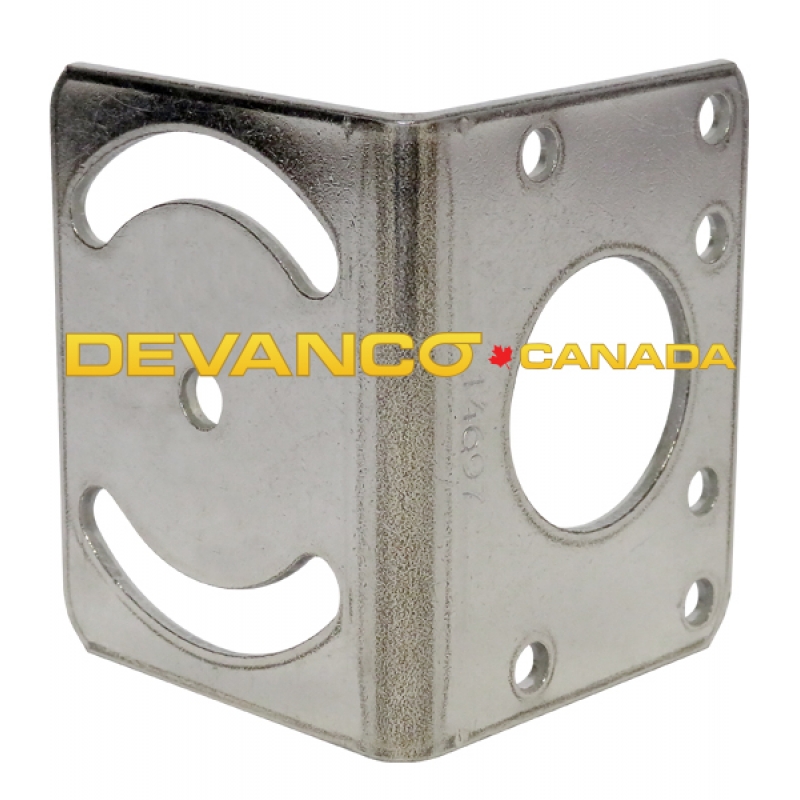

BEA Modular LED Signal Light Bracket

• Bracket only for modular LED lights.

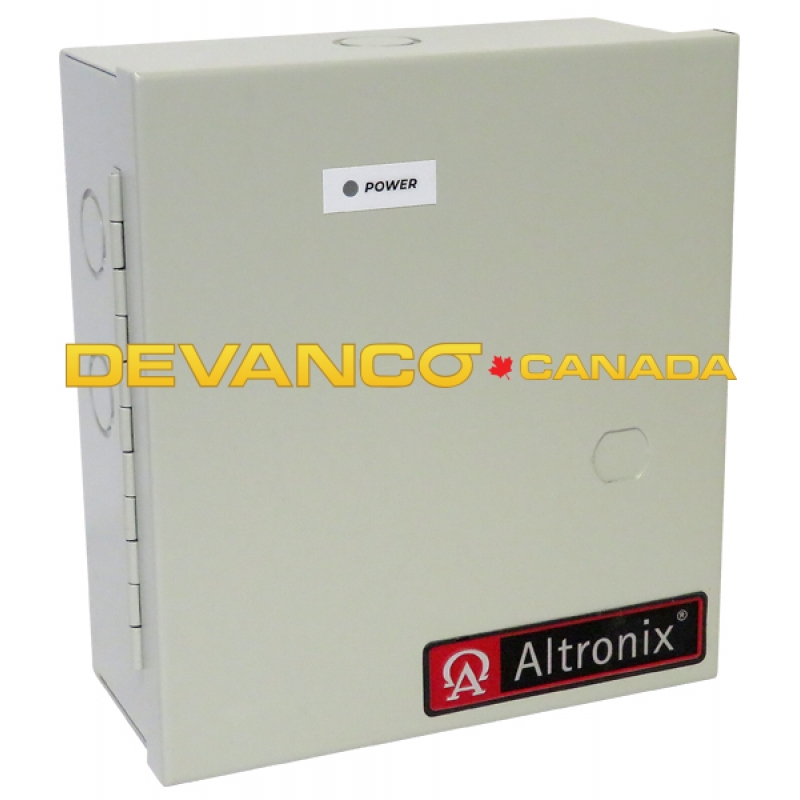

BEA Power Supply UL/ULC Listed
