EMX RAVEN Dual Relay Microwave Motion Sensor
5415-2
EMX RAVEN Dual Relay Microwave Motion Sensor
  • Distinguish between vehicles and pedestrians
  • Two configurable relay outputs
  • Adjustable sensitivity and cross traffic suppression
  • 8-23 ft (2.5-7 m) mounting height
  • Optional remote control for easy programming

Login to view pricing

Login
EMX RAVEN Programming Remote
5416-2
EMX RAVEN Programming Remote
  • Makes it easy to set up and make adjustments to all key parameters of the RAVEN motion detector while at ground level
  • Remote sold separately
Quick Start Guide

Login to view pricing

Login
EMX Industries Battery Powered Through-Beam Photocells EMX-1500-1
BPE-50
EMX Industries Battery Powered Through-Beam Photocells EMX-1500-1
  • Thru beam configuration
  • 90° adjustment left or right
  • The transmitter and receiver use 12-24 VDC/AC but the BPE-50 can also be powered by two 3.6-volt lithium batteries (Batteries Included)
  • 50 ft. operating range
  • Size: 4.4" (112mm) x 2.05" (52mm) x 1.3" (33mm)

Login to view pricing

Login
EMX Buried Driveway Alert Sensor XC101-LV Probe Sold Separately (CS101)
CARSENSE-101
EMX Buried Driveway Alert Sensor XC101-LV Probe Sold Separately (CS101)
  • The CarSense 101 provides a solution for many vehicle detection challenges. Where safety is an issue the CarSense 101 detects moving vehicles in blind areas along a driving path and actuates warning lights.
  • For access control applications requiring free exit the CarSense 101 detects vehicles and actuates gates overhead doors and other parking barriers.
  • Controls and indicators are mounted on front panel
  • Available in 9 - 41 VDC 6 - 29 VAC.
  • Low 2.5 mA standby current consumption makes it an excellent choice for solar power applications.
  • Housed in a small relay-type housing
  • Surge protection
  • Use with either Probe-50 Probe-100 or Probe-150
Installation ManualSell Sheet

Login to view pricing

Login
EMX Car Sense Vehicle Motion Detector ** Discontinued Offer VMD202 instead
CS202S-5-100
EMX Car Sense Vehicle Motion Detector ** Discontinued Offer VMD202 instead
  • Low voltage used for automatically opening gate when exiting property without requiring the use of a remote control transmitter key pad or any other operator control device.
  • Can be located up to 150' from the gate. Senses automobiles on a driveway up to 12' wide moving more than 5 m.p.h.
  • A second probe can be connected in parallel for additional coverage or for automatic opening in or out.
  • Available in a five wire (recommended for use with GTO operators) and a three wire version.
  • The CarSense 202 is buried in the ground so it will not be noticed by a potential intruder or vandals.
  • The CarSense 202 accepts a wide range of power input of 9 - 41 VDC and 6-29 VAC. The low current consumption of 250uA and 12mA detected make the CarSense 202 Slim a great choice for solar applications
Installation ManualSell Sheet

Login to view pricing

Login
EMX Car Sense Vehicle Detector Control Unit *** Replaced by LRS-C1
CS303-C-1
EMX Car Sense Vehicle Detector Control Unit *** Replaced by LRS-C1
  • The CarSenseâ„¢ 303 features advanced 3-axis magnetoresistive sensing technology.
  • The sensor measures Earth’s magnetic field and responds to disturbances caused by ferrous objects.
  • The CS303 combines this exciting new technology with a fieldproven hardware platform to produce a high-sensitivity compact and cost-effective solution for reliable vehicle detection.
  • Three sensing elements provide magnetic field measurement in the X Y and Z axes improving detection sensitivity.

Login to view pricing

Login
EMX Car Sense Direct Burial Sensor with 100 ft Lead Wire *** Replaced by LRS-DB-100
CS303-DB100
EMX Car Sense Direct Burial Sensor with 100 ft Lead Wire *** Replaced by LRS-DB-100
  • Can be used for above ground applications ie.. strapped to a post or wall
  • Easy low cost installation
  • Small size of the detector allow for easy installation in pavement
  • Rugged sensor is also suitable for above grade installations
  • Includes direct burial sensor and 100 ft of lead wire
  • Advanced 3-axis technology for better detection
  • use with Vehicle Detector Control Unit CS303-C-1

Login to view pricing

Login
EMX Car Sense Direct Burial Sensor with 50 ft Lead Wire ** Replaced by the LRS-DB-50
CS303-DB50
EMX Car Sense Direct Burial Sensor with 50 ft Lead Wire ** Replaced by the LRS-DB-50
  • Can be used for above ground applications ie.. strapped to a post or wall
  • Easy low cost installation
  • Small size of the detector allow for easy installation in pavement
  • Rugged sensor is also suitable for above grade installations
  • Includes direct burial sensor and 50 ft of lead wire
  • Advanced 3-axis technology for better detection
  • use with Vehicle Detector Control Unit CS303-C-1

Login to view pricing

Login
EMX Car Sense Direct Burial Sensor Flat Pack 100ft *** Replaced by LRS-FP-100
CS303-FP-100
EMX Car Sense Direct Burial Sensor Flat Pack 100ft *** Replaced by LRS-FP-100
  • Lead probe ONLY. Requires the CS303-C-1 detector.
  • Easy installation above or below ground
  • Ignores cross traffic in tight spaces with DETECT-ON-STOPâ„¢ feature
  • Sensitivity display
  • Single cut installation with flat pack model

Login to view pricing

Login
EMX Car Sense Direct Burial Sensor Flat Pack 50ft ** Replaced by LRS-FP-50
CS303-FP-50
EMX Car Sense Direct Burial Sensor Flat Pack 50ft ** Replaced by LRS-FP-50
  • Lead probe ONLY. Requires the CS303-C-1 detector.
  • Easy installation above or below ground
  • Ignores cross traffic in tight spaces with DETECT-ON-STOPâ„¢ feature
  • Sensitivity display
  • Single cut installation with flat pack model

Login to view pricing

Login
EMX Industries Plug-in Loop Detector for Liftmaster operators ** To extent of inventory
D-TEK-LM
EMX Industries Plug-in Loop Detector for Liftmaster operators ** To extent of inventory
  • Plug-in Loop detector for SL575 SL585 SL595 BG770 BG 79024VAC
  • Works with most LiftMaster gate operators
  • Won't work with Elite Series Mega Arm Slide & Swing
  • Simply plug it into the harness already in the operator
  • Loop lead-in wires connect to operator terminal strip
  • Gold plated control contacts
  • Includes Loop diagnostics and conditioner Replaces LiftMaster model G714167NH
Installation ManualSell Sheet

Login to view pricing

Login
EMX Industries Low Voltage 11-Pin Single Channel - Dual Relay Loop Detector (2500-1)
D-TEK-LP
EMX Industries Low Voltage 11-Pin Single Channel - Dual Relay Loop Detector (2500-1)
  • Power Supply: 12-24 Volts AC/DC
  • Current Consumption: < 9 mA
  • Operating Temp: -40°F to 180°F
  • Surge Protection: Zener Diode /MOV
  • Output Relays (2): 1Amp 30 VDC
  • Loop Input: Transformer isolation lightning and transient protection (1)
  • Loop Inductance Range: 20-2000µH Q-factor of 5 or higher
  • Tuning: Automatic on reset or power up
  • Tracking: Automatic for environmental changes
  • Size: Height 3.25" (83mm) Width 2.56" (40mm) Length 3.65" (90mm)
  • Housing: Extruded Anodized Aluminum
  • Connector: 86CP11 11 pin male
Manual - LP-D-TEKSpec Sheet - LP-D-TEK

Login to view pricing

Login
EMX Industries 9-220 volt Loop Detector 2550-1
D-TEK-MVP
EMX Industries 9-220 volt Loop Detector 2550-1
  • Wiring harness ( HAR-11) sold separately
  • Warranty 2 years
  • Aluminum RF shield housing
  • Loop diagnostics
  • Frequency counter
  • Control contacts (gold plated)
  • Two relays
Installation ManualSpec Sheet

Login to view pricing

Login
EMX Single Grey Hood For IRB-MON2/4X2 1 Piece Only
EMX-1915-1
EMX Single Grey Hood For IRB-MON2/4X2 1 Piece Only
  • Grey coloured metal hood (1 hood)

Login to view pricing

Login
EMX Single Gold Hood For IRB-MON2/4X2 1 Piece Only
EMX-1916-1
EMX Single Gold Hood For IRB-MON2/4X2 1 Piece Only
  • Gold coloured metal hood (1 hood)

Login to view pricing

Login
EMX Digital Timer *** No Longer Available
ETM17-24V
EMX Digital Timer *** No Longer Available
  • The ETM-17 series are panel mount digital timers the can be operated in 12V dc or 24V ac/dc power supply ranges depending on model ordered.
  • The output is a form “C” relay capable of 16A@ 30VDC.
  • Internal battery for memory backup of programming in the event of power failure.
  • Designed with 17 ON/OFF events per day and 15 combinations of daily programs for the best flexibility to the user.
  • Manual or Auto mode

Login to view pricing

Login

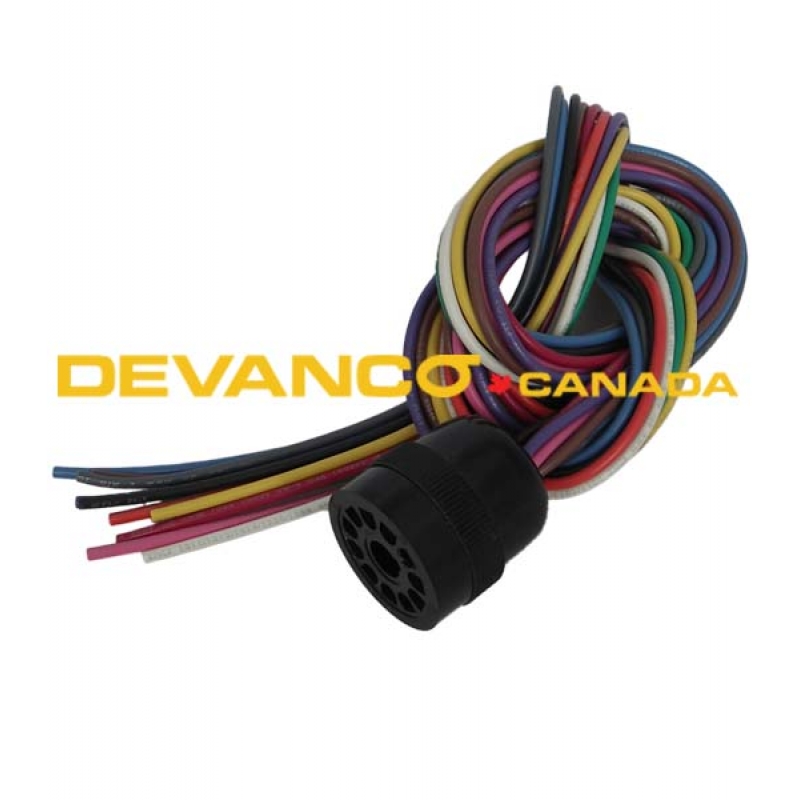

EMX Wiring Harness 11-Pin for D-TEK-MVP 5111-1
HAR-11
EMX Wiring Harness 11-Pin for D-TEK-MVP 5111-1
  • Universal 11-pin harness

Login to view pricing

Login
EMX Microwave Motion Sensor Wide Coverage 5410-2 *** DISC
HAWK2
EMX Microwave Motion Sensor Wide Coverage 5410-2 *** DISC
  • Advanced K-band planar microwave technology
  • Easy installation and adjustment
  • Wall or ceiling installation
  • Directional sensitivity: toward away or both
  • High coverage area resolution
  • Installation height up to 20 feet (6 meters)
  • Degree of protection: IP 65

Login to view pricing

Login
EMX Universal Mounting Bracket L-Shape Black Sold per Piece
HRD-288-1
EMX Universal Mounting Bracket L-Shape Black Sold per Piece
  • Fits RET2 MON2 4X2 WEL-RX REFLECTOR-O-EX models

Login to view pricing

Login

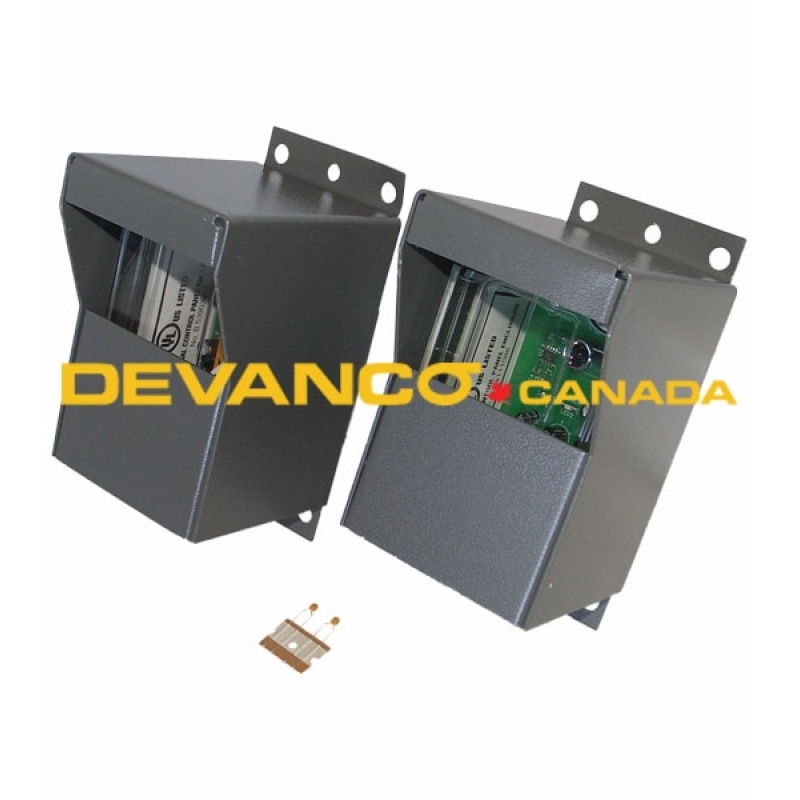

EMX Industries Door and Gate Infrared Thru-Beam Photocells w/ Grey Hoods UL325-2016 EMX-1112-K
IRB-325
EMX Industries Door and Gate Infrared Thru-Beam Photocells w/ Grey Hoods UL325-2016 EMX-1112-K
  • Type B1 non-contact sensor for use with automatic gates and doors
  • Power: 12V to 24V AC/DC
  • Relay Contacts: 30V 1A
  • Dimensions: 5.03" High x 3.06" Wide x 3.02" Deep
  • Housing: UL and CSA Type 4 4X 3 3R 12 13 Rating
  • Operating Temperature: -40 degrees to 170 degrees
  • Thru beam configuration
  • UL325 compliant (non-monitored)
  • 65 ft. operating range
Installation manualSell sheet

Login to view pricing

Login
