EMX Industries Liquid Tight Strain Relief Connectors Sold as a Pair

EMX Industries Transmitter Board Only for IRB-4X *** NLA

EMX Access Control Keypad

• Stainless steel face with metal backlit keys
• Anodized and powder coated steel outer housing that is vandal and weather resistant to IP66 (all weather)
• Dual relay outputs
• Over 100 Million 4-8 digit codes
• 12-24V AC/DC operation
• 100 user codes on Relay 1; 10 users relay 2
• Status indicator LEDs
• Universal mounting options for mounting on wall post or gooseneck stand
• Dimensions: H = 6.15 in x W = 4.1 in x D = 2.75 in

EMX Base Socket 11-Pin DIN Rail Mountable Black (Was formally Grey)

• For use with D-TEK detectors (most commonly used)
• Hourglass shaped

EMX Base Socket 11-Pin DIN Rail Mountable Black Block Style

• For use with D-TEK detectors
• Special Order Only
• Narrow profile

EMX Vehicle Detector Control Unit for Single Sensor 2303-2

• The Loop Replacement System (LRS) features advanced 3-axis magnetoresistive sensing technology that responds to changes in the Earth’s magnetic field caused by ferrous objects.
• Three sensing elements provide measurements in the X Y and Z axes to improve detection sensitivity when used in either above or below ground installations.
• The LRS is equipped with our new DETECT-ON-STOPâ„¢ or (DOS®) feature which allows detection only when a vehicle has come to a complete stop.
• Backwards compatible with CS303 sensors

EMX Direct Burial Sensor with 100 ft Lead Wire

• Lead probe ONLY. Requires the LRS-C1 detector
• Three-dimensional presence detection of vehicles
• Select X Y Z axis independently
• Stand-alone sensor
• Sensor stores ambient background and settings in non-volatile memory
• Includes direct burial sensor and 100 ft of lead wire
• PVC housing 5 conductor direct burial connection
• Power supply: 12-30 VDC
• Dimensions: 102mm (4.0”) x 27mm (1.0”)
• Use with Vehicle Detector Control Unit LRS-C1

EMX Direct Burial Sensor with 50 ft Lead Wire

• Lead probe ONLY. Requires the LRS-C1 detector
• Three-dimensional presence detection of vehicles
• Select X Y Z axis independently
• Stand-alone sensor
• Sensor stores ambient background and settings in non-volatile memory
• Includes direct burial sensor and 100 ft of lead wire
• PVC housing 5 conductor direct burial connection
• Power supply: 12-30 VDC
• Dimensions: 102mm (4.0”) x 27mm (1.0”)
• Use with Vehicle Detector Control Unit LRS-C1

EMX Sensor Flat Pack 100ft Wire

• Lead probe ONLY. Requires the LRS-C1 detector
• Three-dimensional presence detection of vehicles
• Select X Y Z axis independently
• Stand-alone sensor
• Sensor stores ambient background and settings in non-volatile memory
• Includes sensor and 100 ft of lead wire
• Polyamide housing 5 conductor direct burial connection
• Power supply: 12-30 VDC
• Dimensions: 86mm (3.4”) x 21mm (0.9”) x 8mm (0.3”)
• Use with Vehicle Detector Control Unit LRS-C1
• Backwards compatible with CS303-C-1 controller

EMX Sensor Flat Pack 50ft Wire

• Lead probe ONLY. Requires the LRS-C1 detector
• Three-dimensional presence detection of vehicles
• Select X Y Z axis independently
• Stand-alone sensor
• Sensor stores ambient background and settings in non-volatile memory
• Includes sensor and 50 ft of lead wire
• Polyamide housing 5 conductor direct burial connection
• Power supply: 12-30 VDC
• Dimensions: 86mm (3.4”) x 21mm (0.9”) x 8mm (0.3”)
• Use with Vehicle Detector Control Unit LRS-C1
• Backwards compatible with CS303-C-1 controller

EMX Logic Controller

• For use with the Loop Replacement System (LRS-C1) Magnetoresistive Vehicle Detector Control Unit
• Connects two stand-alone sensors to expand the detection area
• Works with LRS-DB (LRS-DB-50 or LRS-DB-100) Direct Burial or LRS-FP Flat Pack (LRS-FP-50 or LRS-FP-100)
• Logic Interface allows one (1) or two (2) sensors to be connected to one (1) output
• Provides six (6) selectable logic functions and two (2) separate relay outputs
• A/B directional logic can be selected with an output for each direction of travel as a vehicle passes over two sensors
• Status LEDs and durable housing with a standard 11-pin plug-in socket make installation quick and easy
• Dimensions: 2.9" (73mm) x 1.2" (38mm) x 3.1" (78mm)

EMX Pastic Screw for IRB-4X2

• Replacement screw only

EMX Radar Presence Sensor

• The MRD-1P radar presence sensor is used to indicate the presence of a vehicle or person in the vicinity of a barrier arm.
• It does not discriminate between people and vehicles.
• It can detect over a range of 1 –30 ft (0.3 – 9.1 m) with the maximum detection distance adjustable via pushbuttons.
• The sensor will ignore any objects beyond the detection distance.
• The sensor is extremely accurate measuring distance to within 0.04” (1 mm).
• The microwave beam is unaffected by rain snow ice fog or sunlight.
• It features Form C relay outputs for presence detection as well as solid-state relay outputs for pulse-on-entry/ pulseon-exit signaling.
• It has a full-featured menu for further customization accessed using the pushbuttons and a 3-digit display

Emx Industries Retro Reflective Photoeye Sensor with Reflector (5200-2)

• Watertight packaging
• Detection range: 30 feet
• 6 foot cord
• Reflector Bracket and mounting hardware Included
• 2 LED indicators
• Sensitivity adjustment
• Compact size: 2.5" high 1.5" deep 0.75" wide
• Flexible voltage 12 Volt AC/DC to 240 Volt AC 40mA current draw
• Made in Taiwan

Emx Industries Retro Reflective Photoeye Sensor with Reflector (5250-2)

• Extended range for better performance in rain and snow
• Compact design mounting hardware and indicators make it easy to install
• Lower current draw of only 28mA makes it an excellent choice for solar and low voltage applications
• Watertight package and optional protective hood offers protection for the NIR-50 from the elements and vandalism
• Flexible voltage 12 – 240 Volts DC 24 – 240 Volts AC
• Watertight package for reliable outdoor installation
• Sensing range: 50 feet
• Lead wire: 6 feet
• 2 LED indicators
• Sensitivity adjustment •Compact size: 2.5" high 1.5" deep 0.75" wide

EMX Retro Reflective Photoeye Kit UL325 NC/10K Across NO Contact EMX-5255-K

• Kit includes photoeye with hood reflector with hood and mounting bracket
• Retroreflective configuration
• NC and 10K monitoring
• 50 ft. operating range
• Sensitivity adjustment
• Wide range operating voltage
• IP66 enclosure
• Dimensions: 1.3” (33mm) x 0.8” (21mm) x 2.6” (66mm)
• Connection: 5 wires 6.5’ (2m) cable
• Operating Temp: -4°…131°F (-20°…55°C)

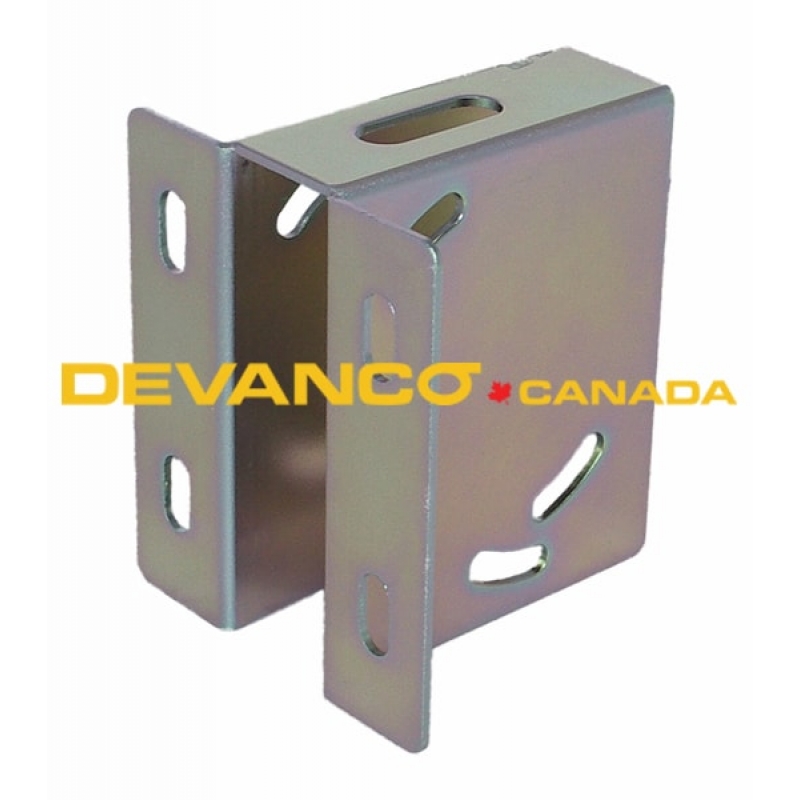

EMX Industries NIR Hood Cover Steel

• The hood keeps rain and other debris from distorting or blocking the photo beam.
• It also helps to keep the sun from glaring off the reflector and disturbing the beam's reflection.
• Replaces the mounting bracket that comes with the sensor.
• Comes with Hood two sets of nuts and bolts and a plug

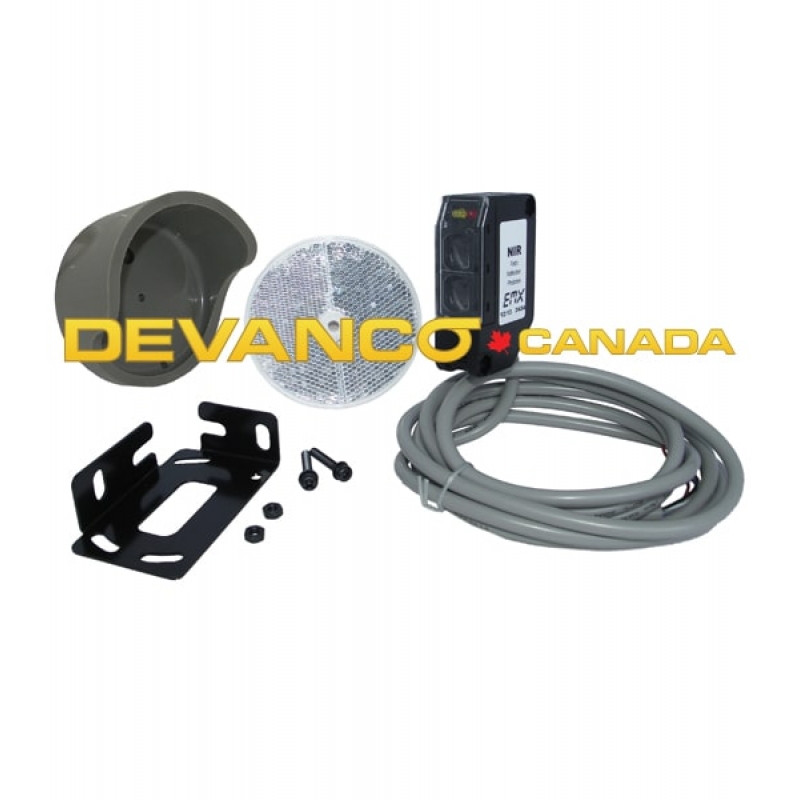

Emx Industries Retro Reflective Photoeye Sensor with Reflector and Hood (5200-K)

• Watertight packaging
• Detection range: 30 feet
• 6 foot cord
• Reflector Hood Bracket and mounting hardware Included
• 2 LED indicators
• Sensitivity adjustment
• Compact size: 2.5" high 1.5" deep 0.75" wide
• Flexible voltage 12 Volt AC/DC to 240 Volt AC 40mA current draw
• Made in Taiwan

EMX Detector Only No Wiring Harness Included

EMX Microwave Motion & Infrared Presence Sensor

• The OWL is a vehicle motion and presence sensor that uses microwave and infrared technology to activate automatic doors and industrial gates.
• Featuring two configurable outputs vehicle motion detection as well as presence detection the OWL activation sensor will ensure the safety of people and goods.
• Mounting Height: 11.5-21.3 ft (3.5-6.5 m)
• Supply Voltage: 12-24 VDC/AC
• Dimensions: 9” (229 mm) x 5” (127 mm) x 5” (127 mm)
• Connections: 32 ft (10 m) 8 conductor cable directly from sensor
• Environmental Rating: IP65
• Vertical Directionality: 16-32º wall or ceiling mount
• Horizontal Directionality: +/- 10º
• Microwave Detection Range: Depends on sensor height and housing angle Max. Range: 23 ft (7 m) Max. Width: 19.7 ft (6 m)
• Infrared Detection Range: Depends on sensor height and housing angle Max. Range: 18 ft (5.5 m) Max. Width: 26.2 ft (8 m)
