EMX Logic Controller

Item #: LRS-LC
Manufacturer: Emx Industries Inc.
EMX Logic Controller
EMX Logic Controller EMX Logic Controller EMX Logic Controller
Pricing & Availability
Product Specifications
8 Features
1
For use with the Loop Replacement System (LRS-C1) Magnetoresistive Vehicle Detector Control Unit
2
Connects two stand-alone sensors to expand the detection area
3
Works with LRS-DB (LRS-DB-50 or LRS-DB-100) Direct Burial or LRS-FP Flat Pack (LRS-FP-50 or LRS-FP-100)
4
Logic Interface allows one (1) or two (2) sensors to be connected to one (1) output
5
Provides six (6) selectable logic functions and two (2) separate relay outputs
6
A/B directional logic can be selected with an output for each direction of travel as a vehicle passes over two sensors
7

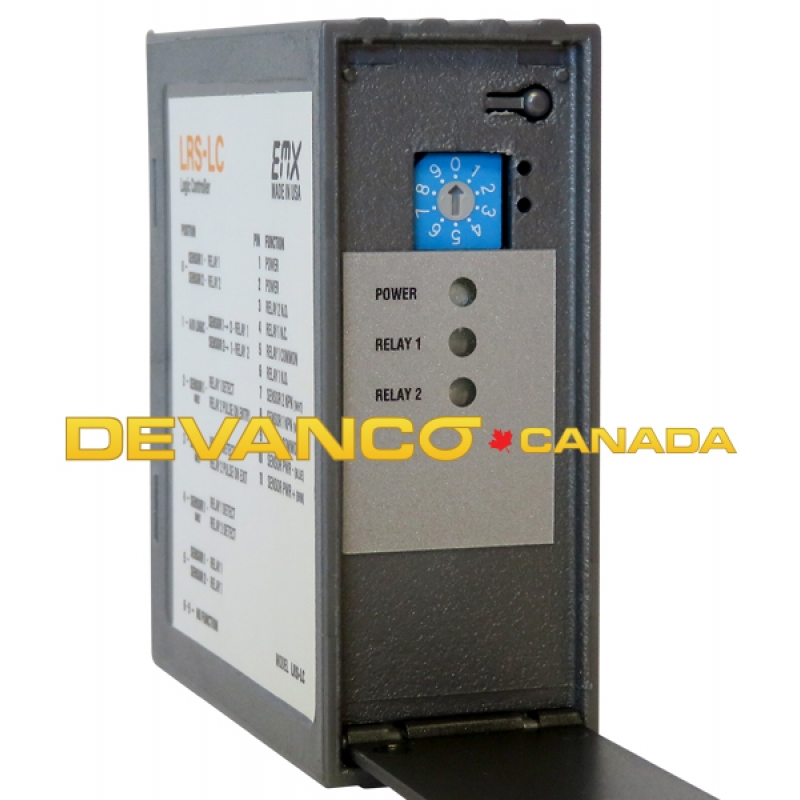

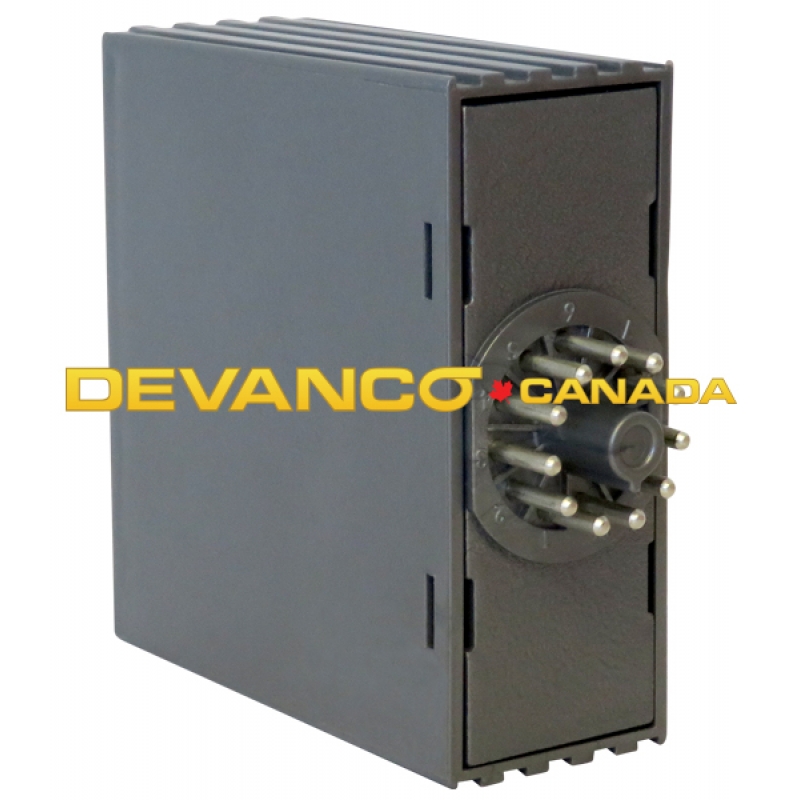

Status LEDs and durable housing with a standard 11-pin plug-in socket make installation quick and easy
8
Dimensions: 2.9" (73mm) x 1.2" (38mm) x 3.1" (78mm)
