Search Results

20 Products Found
Page 1 of 5 (20 total items)
EMX Infrared Modulated Photoeye Thru Beam
PC-3
EMX Infrared Modulated Photoeye Thru Beam
  • Thru beam configuration
  • LED alignment indicator simplifies installation
  • No calibration or sensitivity adjustments needed
  • Wide sensing angle for increased reliability
  • 30 ft. operating range
  • Housing: Black PVC * Not water tight
  • Dimensions: 4 in. x 2 in. x 1.5 in. 18” lead wire
  • Power: 12V – 24V AC or DC

Login to view pricing

Login

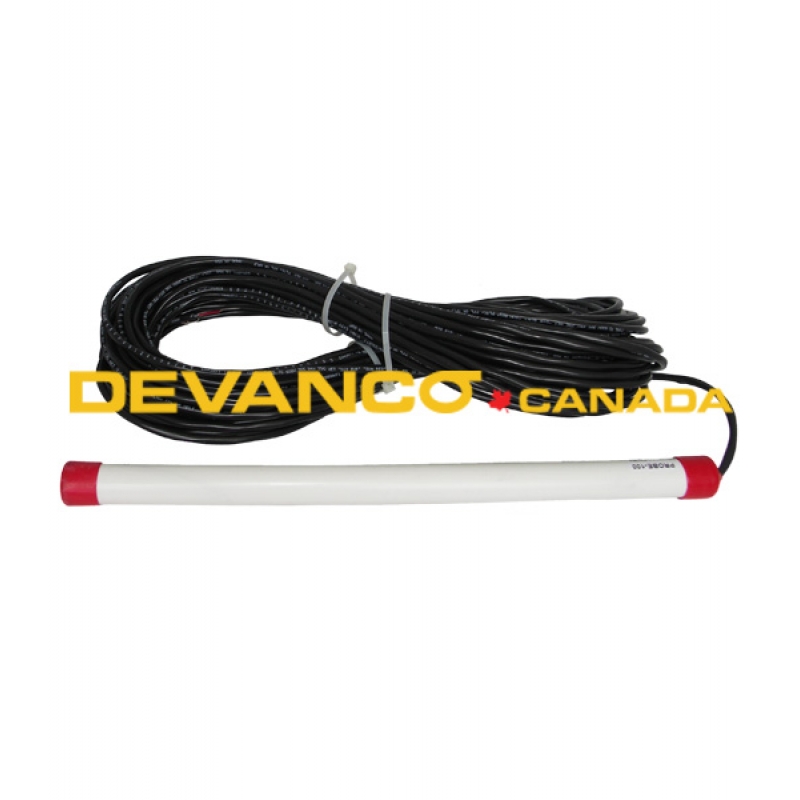

EMX CARSENSE-101 Direct Burial Probe with 100' Lead Wire
PROBE-100
EMX CARSENSE-101 Direct Burial Probe with 100' Lead Wire
  • Wand only
  • Requires CS101 (Carsense-101)

Login to view pricing

Login
EMX CARSENSE-101 Direct Burial Probe with 150' Lead Wire
PROBE-150
EMX CARSENSE-101 Direct Burial Probe with 150' Lead Wire
  • Wand only
  • Requires CS101 (Carsense-101)

Login to view pricing

Login
EMX CARSENSE-101 Direct Burial Probe with 200' Lead Wire
PROBE-200
EMX CARSENSE-101 Direct Burial Probe with 200' Lead Wire
  • Wand only
  • Requires CS101 (Carsense-101)

Login to view pricing

Login
EMX CARSENSE-101 Direct Burial Probe with 50' Lead Wire
PROBE-50
EMX CARSENSE-101 Direct Burial Probe with 50' Lead Wire
  • Wand only
  • Requires CS101 (Carsense-101)

Login to view pricing

Login
EMX Keypad/Card Reader Waterproof 5402-1
PRX-320
EMX Keypad/Card Reader Waterproof 5402-1
  • Up to 2000 users by card
  • Up to eight user pass codes by keypad
  • Low energy consumption ideal for solar applications
  • Built-in contact for doorbell annunciator
  • CE certified and is also ROHS compliant
  • Key Confirmation: Green LED On while key is depressed

Login to view pricing

Login
EMX 7 Day Programmable Timer 120V
PTM-120V
EMX 7 Day Programmable Timer 120V
  • The PTM is an easy to program 7 day timer that provides secure access to any facility any time.
  • With up to 16 ON/OFF events per day and 15 different daily options.
  • Its DIN rail mount design and wide power supply options (12 24 or 120 Volt) make installation easy.
  • The battery backup saves stored programs in the case of power loss.
  • Select either a 12 or 24 hour clock format to program access times for overhead doors gates and parking barriers.
  • The PTM can reduce the wear and tear on motor controls and extend the life of your equipment.
  • Dimensions: 3.41” (86.5 mm) x 1.42” (36 mm) x 2.70” (68.5 mm)
Instruction manualSpec sheetComparison guide

Login to view pricing

Login
EMX 7 Day Programmable Timer 24V
PTM-24V
EMX 7 Day Programmable Timer 24V
  • The PTM is an easy to program 7 day timer that provides secure access to any facility any time.
  • With up to 16 ON/OFF events per day and 15 different daily options.
  • Its DIN rail mount design and wide power supply options (12 or 24 Volt) make installation easy.
  • The battery backup saves stored programs in the case of power loss.
  • Select either a 12 or 24 hour clock format to program access times for overhead doors gates and parking barriers.
  • The PTM can reduce the wear and tear on motor controls and extend the life of your equipment.
  • Dimensions: 3.41” (86.5 mm) x 1.42” (36 mm) x 2.70” (68.5 mm)
Instruction manualSpec sheetComparison guide

Login to view pricing

Login
EMX Surface Mounted Loop Pad e/Wire Guard
SP-24
EMX Surface Mounted Loop Pad e/Wire Guard
  • Designed to fit between the guide rails in automated carwash systems.
  • Made with durable polypropylene this sealed pad can stand up to carwash detergents.
  • Able to detect up to 30 inches high when coupled with EMX’s line of vehicle loop detectors.
  • Size: 23.75” x 23.75” x 1”
  • Material: black polypropylene
  • Lead-In: 50 feet shielded twisted pair

Login to view pricing

Login
EMX Test Loop
TSTL
EMX Test Loop
  • Electrical diagnostic tool for loop and vehicle detectors
  • Two-wire: red and black
  • Dimensions: 1.25 inches (H) x 1.25inches (W) x .75inches (D)
  • Compatible with most brands of loop detectors

Login to view pricing

Login
EMX Industries Multi-Voltage Loop Detector (ULT-MVP-U)
ULT-MVP
EMX Industries Multi-Voltage Loop Detector (ULT-MVP-U)
  • Combines small size with 9VDC to 240VAC input range.
  • Size: 73 x 38 x 78mm
  • ULTRAMETERâ„¢ display indicates the appropriate sensitivity setting the vehicle positioned on the loop
  • Ten (10) sensitivity adjustments
  • Four (4) frequency settings
  • Automatic sensitivity boost (ASB) delay fail-safe/fail-secure and infinite or normal (5 min.) presence
  • Socket mount -11 pin (JEDEC B11-88)
  • Output 1: Relay contact outputs indicating vehicle presence
  • Output 2: Additional set of output contacts for loop fault or pulse on entry /pulse on exit or the new EMX feature DETECT-ON-STOPâ„¢
  • DETECT-ON-STOPâ„¢ allows detection only when a vehicle has come to a complete stop on the loop
  • Wiring harness sold separately (HAR-11)
  • Same as ULT-MVP-U
Operating InstructionsSell Sheet

Login to view pricing

Login
EMX Industries Multi-Voltage Loop Detector 2-Channel (ULT-MVP-2U)
ULT-MVP-2-D-TEK
EMX Industries Multi-Voltage Loop Detector 2-Channel (ULT-MVP-2U)
  • Combines small size with 9VDC to 240VAC input range.
  • Size: 73 x 38 x 78mm
  • ULTRAMETERâ„¢ display indicates the appropriate sensitivity setting the vehicle positioned on the loop
  • Ten (10) sensitivity adjustments
  • Four (4) frequency settings
  • Automatic sensitivity boost (ASB) delay fail-safe/fail-secure and infinite or normal (5 min.) presence
  • Socket mount -11 pin (JEDEC B11-88) or use HAR-11
  • Two channel features include: One set of relay contacts for each channel
  • Each output may be set for pulse or presence normal (5 min.) or infinite presence or the new EMX feature DETECT-ON-STOPâ„¢
  • AB logic (directional mode)
  • 2 channel model with USA wiring
  • Wiring harness sold separately

Login to view pricing

Login
EMX Industries Ultra Loop Plug-In Loop Detector Dual Output 2670-1
ULT-PLG-D-TEK
EMX Industries Ultra Loop Plug-In Loop Detector Dual Output 2670-1
  • Trademarked Detect-on-Stop technology
  • Easy install with trademarked UltraMeter display with 10 sensitivity settings
  • Sold-state output indicating vehicle presence
  • Ignore cross traffic in tight spaces
  • Select for automatic sensitivity boost (ABS) delay fail safe/fail secure
  • Second output for pulse entry/exit normal/infinite presence
  • Frequency count/reset switch
  • Four operating frequencies
  • CE compliant
  • Low current draw (eco-friendly)
  • Compatible with many gate operators
  • Power: 12VDC…24VDC
  • Dimensions: 3.0”(76mm) x 0.9”(22mm) x 2.75”(70mm)
  • Weight: 0.15 lbs. (68 g)
  • Connector: 10-pin female Molex plug-in connector

Login to view pricing

Login
EMX Industries DIN Rail Mount Vehicle Loop Detector
ULTRA-DIN
EMX Industries DIN Rail Mount Vehicle Loop Detector
  • Ignores cross traffic in tight spaces with DETECT-ON-STOPâ„¢ feature
  • Easy to install and setup with the ULTRAMETERâ„¢ sensitivity display
  • Low current draw – green product
  • Easy identification of interference problems using the crosstalk and RFI interference display
  • Fits into small operator housings saving space size: 80 x 23 x 84 mm
  • 10 sensitivity settings
  • 4 operating frequencies
  • Set of output contacts for loop fault or pulse on entry /pulse on exit or the new EMX feature DETECT-ON-STOPâ„¢
  • CE compliant

Login to view pricing

Login
EMX Industries Plug-in Loop Detector (2663-1)
ULTRA-II-D-TEK
EMX Industries Plug-in Loop Detector (2663-1)
  • Features a slim design that is compatible with most gate operators that require a dry contact relay input.
  • No harness required; comes with terminal screw adaptor
  • ULTRAMETERâ„¢ (displays optimum sensitivity setting / diagnostic aid)
  • Frequency count/reset switch
  • 10 sensitivity settings
  • Loop diagnostics
  • 4 operating frequencies
  • Lightning and surge protection
  • Frequency counter
  • Fail safe operation
  • CE compliant

Login to view pricing

Login
EMX Ultra Sonic Vehicle Detector 2700-1
USVD-4X
EMX Ultra Sonic Vehicle Detector 2700-1
  • The USVD-4X Drive Thru Vehicle Sensor uses patent pending Triangular Planar Array (TPA) technology to detect the presence of a vehicle.
  • The USVD handles any drive thru operation such as fast food banking pharmacies car washes and parking garages.
  • The USVD is simply mounted on a post or order box and aimed at the location where a vehicle would pass to initiate a transaction. No set-up or adjustments required.
  • Aux. relay settings for pulse on ENTRY EXIT or BOTH
  • Output delay option for 1 2 and 4 seconds
  • Operating range: 1ft. – 5ft.
  • Response time: 2.0 seconds
  • Supply Voltage12…24 VDC/VAC
  • Relay output configuration: 2 SPDT (form C)
  • CE compliant
Installation ManualSell Sheet

Login to view pricing

Login
EMX Board Only for Ultra Sonic Vehicle Detector
USVD-BD
EMX Board Only for Ultra Sonic Vehicle Detector
  • Replacement board only for USVD-4X

Login to view pricing

Login
EMX Vehicle Motion Detector Probe with 100ft Lead Wire
VMD202-100
EMX Vehicle Motion Detector Probe with 100ft Lead Wire
  • The VMD202 Vehicle Motion Detector is the most advanced single-piece vehicle motion sensor on the market today.
  • The probe and its electronics are housed in a slim design that is buried next to a driveway.
  • The VMD202-R Sensitivity Remote Control (sold separately) makes installation and fine tuning simple
  • Probe assembly and wire are water tight and direct burial compatible
  • Harness is pre-wired onto lead wire for easy installation
  • Settings are placed in a non-volatile memory in case of power failure
  • Accepts wide range of power inputs from 9 – 41 VDC or 6 – 29 VAC
  • Low current consumption of 250uA standby and 12mA activated
Installation ManualSell Sheet

Login to view pricing

Login
EMX Vehicle Motion Detector Probe with 50ft Lead Wire
VMD202-50
EMX Vehicle Motion Detector Probe with 50ft Lead Wire
  • The VMD202 Vehicle Motion Detector is the most advanced single-piece vehicle motion sensor on the market today.
  • The probe and its electronics are housed in a slim design that is buried next to a driveway.
  • The VMD202-R Sensitivity Remote Control (sold separately) makes installation and fine tuning simple
  • Probe assembly and wire are water tight and direct burial compatible
  • Harness is pre-wired onto lead wire for easy installation
  • Settings are placed in a non-volatile memory in case of power failure
  • Accepts wide range of power inputs from 9 – 41 VDC or 6 – 29 VAC
  • Low current consumption of 250uA standby and 12mA activated
  • Same as VMD202-5-50

Login to view pricing

Login

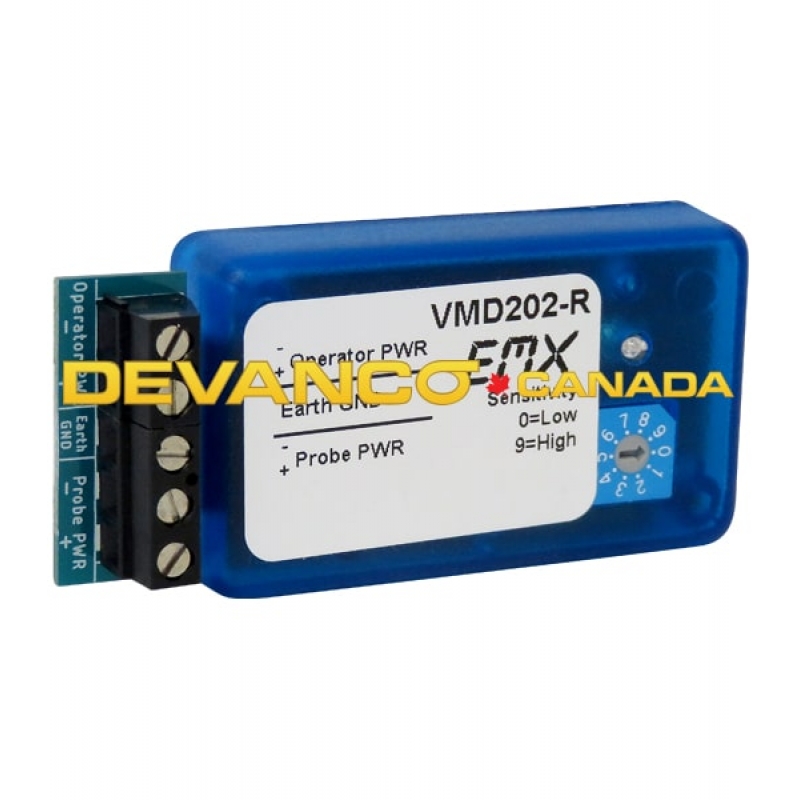

EMX Remote Tuning and Adjustment Control Device
VMD202-R
EMX Remote Tuning and Adjustment Control Device
  • If you wish to “tune” the sensitivity the accessory VMD202-R will need to be plugged temporarily into the connector.
  • The VMD202-R may then be removed or left in place as desired.

Login to view pricing

Login
Page 1 of 5 (20 total items)
