LiftMaster Single Button Nema-1 Pushbutton Control Station

• Surface mount

LiftMaster Push Button Station 3-btn Surface Mount O/C/S Nema 1 with Maintenance Alert LED

• PBS-3
• Open-Close-Stop
• Momentary contact
• Nema 1
• Works with Liftmaster MH commercial operator
• Dimensions: 5-5/16" H x 2-3/8" W x 1-13/16" D

Push Button Station 3-btn Surface Mount O/C/S Nema 1 For LGO Ops only

• PBS-3R
• Open-Close-Stop
• Works with Liftmaster LGO commercial operator
• Also known as: 02-103LGO1 02103LGO1
• Dimensions: 5-5/16" H x 2-3/8" W x 1-13/16" D
• Normally Open contact on Stop therefore it won’t work on any other LiftMaster operator besides the LGO. The 02-103 will work on all operators.

LiftMaster Pull Switch Assembly *** Available to Extent of Inventory

• Swivel end
• Nema 1
• Same as Pull Cord

LiftMaster Key Switch Assembly On/Off Nema 4/12 **DISCONTINUED

• Two Position Key Control Station
• Outdoor Surface Mt. (NEMA 4/12)
• Non-Tamperproof
• OPEN/CLOSE spring return to center (OFF) key removable in center position only.
• Should only be used on operators wired for constant pressure to open and close (all LiftMaster industrial operators with type D control wiring).
• Die cast metal enclosure

LiftMaster Push Button Station Nema 4 O/C/S with Keyed Lock-Out Die-Cast Enclosure

• Code on key is #301

LiftMaster Key Switch Assembly On/Off Nema 4/12

• Two-position keyswitch. Key removable in either position.
• Surface Mount
• May be used on all operators
• Die-cast metal enclosure non-tamperproof

LiftMaster Key Switch 2-Position Nema 4/12

• Two Position Key Control Station
• Outdoor Surface Mt. (NEMA 4/12)
• Tamperproof
• Die cast metal enclosure with standard key cylinder
• OPEN/CLOSE spring return to center (OFF) key removable in center position only. Should only be used on operators wired for constant pressure to open and close (all LiftMaster industrial operators with type D control wiring).
• Dimiensions: 3" x 3.2" x 4.2"
• WARNING: When used on most industrial operators this control will not stop the door. Use another control that has a STOP button in conjunction with this control

LiftMaster Key Switch with Best Cylinder

• Two Position Key Control Station
• Outdoor Surface Mt. (NEMA 4/12)
• Tamperproof
• Die cast metal enclosure with BEST cylinder (construction core included)
• OPEN/CLOSE spring return to center (OFF) key removable in center position only. Should only be used on operators wired for constant pressure to open and close (all LiftMaster industrial operators with type D control wiring).
• Dimiensions: 3" x 3.2" x 4.2"
• WARNING: When used on most industrial operators this control will not stop the door. Use another control that has a STOP button in conjunction with this control

LiftMaster Commercial Key Control Station Open-Close and Off with Stop Button

• Outdoor Surface Mount Nema 4/12 station
• Standard key cylinder
• Open/Close spring return to center (off)
• Key removable in center position only
• With Stop button

LiftMaster Commercial Key Control Station Open-Close and Off with Stop Button and BEST Cylinder

• Outdoor Surface Mount Nema 4/12 station
• Standard key cylinder is replaced with BEST cylinder
• Open/Close spring return to center (off)
• Key removable in center position only
• With Stop button

LiftMaster Pull Switch Assembly Nema 4

• May be used in two different ways: as an OPEN only control (all LiftMaster operators) or as an OPEN/CLOSE control (only LiftMaster operators with types B2 and S2 control wiring).
• In the latter case pulling the cord will open a fully closed door close a fully opened door and reverse a closing door.
• Pulling the cord whlie the door is opening will either have no effect (type B2 wiring) or will stop the door (Solid State Logic Control Board).

LiftMaster Nema 7/9 Ceiling Switch Pull Control

• Single Pull Switch Control
• Hazardous Area Overhead Mt. (NEMA 7/9)
• Die cast hazardous area enclosure
• May be used in two different ways; as an OPEN only control (all LiftMaster operators) or as an OPEN/CLOSE control (only LiftMaster operators with types B2 and S2 control wiring). In the latter case pulling the cord will open a fully closed door close a fully opened door and reverse a closing door.
• Pulling the cord whlie the door is opening will either have no effect (type B2 wiring) or will stop the door (Solid State Logic Control Board).
• WARNING: When used on most industrial operators this control will not stop the door. Use another control that has a STOP button in conjunction with this control.

LiftMaster Angle Mount Bracket Mounting Clip

LiftMaster External Power Supply 110VAC Input 12VDC 2000mA

• Provides enough power to operate two LC-36A light curtains.
• Includes 38' cable leads

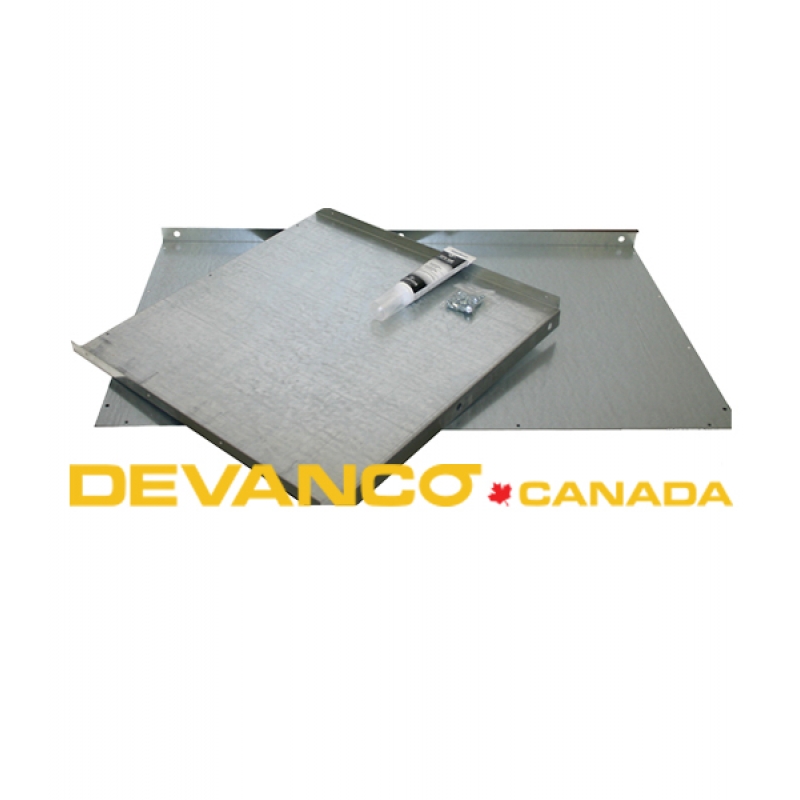

LiftMaster Operator Splash-Proof Cover

• For models: MH H HCT GH
• For wall mounted operators 31" L x 19" W x 18" D assembly required.

LiftMaster Solar Kit 33-AH 12V ***Kit includes: 1x SP20W12V 1x A12330SGLPK & 1x K94-37236***

• Kit includes: SP20W12V (1) SOLAR-PANEL KIT12V20W A12330SGLPK (1) BATTERY 12V33AHSINGLE K94-37236 (1) UNIVERSAL SOLAR HARNESS KIT-7AH & 33AH
• Compatible with: RSL12ULMC gate opener

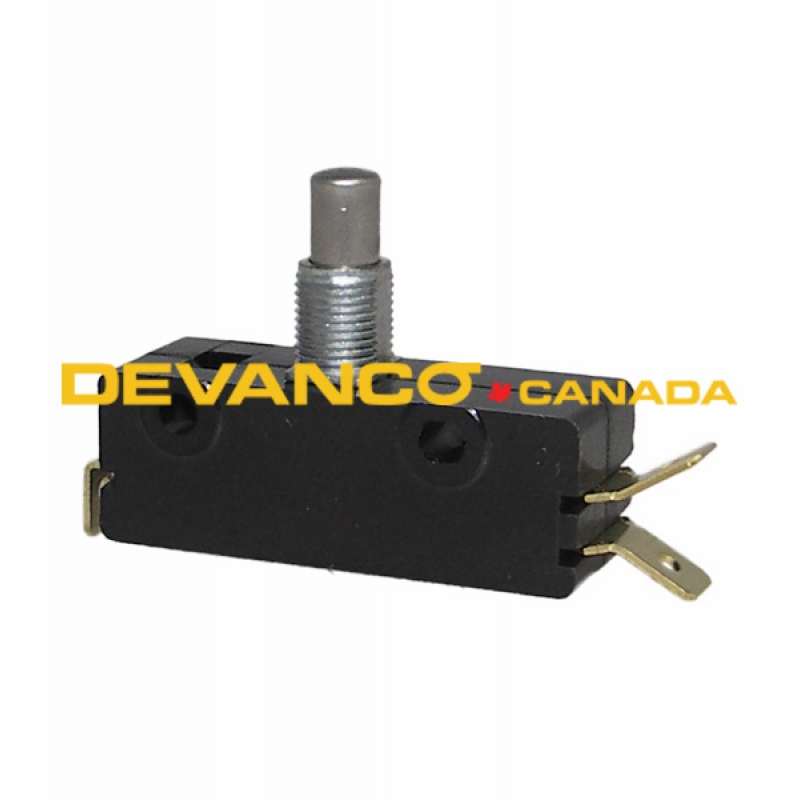

LiftMaster Hoist Interlock Switch SPDT

• Interlock switch for LM commercial door openers with hoist disconnects
• 15A 125/250VAC

LiftMaster Gate Warning Sign Plastic English

LiftMaster Warning Sign Aluminum French
