EMX Industries Plug-in Loop Detector (2663-1)

• Features a slim design that is compatible with most gate operators that require a dry contact relay input.
• No harness required; comes with terminal screw adaptor
• ULTRAMETERâ„¢ (displays optimum sensitivity setting / diagnostic aid)
• Frequency count/reset switch
• 10 sensitivity settings
• Loop diagnostics
• 4 operating frequencies
• Lightning and surge protection
• Frequency counter
• Fail safe operation
• CE compliant

EMX Ultra Sonic Vehicle Detector 2700-1

• The USVD-4X Drive Thru Vehicle Sensor uses patent pending Triangular Planar Array (TPA) technology to detect the presence of a vehicle.
• The USVD handles any drive thru operation such as fast food banking pharmacies car washes and parking garages.
• The USVD is simply mounted on a post or order box and aimed at the location where a vehicle would pass to initiate a transaction. No set-up or adjustments required.
• Aux. relay settings for pulse on ENTRY EXIT or BOTH
• Output delay option for 1 2 and 4 seconds
• Operating range: 1ft. – 5ft.
• Response time: 2.0 seconds
• Supply Voltage12…24 VDC/VAC
• Relay output configuration: 2 SPDT (form C)
• CE compliant

EMX Board Only for Ultra Sonic Vehicle Detector

• Replacement board only for USVD-4X

EMX Vehicle Motion Detector Probe with 100ft Lead Wire

• The VMD202 Vehicle Motion Detector is the most advanced single-piece vehicle motion sensor on the market today.
• The probe and its electronics are housed in a slim design that is buried next to a driveway.
• The VMD202-R Sensitivity Remote Control (sold separately) makes installation and fine tuning simple
• Probe assembly and wire are water tight and direct burial compatible
• Harness is pre-wired onto lead wire for easy installation
• Settings are placed in a non-volatile memory in case of power failure
• Accepts wide range of power inputs from 9 – 41 VDC or 6 – 29 VAC
• Low current consumption of 250uA standby and 12mA activated

EMX Vehicle Motion Detector Probe with 50ft Lead Wire

• The VMD202 Vehicle Motion Detector is the most advanced single-piece vehicle motion sensor on the market today.
• The probe and its electronics are housed in a slim design that is buried next to a driveway.
• The VMD202-R Sensitivity Remote Control (sold separately) makes installation and fine tuning simple
• Probe assembly and wire are water tight and direct burial compatible
• Harness is pre-wired onto lead wire for easy installation
• Settings are placed in a non-volatile memory in case of power failure
• Accepts wide range of power inputs from 9 – 41 VDC or 6 – 29 VAC
• Low current consumption of 250uA standby and 12mA activated
• Same as VMD202-5-50

EMX Wireless Edge Link Transmitter / Receiver Kit WEL-200K (4012-2)

• Provides a complete wireless solution for interfacing sensing edges with gate and door operators
• The Wireless Edge Link eliminates the wiring between the safety edge and operator control box
• No wiring needed reduces installation cost
• Compatible with NC 10K and pulse monitored outputs
• Operates two years on two AA lithium batteries
• Connect up to 4 safety edge transmitters
• UL325-2016 compliant
• Operating range up to 200 ft. (61 m)
• NEMA 4X enclosure
• Kit includes the transmitter (tx) and receiver (rx) units

EMX Wireless Edge Link Receiver Unit only

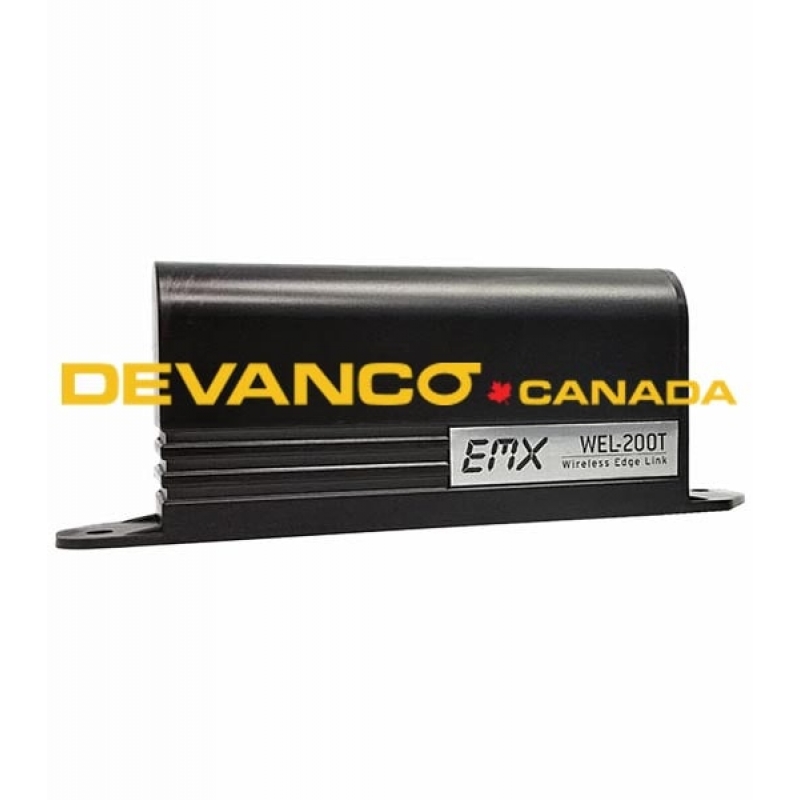

EMX Wireless Edge Link Transmitter Unit only

• Addition transmitter unit for multiple setup
