Miller Edge 2-Channel Wireless Edge Receiver RF 318 MHz

• Power source: 12-24 volts AC/DC nominal Nominal 60 mA 140 mA activated
• Output: N.O. N.C
• Wire connections: Integral 18” wiring with #6 spade lugs
• Antenna: Attached wire or F connector
• LED Indicators: Power channel 1
• Polycarbonate enclosure
• Dimensions: 3-3/4”W x 4-13/16”H x 1-1/4”D (95 x 122 x 32 mm

Miller Edge Wireless Transmitter with Audible Alarm and 1 Channel Receiver

• For 2-wire edges
• Was previously MWRTA02A now has a new board making installation easier
• Includes single channel receiver (MWR12A) and transmitter (MWTA12) with audible low battery alarm.
• This feature that activates when the battery has only 25% of its life remaining indicating the battery should be replaced. The alarm sounds for 5 to 10 seconds at 1 to 2 minute intervals.
• The receiver operates on either 12 or 24 volt AC/DC and provides N.O. or N.C. output.

Miller Edge Transmitter RF in Nema 4 Enclosure *** To Extent of Inventory

• The MWT12 safety edge transmitter is designed to provide wireless signal transmission form the safety edge to the motor controls.
• It is easily mounted and wired to the gate or door edge sensor. When the sensing edge comes into contact with an obstruction a closed circuit signal is created and is sent to the transmitter.
• The transmitter relays the information to the receiver and the receiver passes the signal along to the operator motor.
• The gate or door stops movement and will then reverse the direction of travel.
• Comes standard with a NEMA 4 weather-proof enclosure. The enclosure can be easily mounted with the four mounting holes and screws provided
• Response time: nominal 30msec.
• Opertating temperature: 0 to 130F
• Operating frequency: 318Mhz
• Maximum operating distance: 100ft
• Replaces MWT02

Miller Edge Transmitter Binary Nema 4 Enclosure

• The MWT12 safety edge transmitter is designed to provide wireless signal transmission form the safety edge to the motor controls.
• It is easily mounted and wired to the gate or door edge sensor. When the sensing edge comes into contact with an obstruction a closed circuit signal is created and is sent to the transmitter.
• The transmitter relays the information to the receiver and the receiver passes the signal along to the operator motor.
• The gate or door stops movement and will then reverse the direction of travel.
• Comes standard with a NEMA 4 weather-proof enclosure. The enclosure can be easily mounted with the four mounting holes and screws provided
• Response time: 70 milliseconds
• Opertating temperature: 0°F to 130°F (-18°C to 55°C)
• Operating frequency: 318Mhz
• Maximum operating distance: 100ft
• Coding: Selectable 9 pole 2 position DIP switch
• Power Source: (2) 1.5 volts AA alkaline batteries
• Input/Output: Input: 2-wire N.O. sensing edge
• Repl.: MWT12

Miller Edge Transmitter with Audible Alarm Small *** No Longer Available

• The MWTA12 safety edge transmitter is designed to provide wireless signal transmission form the safety edge to the motor controls.
• It is easily mounted and wired to the gate or door edge sensor. When the sensing edge comes into contact with an obstruction a closed circuit signal is created and is sent to the transmitter.
• The transmitter relays the information to the receiver and the receiver passes the signal along to the operator motor.
• The gate or door stops movement and will then reverse the direction of travel.
• Comes with an Audible Alarm feature that activates when the battery is running low and needs to be replaced.
• Comes standard with a NEMA 4 weather-proof enclosure. The enclosure can be easily mounted with the four mounting holes and screws provided.
• Response time: 30 msec.
• Operating temperature: -4 to 140F
• Operating frequency: 318Mhz
• Maximum operating distance: 100ft in optimal conditions
• Two year warranty

Miller Edge Transmitter with Low Battery Alarm Small

• The transmitter comes standard with a NEMA 4 weather-proof enclosure
• Compact design that allow for easy troubleshooting.
• The transmitter has an audible alarm that activates when the battery has 25% of its life remaining
• Easy to configure · Non-monitored system ideal for operators manufactured prior to: · Doors: August 2010 · Gates: January 2016 · NEMA 4 transmitter built to endure rugged environments
• Power Source: (2) 1.5 volts AA lithium batteries
• Input: 2-wire N.O. sensing edge
• Demensions: 1-13/16”W x 5-3/4”H x 2-1/8”D (46 x 146 x 54 mm)
• Enclosure: Polycarbonate
• Low Battery Alert: Alarm; 80-95 dB at 2’

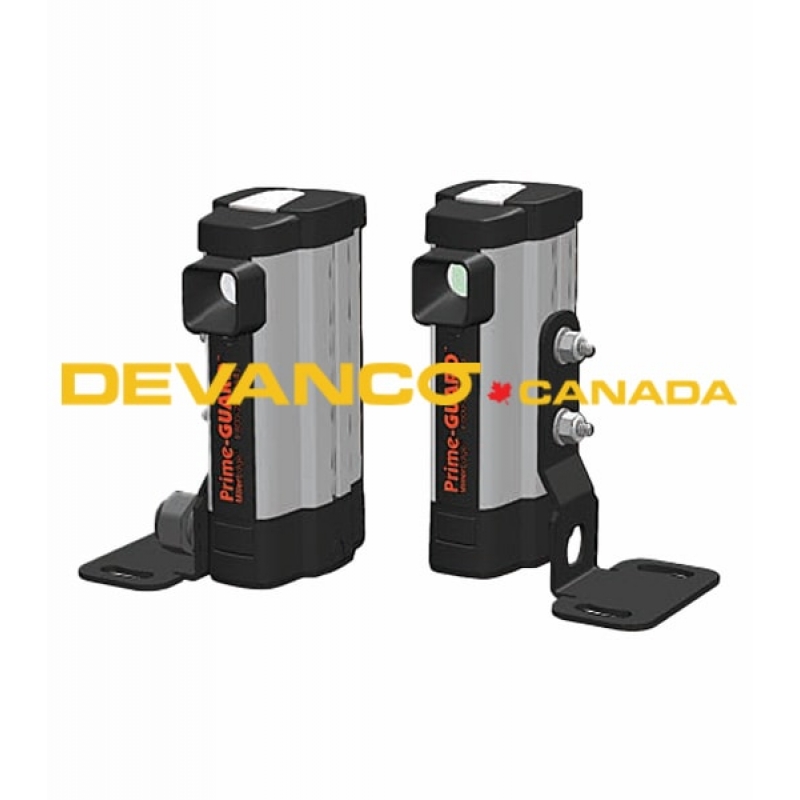

Prime Guard Monitored Thru-Beam Photoeye Kit 50 ft Range Relay Output

• Prime Guard's rugged housing is suitable for both indoor and outdoor installations.
• Dimensions: 5.1" H x 2.8" L x 1.8" W
• Weight (Em): 12.2 oz. (Em)
• Weight (Rx): 11.2 oz. (Rx)
• Aluminum enclosure
• Mounting options: Wall floor post
• Detection Technology: Infrared thru-beam
• Operating Temp. Range: -40°F to 185°F
• -40°C to +85°C
• Wavelength: 850 nm
• Response Time: < 18 msec

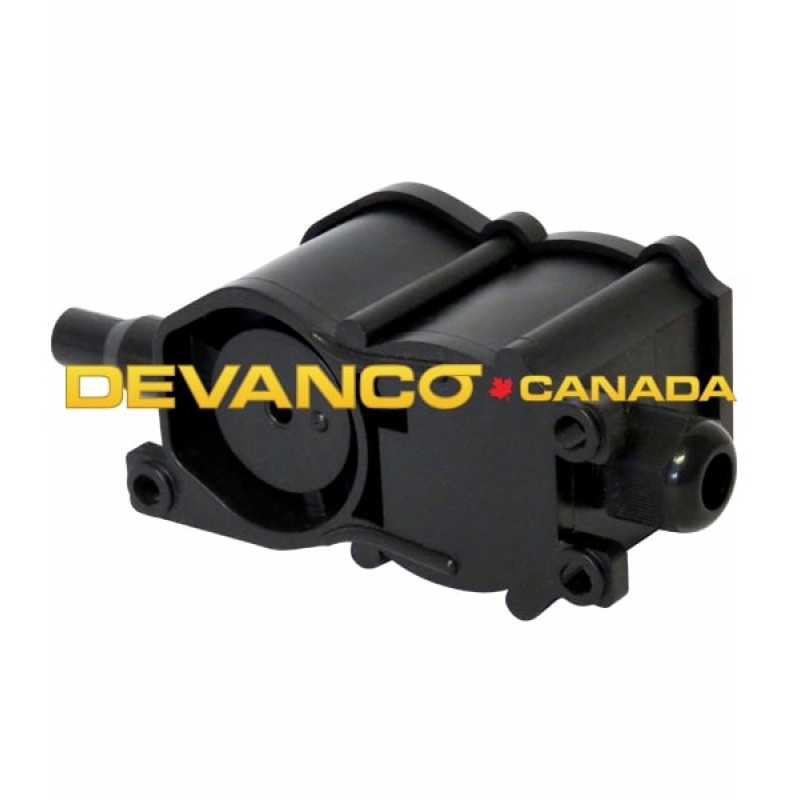

Miller Edge Pneumatic Air Switch in ABS Enclosure

• Pneumatic switch offering a reliable low cost alternative to a standard electric sensing adge.
• When attached to a hose inserted into the existing weather stripping the PS-20A acts as an effective sensing edge on doors up to 18ft in length.
• Applications: rolling doors sectional doors and mass transit.
• Electrical configuration: 3-wire SPDT
• Temperature range: -20F to 158F
• Max pressure: 20 PSI
• Weather resistant casing and weather tight strain relief

Miller Edge RBand Monitored Wireless Gate Edge System

• RBand Gate Edge Transmitter/Receiver System
• The system is intended to provide a wireless connection between a monitored sensing edge and a motorized operator that controls the associated gate
• The RBand Receiver is compatible with up to 3 RBand Transmitters on 2 channels; 6 total transmitters.
• RBand meets the 2016 UL 325 requirements for monitored devices and has been certified as a UL 325 Recognized Component.
• It is designed for use with operators that comply with 2016 UL 325 using a Miller Edge 10K Sensing Edge.

Miller Edge RBand Monitored Wireless Door Edge System

• RBand is a monitored sensing edge transmitter/receiver system.
• The receiver can be paired with up to three transmitters.
• On board diagnosticsallows for easy set up and troubleshooting.
• Offers pulsed and normally open outputs.
• Ideal for commercial door operators manufactured after 2010.
• Bi-directional link improves immunity to RF interference.
• UL325
• 2 year warranty
• Operating temperature: -40C to 60C
• 916Mhz

Miller Edge RBand Monitored Wireless Edge Transmitter

• RBand transmitter only
• On board diagnostics allows for easy set up and troubleshooting.
• Offers pulsed and normally open outputs.
• Ideal for commercial door operators manufactured after 2010.
• Bi-directional link improves immunity to RF interference.
• Nema 4
• 2 year warranty
• Operating temperature: -40C to 60C
• 916Mhz
• Input: 10K monitored sensing edge
• See also RB-P-K10C

Miller Edge RBand Wireless Edge Transmitter

Miller Edge Reflecti-Guard Pulsed Photo Eye Monitored 30ft Range

• Monitored retro-reflective technology
• Includes: (1) wired emitter/receiver with integrated mounting bracket (1) reflector (1) reflector bracket
• 30 ft. range
• Pulsed and relay models
• Enhanced sunlight immunity
• Impact resistant for rugged environments
• Easy installation and minimal maintenance with reflector
• Time-saving installation with alignment LED
• Universal adjustable mounting brackets
• Vertical or horizontal mounting surface
• UL 325 Recognized Component

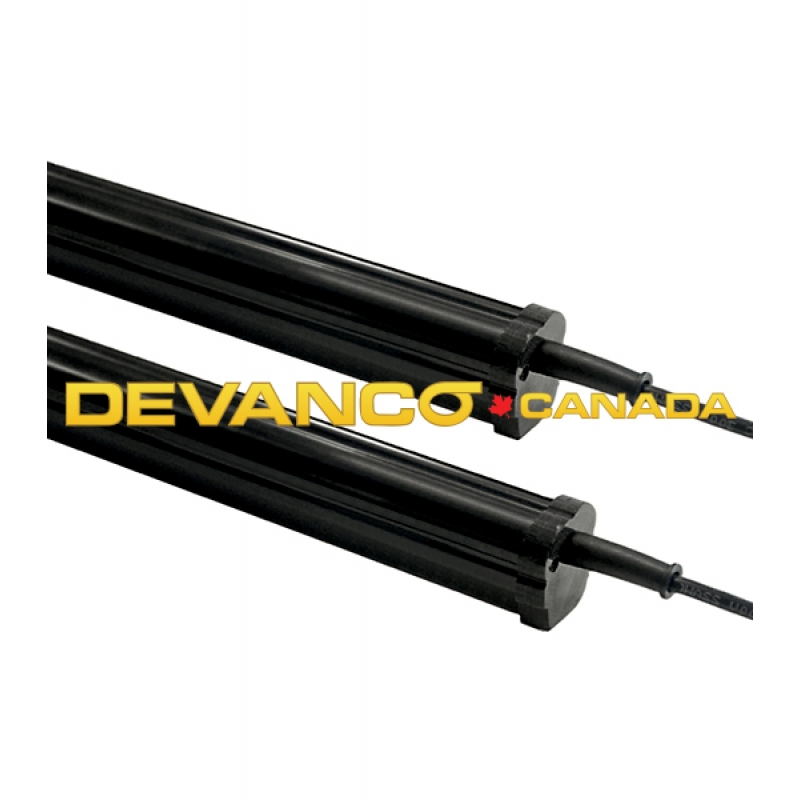

Miller Edge Light Curtain Non- Monitored 3ft NO/NC

• Light curtain made up of a series of thru-beam photo eyes designed to provide a dense barrier of protection for motorized or high speed doors.
• Ideal for environments that require expanded protection for protruding parts that may not be detected by standard single-beam photo eyes mounted 6" above the floor.
• Ideal for pre-2010 installations not requiring a monitored solution.
• Ability to span up to 32' wide
• Universal mounting brackets included
• IP67 waterproof housing
• Operating temperature: -40F to 140F
• UL325 recognized component
• 2 year warranty

Miller Edge Light Curtain Non- Monitored 6ft

• Light curtain made up of a series of thru-beam photo eyes designed to provide a dense barrier of protection for motorized or high speed doors.
• Ideal for environments that require expanded protection for protruding parts that may not be detected by standard single-beam photo eyes mounted 6" above the floor.
• Ideal for pre-2010 installations not requiring a monitored solution.
• Ability to span up to 32' wide
• Universal mounting brackets included
• IP67 waterproof housing
• Operating temperature: -40F to 140F
• UL325 recognized component
• 2 year warranty
