Miller Edge Air-Wave Edge Black Sold per Foot

• This pressure sensitive air-wave edge can be adapted to suit a wide variety of applications.
• When touch activated the MAW123 sends an immediate pulse of air through the extrusion to an air-wave switch which sends a signal to controls to stop and/or reverse operations.
• It has been designed to fit most doors with double track bottom retainers.
• With appropriate mounting channel this edge will fit nearly all doors from 11/2" to 2" thick.
• The MAW123 is resistant to flame water and most common greases and oils.

Miller Edge Air-Wave Edge Yellow Sold per Foot

• This pressure sensitive air-wave edge can be adapted to suit a wide variety of applications.
• When touch activated the MAW123 sends an immediate pulse of air through the extrusion to an air-wave switch which sends a signal to controls to stop and/or reverse operations.
• It has been designed to fit most doors with double track bottom retainers.
• With appropriate mounting channel this edge will fit nearly all doors from 11/2" to 2" thick.
• The MAW123 is resistant to flame water and most common greases and oils.

Miller Edge MC22 2-Wire Non-Monitored Left Hand Gray Includes Funny Flaps - Sold per Foot

• €¢Electromechanical sensing edge for use on Cornell doors. •The MC22 is manufactured to exact specifications. •The MC22 is completely flexible and will contour to curved surfaces. •Touch sensitive signaling allows immediate reversing or stopping of motion. •Temperature range: -30F to 155F •Lead wire: 22 gauge universal •Sensitivity: nominal 6-8 PSI •2 wire NO configuration •Vertical or horizontal mount •One year warranty

Miller Edge MC22 2-Wire Non-Monitored Right Hand Black Includes Funny Flaps - Sold per Foot

• €¢Electromechanical sensing edge for use on Cornell doors. •The MC22 is manufactured to exact specifications. •The MC22 is completely flexible and will contour to curved surfaces. •Touch sensitive signaling allows immediate reversing or stopping of motion. •Temperature range: -30F to 155F •Lead wire: 22 gauge universal •Sensitivity: nominal 6-8 PSI •2 wire NO configuration •Vertical or horizontal mount •One year warranty

Miller Edge MC271 2-Wire Monitored Right Hand Gray Includes End Flaps - Sold per Foot

• Ideal for Cornell double angle bottom bar
• Flexible and will conform to floor irregularities
• Optimum size for 2+ inch thick surfaces
• Custom manufactured to user specifications for color length and outlet location
• 5-inch end flaps create a complete seal and can be trimmed for custom fit
• Sealed assembly impervious to dust and debris
• UL 325 Recognized Component
• Made in USA

Miller Edge MC271 2-Wire Non-Monitored Right Hand Black Includes End Flaps - Sold per Foot

• Ideal for Cornell double angle bottom bar
• Flexible and will conform to floor irregularities
• Optimum size for 2+ inch thick surfaces
• Custom manufactured to user specifications for color length and outlet location
• 5-inch end flaps create a complete seal and can be trimmed for custom fit
• Sealed assembly impervious to dust and debris
• UL 325 Recognized Component
• Made in USA

Miller Edge MC271 2-Wire Non-Monitored Right Hand Gray Includes End Flaps - Sold per Foot

• Ideal for Cornell double angle bottom bar
• Flexible and will conform to floor irregularities
• Optimum size for 2+ inch thick surfaces
• Custom manufactured to user specifications for color length and outlet location
• 5-inch end flaps create a complete seal and can be trimmed for custom fit
• Sealed assembly impervious to dust and debris
• UL 325 Recognized Component
• Made in USA

Miller Edge 2-Wire Black End Outlet 7/8" wide x 3/4" high Sold by the Foot

• Electromechanical slide in edge for counter shutters rolling doors and barrier arm applications.
• Touch sensitive signaling allows for immediate stopping and reversing of motion.
• Temperature range -30F to 155F
• Lead wire: 22 gauge universal
• Sensitivity: nominal 6-8 PSI
• 2 wire NO configuration
• Vertical or horizontal mount
• ANSI/UL325 recognized component
• Mounting channel sold seperately
• One year warranty

Miller Edge 2-Wire Black Left Hand Outlet 7/8" wide x 3/4" high Sold by the Foot

• Electromechanical pressure sensitive edge for counter shutters rolling doors and barrier arm applications.
• Touch sensitive signaling that allows for immediate stopping and reversing of motion.
• Temperature range -30F to 155F
• Lead wire: 22 gauge universal
• Sensitivity: nominal 6-8 PSI
• 2 wire NO configuration.
• Vertical or horizontal mount
• ANSI/UL325 recognized component
• Mounting channel sold seperately
• One year warranty

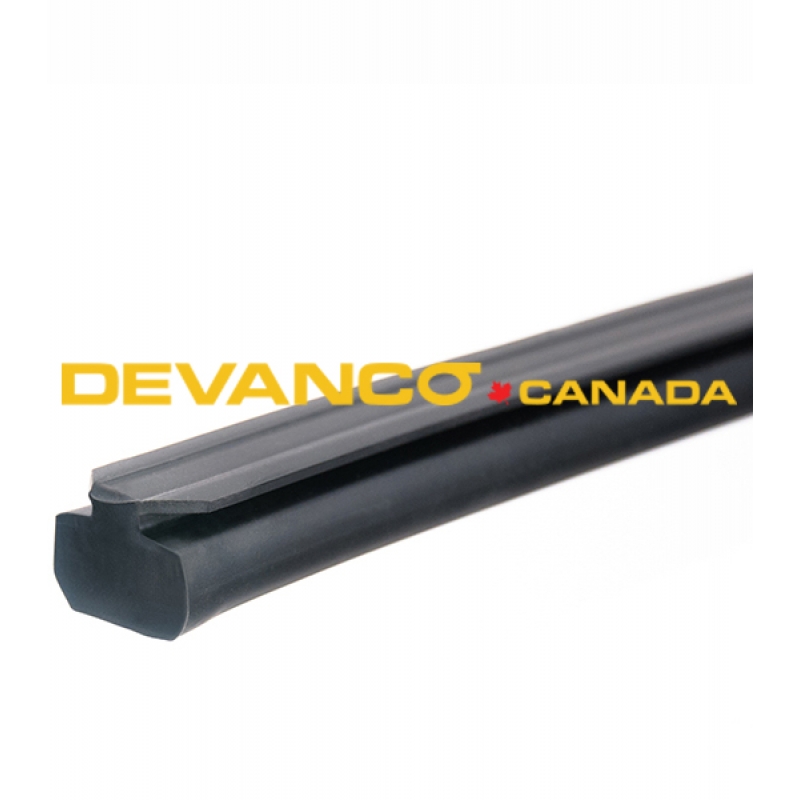

Miller Edge 2-Wire Black Right Hand Outlet 7/8" wide x 3/4" high Sold by the Foot

• Electromechanical slide in edge for counter shutters rolling doors and barrier arm applications.
• Touch sensitive signaling that allows for immediate stopping and reversing of motion.
• Temperature range -30F to 155F
• Lead wire: 22 gauge universal
• Sensitivity: nominal 6-8 PSI
• 2 wire NO configuration
• Vertical or horizontal mount
• ANSI/UL325 recognized component
• Mounting channel sold seperately
• One year warranty

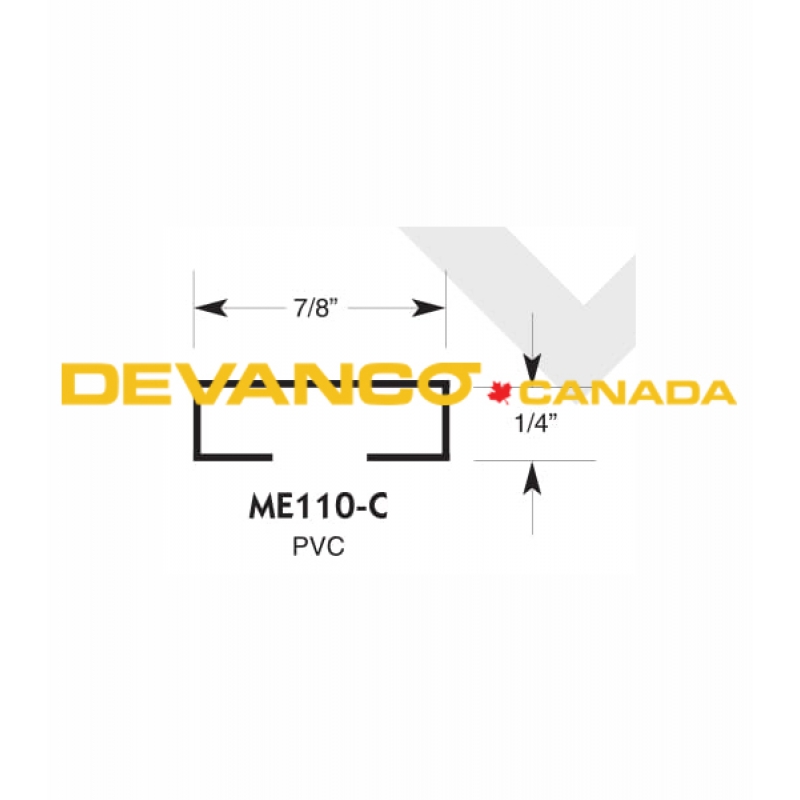

Miller Edge PVC Mounting Channel Sold by the Foot

• 7/8" length

Miller Edge Black Rigid PVC Mounting Channel Double-Sided Tape Sold by the Foot

• 7/8" length

Miller Edge Monitored 2-Wire Black End Outlet 7/8" wide x 3/4" high Sold by the Foot

• Electromechanical slide in edge for counter shutters rolling doors and barrier arm applications.
• Touch sensitive signaling that allows for immediate stopping and reversing of motion.
• Temperature range -30F to 155F
• Lead wire: 22 gauge universal
• Sensitivity: nominal 6-8 PSI
• 2 wire NO configuration
• Vertical or horizontal mount
• ANSI/UL325 recognized component
• Mounting channel sold seperately
• One year warranty

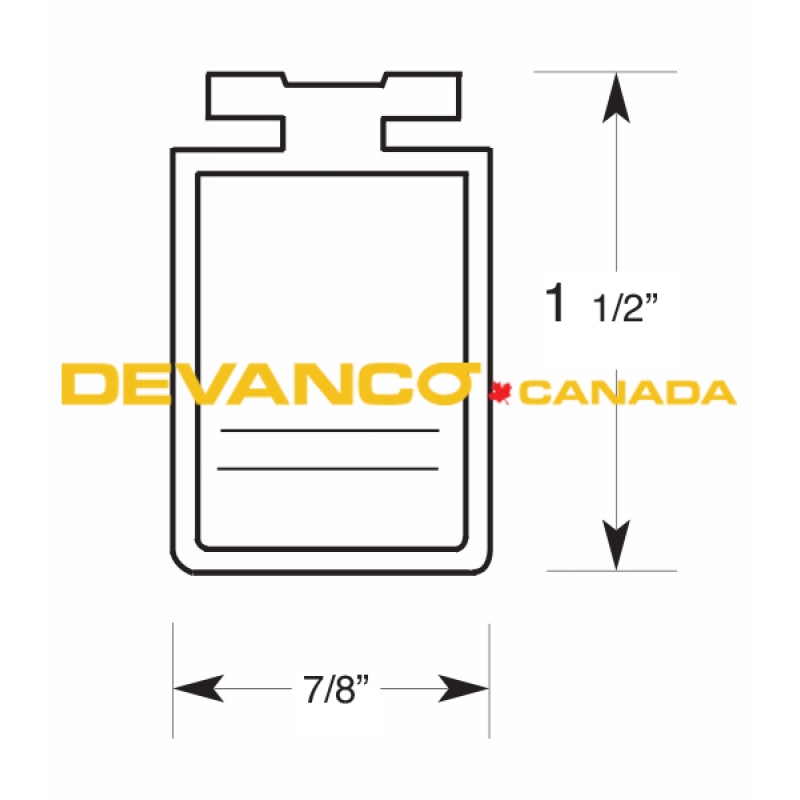

Miller Edge Black Left Hand Outlet Monitored 7/8" wide x 1-1/2" high Sold by the Foot

• Slide in style edge for barrier gate and counter shutter application.
• Touch sensitive signaling allows for immediate stopping/reversing of motion depending on application. •10K ohm resistor •Temperature Range: -30F to 155F
• Lead wire: AWM 22 gauge 2ft length
• Sensitivity: nominal 6-8 PSI
• Vertical or horizontal mount
• ANSI/UL325 recognized component
• Mounting channel sold seperately
• One year warranty

Miller Edge 4-Wire Monitored Black Right Hand Outlet 7/8" wide x 1-1/2" high Sold by the Foot

• Slide in style edge for barrier gate and counter shutter application.
• Touch sensitive signaling allows for immediate stopping/reversing of motion depending on application. •Temperature Range: -30F to 155F
• Lead wire: AWM 22 gauge 2ft length
• Sensitivity: nominal 6-8 PSI
• Vertical or horizontal mount
• ANSI/UL325 recognized component
• Mounting channel sold seperately
• One year warranty

Miller Edge Black End Outlet 7/8" wide x 1-1/2" high Sold by the Foot

• Slide in style edge for barrier gate and counter shutter application.
• Touch sensitive signaling allows for immediate stopping/reversing of motion depending on application. •Temperature Range: -30F to 155F
• Lead wire: AWM 22 gauge 2ft length
• Sensitivity: nominal 6-8 PSI
• Vertical or horizontal mount
• ANSI/UL325 recognized component
• Mounting channel sold seperately
• One year warranty

Miller Edge Black Left Hand Outlet 7/8" wide x 1-1/2" high Sold by the Foot

• Slide in style edge for barrier gate and counter shutter application.
• Touch sensitive signaling allows for immediate stopping/reversing of motion depending on application. •Temperature Range: -30F to 155F
• Lead wire: AWM 22 gauge 2ft length
• Sensitivity: nominal 6-8 PSI
• Vertical or horizontal mount
• ANSI/UL325 recognized component
• Mounting channel sold seperately
• One year warranty

Miller Edge Black Right Hand Outlet 7/8" wide x 1-1/2" high Sold by the Foot

• Slide in style edge for barrier gate and counter shutter application.
• Touch sensitive signaling allows for immediate stopping/reversing of motion depending on application. •Temperature Range: -30F to 155F
• Lead wire: AWM 22 gauge 2ft length
• Sensitivity: nominal 6-8 PSI
• Vertical or horizontal mount
• ANSI/UL325 recognized component
• Mounting channel sold seperately
• One year warranty

Miller Edge L-Shaped PVC Mounting Channel Sold by the Foot

Miller Edge Clima-Guard U-Shaped PVC Mounting Channel Sold by the Foot
