EMX Car Sense Vehicle Detector Control Unit *** Replaced by LRS-C1

• The CarSenseâ„¢ 303 features advanced 3-axis magnetoresistive sensing technology.
• The sensor measures Earth’s magnetic field and responds to disturbances caused by ferrous objects.
• The CS303 combines this exciting new technology with a fieldproven hardware platform to produce a high-sensitivity compact and cost-effective solution for reliable vehicle detection.
• Three sensing elements provide magnetic field measurement in the X Y and Z axes improving detection sensitivity.

EMX Car Sense Direct Burial Sensor Flat Pack 100ft *** Replaced by LRS-FP-100

• Lead probe ONLY. Requires the CS303-C-1 detector.
• Easy installation above or below ground
• Ignores cross traffic in tight spaces with DETECT-ON-STOPâ„¢ feature
• Sensitivity display
• Single cut installation with flat pack model

EMX Car Sense Direct Burial Sensor Flat Pack 50ft ** Replaced by LRS-FP-50

• Lead probe ONLY. Requires the CS303-C-1 detector.
• Easy installation above or below ground
• Ignores cross traffic in tight spaces with DETECT-ON-STOPâ„¢ feature
• Sensitivity display
• Single cut installation with flat pack model

EMX Vehicle Detector Control Unit for Single Sensor 2303-2

• The Loop Replacement System (LRS) features advanced 3-axis magnetoresistive sensing technology that responds to changes in the Earth’s magnetic field caused by ferrous objects.
• Three sensing elements provide measurements in the X Y and Z axes to improve detection sensitivity when used in either above or below ground installations.
• The LRS is equipped with our new DETECT-ON-STOPâ„¢ or (DOS®) feature which allows detection only when a vehicle has come to a complete stop.
• Backwards compatible with CS303 sensors

EMX Sensor Flat Pack 100ft Wire

• Lead probe ONLY. Requires the LRS-C1 detector
• Three-dimensional presence detection of vehicles
• Select X Y Z axis independently
• Stand-alone sensor
• Sensor stores ambient background and settings in non-volatile memory
• Includes sensor and 100 ft of lead wire
• Polyamide housing 5 conductor direct burial connection
• Power supply: 12-30 VDC
• Dimensions: 86mm (3.4”) x 21mm (0.9”) x 8mm (0.3”)
• Use with Vehicle Detector Control Unit LRS-C1
• Backwards compatible with CS303-C-1 controller

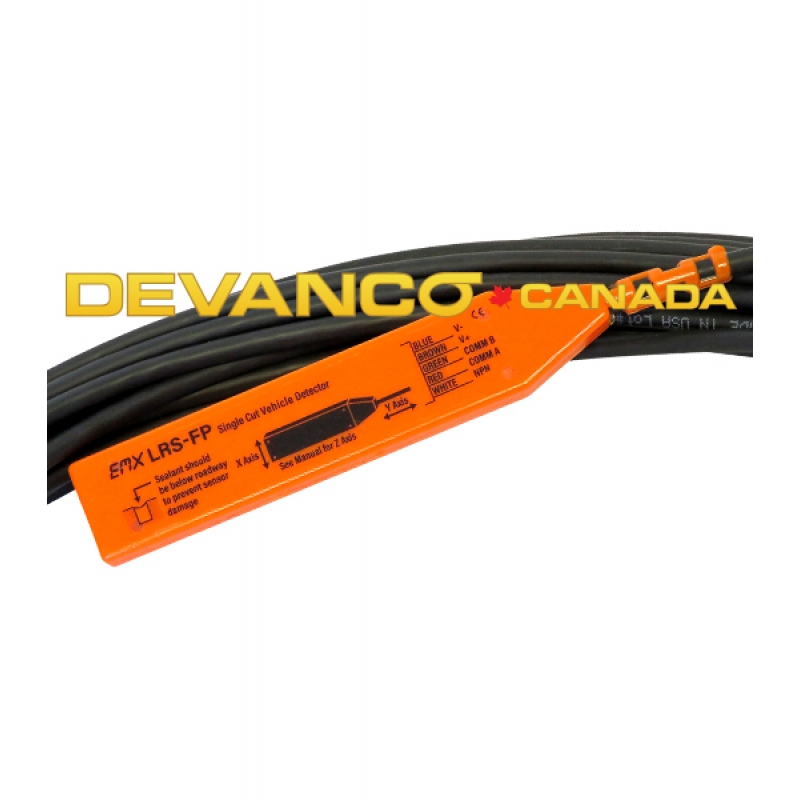

EMX Sensor Flat Pack 50ft Wire

• Lead probe ONLY. Requires the LRS-C1 detector
• Three-dimensional presence detection of vehicles
• Select X Y Z axis independently
• Stand-alone sensor
• Sensor stores ambient background and settings in non-volatile memory
• Includes sensor and 50 ft of lead wire
• Polyamide housing 5 conductor direct burial connection
• Power supply: 12-30 VDC
• Dimensions: 86mm (3.4”) x 21mm (0.9”) x 8mm (0.3”)
• Use with Vehicle Detector Control Unit LRS-C1
• Backwards compatible with CS303-C-1 controller

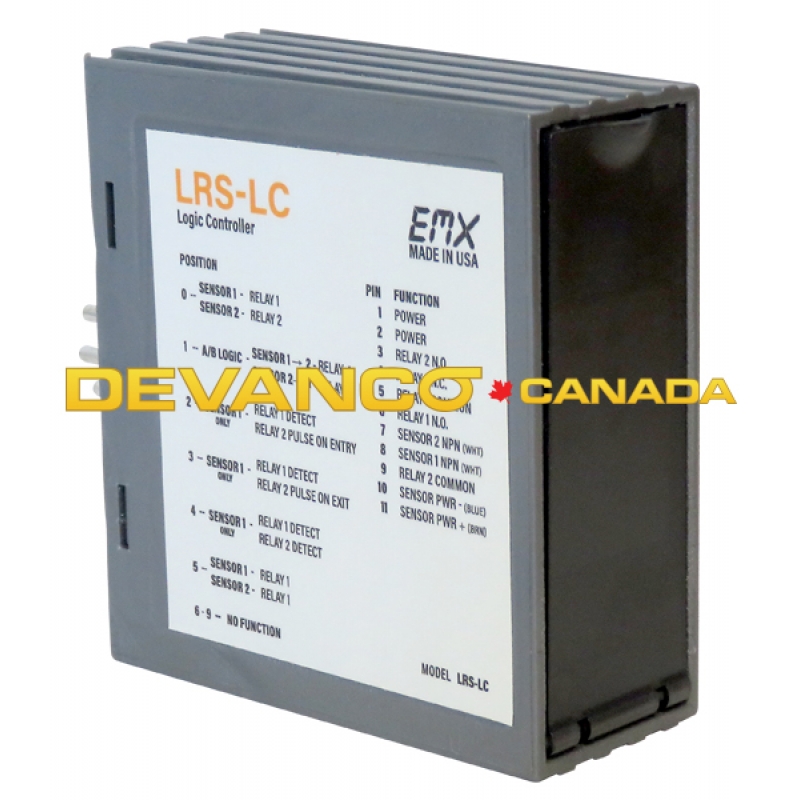

EMX Logic Controller

• For use with the Loop Replacement System (LRS-C1) Magnetoresistive Vehicle Detector Control Unit
• Connects two stand-alone sensors to expand the detection area
• Works with LRS-DB (LRS-DB-50 or LRS-DB-100) Direct Burial or LRS-FP Flat Pack (LRS-FP-50 or LRS-FP-100)
• Logic Interface allows one (1) or two (2) sensors to be connected to one (1) output
• Provides six (6) selectable logic functions and two (2) separate relay outputs
• A/B directional logic can be selected with an output for each direction of travel as a vehicle passes over two sensors
• Status LEDs and durable housing with a standard 11-pin plug-in socket make installation quick and easy
• Dimensions: 2.9" (73mm) x 1.2" (38mm) x 3.1" (78mm)
