Insert Bearing 1-1/4" Bore SB206-20

Flange Plate PFL6Z PFL206

• 2 required per bearing # 101475

Roller 3" UHMW Plastic 7-1/4" Stem Sealed Bearing

Roller 3" UHMW 7-1/4" Stem Rubber

• 3" UHMW tire covered with rubber
• 6202 sealed precision bearing
• 7-1/4" zinc plated stem
• Rating: 200lb load; 10000 cycles of a 12' door
• Helps quiet the operation of jackshaft operators

Spring Failure Device For 1" Shaft RH & LH Assembly

• Designed to reduce the risk of the door falling in the event of spring breakage
• 3-3/8" offset between wall and shaft (separate extension bracket available for offset of 4-3/8" up to 6")
• For 1" shaft (1-1/4" shaft available for special order)
• Fits 1-3/4"-6" Torsion Springs
• One device per spring is required
• Not for use with duplex springs

Decorative Dummy Solid L-Handle Black Sold per piece

• Zinc painted black powder coated with crinkle finish
• No rotation
• Blind mount

Wayne Dalton Strut Clip

Euro Center Hinge (25233) Zinc Plated

• Steel Zinc plated
• Thickness: 0.098"
• Pin: 0.276"
• Mounting holes 0.275"
• Use with Euro side hinge #169027

Euro Side Hinge (25234) Zinc Plated

• Steel Zinc plated
• Thickness: 0.098"
• Pin: 0.275"
• Mounting holes 0.275"
• Use with Euro center hinge #169026

Disconnect Chain Hoist Wall Mount 4:1 Torque Force

• Wall mounting
• 4:1 reduction
• Maximum pull allowed on hand chain is 35lb
• Includes (1) 41B36 sprocket with 1” bore 4’ of #41 roller chain 26’ of hand chain (1) chain keeper (2) set screws 5/16"-18 and limit switch

Replacement Blade only for 3" Safety Bottom Bracket Sold per Blade

• Replacement Blade only fits models SBB-3 and BK021
• Sold individually
• 2 blades are required per pair

Hand Chain Tensioner Universal Bracket Torque Force

• Floor mount
• Includes chain keeper with clip #181745
• For use with all Torque Force chain hoists

Decorative Pull Handle Aspen-V3 Style 10-1/4" Stamped Steel Sold per piece

• As seem on carriage house doors

Decorative Hinge Apen-V3 Style 16" Stamped Steel Sold per piece

• As seen on carriage house doors

Chain Hoist Direct Drive Assembly 2000 D

• Sectional door Direct drive - 1" shaft
• Requires keyed shaft
• Includes: 2 shaft collars Chain Keeper 1/4" Square Key 2x set screws 5/16-18
• Fits 5-1/4" min. offset
• Includes 26' of chain
• Ratio: 1:1
• ID 1" 9.1" Wheel

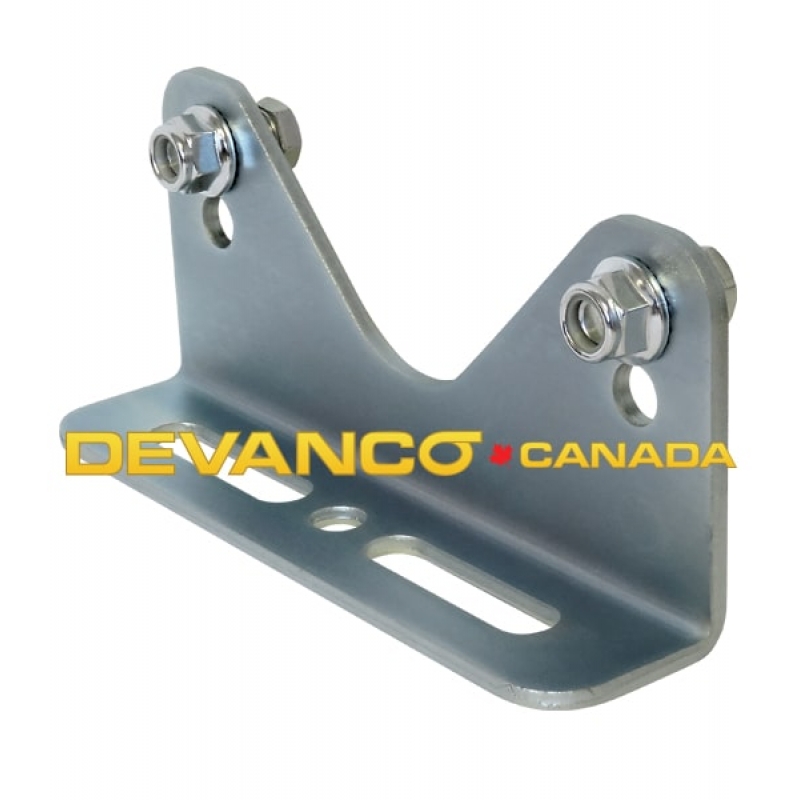

Torque Force Extension Bracket for Spring Failure Device Short

• Zinc Plated Steel bracket
• Use with 1" or 1-1/4" SFSD device
• Includes M10 nuts and bolts
• Dimensions: L=2.9" OFFSET = 4:3/8" and 5"

Chain Hoist Wall Mount 3:1 200R-41B36-1" Torque Force (244687)

• Ratio 3:1
• Sprocket: 41B36 Bore: 1"
• Includes: 26ft of hand chain 1/4" square key chain keeper and 3.6ft of #41 roller chain included with sprocket wheels.
• Pull load hand chain: 35 lb max

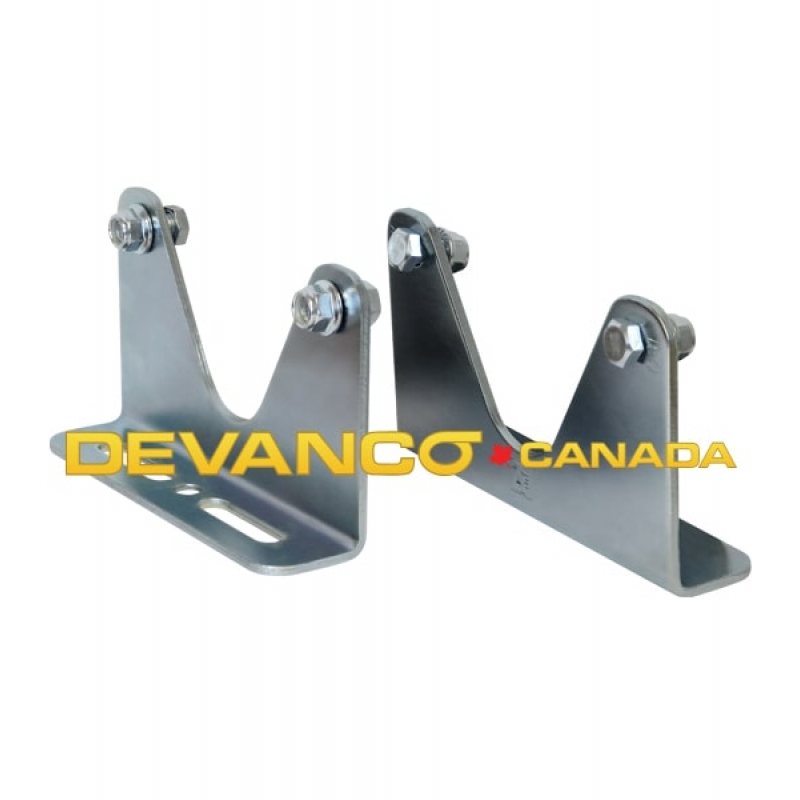

Torque Force Extension Bracket for Spring Failure Device Long 2/pc Set

• Zinc Plated Steel bracket
• Use with 1" or 1-1/4" SFSD device
• Includes M10 nuts and bolts
• Dimensions: L=3.88" OFFSET = 6"

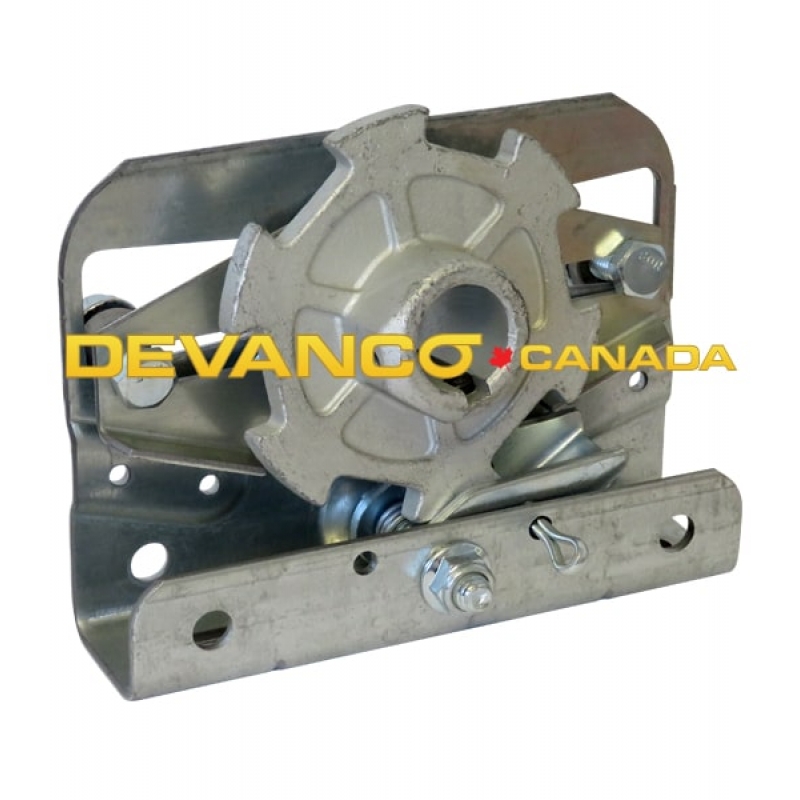

Torque Force Spring Failure Device 1" Shaft Right Hand Side DT0054

• For springs 2" up to 6"
• This device can be applied on Industrial OH doors that are manual or motor operated
• Must be installed on a keyed shaft

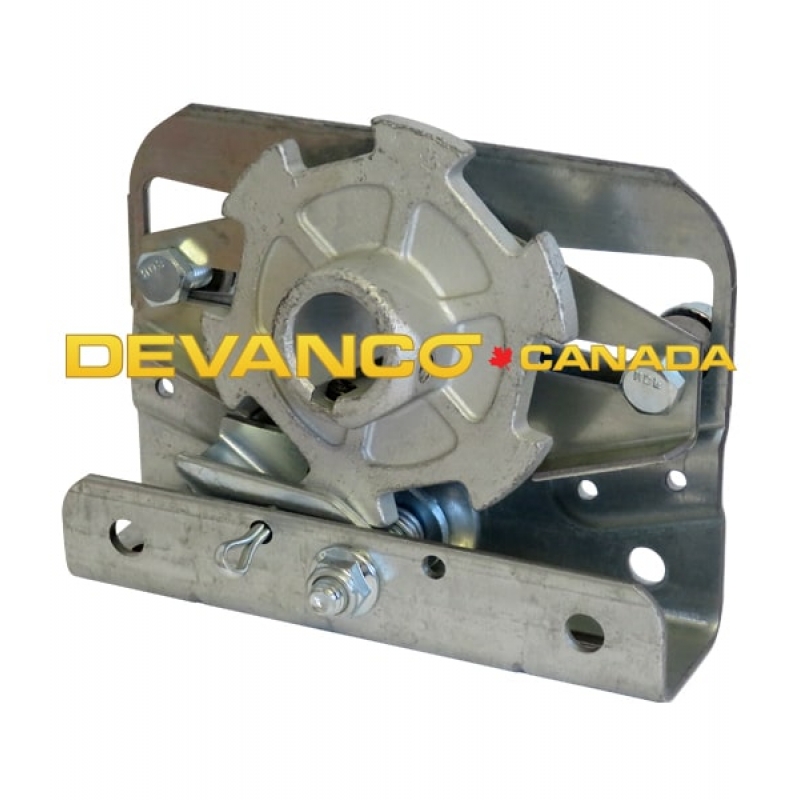

Torque Force Spring Failure Device 1" Shaft Left Hand Side DT0054

• For springs 2" up to 6"
• This device can be applied on Industrial OH doors that are manual or motor operated
• Must be installed on a keyed shaft
