BEA 2 Relay Logic Module + 900MHZ Wireless Technology

• 2 relay logic module ideal for applications requiring sequencing of electric locking devices and automatic door activation.
• Day/Night mode allows users to designate "secure" or "unsecure" access for controlled entry points.
• Push plates with wireless transmitters can be programmed to operate during specific time periods.
• Programmable transmitters per receiver: 75 (unlimited for universal timer)
• Input: DRY contact
• Temperature rating: -22 to 158F
• Extended hold mode allows wireless push plates to function like hardwired oush plates.
• Sequenced or simultaneous relay activation
• Universal mode allows prelearned 900MHZ universal transmitter to function directly out of the box.

BEA LZR Housing Bracket

• €¢Housing bracket for the LZR-H100 sensor

4.5" Round Surface Mount Box

• 4.5 inch round surface-mount box for 4.5 inch round push plates.

BEA Induction Loop Replacement for Automatic Barrier Gates

• Evoloop is the alternative to traditional in-ground induction loops used for vehicle detection in parking access and security applications
• Ideal for Automatic Barrier Gate Operators when installing a tradition in-ground loop is not practical (winter weather or the customer doesn't want to cut new ashalt etc.)
• Designed with a 140 degree field of view Evoloop allows for up to 3 virtual loops that provide precise detection for control of the barrier.
• Dimensions: 2" x 6" x 2-5/8"
• Mounting height between 12" and 27" from the road surface
• Supply voltage: 12-30VDC +-10% / 12-24V AC +-10%
• Programming via the EvoLoop App
• Detection zone: 13'x16' @16'
• Temperature range: -25 to 55 celcius
• Nema 4 and IP65

BEA Falcon Wide Explosion Proof HSG 100ft Cable

• FALCON EX combines a microwave activation sensor with an explosion-proof / flame-proof housing
• Ideal for use in unique environments such as chemical manufacturing petroleum refining and agriculture.
• FALCON EX Wide can be mounted from 11 ½ – 21’ to fit any industrial application.
• Nema4/IP66
• Detection Zone: Falcon EX W: 30’ × 11’ @ 21’
• Operating termperature: -22-140F

BEA Falcon Motion Detector w/Exp Proof Housing 100ft Cable Mount 6.5' to 11.5'

• FALCON EX combines a microwave activation sensor with an explosion-proof / flame-proof housing
• Ideal for use in unique environments such as chemical manufacturing petroleum refining and agriculture.
• FALCON EX can be mounted from 6.5' to 11.5' to fit any industrial application.
• Nema4/IP66
• Detection Zone: Falcon EX XL: 13’ × 6 ½’ @ 8 1⁄5’
• Oerating termperature: -22-140F

BEA LZRFLATSCAN Kit Black 2 Sensors + Cables & Accessories

• Time-of-flight presence sensor for use as a stand alone safety sensor on automatic pedestrian swing doors.
• Can be used as a reactivation sensor on the approach side of low energy doors.
• Generates 170 detection points across a single curtain allowing for coverage over the entire face of a single door leaf including the hinge area.
• Finger Detection Technologyâ„¢ utilizes 100 detection points within the hinge area of the door protecting hands and fingers while the door is in motion.
• Max. detection range: 13' with a reflectivity of 2%
• IP54
• Operating temperature: -22 to 140F (powered)

Push Plate S/S 4.5" Round Large Logo

• Compatible with 900 433 and 300mhz.
• May be hardwired to the operator or connected to BEA transmitters.

Push Plate 6"" Square Text+Logo Stainless STL .093 Thru Holes

• 1/16" thick stainless steel for maximum durability
• Single- pole 1 A COM/NO/NC UL recognized
• Compatible frequencies: 900 433 or 300MHz
• Includes mounting hardwaare flag connectors and hex key

BEA Harness IXIO with Relay 30ft

BEA LZR-WIDESCAN Replacement Cover Only Black

• Replacement cover for the LZR-WIDESCAN sensor

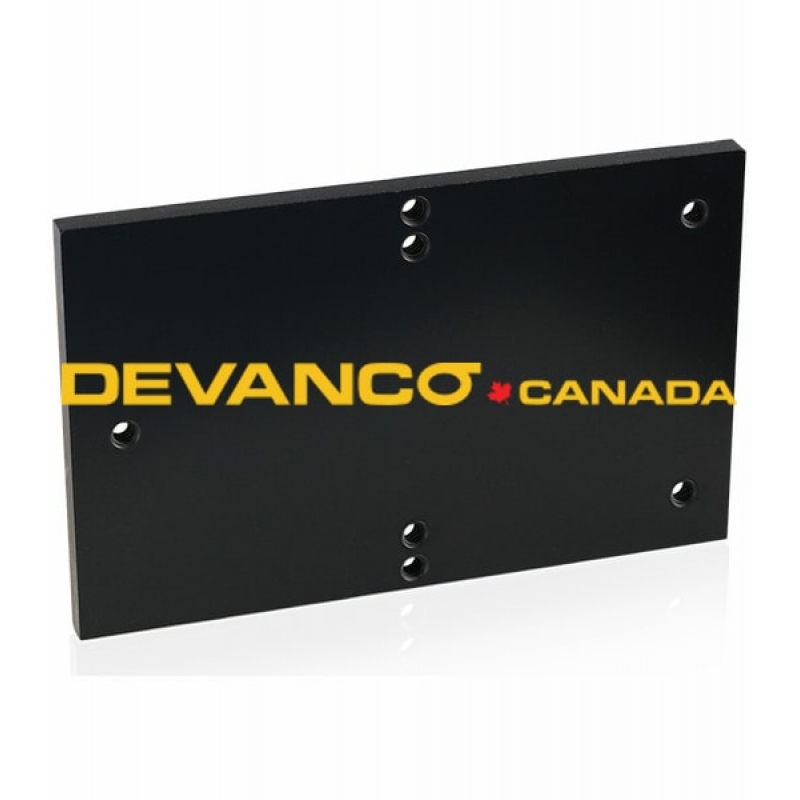

BEA Adaptor Plate Kit for Widescan

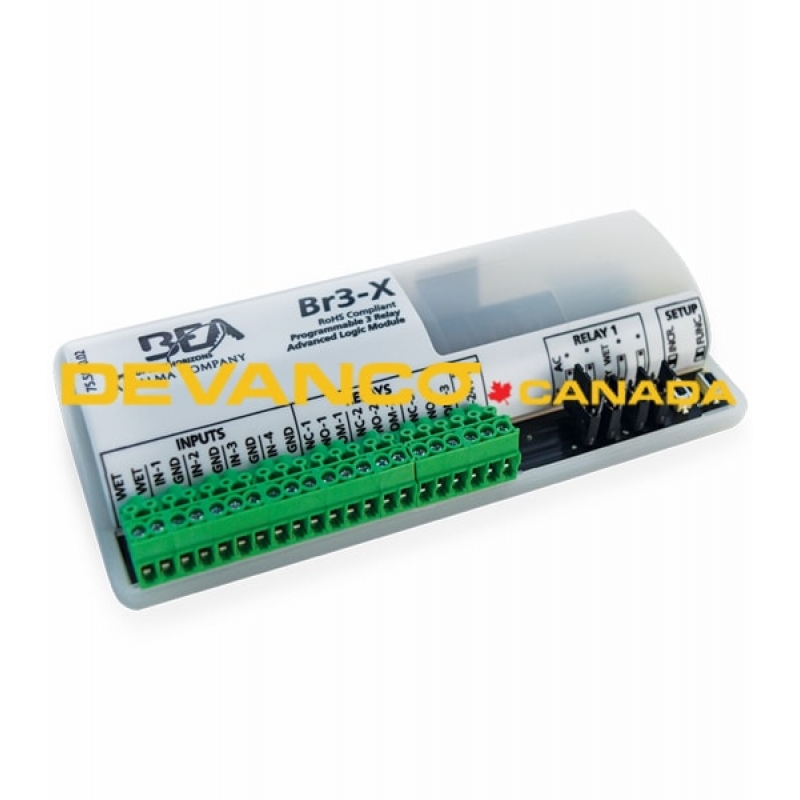

BEA Programmable 3 Relay Logic Module w/13 Functions

• For use on automatic pedestrian doors access controls industrial automation and single-occupancy restrooms. •13 Functions Include:
• Timer
• Ratchet/Latching
• 2 Relay Sequence + Inhibitor
• 2 Relay Sequence + Door Position
• Deactivation Timer
• 3-Relay Sequencer + '1-shot'
• 3-Relay Sequence with 'Independent Relay'
• Interlock Timer
• Interlock Ratchet/Latching
• 2-Way 2 Relay Sequence
• Normally Locked Restroom
• Normally Unlocked Restroom
• 3-Relay Sequencer + 'Day / Night (24 hr) Mode'
• Disable
• Simple setup with two-button programming combined with dual seven-segment display
• The need for external components when installing some electric locking devices is eliminated with two 3-AMP relays and one 1-Amp relay with built-in surge suppression
• Power an electric locking device directly from the module using WET output with AC / DC voltage
• Operating temperature: -15 to 150F

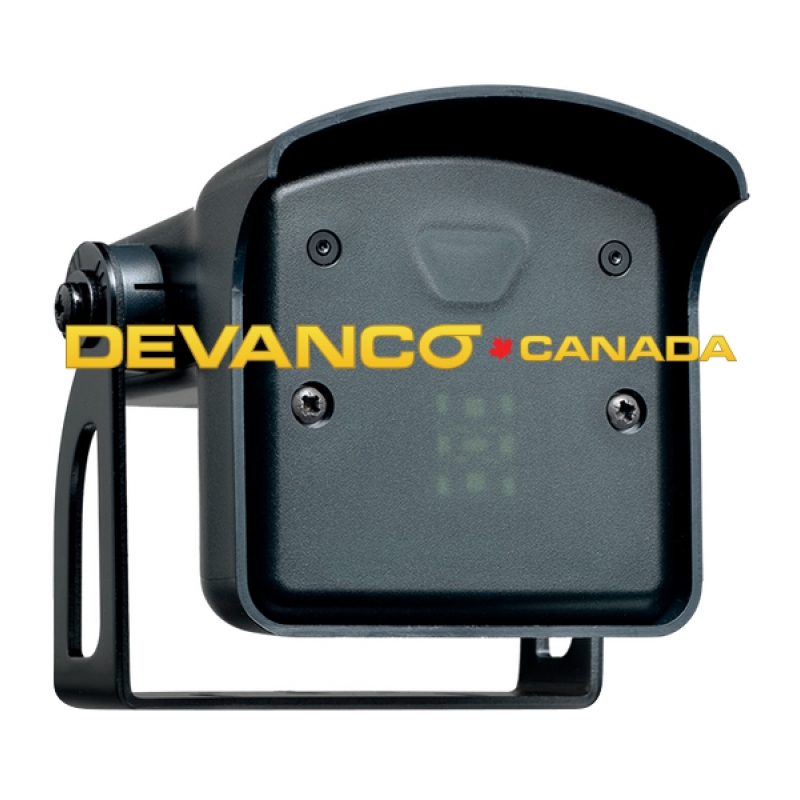

BEA Falcon-XL Motion Detector Mount under 11'5"

• Same features as the Falcon detector but made specifically for extra low mounting
• Mounting height between 6.5' and 11.5'
• Detection zone: 13'x6.5' at 8 1/5'
• Allows uni or bi-directional sensing and the unique ability to open a door when traffic is moving away from the sensor.
• Sensor also has the ability to differentiate between pedstrians and vehicles.
• Available remote makes it easy to make adjustments to all key parameters of the sensor while at ground level.
• Remote is sold separately.
• Operating temperature: -22 to 140F
• IP65

BEA Falcon Motion Detector Mount over 11'5"

• Motion sensor with microwave activationsolution for industrial indoor and outdoor use.
• Ideal for automatic industrial doors vehicle gates and detection and loading docks.
• Sensor also has the ability to differentiate between pedstrians and vehicles
• Can be set vertically from 0 to 180 degrees
• Mounting height between 11.5' and 23'
• 12/24V AC/DC
• All settings are available directly on the unit or via the remote control
• Remote is sold separately
• Detection zone: 13'x16' @16'
• Temperature range: -22 to 140F
• Nema 4 and IP65
• Also known as FALCON1

BEA Falcon Wide Motion Detector

• Allows uni or bi-directional sensing and the unique ability to open a door when traffic is moving away from the sensor.
• Sensor also has the ability to differentiate between pedstrians and vehicles.
• Mounting height between 11.5' and 21'
• All settings are available directly on the unit or via the remote control.
• Remote is sold separately
• Detection zone: 30' x 11' at 21'
• Operating temperature -22 to 140F
• IP65

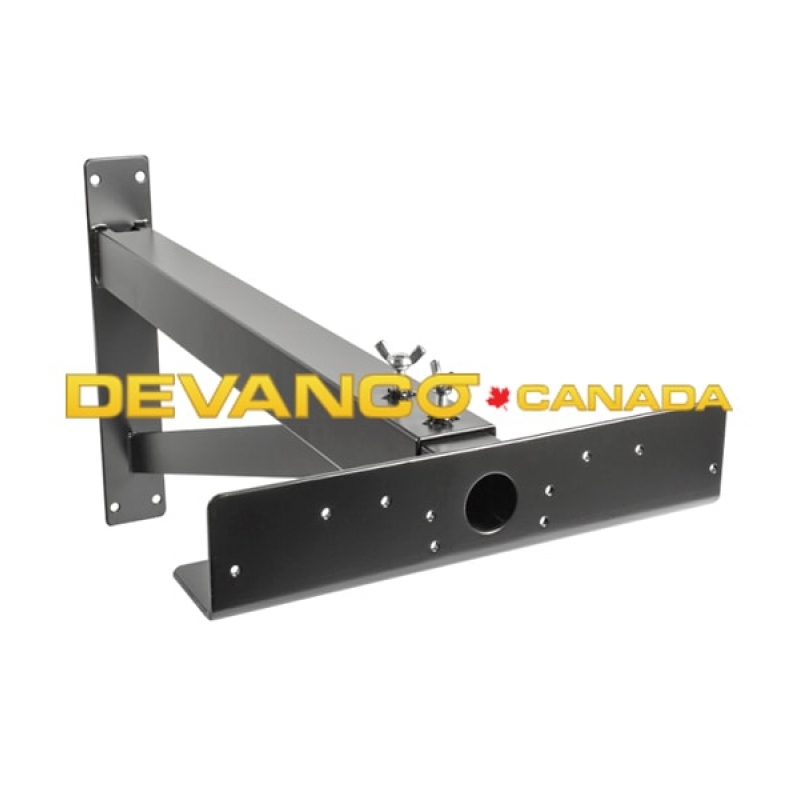

BEA Extension Bracket Heavy-Duty Powder Coated

• Heavy Duty Powder Coated Steel
• Adjustable from 20 to 36 inches
• 12" x 2.5" Mounting Face
• Fasteners NOT Included

BEA LZR Metal Bracket Accessory

• Mounting bracket only for the LZR industrial sensors including: LZR-I30 LZR-S600 LZR-H100 LZR-U920/U921

BEA Mini Industrial Bracket Adjustable 6-12 "

• Adjustable from 6 - 12 inches (up to 4" maybe cut off for shorter applications)
• 12" x 2.5" Mounting Face
• Fasteners NOT Included
• Carbon Steel Black Powder Coated

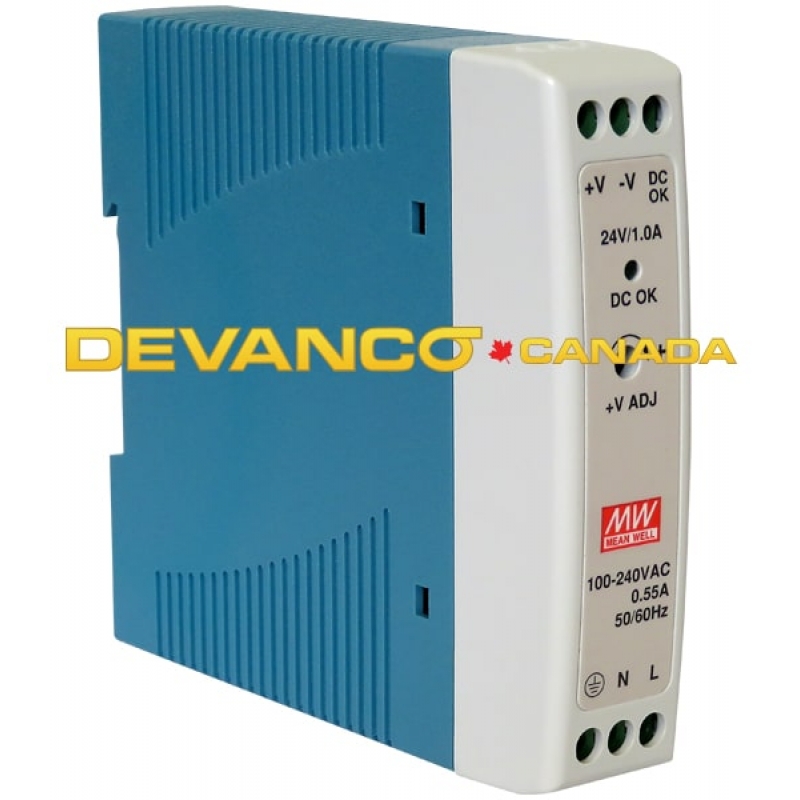

BEA Power Supply 100 - 240 VAC 24 VDC Output
