Doorlec Tubular heater 120V for Gate Operators

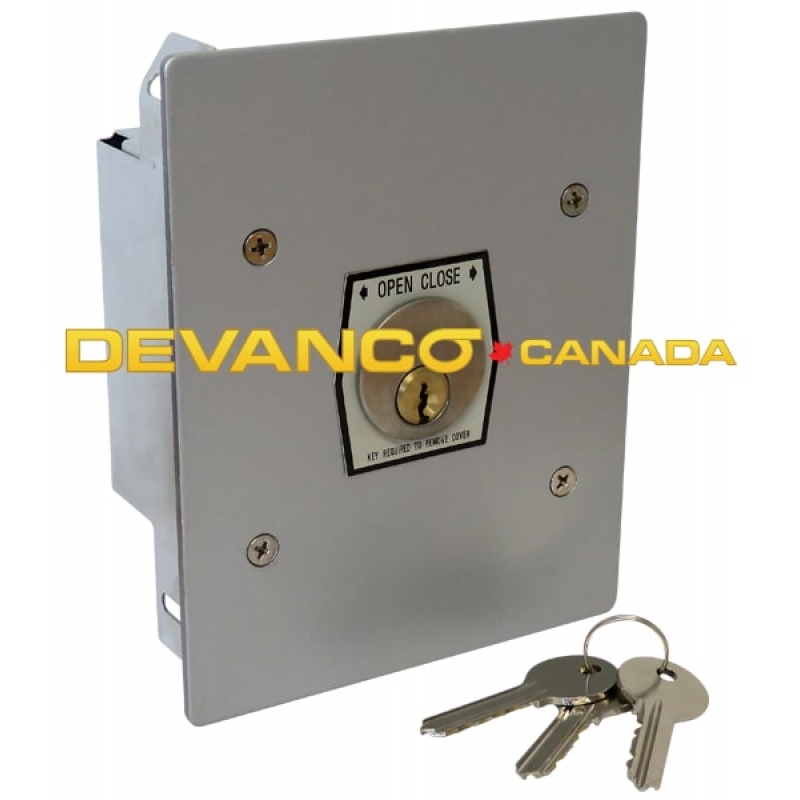

Doorlec Flush Mount Key Switch O/C Tamperproof

• Flush mount momentary-contact spring return key switch OPEN/CLOSE in TAMPER PROOF EEMAC 1 enclosure with gasketed aluminium cover.
• Key removable at centre only.
• Can open or close door.
• Recommended applications: laboratories schools hospitals food processing plants or any other area where sanitary and high security condition are important.

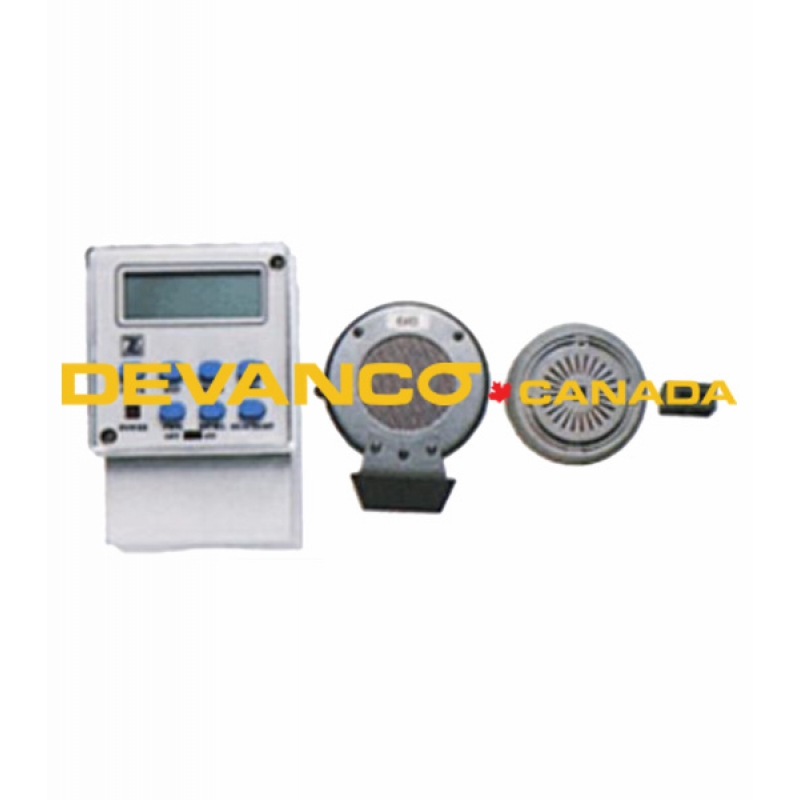

Programmable 7-Day / 24 Hr Timer

Doorlec Weatherproof Pushbutton O/C/S Key Lock with On/Off Switch

Doorlec U Bracket Control Cabinet Support - Rear

• Works with various models such as ETBHW ETHW

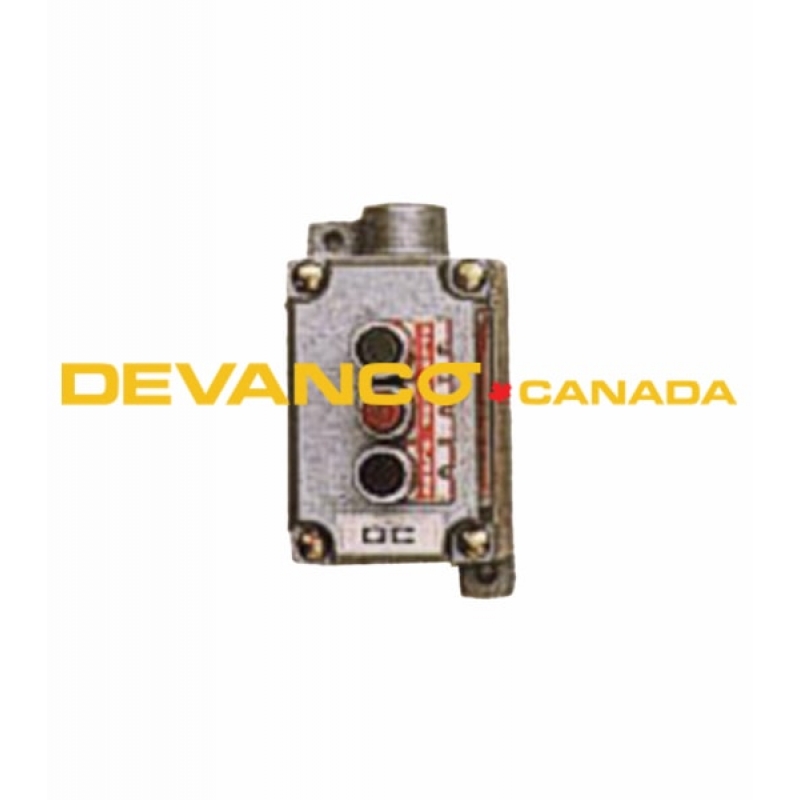

Doorlec Explosion Proof 3-Btn Pushbutton Control Station

• CSA and UL labeled station
• Three button O/C/S Nema-7/9
• Surface mount
• Rated: Class 1 Division 1 Groups C.D.E.F.G.

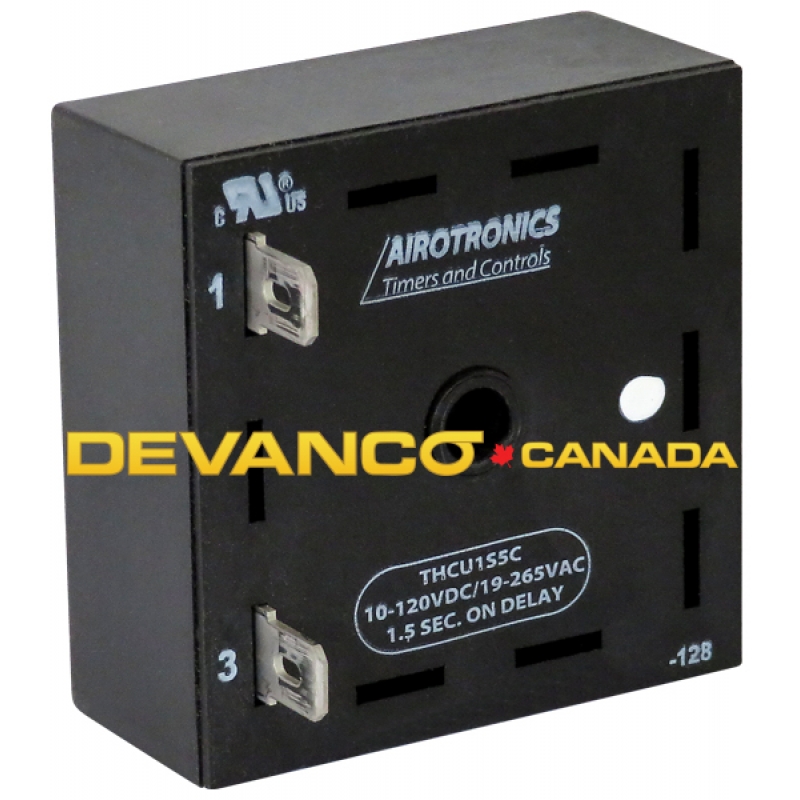

Doorlec Reversing Time Delay 1.5 sec. 24VAC

• In closing cycle door will stop for 1.5 seconds and reverse to fully open

Doorlec Z Bracket Control Cabinet Support - Front

• Works with various models such as ETBHW ETHW

Doorlec Maximum Run Timer with Base

Doorlec Key Switch with Spring Return in Waterproof Housing

• Weatherproof start key switch
• Nema 4 enclosure.
• Cast aluminum base with tamperproof aluminum cover
• Rating: 10 amps 124VAC
• Contacts: Single pole silver alloy momentary contact
• Two keys supplied with each switch
• Dimension: 5-1/4" L x 2-7/8" W x 2-3/8" D

Doorlec Explosion-Proof Pneumatic Edge Kit 12ft Standard. ** ADD ON for Larger Doors

• Kit includes explosion-proof air switch air hose plugs coil cord & fittings
• Door size needs to be specified when ordering

Doorlec Flashing Light Option for TCBOD 120 volts can be field installed

• Light package with flashing relay

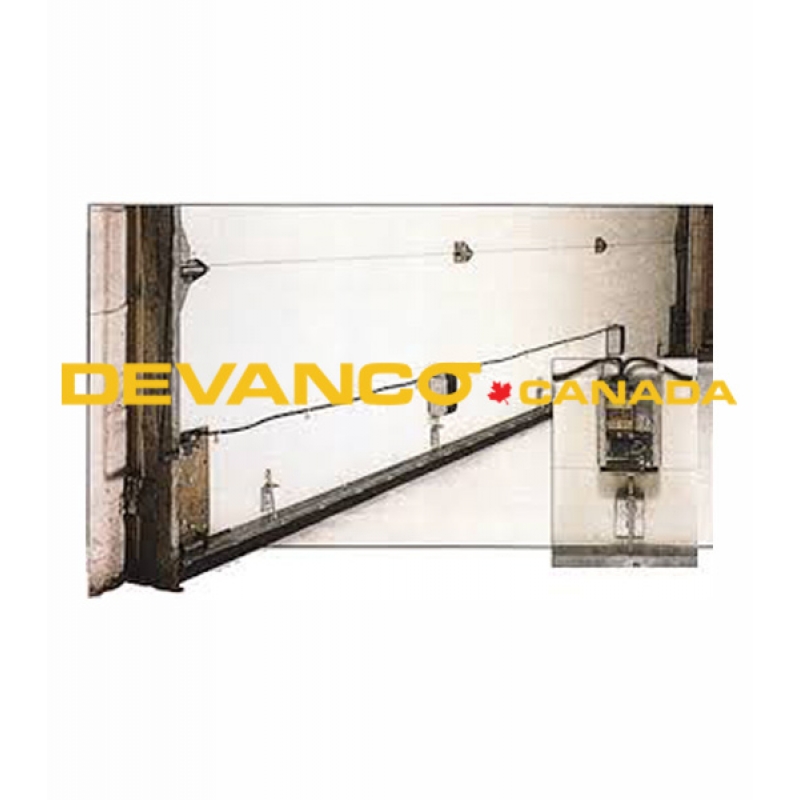

Doorlec Electro-Mechanical Safety Edge Sold per Foot *** Quote Required

• For the protection of vehicles doors and safety of people.
• Any upward-acting door may be fitted at the leading edge with an electro-mechanical safety weatherstrip.
• This mechanism consists of a formed galvanized steel section covered with vinyl impregnated rubber hinged along the full width of the leading door edge.
• Can be adjusted to approximately 2½" (63.5mm) to form a tight weather seal.
• The hinge linkage is arranged that minimum pressure is required to activate the electrical control switch causing door to reverse direction of travel to the fully open position.
• Reverse switch is enclosed in a galvanized housing with a sliding plunger to assure positive actuation every time.
• For doors up to 14 ft. wide one switch is required. Over 14 ft. two switches are required.
• Switch sold separately part # 50346
• Operating voltage: 24V or 120V A.C.

Doorlec Electric Switch and housing for Mechanical Edge

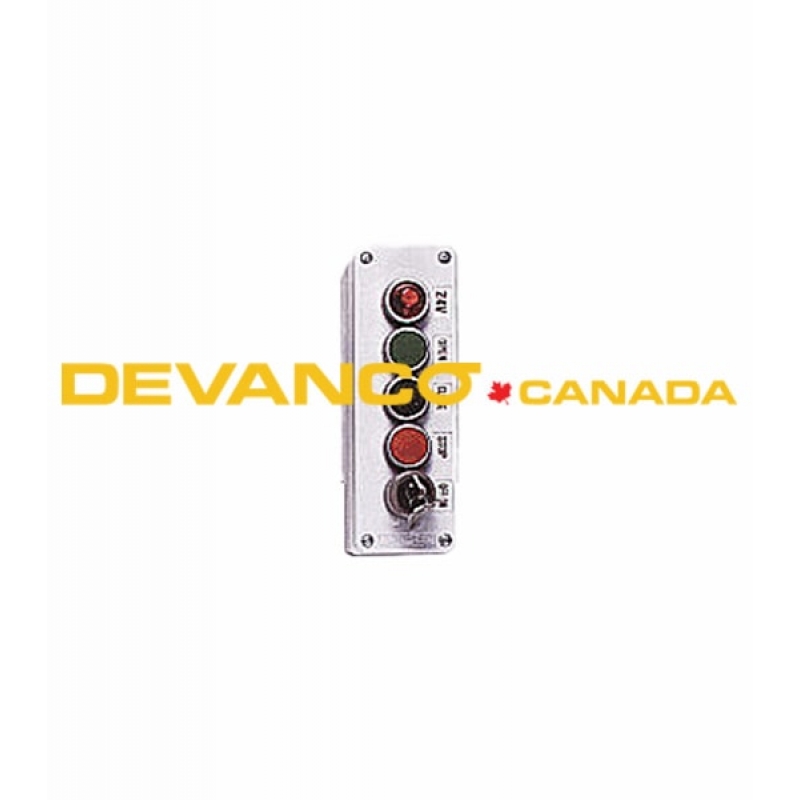

Push Button Station 3-Btn with Pilot Light and Key Switch Off/On Nema 1

• Surface Mount
• General purpose EEMAC 1

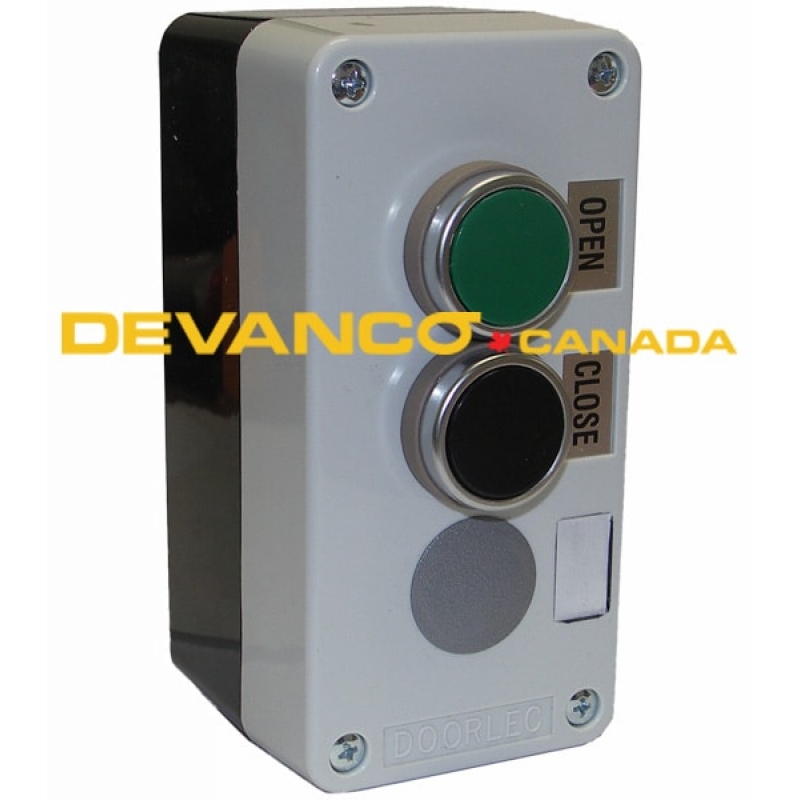

Doorlec Push-Button Station 2 Button Nema 4/12

• Open / Close Nema 4/12

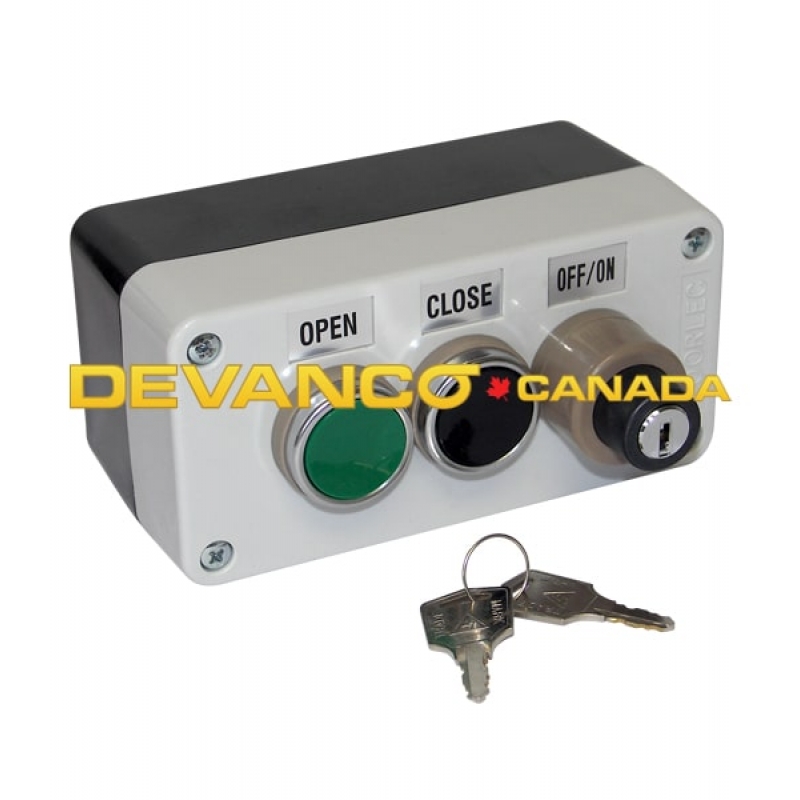

Doorlec PBS 2-Btn O/C and Key Switch On/Off Nema 4/12

• Open / Close with On / Off Key Switch Nema 4/12
• Green - Open Black - Close

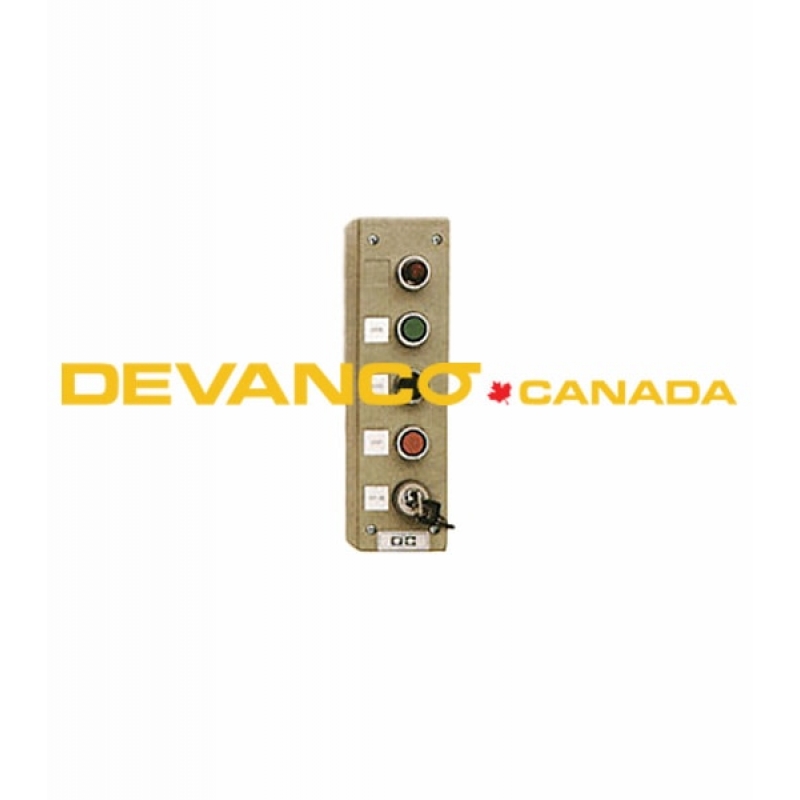

Push Button Station 3-Btn with Pilot Light and Key Switch Off/On Nema 4 / 12

• Surface Mount
• Dust-proof EEMAC 12 and 4

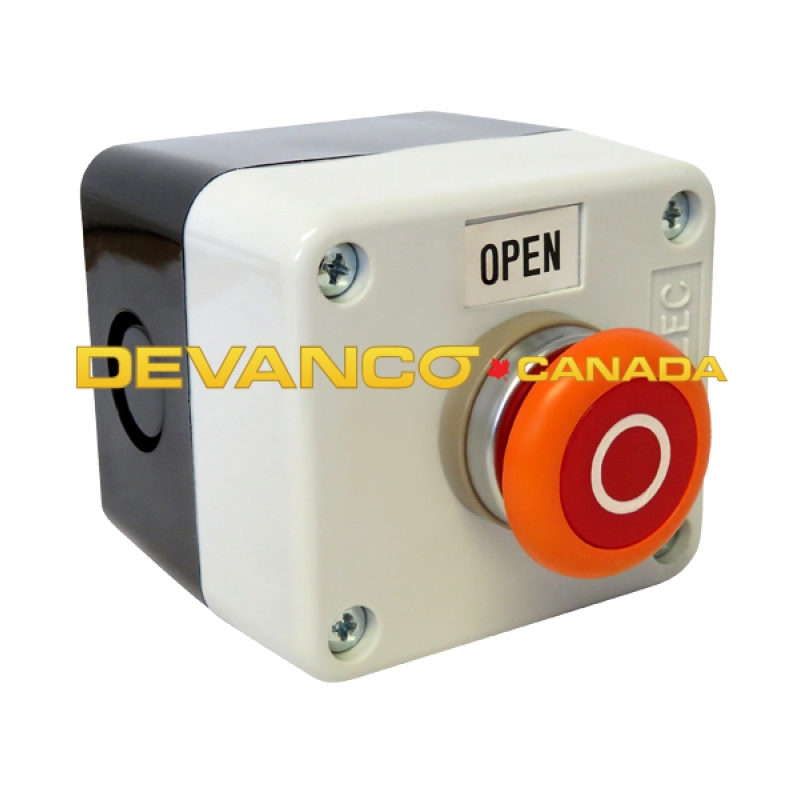

Doorlec Mushroom Push-Button Red for 1-Door

• Capable of opening one door
• NEMA 4 Enclosure
• non-lockable

Doorlec Mushroom Push-Button Red with 2 Contacts

• Capable of opening two doors or gates simultaneously
• NEMA 4 Enclosure
