Search Results

18 Products Found
Page 1 of 3 (18 total items)
Doorlec Industrial Gearhead Door Operator 3/4 HP 575V 3-Phase
GH-353-3/4
Doorlec Industrial Gearhead Door Operator 3/4 HP 575V 3-Phase
  • Extra Deavy-Duty Gearhead Industrial Operator or large Sectional or Rolling Steel Doors
  • DC-2000 Logic Board with adjustable Timer To Close Delay On Reverse and Traffic Light Control
  • Worm gear reducer 40:1 ratio for high-torque and long life
  • Solenoid Disk Brake Prevents coasting and secures the door when closed
  • TEFC (sealed) continuous-duty electric motor with overload protection
  • Optional Friction Clutch available
  • #50 roller chain from operator shaft to door shaft larger sizes available
  • Right or left installation (must be specified)
  • Floor Level Disconnect and Manual Chain Hoist in case of power failure
  • Operating speed 7 inches per second (approx.)
  • Includes 1" chain spreader part # 50535
  • 2 year warranty

Login to view pricing

Login
Doorlec Industrial Gearhead Door Operator 1 HP 208V 3-Phase
GH-383-1
Doorlec Industrial Gearhead Door Operator 1 HP 208V 3-Phase
  • Extra Deavy-Duty Gearhead Industrial Operator or large Sectional or Rolling Steel Doors
  • DC-2000 Logic Board with adjustable Timer To Close Delay On Reverse and Traffic Light Control
  • Worm gear reducer 40:1 ratio for high-torque and long life
  • Solenoid Disk Brake Prevents coasting and secures the door when closed
  • TEFC (sealed) continuous-duty electric motor with overload protection
  • Optional Friction Clutch available
  • #50 roller chain from operator shaft to door shaft larger sizes available
  • Right or left installation (must be specified)
  • Floor Level Disconnect and Manual Chain Hoist in case of power failure
  • Operating speed 7 inches per second (approx.)
  • Includes 1" chain spreader part # 50535
  • 2 year warranty

Login to view pricing

Login
Doorlec Industrial Gearhead Door Operator 1.5 HP 208V 3-Phase
GH-383-1.5
Doorlec Industrial Gearhead Door Operator 1.5 HP 208V 3-Phase
  • Extra Deavy-Duty Gearhead Industrial Operator or large Sectional or Rolling Steel Doors
  • DC-2000 Logic Board with adjustable Timer To Close Delay On Reverse and Traffic Light Control
  • Worm gear reducer 40:1 ratio for high-torque and long life
  • Solenoid Disk Brake Prevents coasting and secures the door when closed
  • TEFC (sealed) continuous-duty electric motor with overload protection
  • Optional Friction Clutch available
  • #50 roller chain from operator shaft to door shaft larger sizes available
  • Right or left installation (must be specified)
  • Floor Level Disconnect and Manual Chain Hoist in case of power failure
  • Operating speed 7 inches per second (approx.)
  • Includes 1" chain spreader part # 50535
  • 2 year warranty

Login to view pricing

Login
Doorlec Industrial Jackshaft Door Operator 2 HP 208V 3P with ECB
GH-383-2
Doorlec Industrial Jackshaft Door Operator 2 HP 208V 3P with ECB
  • Custom-designed extra heavy-duty industrial-type electric door operator
  • Worm gear reducer 40:1 ratio
  • #60 roller chain and sprockets from operator shaft to door shaft.
  • Door speed: 7 inches per second (approx.)
  • Adjustable torque limiter
  • Rotary type limit switches
  • 3-Btn control. momentary-contact type for Open Close Stop
  • Solenoid disk brake
  • Sideroom required: 24 inch minimum
  • Maximum lifting capacity: 6800 LBS

Login to view pricing

Login
Doorlec Industrial Jackshaft Door Operator 3/4 HP 208V 3P with ECB
GH-383-3/4
Doorlec Industrial Jackshaft Door Operator 3/4 HP 208V 3P with ECB
  • Custom-designed extra heavy-duty industrial-type electric door operator
  • Worm gear reducer 40:1 ratio
  • #60 roller chain and sprockets from operator shaft to door shaft.
  • Door speed: 7 inches per second (approx.)
  • Adjustable torque limiter
  • Rotary type limit switches
  • 3-Btn control. momentary-contact type for Open Close Stop
  • Solenoid disk brake
  • Sideroom required: 24 inch minimum
  • Maximum lifting capacity: 6800 LBS

Login to view pricing

Login
Doorlec Industrial Gear Head Door Operator 1 HP 208V 3P with ECB and Nema4 modification
GHW-383-1HP-RH
Doorlec Industrial Gear Head Door Operator 1 HP 208V 3P with ECB and Nema4 modification
  • Extra heavy-duty industrial-type electric door operator for damp environments.
  • Worm gear reducer 40:1 ratio
  • #50 roller chain and sprockets from operator shaft to door shaft. (#60 chain optional)
  • Door speed: 7 inches per second (approx.)
  • Adjustable torque limiter (also called friction clutch)
  • Rotary type limit switches
  • 3-Btn control (N4). momentary-contact type for Open Close Stop
  • Solenoid disk brake solenoid inside waterproof control box
  • Sideroom required: 24 inch minimum
  • Maximum Door weight: 6800 LBS

Login to view pricing

Login
Doorlec Industrial Gear Head Door Operator 2 HP 208V 3P with ECB and Nema4 modification
GHW-383-2
Doorlec Industrial Gear Head Door Operator 2 HP 208V 3P with ECB and Nema4 modification
  • Extra heavy-duty industrial-type electric door operator for damp environments.
  • Worm gear reducer 40:1 ratio
  • #50 roller chain and sprockets from operator shaft to door shaft. (#60 chain optional)
  • Door speed: 7 inches per second (approx.)
  • Adjustable torque limiter (also called friction clutch)
  • Rotary type limit switches
  • 3-Btn control (N4). momentary-contact type for Open Close Stop
  • Solenoid disk brake solenoid inside waterproof control box
  • Sideroom required: 24 inch minimum
  • Maximum Door weight: 6800 LBS

Login to view pricing

Login
Doorlec Industrial Gear Head Door Operator 3 HP 230V 3P with ECB and Nema4 modification
GHW-383-3-230V
Doorlec Industrial Gear Head Door Operator 3 HP 230V 3P with ECB and Nema4 modification
  • Extra heavy-duty industrial-type electric door operator for damp environments.
  • Worm gear reducer 40:1 ratio
  • #50 roller chain and sprockets from operator shaft to door shaft. (#60 chain optional)
  • Door speed: 7 inches per second (approx.)
  • Adjustable torque limiter (also called friction clutch)
  • Rotary type limit switches
  • 3-Btn control (N4). momentary-contact type for Open Close Stop
  • Solenoid disk brake solenoid inside waterproof control box
  • Sideroom required: 24 inch minimum
  • Maximum Door weight: 6800 LBS

Login to view pricing

Login
Doorlec Explosion Proof Gear Head 1 HP 120V 1PH ECB Right Hand
GHX-311-1-RH
Doorlec Explosion Proof Gear Head 1 HP 120V 1PH ECB Right Hand
  • Nema 7/9 control box
  • Electrical connections from motor to control box consists of hazardous location certified fittings
  • NEMA 7/9 O/C/S push-button station included

Login to view pricing

Login
Doorlec Explosion Proof Gear Head 3/4 HP 120V 1PH ECB Left Hand
GHX-311-3/4-LH
Doorlec Explosion Proof Gear Head 3/4 HP 120V 1PH ECB Left Hand
  • Nema 7/9 control box
  • Electrical connections from motor to control box consists of hazardous location certified fittings
  • NEMA 7/9 O/C/S push-button station included

Login to view pricing

Login
Doorlec Explosion Proof Gear Head 3/4 HP 120V 1PH ECB Right Hand
GHX-311-3/4HP-RH
Doorlec Explosion Proof Gear Head 3/4 HP 120V 1PH ECB Right Hand
  • Nema 7/9 control box
  • Electrical connections from motor to control box consists of hazardous location certified fittings
  • NEMA 7/9 O/C/S push-button station included

Login to view pricing

Login

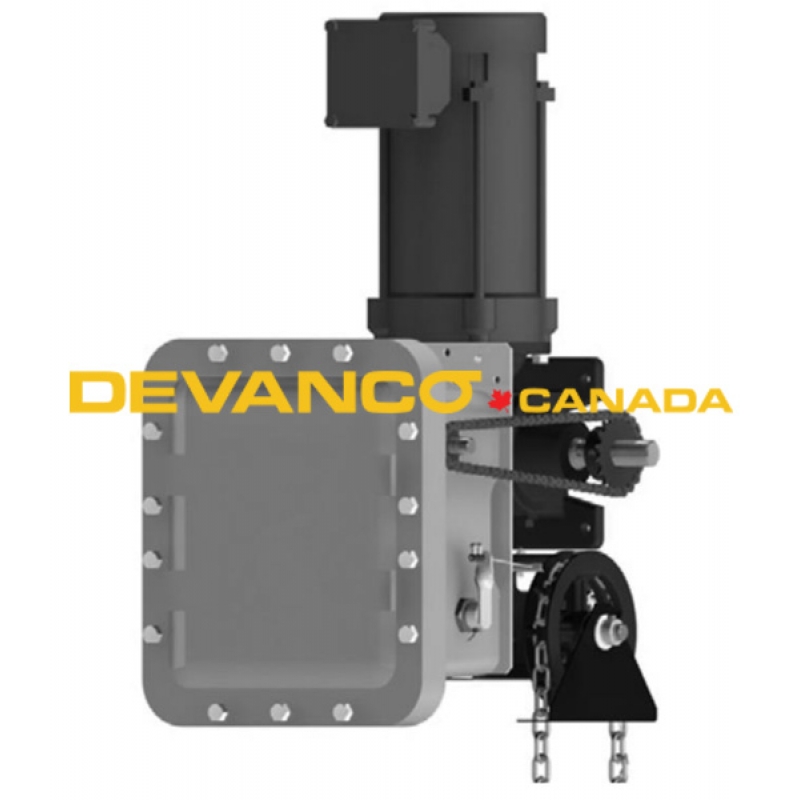

Doorlec Explosion Proof Gear Head 3/4 HP 230V 1PH ECB Right Hand
GHX-321-3/4HP-RH
Doorlec Explosion Proof Gear Head 3/4 HP 230V 1PH ECB Right Hand
  • Nema 7/9 control box
  • Electrical connections from motor to control box consists of hazardous location certified fittings and NEMA 7/9 O/C/S push-button station

Login to view pricing

Login
Doorlec Explosion Proof Gear Head 1-1/2 HP 575V 3PH ECB Right Hand
GHX-353-1.5HP-R
Doorlec Explosion Proof Gear Head 1-1/2 HP 575V 3PH ECB Right Hand
  • Nema 7/9 control box
  • Electrical connections from motor to control box consists of hazardous location certified fittings
  • NEMA 7/9 O/C/S push-button station included

Login to view pricing

Login
Doorlec Explosion Proof Gear Head 1 HP 575V 3PH ECB Right Hand
GHX-353-1HP-RH
Doorlec Explosion Proof Gear Head 1 HP 575V 3PH ECB Right Hand
  • Nema 7/9 control box
  • Electrical connections from motor to control box consists of hazardous location certified fittings
  • NEMA 7/9 O/C/S push-button station included

Login to view pricing

Login
Doorlec Explosion Proof Gear Head 3/4 HP 575V 3PH ECB Left Hand
GHX-353-3/4HP-LH
Doorlec Explosion Proof Gear Head 3/4 HP 575V 3PH ECB Left Hand
  • Nema 7/9 control box
  • Electrical connections from motor to control box consists of hazardous location certified fittings
  • NEMA 7/9 O/C/S push-button station included

Login to view pricing

Login
Doorlec Explosion Proof Gear Head 1 HP 208V 3PH ECB Left Hand
GHX-383-1HP-LH
Doorlec Explosion Proof Gear Head 1 HP 208V 3PH ECB Left Hand
  • Nema 7/9 control box
  • Electrical connections from motor to control box consists of hazardous location certified fittings and NEMA 7/9 O/C/S push-button station

Login to view pricing

Login
Doorlec Explosion Proof Gear Head 3/4 HP 208V 3PH ECB Left Hand
GHX-383-3/4HP-LH
Doorlec Explosion Proof Gear Head 3/4 HP 208V 3PH ECB Left Hand
  • Nema 7/9 control box
  • Electrical connections from motor to control box consists of hazardous location certified fittings and NEMA 7/9 O/C/S push-button station

Login to view pricing

Login
Doorlec Explosion Proof Gear Head 3/4 HP 208V 3PH ECB Right Hand
GHX-383-3/4HP-RH
Doorlec Explosion Proof Gear Head 3/4 HP 208V 3PH ECB Right Hand
  • Nema 7/9 control box
  • Electrical connections from motor to control box consists of hazardous location certified fittings and NEMA 7/9 O/C/S push-button station

Login to view pricing

Login
Page 1 of 3 (18 total items)
