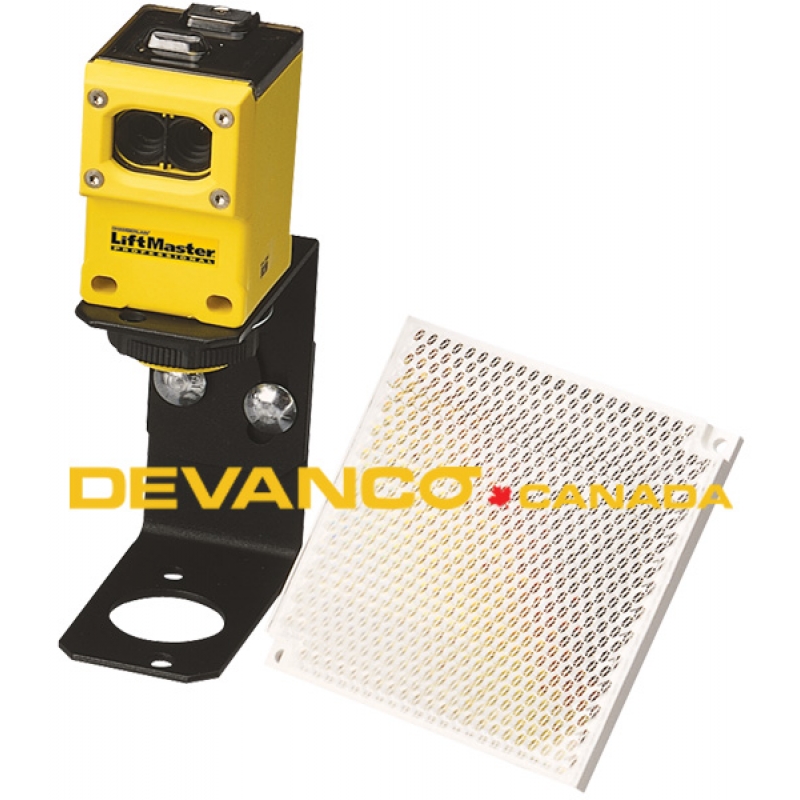

LiftMaster Retro-Reflective Commercial Protector System with Nema 4 Enclosure ** DISCONTINUED

• Utilizes a sending/receiving retro-reflective photo-eye and a specially designed polarized reflector that increases obstruction detection reliability
• Polarized photo-eye design for a safe retro-reflective photo-eye system
• Designed as a normal open circuit but not a self-monitoring system (does not incorporate industrial code technology)
• Range up to 30 ft - indoor use only
• 24VAC operation
• Color: Yellow
• Receiving Eye - A: 50-50997 Sending Eye - A: 50-50998

LiftMaster Monitored Retro-Reflective Photo Eye with Nema 4 Enclosure for Commercial Door Applications

LiftMaster Commercial Protector System Eyes

• For LiftMaster Logic 2 3 4 & 5 commercial operators only
• NOT for outdoor applications
• Allows activation of the timer-to-close
• Mounting hardware included
• Sensing distance of 30 feet
• CDO 2010 Ready
• Receiving Eye - A: 001D6857-1 Sending Eye - A: 001D6857-2
• Replaces CPS-L

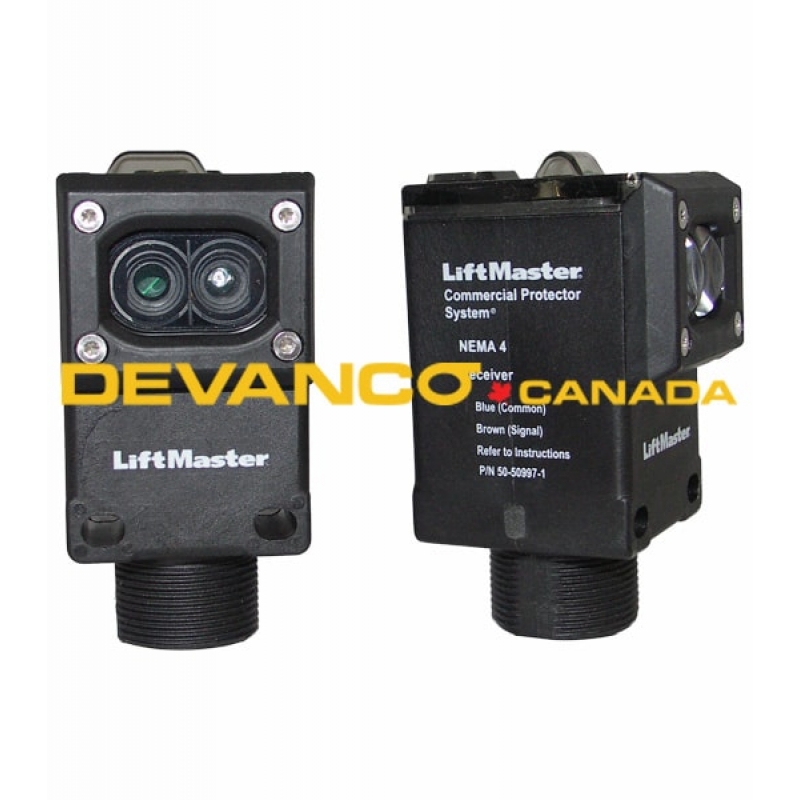

LiftMaster Commercial Protector System Thru-Beam Eyes NEMA4

• Waterproof photoeyes.
• for direct connect to operators with Logic boards. L3 L4 L5
• Receiving Eye - A: 50-50997 Sending Eye - A: 50-50998
• These eyes will also work on the Micanan UL325 monitored operators

LiftMaster Commercial Protector System Thru-Beam Eyes NEMA4 Black

• Waterproof photoeyes.
• Monitored Thru Beam Photocell
• For direct connect on HCT

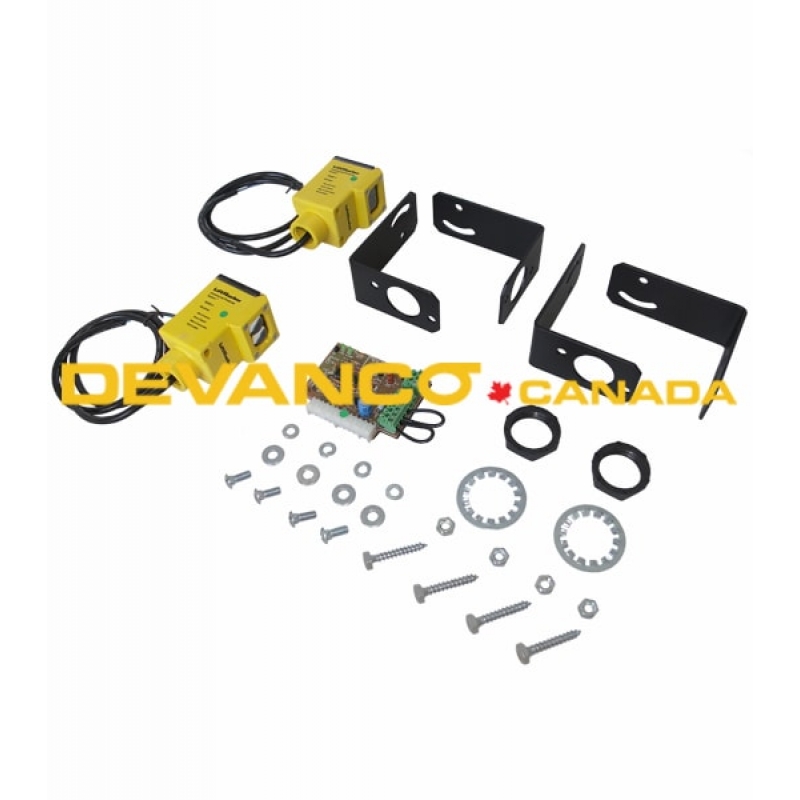

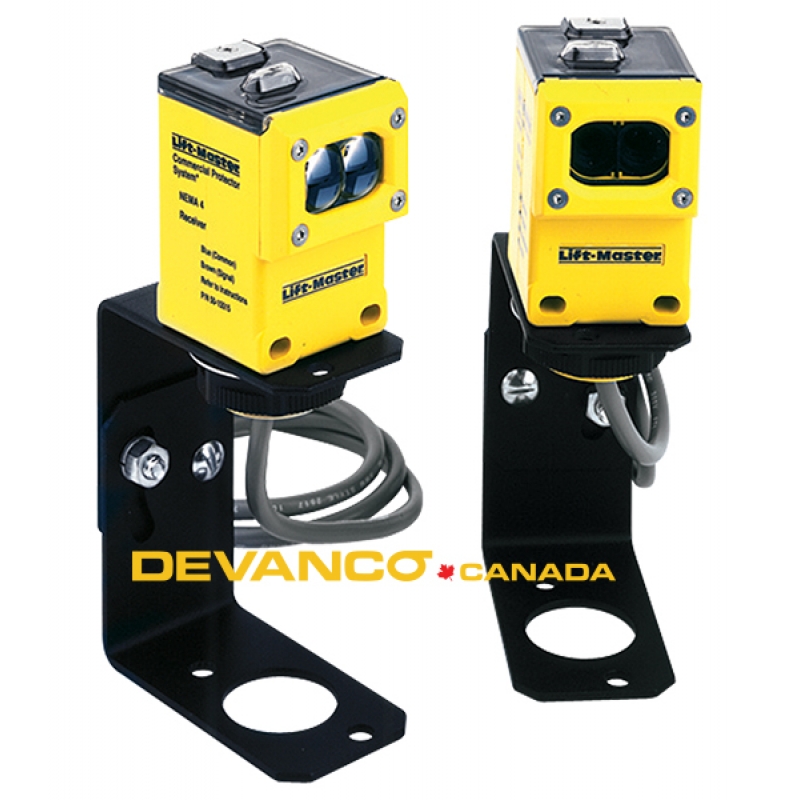

LiftMaster Option Card with CPS-UN4 Eyes for applications requiring 2 sets of photocells

• For applications requiring two sets of photoeyes in a damp location
• Range up to 45ft water dust and corrosion proof eyes (Nema 4x rating)
• Works with Logic 3 4 5 Commercial Operators
• Includes Durable steel brackets - floor or track mounting
• Kit Inludes one set of CPS-UN4 and one CPS3 card ( CPSIII )

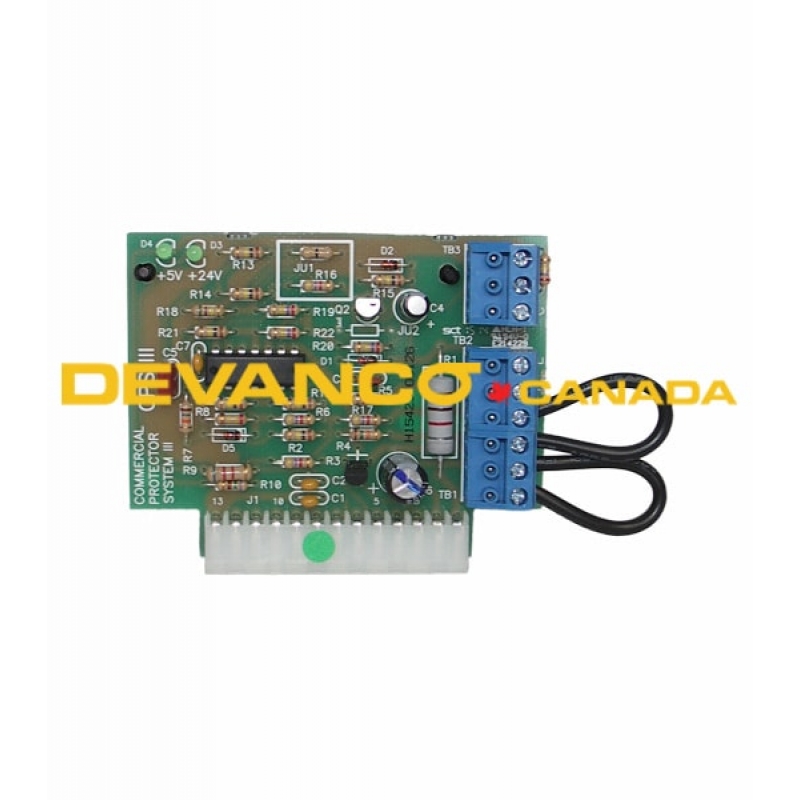

LiftMaster Option Card Only (41K0811)

• Works with all commercial Logic versions L2 L3 L4 L5
• Use with CPS-U to add a second set of eyes to the operator
• Allows activation of Timer-To-Close without CPS-U
• Simply plugs into Logic board
• Cut resistors on JU1 & R16 to activate timer feature
• Same as 041K0811

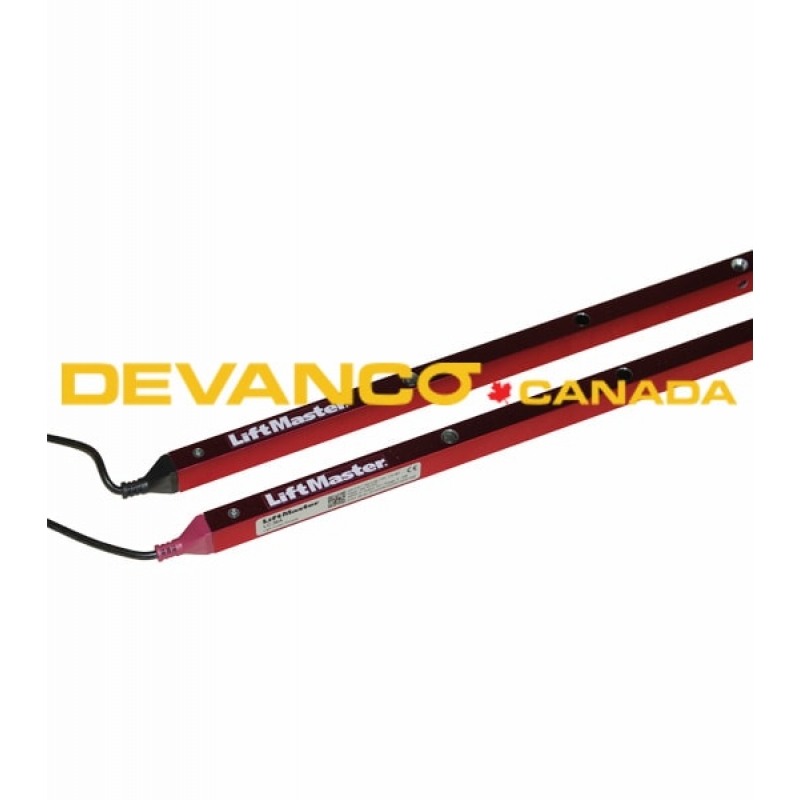

LiftMaster Light Curtain **discontinued

• Must be used with a primary entrapment device and be installed along the vertical plane of the door.
• Color-coded transmitter and receiver for easy identification.
• Provides 36 in. of effective height coverage to increase the area of protection.
• Multiple sets of LC-36A curtains can be mounted on a door providing coverage flexibility.
• Maximum door width of 33 ft. ensures coverage for most commercial doors.
• Eight (8) LEDs per side and 22 cross-beams produce an invisible curtain of infrared light for maximum detection capability.
• Solid LED lights indicate correct sensor alignment simplifying installation.
• Green LED on receiver flashes when interrupted providing visible interrupt detection.

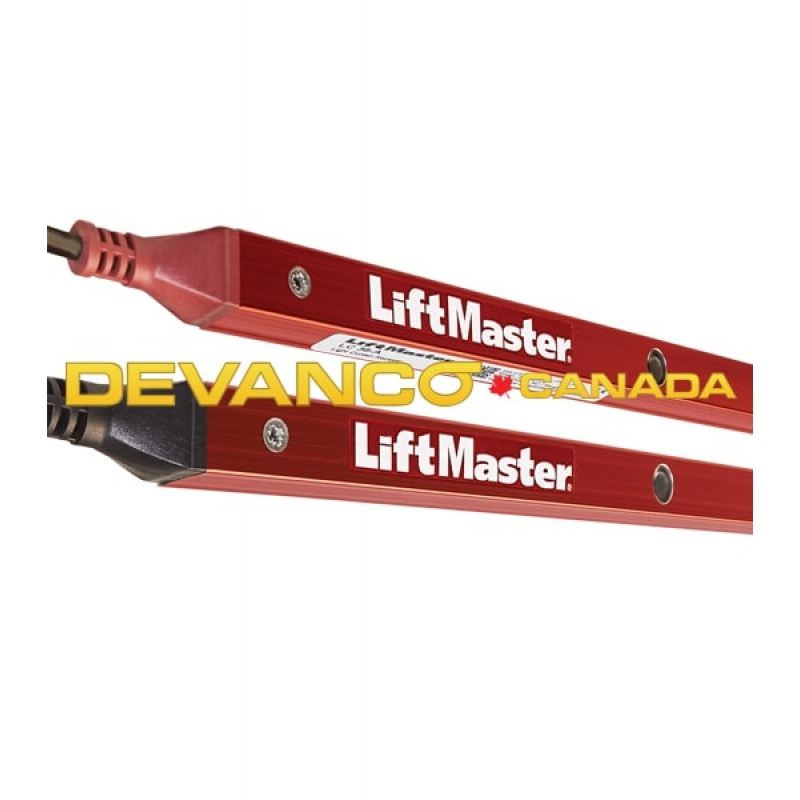

LiftMaster Light Curtain Monitored

• The Monitored Light Curtain is a primary safety entrapment protection device that is compliant with UL 325.
• IP67 Water-resistant housing anodized aluminum corrosion resistant
• Operating Temperature: -40° F to +140° F (-40° C to +60° C)
• Liftmaster Compatibility: LOGIC 5.0 Medium-Duty DDO8900W / LJ8900W / LJ8950W / ATSWVFOH HPH1 / HPH2 HCTDCUL Fire Door Egress

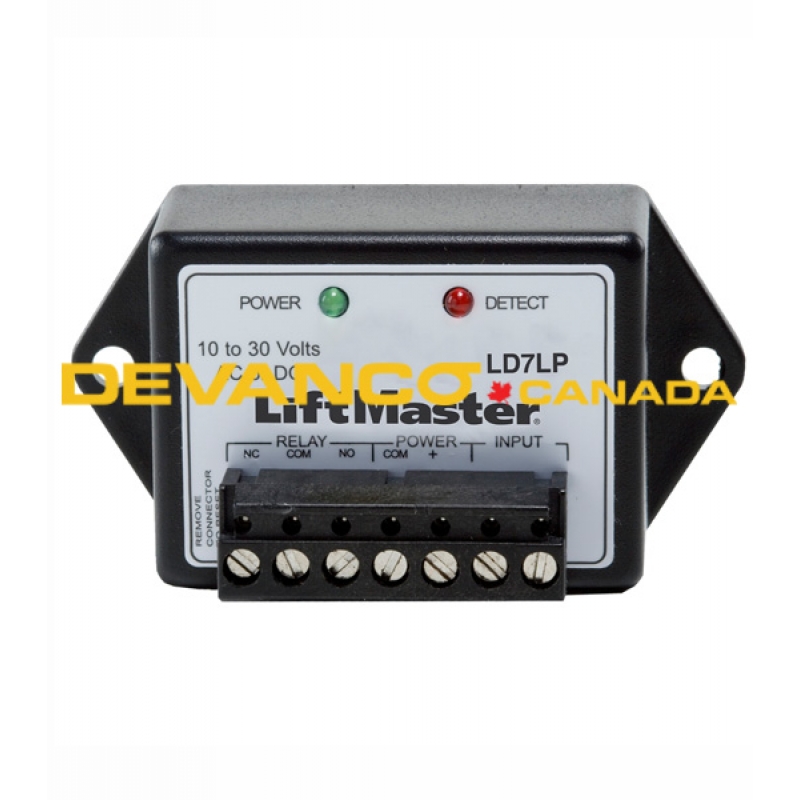

LiftMaster 10-30VAC/DC Low Power Loop Detector (50-DSP7LP)

• 10-30 VAC/DC low power fail-safe loop detector

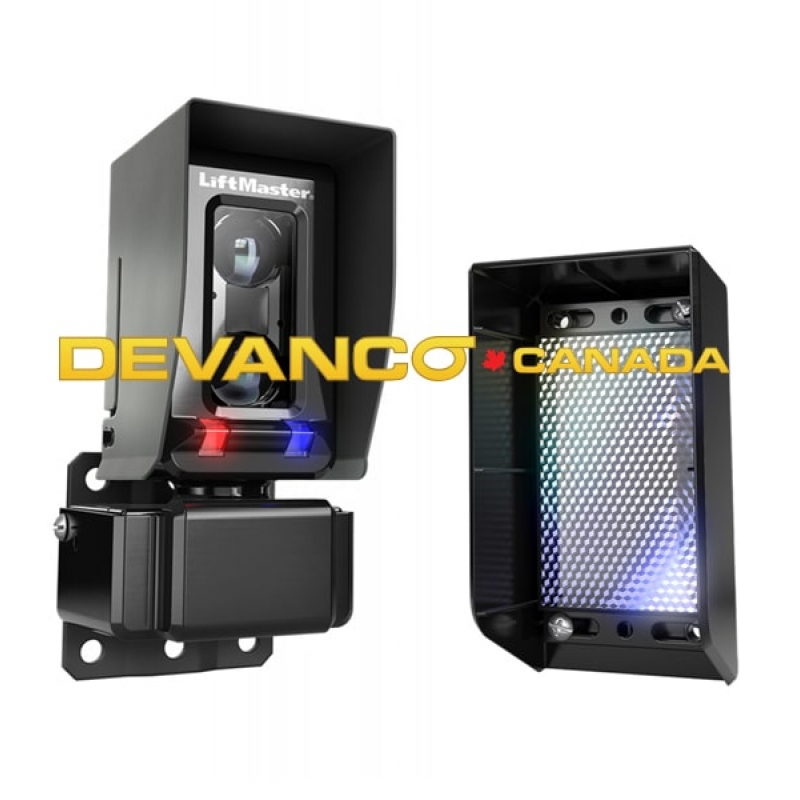

LiftMaster Monitored Retro Reflective Photo Eye w/Heater 2018 UL325

• Features integrated diagnostics with our 2018 UL® 325 Gate Operators.
• Versatile Solution for entrapment protection.
• Long-Range Sensing Distance of up to 50 ft. (LMRRUL)
• Built-In Heater for dependable performance in most environments.
• Increased Beam Angle for simple reliable alignment.
• Versatile Gimble Bracket for fine alignment and adjustability.
• Alignment Strength Indicator signals optimal beam alignment.
• Multi-View Led Lights indicate sensor status simplifying installation.
• Secure Mounting Hardware for versatile performance in harsh applications.
• Hoods Included for durability and shield from elements.
• NEMA 4X Rated for superior weather resistance.
• Tested and evaluated by UL and meet UL 325 requirements
• Temperature Specifications: -40°F (-40°C) to 149°F (65°C)
• Heater: Green/White Wires: 10–40V DC or 8–28V AC 2 Watts Max. 170mA at 120V DC/AC 85mA at 24V DC/AC
• Interface: 4-Wire connection (2 for Eye; 2 for heater)

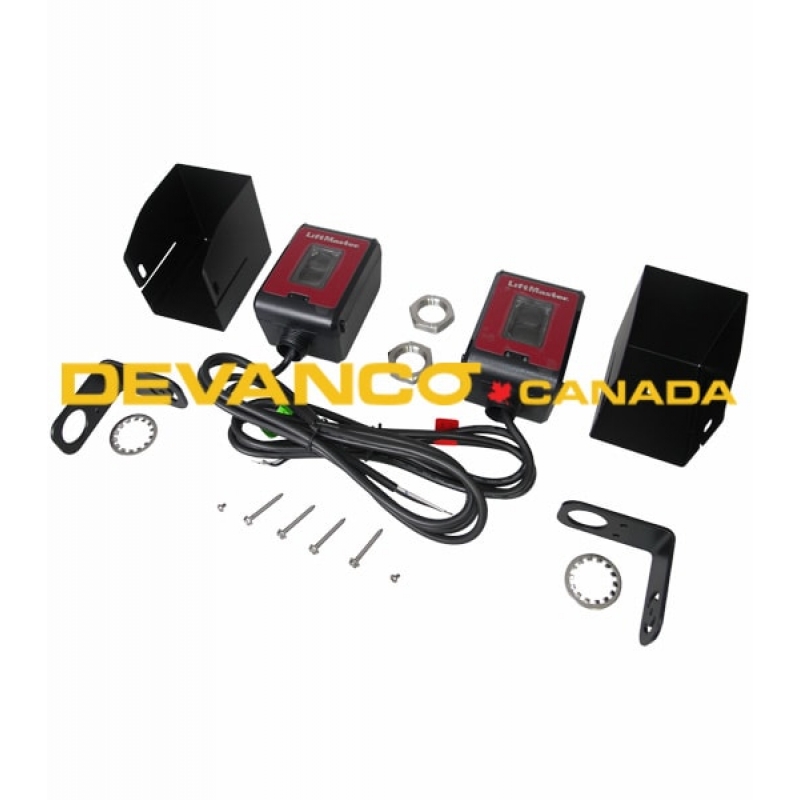

LiftMaster Monitored Through Beam Photo Eye Nema 4X ** To exent of inventory

• Meets 2016 UL 325 requirements
• Long Range powerful beam provides reliable performance.
• Sensing distance up to 90 ft.
• Anti-Fogging Lens
• NEMA 4X rated
• Wireless network mode eliminates the need to wire between operators in dual-gate applications.
• Easy to see LED indicators (2) for instant feedback emitter-power receiver-misaligned or blocked.
• Integrated Diagnostics with Gate Operator Speed Installation
• Compatible with LiftMaster Gate Operators with Monitored Safety Inputs
• Steel sensor hoods 6 ft. wire brackets and mounting hardware included

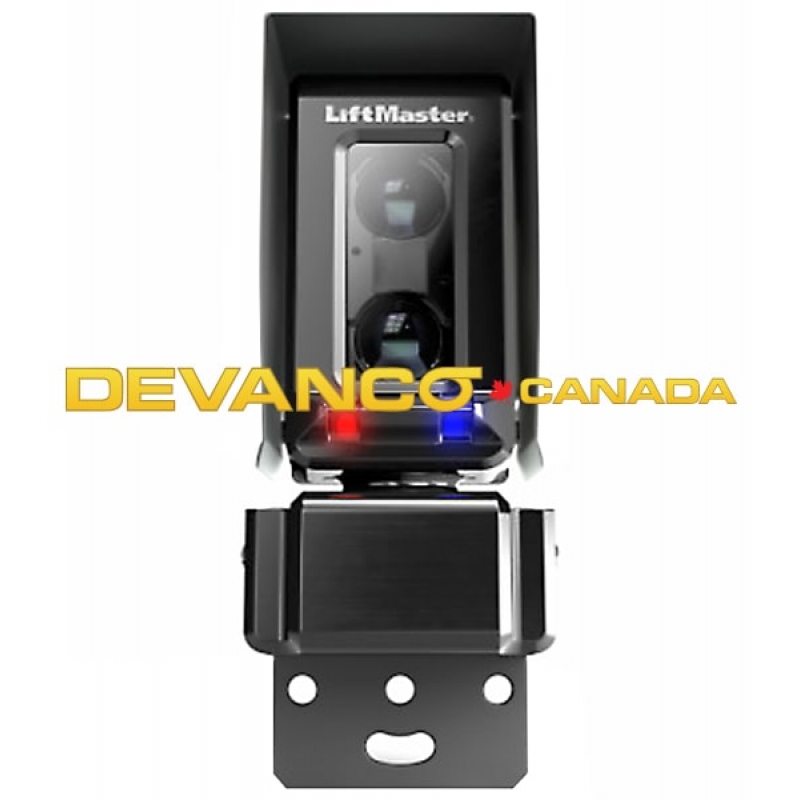

LiftMaster Monitored Through Beam Photo Eye w/ Heater Nema 4X

• Tested and evaluated by UL and meet UL 325 requirements.
• Long Range powerful beam provides reliable performance.
• Sensing distance up to 90 ft.
• Anti-Fogging Lens
• NEMA 4X rated
• Wireless network mode eliminates the need to wire between operators in dual-gate applications.
• Easy to see LED indicators (2) for instant feedback emitter-power receiver-misaligned or blocked.
• Integrated Diagnostics with Gate Operator Speed Installation
• Compatible with Gate operators with Monitored Safety Inputs (8.2K Ohms)
• Steel sensor hoods 6 ft. wire brackets and mounting hardware included
• Features integrated diagnostics with our 2018 UL® 325 Gate Operators.
• 4-Wire connection (2 for Eye; 2 for heater)

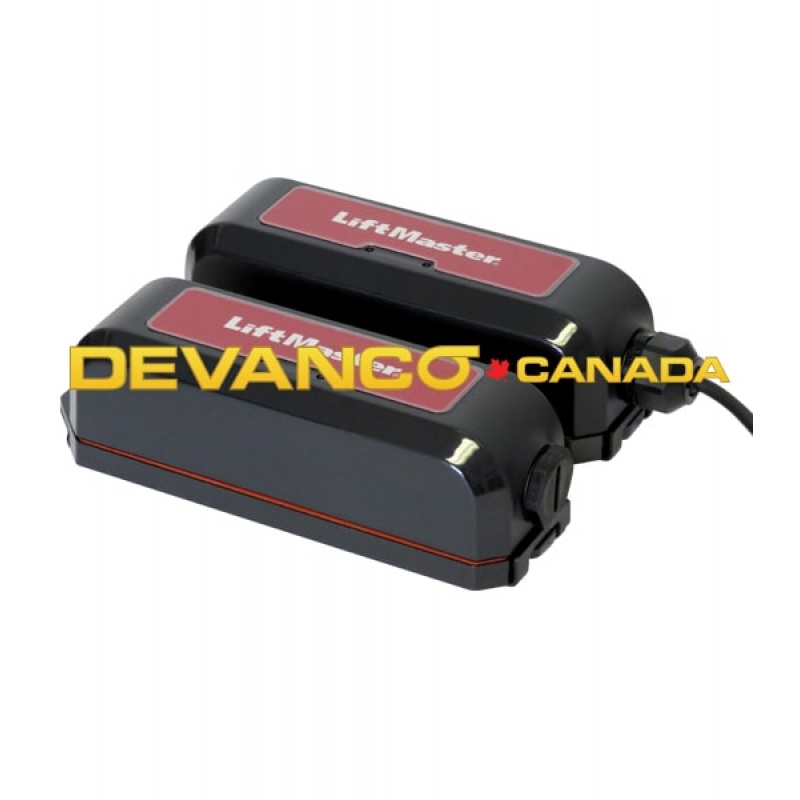

LiftMaster Wireless Edge Kit Monitored

• Meets 2016 UL 325 requirements
• low-energy Bluetooth® transmission up to 130 ft. range
• Integrated Diagnostics with Gate Operator Speed Installation
• Protects up to 8 entrapment points
• Receiver accepts up to 4 transmitters
• Transmitter accepts up to 2 wired resistive edges
• Harness and connector included on receiver for ease of install
• Battery life 2 years
• NEMA 4X rated
• Easy to see LED indicators for instant feedback receiver-power-edge contacted
• Receiver part # 75-38090 Transmitter part # 75-38076
• Compatible with LiftMaster Gate Operators with Monitored Safety Inputs LMWETXU Transmitter and L50 and S50 Monitored Resistive Edges
• Includes: wireless edge receiver and transmitter 2 AA lithium batteries harness and mounting hardware

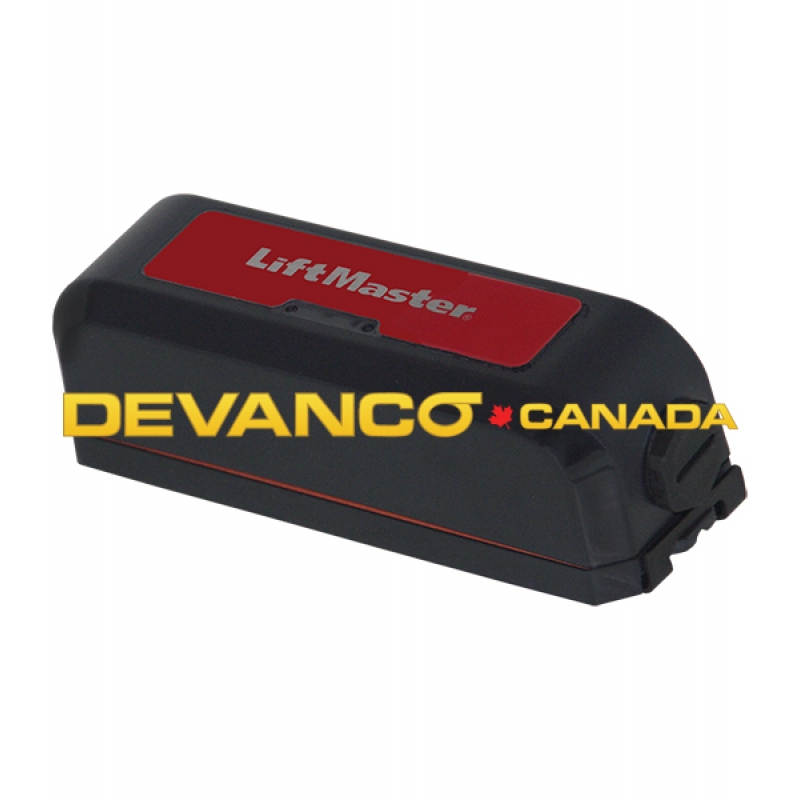

LiftMaster Wireless Edge Transmitter Monitored

• Connects to wireless edge receiver using low-energy Bluetooth transmission
• Sensing distance up to 130 ft
• Transmitter accepts up to 2 wired resistive edges
• Battery life 2 years
• NEMA 4X rated
• Compatible with LMWEKITU Wireless Edge Kit and L50 and S50 Monitored Resistive Edges
• Includes: wireless edge transmitter 2 AA lithium batteries and mounting hardware

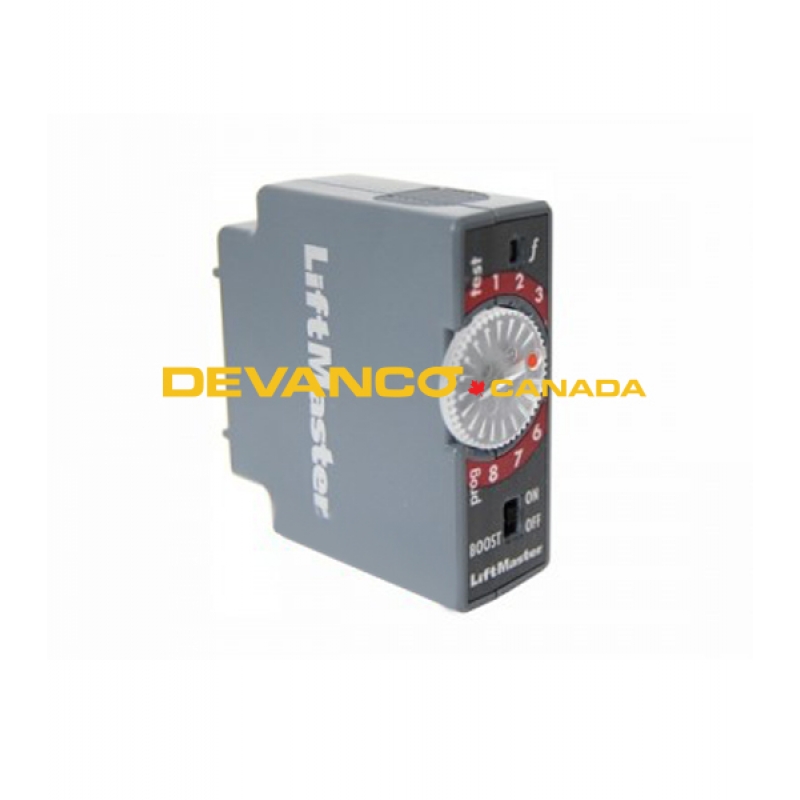

LiftMaster plug-in loop detector

• Plug-in Loop detector for CSW24V CSL24V AND LA500
• Includes diagnostic and test feature
• 12VDC/3mA power draw
• For exit interrupt or shadow loop applications
• Activates only when a vehicle passes over a loop
• 8 sensitivity levels plus boost to ensure that vehicles are easily identified

LiftMaster CAPXL Loop Detector Input Board

• Automatically trigger a phone call to a guard or office when a guest arrives
• Mounts inside of CAPXL
• Works with CAPXL and LOOPDETLM Plug In Loop Detector (Each sold separately.)
• Operating Temperature -20°F to 130°F (-29°C to 54°C)
• Dimensions: 2.8” x 2.3”

LiftMaster 2" x 2" PVC Channel 16ft

• Connects the door to the edge kit. 16' total (sectional doors only).

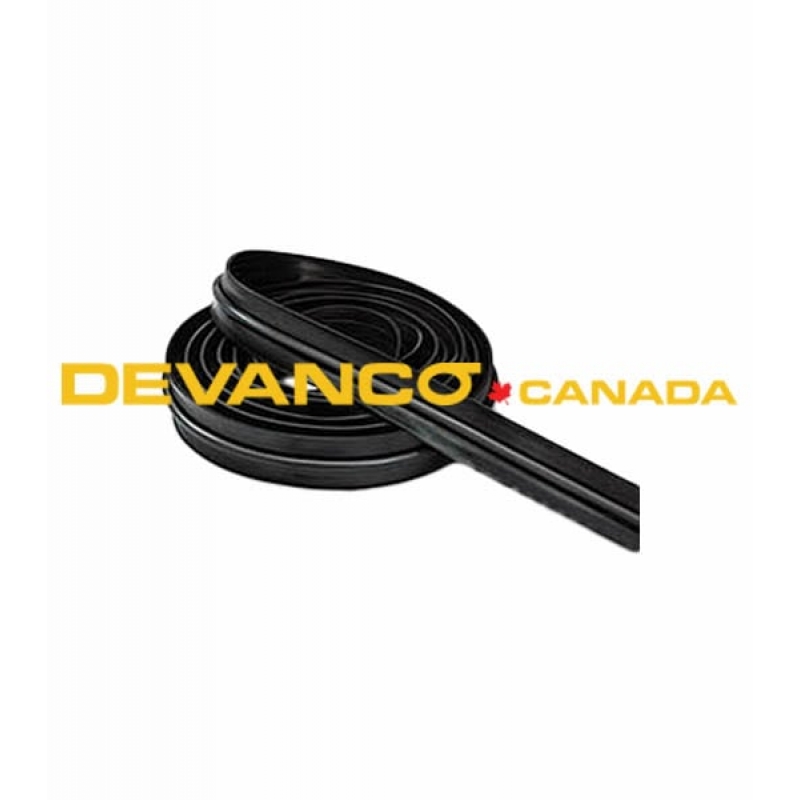

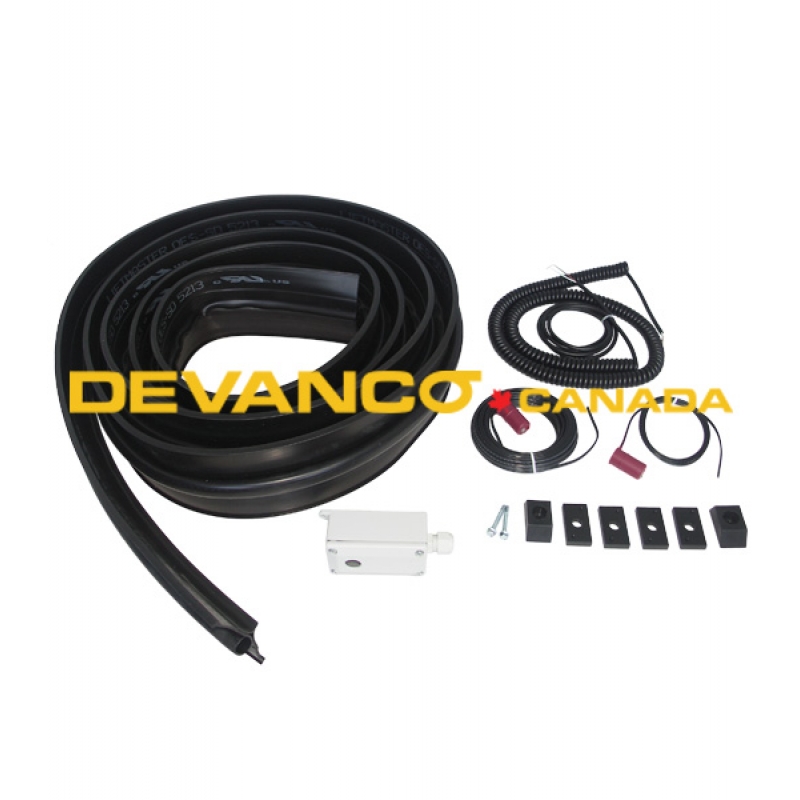

LiftMaster Optical Edge System 16ft

• Sectional door edge kit 16ft (4.9M)

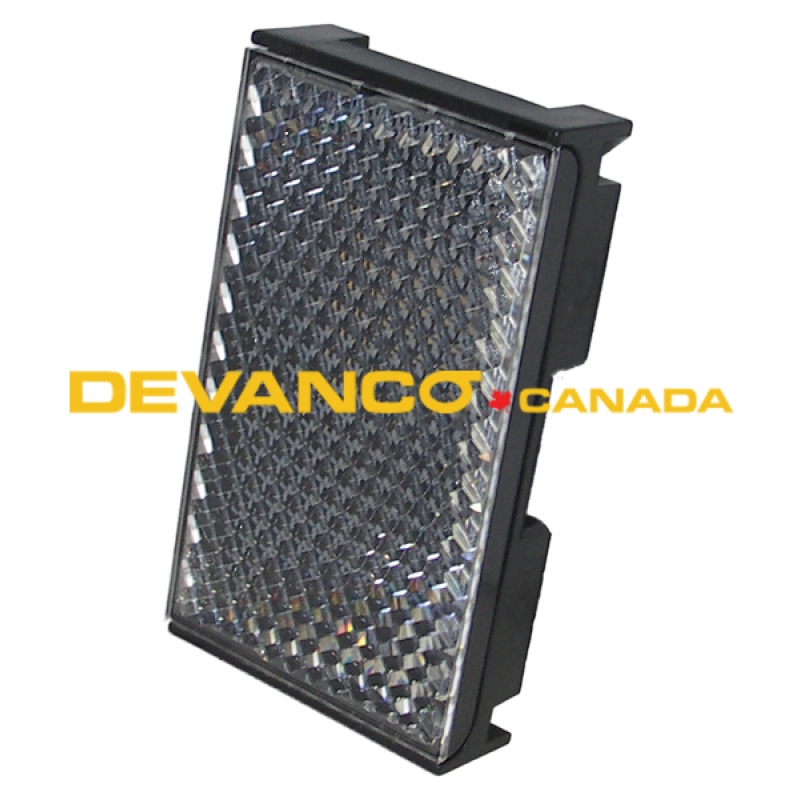

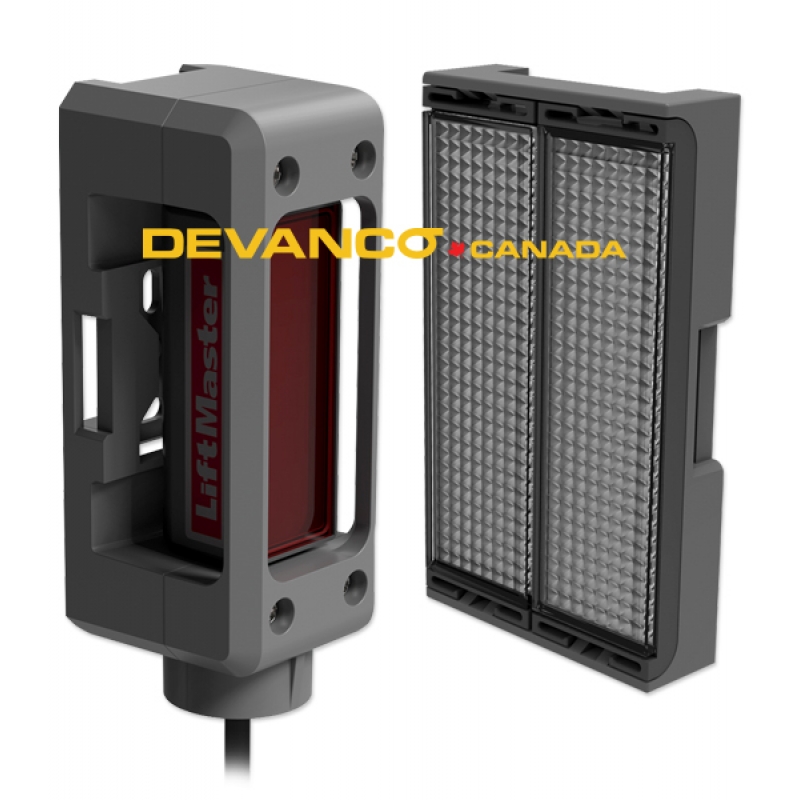

LiftMaster Reflector with Support Housing

• Replacement reflector for the CPS-RPEN4 photo-eyes
