Linear Plug-In Loop Detector LP PVT LBL

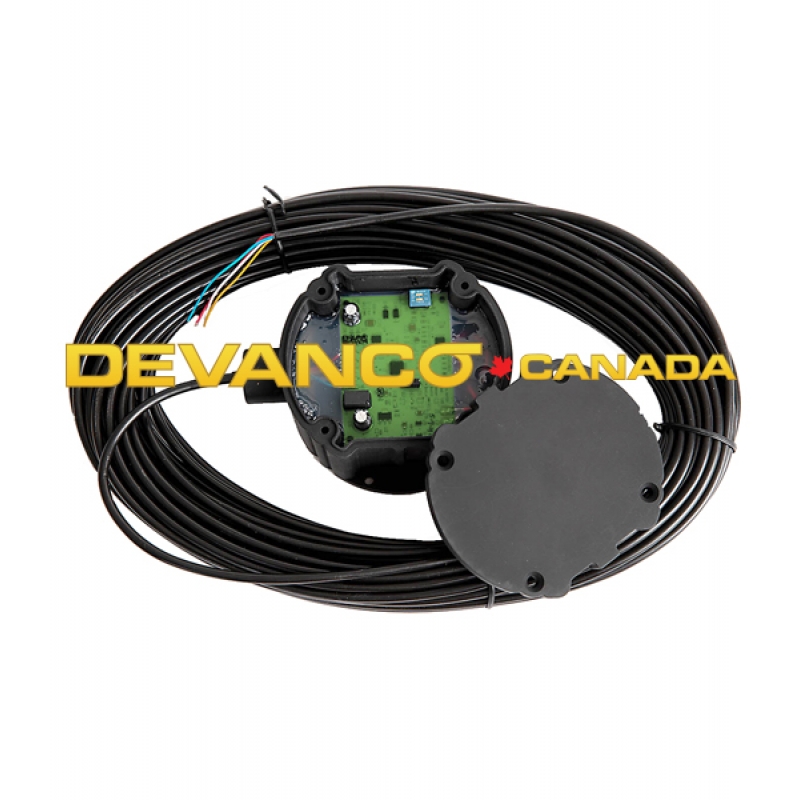

LiftMaster Sensing Probe Free Exit 100ft Lead

• Self-contained free exit system designed to detect moving vehicle and open your automatic gate.
• Can be installed above or below ground
• Connects directly to any gate operator without an external output board.
• Works with powered or solar gates.
• SPECIFICATIONS: Cable Lead Length: 100 ft.
• Power Requirements: 8-24 VAC oe 8-30 CSX
• Standby Current: 30-70uA
• Alarm Current: 30 to 40mA
• Enclosure Rating: IP67

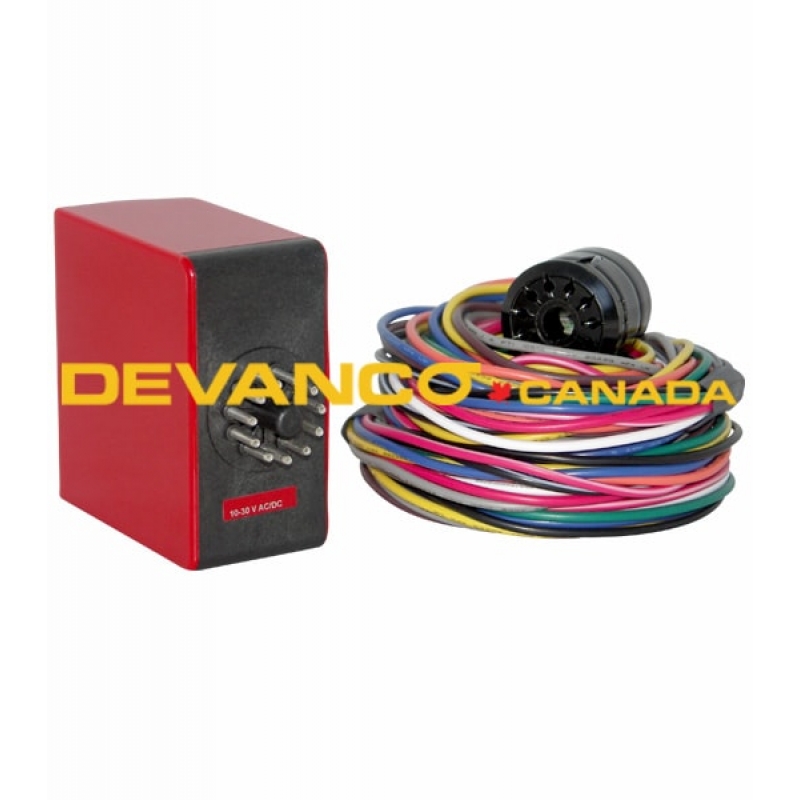

PEEK Vehicle Loop Detector 24V with Harness Nema 1 ** Discontinued

• Enclosed requires separate 24VAC power.
• Wiring harness with plug for detector included.
• OPEN only (all LiftMaster operators) or SAFETY/HOLD OPEN only (operators with type B2 T TS or T1 control wiring) when vehicle passes over loop wire
• Requires a loop of wire embedded in the ground to connect to the detector.
• Requires 2-wire output connection to door operator and 24VAC power
• Also known as: G50625S24

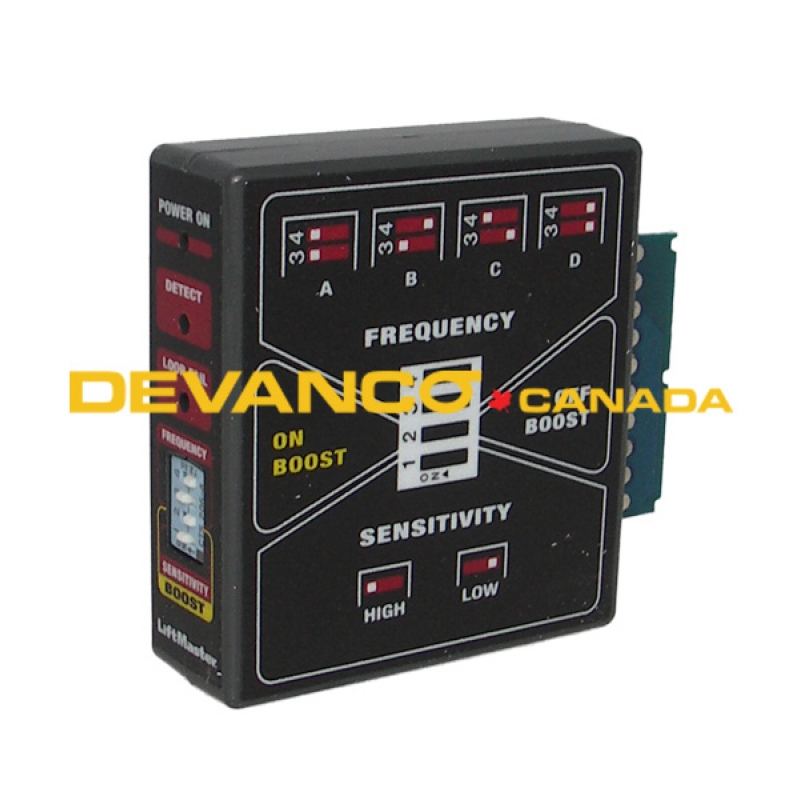

LiftMaster Elite Plug-In Loop Detector

• For use with Omni Control board available on the Chamberlain commercial line.

EMX Buried Driveway Alert Sensor XC101-LV Probe Sold Separately (CS101)

• The CarSense 101 provides a solution for many vehicle detection challenges. Where safety is an issue the CarSense 101 detects moving vehicles in blind areas along a driving path and actuates warning lights.
• For access control applications requiring free exit the CarSense 101 detects vehicles and actuates gates overhead doors and other parking barriers.
• Controls and indicators are mounted on front panel
• Available in 9 - 41 VDC 6 - 29 VAC.
• Low 2.5 mA standby current consumption makes it an excellent choice for solar power applications.
• Housed in a small relay-type housing
• Surge protection
• Use with either Probe-50 Probe-100 or Probe-150

EMX Car Sense Vehicle Motion Detector ** Discontinued Offer VMD202 instead

• Low voltage used for automatically opening gate when exiting property without requiring the use of a remote control transmitter key pad or any other operator control device.
• Can be located up to 150' from the gate. Senses automobiles on a driveway up to 12' wide moving more than 5 m.p.h.
• A second probe can be connected in parallel for additional coverage or for automatic opening in or out.
• Available in a five wire (recommended for use with GTO operators) and a three wire version.
• The CarSense 202 is buried in the ground so it will not be noticed by a potential intruder or vandals.
• The CarSense 202 accepts a wide range of power input of 9 - 41 VDC and 6-29 VAC. The low current consumption of 250uA and 12mA detected make the CarSense 202 Slim a great choice for solar applications

Automatic Systems Option Double Limit Switch

Automatic Systems Option 1 Kit 2 LED Lights on Arm

• Increases visibility of the arm on BL229 gate operator

Automatic Systems Red Arm Light - 2 Sets

• Increases visibility of the arm on BL229 gate operator

Automatic Systems 3 Kits of Two LED Lights on Arm Option

• Increases visibility of the arm on BL229 gate operator

Automatic Systems Single Channel Loop Detector

• Works with the BL229 gate op. logic control

Automatic Systems Kit for Breakaway Arm BL229 Option ** Price by Quote Only

• This is an option for the BL229 arm

Automatic Systems Safety Edge for BL229 11'-6 (EABLOP/148)

Automatic Systems Safety Edge for BL229 13'

Automatic Systems Safety Edge for BL229 14'-9" (EABLOP/150)

Automatic Systems Safety Edge for BL229 16'-5"

Automatic Systems Loop Detector for Logic Board with Drive

• Feig Double Channel Loop Detector Option for AS1620 which is the new logic board with drive for the BL229

Nortek Mighty Mule Photo Beams 12V Pair

• For Mighty Mule swing and slide gate openers

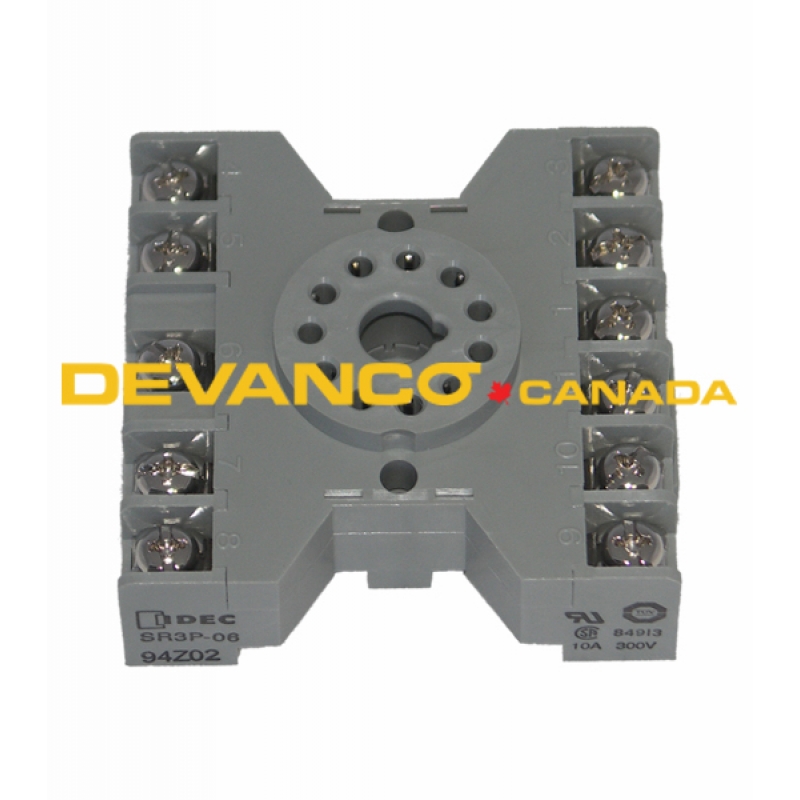

EMX Base Socket 11-Pin DIN Rail Mountable Black (Was formally Grey)

• For use with D-TEK detectors (most commonly used)
• Hourglass shaped

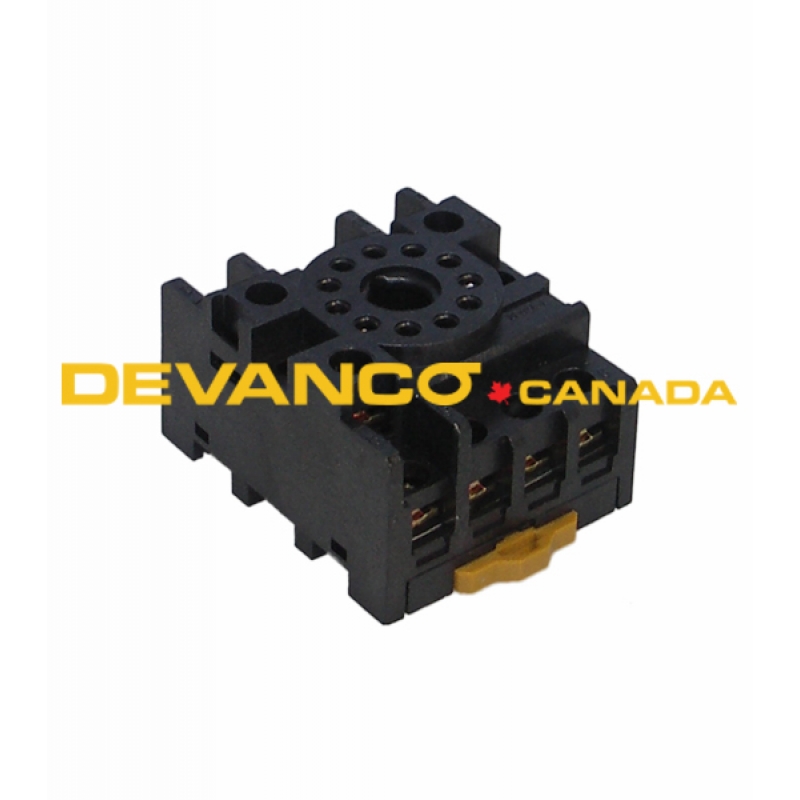

EMX Base Socket 11-Pin DIN Rail Mountable Black Block Style

• For use with D-TEK detectors
• Special Order Only
• Narrow profile
